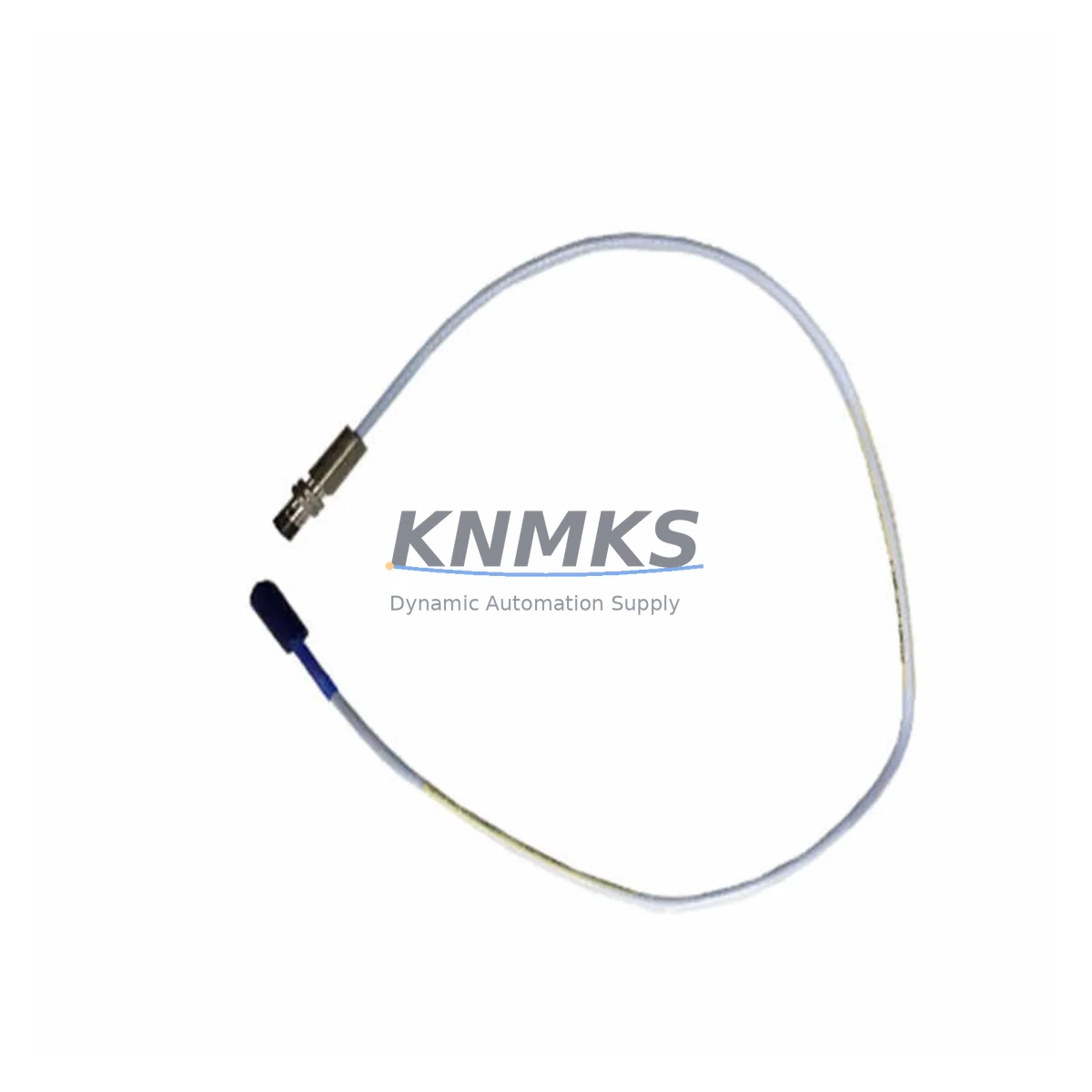

Bently Nevada 330106-05-30-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330106-05-30-05-02-00 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330106-05-30-05-02-00 is a ruggedized, reverse-mount eddy current proximity probe from the 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in critical rotating machinery applications. Designed to operate reliably in high electromagnetic interference (EMI), high-temperature, high-vibration, and chemically aggressive environments, this probe is a cornerstone component in machinery protection systems across heavy industry.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical mills, and offshore platforms — unplanned machinery downtime caused by undetected shaft vibration, rotor displacement, or bearing wear can result in catastrophic equipment failure and significant safety hazards. The 330106-05-30-05-02-00 addresses these risks directly by delivering high-resolution, real-time proximity measurements with exceptional signal stability, even under severe electrical noise and mechanical stress conditions.

Its reverse-mount configuration allows installation in confined machine housings where standard probes cannot be positioned, making it the preferred choice for turbine casings, compressor frames, and gearbox assemblies where access is restricted but monitoring is non-negotiable. The probe’s 5 mm tip diameter and 30 mm cable extension are precisely matched to the 3300 XL signal conditioning architecture, ensuring calibrated output linearity and eliminating signal drift that could trigger false trips or — more critically — mask genuine fault conditions in safety-critical interlocks.

Signal integrity is maintained through the probe’s shielded, armored cable construction, which suppresses capacitive coupling and ground loop interference common in high-voltage switchgear rooms and variable-frequency drive (VFD) environments. When paired with the Bently Nevada 3300 XL 8mm Extension Cable and a compatible 3300 XL Proximitor Sensor, the system forms a complete, calibrated measurement chain that meets API 670 machinery protection standards — the benchmark for safety-critical rotating equipment monitoring in the oil and gas sector.

In control cabinet environments where space, heat, and electromagnetic density are constant challenges, the 330106-05-30-05-02-00 integrates cleanly with Bently Nevada 3500 Series Rack Monitors for centralized vibration, position, and speed monitoring. The 3500 rack’s modular I/O architecture allows the proximity probe signal to feed directly into safety-rated trip modules, enabling automatic machine shutdown upon detection of abnormal shaft displacement — a critical layer of protection in compressor trains, steam turbines, and pump stations operating under continuous load.

For facilities managing legacy DCS or PLC-based control architectures, the probe’s analog output is fully compatible with Bently Nevada 3300 Series signal conditioners and can be interfaced with Rockwell Automation ControlLogix safety I/O modules or Siemens S7-300/400 analog input cards without signal conversion, preserving measurement accuracy across mixed-vendor control environments. This cross-platform compatibility significantly reduces integration risk during control system upgrades or partial retrofits.

In dusty, humid, or corrosive field environments — such as cement plants, water treatment facilities, and mining operations — the probe’s stainless steel housing and sealed cable termination provide IP-rated ingress protection, preventing moisture infiltration and particulate contamination that degrade sensor performance over time. Combined with the probe’s wide operating temperature range, it maintains calibrated output stability across seasonal and process-driven thermal cycles without requiring field recalibration.

Every unit supplied is pre-shipment tested against OEM calibration specifications, verifying gap voltage linearity, insulation resistance, and cable continuity before dispatch. This eliminates the risk of installing a defective sensor in a live machinery protection loop — a scenario that could disable a safety interlock and expose rotating equipment to undetected fault conditions. Stock availability is maintained for long-term supply continuity, supporting planned maintenance schedules and emergency spare parts requirements without extended lead times.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective machinery protection in industrial control cabinets requires a coordinated system of sensing, conditioning, and monitoring components. The 330106-05-30-05-02-00 proximity probe anchors the field sensing layer of this architecture. Its signal is conditioned by the Bently Nevada 3300 XL Proximitor Sensor, which provides the regulated -24 VDC driver voltage and converts the raw eddy current signal into a calibrated DC voltage output suitable for rack-level processing.

At the rack level, the Bently Nevada 3500/40M Proximitor Monitor receives and processes up to four proximity probe channels simultaneously, applying configurable alert and danger setpoints for radial vibration, axial position, and differential expansion. When a danger threshold is crossed, the monitor’s relay outputs trigger hardwired shutdown logic — bypassing software latency and ensuring fail-safe response times compatible with emergency shutdown (ESD) system requirements.

Power supply stability is critical in this chain. Fluctuations or dropouts in the -24 VDC proximitor supply can cause false gap readings that mimic shaft displacement events, triggering unnecessary trips or — in a failed-safe configuration — masking real faults. A dedicated Bently Nevada 3500/15 Power Supply Module with redundant input capability ensures uninterrupted sensor excitation even during upstream power disturbances, surge events, or UPS switchover transients common in substation-adjacent control rooms.

For facilities integrating proximity data into broader plant safety architectures, the 3500 rack’s System 1 Evolution software interface enables real-time trending, alarm management, and predictive maintenance analytics — connecting field-level sensor data to plant-wide condition monitoring platforms without requiring additional signal conversion hardware.

Critical Industrial Safety Applications

The Bently Nevada 330106-05-30-05-02-00 is deployed across a wide range of safety-critical industrial environments where rotating machinery reliability directly impacts process continuity and personnel safety:

Petrochemical and Refinery Operations: Monitors shaft radial vibration and axial position on centrifugal compressors, reactor feed pumps, and crude distillation column drives. Provides the real-time displacement data required by API 670-compliant safety instrumented systems (SIS) to initiate automatic shutdown before bearing failure or seal damage occurs.

Power Generation: Installed on steam turbine shafts, boiler feed pump drives, and generator rotors to detect rotor bow, critical speed crossings, and bearing wear patterns. Integrates with turbine control systems to enforce speed and vibration trip limits during startup, load rejection, and emergency rundown sequences.

Mining and Mineral Processing: Applied to SAG mill pinion drives, slurry pump shafts, and conveyor head pulleys in high-dust, high-vibration environments. The probe’s sealed construction and wide temperature tolerance maintain measurement accuracy in open-pit and underground conditions where standard instrumentation degrades rapidly.

Water and Wastewater Treatment: Monitors vertical turbine pumps, blower shafts, and centrifuge drives in humid, chemically aggressive environments. Enables condition-based maintenance scheduling that reduces unplanned pump failures and associated treatment process interruptions.

Metallurgical and Steel Plants: Deployed on rolling mill drive shafts, continuous caster pinch rolls, and blast furnace blower trains. Operates reliably in the extreme thermal gradients and high electromagnetic noise generated by large induction furnaces and thyristor drive systems.

Port and Marine Applications: Used on crane hoist drives, ship propulsion shaft lines, and offshore platform compressor trains where saltwater ingress, vibration, and thermal cycling demand the highest levels of sensor robustness and long-term calibration stability.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330106-05-30-05-02-00?
All units carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, calibration failures, and premature component degradation under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch to minimize machinery downtime.

Q2: How is each unit tested before shipment?
Every 330106-05-30-05-02-00 undergoes pre-shipment functional testing that includes gap voltage linearity verification across the full measurement range, insulation resistance testing of the cable assembly, and cable continuity checks. This ensures that each unit installed in a live machinery protection loop performs to OEM specification from day one, eliminating the risk of a defective sensor disabling a safety interlock.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330106-05-30-05-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and the 3500 Series rack monitoring system. It is a direct replacement for equivalent 3300 XL reverse-mount probes and requires no recalibration of the signal conditioning chain when substituted on a like-for-like basis. Compatibility with third-party signal conditioners should be verified against the -24 VDC driver voltage and output sensitivity specifications.

Q4: Can long-term spare parts supply be guaranteed for planned maintenance programs?
Yes. Stock is maintained specifically to support planned maintenance schedules, annual turnaround programs, and emergency spare parts requirements. Long-term supply continuity is a core commitment — customers can arrange forward stock reservations for multi-year maintenance contracts, ensuring that critical spare parts are available without extended lead times when machinery protection sensors require replacement during scheduled outages.
