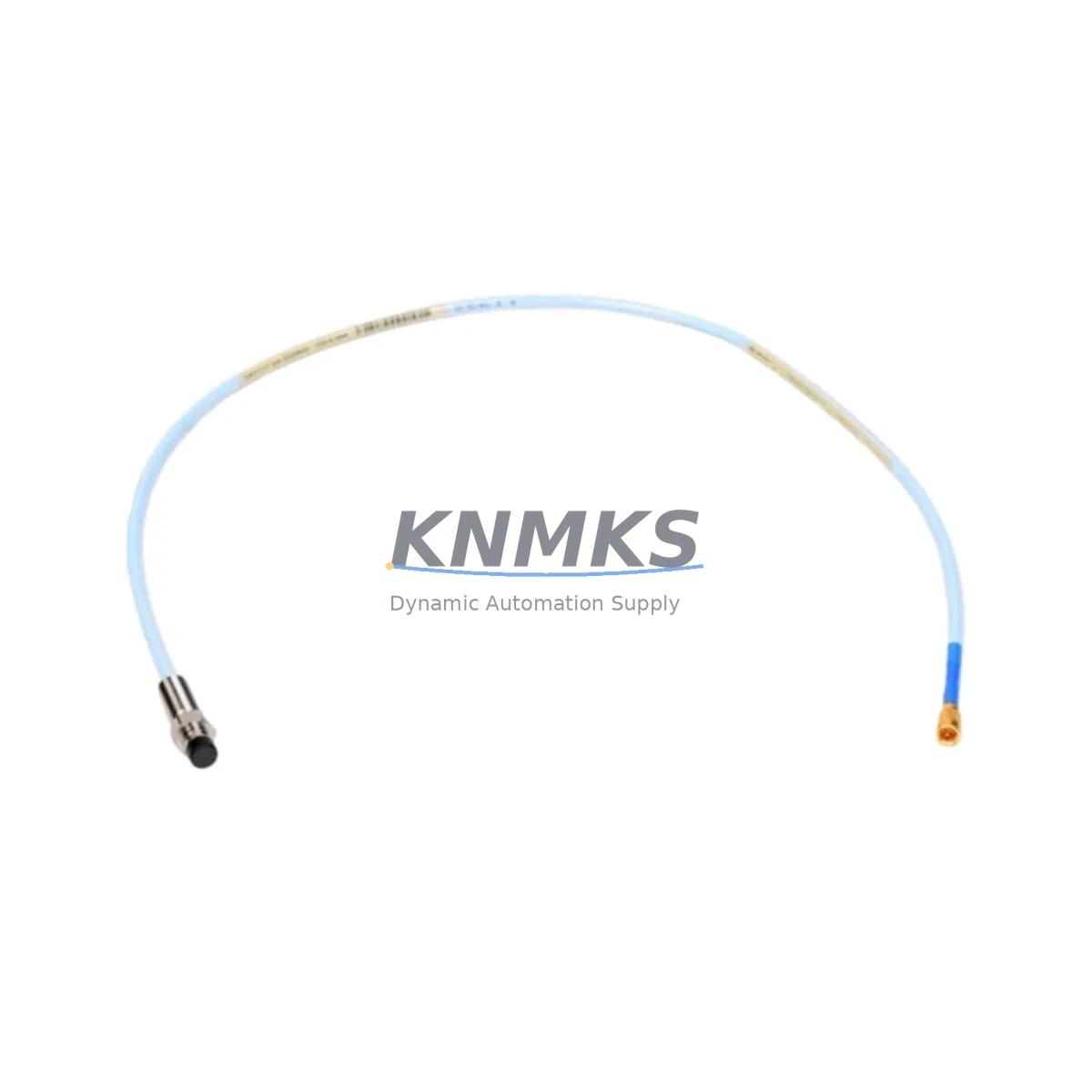

The Bently Nevada 330106-00-06-10-02-CN is an original proximity probe designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across power generation, petrochemical, oil & gas, and heavy manufacturing industries. This spare part is sourced, inspected, and dispatched to support maintenance engineers and procurement teams who cannot afford unplanned downtime on critical rotating assets such as turbines, compressors, pumps, and gearboxes.

Proximity probes in the 3300 XL family are precision eddy-current sensors that measure shaft radial vibration, axial position, and differential expansion in real time. The 330106-00-06-10-02-CN variant features a 5 mm probe tip diameter with a 6-inch (152 mm) cable length, designed for tight-clearance installations in bearing housings and seal areas. When this probe degrades or fails, the entire vibration channel goes offline — triggering a machinery protection alarm or forcing a controlled shutdown. Having a verified replacement on the shelf is not optional; it is a core element of any serious predictive maintenance program.

KNMKS stocks this probe as part of a broader 3300 XL spare parts inventory, enabling same-week dispatch for emergency replacements and planned annual overhaul kits. Every unit is functionally tested prior to shipment and covered by a support terms confirmed by quotation against manufacturing defects.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a degraded or failed 330106-00-06-10-02-CN proximity probe during a routine vibration audit or emergency fault isolation, the replacement scope rarely ends with the probe alone. A thorough site inspection should include the full signal chain to prevent repeat failures and ensure measurement integrity after the probe swap.

Start with the 3300 XL extension cable (typically the 330130 series) that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — especially in high-temperature or high-vibration zones. A probe replacement paired with a worn extension cable will produce erratic gap voltage readings and may trigger nuisance trips within weeks.

Next, inspect the 3300 XL proximitor / signal conditioner (such as the 330180 or 330100 series). The proximitor converts the probe’s eddy-current signal into a DC voltage proportional to gap distance. If the proximitor output is drifting or showing noise, replacing only the probe will not resolve the channel fault. Proximitors should be bench-tested or swapped as part of any probe replacement on a critical machine train.

The 3300 XL monitor rack and its I/O modules should also be checked for loose terminal connections, oxidized contacts, and firmware version compatibility. In older installations, the monitor’s internal relay outputs — used to trigger shutdown or alarm signals to the DCS or PLC — may have degraded contact resistance that causes intermittent trip signals. Relay modules such as the 3300/20 or 3300/25 should be part of the annual inspection checklist.

For facilities running a Bently Nevada 3500 Series machinery protection system alongside legacy 3300 XL hardware, verify that the signal conditioning cards and I/O termination modules are correctly configured for the probe sensitivity scale factor (typically 7.87 V/mm or 200 mV/mil). Mismatched scale factors are a common source of false alarms after probe replacement.

Finally, review the power supply module feeding the 3300 XL rack. Voltage sag or ripple on the ±24 VDC supply rail can introduce measurement noise that mimics mechanical vibration. A dedicated industrial DIN-rail power supply with adequate current headroom and surge protection is recommended for any critical monitoring rack. Procurement teams should consider stocking a spare power supply module alongside probe and proximitor spares to minimize mean time to repair (MTTR) during emergency shutdowns.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 330106-00-06-10-02-CN probe matches the installed probe’s tip diameter, cable length, and connector type. Cross-reference the machine’s vibration monitoring drawing and the existing proximitor gap voltage (typically –10.0 VDC ± 0.5 VDC at the calibrated gap) before removing the old probe.

Step 2 — Safe isolation: Coordinate with the control room to bypass the vibration channel in the 3300 XL monitor or 3500 rack before probe removal. This prevents a spurious shutdown signal from reaching the ESD or DCS during the mechanical work. Document the bypass in the permit-to-work system.

Step 3 — Mechanical removal and installation: Use the correct probe wrench to avoid damaging the probe body or bearing housing threads. Clean the probe mounting hole and inspect for thread damage. Install the new 330106-00-06-10-02-CN probe to the manufacturer’s specified torque. Reconnect the extension cable and verify the coaxial connector is fully seated and locked.

Step 4 — Gap voltage calibration: With the machine stationary, measure the proximitor output voltage. Adjust the probe gap to achieve the target gap voltage per the machine OEM’s specification. Record the as-left gap voltage in the maintenance management system (CMMS).

Step 5 — Channel reinstatement and functional test: Remove the bypass in the monitor rack. Verify that the vibration channel reads a stable, low-noise signal at the expected baseline level. Confirm that alarm and danger setpoints are active and correctly configured before returning the machine to service.

This structured workflow minimizes downtime, eliminates re-work caused by incorrect installation, and provides a documented audit trail for compliance and insurance purposes.

Spare Parts Support FAQ

Q1: Is the 330106-00-06-10-02-CN compatible with both the 3300 XL and 3500 Series monitors?
The probe is natively designed for the 3300 XL system. It can be used with the 3500 Series when paired with the appropriate 3500/42 or 3500/44 proximitor module and the correct sensitivity configuration. Always verify the scale factor setting in the monitor configuration before commissioning.

Q2: How is the probe tested before shipment?
Each 330106-00-06-10-02-CN unit is functionally tested using a calibrated proximitor and target simulator to verify output linearity, gap voltage at the nominal calibration point, and cable continuity. Test records are available upon request for quality-critical applications.

Q3: What is the recommended spare parts stocking strategy for this probe?
For facilities with more than four 3300 XL channels on a single critical machine train, we recommend maintaining a minimum of two spare probes per machine, plus one spare extension cable and one spare proximitor. For multi-train plants, a centralized spare parts pool with a 90-day replenishment cycle is a cost-effective approach to balancing inventory carrying cost against downtime risk.

Q4: What support terms and long-term supply commitment does KNMKS offer?
All units carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. KNMKS maintains long-term supply agreements for 3300 XL series components and can support blanket purchase orders for annual maintenance programs, ensuring price stability and guaranteed availability for multi-year maintenance contracts.
