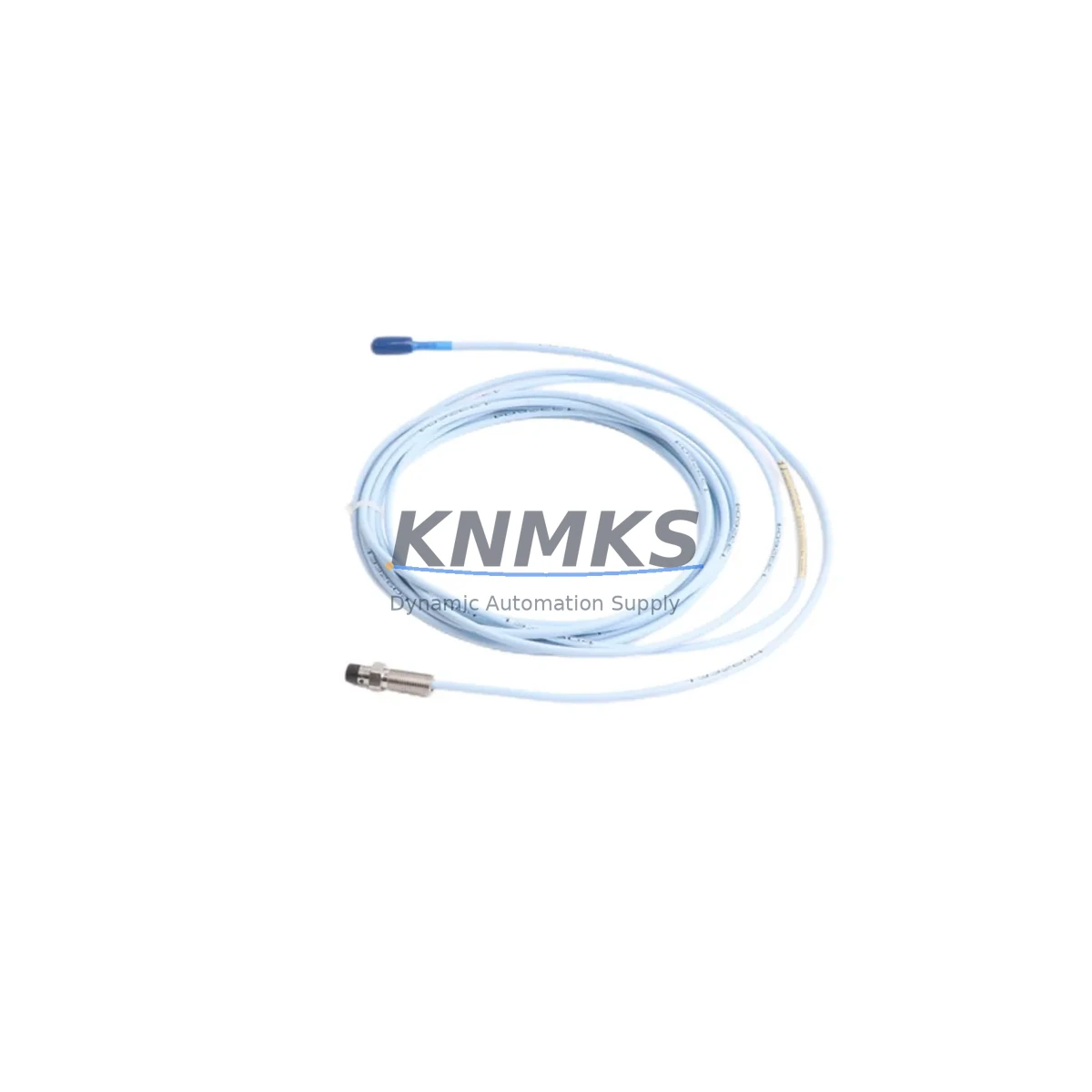

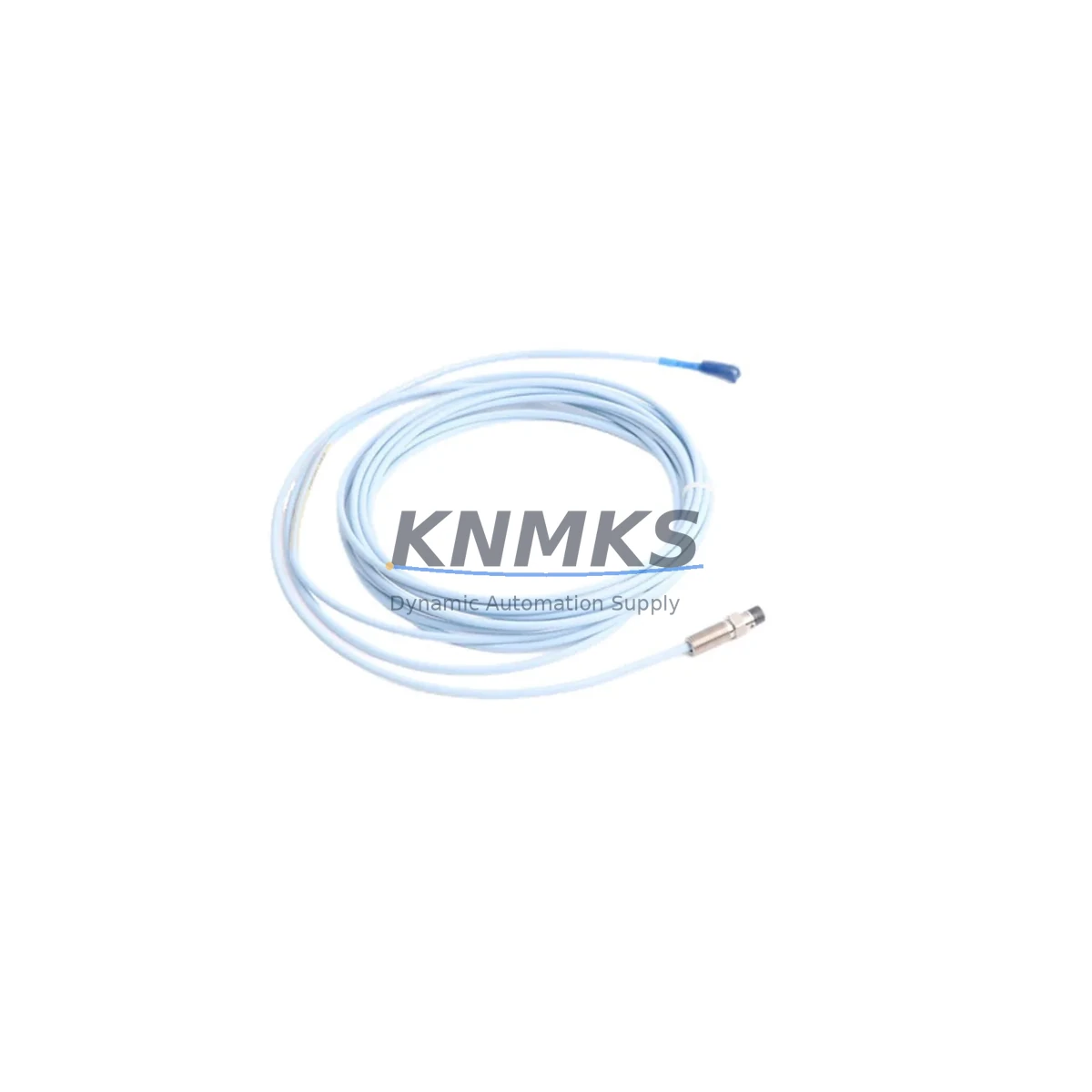

Bently Nevada 330105-02-12-50-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330105-02-12-50-02-00 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330105-02-12-50-02-00 is an 8mm eddy current proximity probe engineered for continuous, fail-safe vibration and position monitoring in critical industrial machinery protection systems. Designed as part of the Bently Nevada 3300 XL Series, this probe delivers stable, high-resolution gap voltage output under the most demanding field conditions — including high electromagnetic interference, heavy vibration, elevated temperatures, moisture ingress, and airborne particulate contamination. For facilities operating rotating equipment in petrochemical, power generation, mining, water treatment, metallurgy, port logistics, or continuous manufacturing environments, the 330105-02-12-50-02-00 provides the measurement integrity required to sustain safe, uninterrupted production.

The probe operates within the standard Bently Nevada 3300 XL measurement chain, working in conjunction with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor® Sensor to deliver a calibrated -24 VDC output signal to the monitoring system. This three-component architecture — probe, extension cable, and proximitor — must be treated as a matched set during replacement to maintain system calibration and avoid signal drift. When replacing the 330105-02-12-50-02-00, engineers should verify that the replacement probe is paired with the correct extension cable length and the corresponding Proximitor® model, such as the 3300 XL 8mm Proximitor® Sensor, to preserve the original calibration curve and avoid nuisance trips or missed alarms.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330105-02-12-50-02-00 within a well-engineered control cabinet architecture is essential to maximizing its fail-safe performance. In high-criticality installations, the probe signal is typically routed through a dedicated Bently Nevada 3500 Series Rack — a modular, 19-inch rack-mounted monitoring system that accepts inputs from multiple proximity probes and provides relay outputs to the plant DCS or safety instrumented system (SIS). The 3500 rack’s I/O modules process the raw gap voltage signal, apply alarm and danger setpoints, and trigger protective shutdown relays when vibration or position thresholds are exceeded.

Within the same control cabinet, engineers commonly install a Bently Nevada 3500/42M Proximitor®/Seismic Monitor module alongside dedicated power supply modules such as the 3500/15 Power Supply to ensure clean, regulated DC power to the measurement chain. Voltage fluctuations and power transients are among the leading causes of false trips and signal drift in proximity probe systems; a dedicated, isolated power supply eliminates this risk. Surge protection devices and EMI filters installed at the cabinet entry point further protect the 330105-02-12-50-02-00 signal path from plant-floor electrical noise generated by variable frequency drives (VFDs), large motor starters, and arc welding equipment operating nearby.

For facilities integrating the 3300 XL measurement chain into a broader plant automation architecture, the 3500 rack communicates with the plant DCS via Modbus RTU, Modbus TCP/IP, or OPC-DA/UA protocols, depending on the installed communication gateway module. Verifying protocol compatibility between the 3500 rack’s communication module and the plant historian or DCS I/O card is a critical commissioning step that is often overlooked during probe replacement projects.

Critical Industrial Safety Applications

The 330105-02-12-50-02-00 is deployed across a wide range of critical industrial safety applications where unplanned machinery downtime carries severe operational, financial, or safety consequences.

In petrochemical and refinery environments, the probe monitors shaft radial vibration and axial position on centrifugal compressors, steam turbines, and boiler feed pumps — equipment whose failure can trigger process shutdowns, flare events, or safety system activations. The probe’s resistance to hydrocarbon vapors, high ambient temperatures, and aggressive cleaning agents makes it well-suited for these environments.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 330105-02-12-50-02-00 provides continuous shaft monitoring on turbine-generator sets. Any deviation in shaft centerline position or an increase in synchronous vibration amplitude is detected immediately, allowing operators to take corrective action before bearing damage or seal failure occurs.

In mining and mineral processing operations, the probe monitors large grinding mills, crushers, and slurry pumps operating in high-dust, high-vibration environments. The probe’s robust mechanical construction and sealed coaxial cable withstand the mechanical shock and abrasive contamination typical of these applications.

In water and wastewater treatment plants, the probe is used on large vertical turbine pumps and blower trains where continuous operation is required to meet regulatory discharge standards. In metallurgical facilities — steel mills, aluminum smelters, and rolling mills — the probe monitors drive motors and gearboxes operating under heavy cyclic loads and high ambient temperatures. In port and marine applications, the probe is installed on diesel generator sets, propulsion motors, and cargo handling equipment where saltwater corrosion resistance and vibration immunity are essential.

Safety and Quality FAQ

Q1: Does the 330105-02-12-50-02-00 come with a support terms, and what does it cover?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Every probe is functionally tested prior to shipment — including gap voltage output verification and cable continuity check — and ships with a test record. Support requests are supported with direct technical assistance and replacement unit dispatch.

Q2: Is this probe a direct drop-in replacement for existing 330105 series probes in a 3300 XL system?
Yes, the 330105-02-12-50-02-00 is a direct mechanical and electrical replacement for other 330105 series probes with matching cable length and connector configuration. However, the replacement probe must be used with the same extension cable and Proximitor® Sensor as the original matched set to maintain system calibration. If the extension cable or Proximitor® is also being replaced, the entire measurement chain must be recalibrated at installation.

Q3: How should the probe be commissioned after installation to confirm safe operation?
After mechanical installation and cable connection, verify the gap voltage at the Proximitor® output with the shaft stationary. The nominal gap voltage for an 8mm probe at the recommended gap distance (typically 1.0–1.5mm) should fall within the linear range specified in the Bently Nevada calibration documentation. Confirm that the 3500 rack is reading the correct gap value and that no alarm or danger setpoints are active before returning the machine to service. Document the as-found and as-left gap voltages in the maintenance record.

Q4: What is KNMKS’s lead time and stock availability for the 330105-02-12-50-02-00?
KNMKS maintains inventory of the 330105-02-12-50-02-00 to support urgent replacement and planned maintenance requirements. Standard orders ship within 1–3 business days. For large-quantity or project-based procurement, contact the sales team directly to confirm availability and lead time. Long-term supply agreements are available for facilities with recurring maintenance requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330105-02-12-50-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330105-02-12-50-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
