Bently Nevada 330105-02-12-15-02-CN 3300 XL Spare Part: Precision Vibration Monitoring for Continuous Factory Uptime

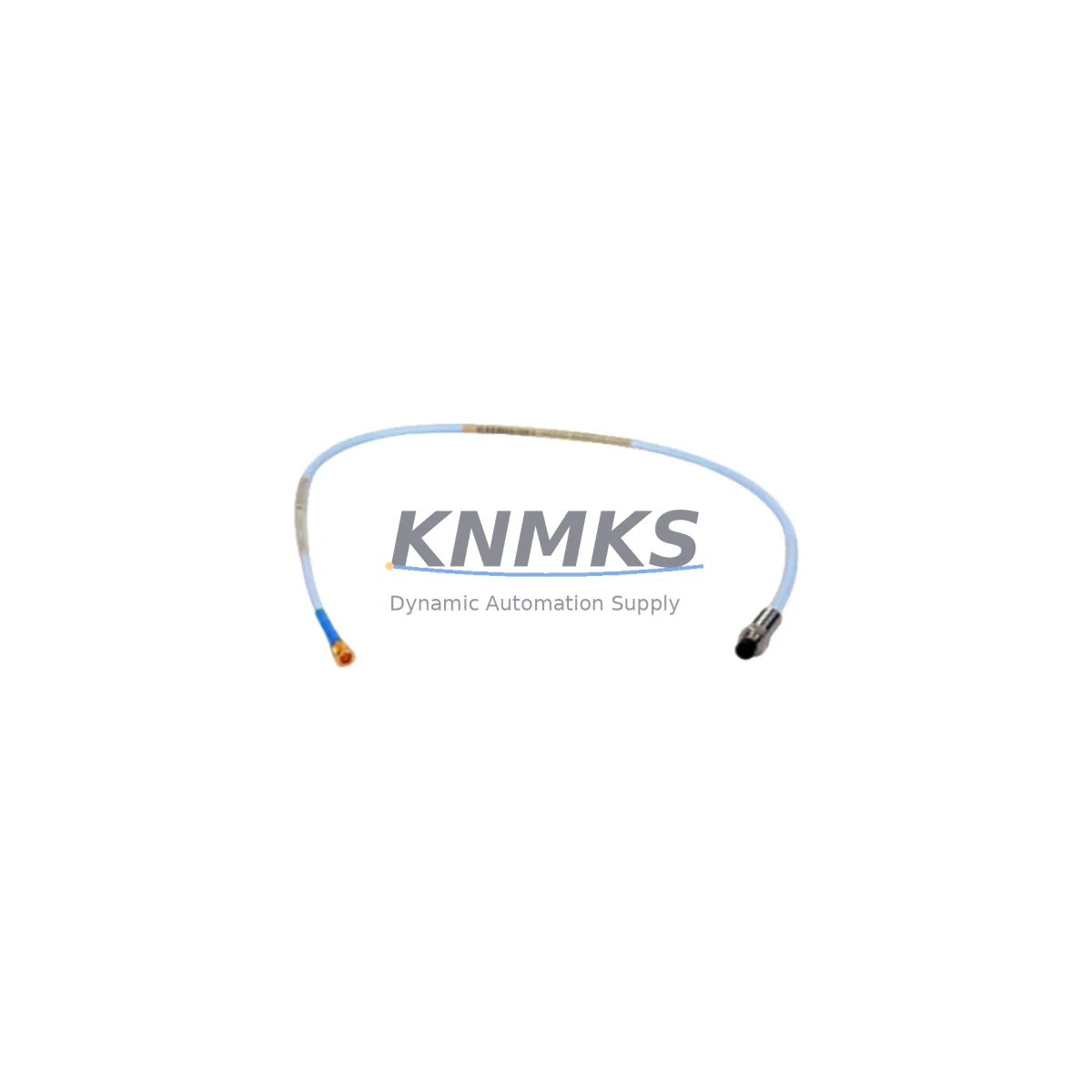

The Bently Nevada 330105-02-12-15-02-CN is an eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery protection system. Designed to measure radial shaft vibration, axial position, and differential expansion on rotating equipment including steam turbines, gas turbines, compressors, and pumps, this transducer is a mission-critical spare part for any facility operating Bently Nevada-based condition monitoring infrastructure. Maintaining a verified, tested replacement unit on-site is the single most effective strategy for minimizing unplanned downtime when a primary sensor degrades or fails during operation.

Every unit supplied by KNMKS is sourced as an original spare, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. global delivery details confirmed by RFQ ensures that maintenance teams can restore system integrity without extended lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330105-02-12-15-02-CN in the field, a disciplined maintenance engineer will not stop at the transducer alone. The 3300 XL proximity system is a three-component measurement chain: the transducer, the extension cable (typically a 330130 series armored extension cable), and the Proximitor® signal conditioner (such as the 330180 or 330185 Proximitor). A fault in any one component will produce erroneous gap voltage readings, false alarms, or missed trips. Before declaring the transducer as the root cause, verify continuity and impedance across the full cable chain.

At the monitor rack level, inspect the associated 3300 XL Monitor module (e.g., 3300/16 or 3300/20 series) for input channel integrity. Confirm that the OK relay output is functioning and that the channel is not latched in a fault state due to a prior over-range event. If the cabinet houses a 3500 Series rack alongside legacy 3300 XL hardware, verify that the correct Proximitor driver card is installed for the transducer’s scale factor — mismatched scale factors are a common source of calibration drift after unplanned replacements.

Power supply integrity is equally critical. The Proximitor® requires a stable –24 VDC supply; fluctuations caused by a degraded 3300/15 Power Supply module or a failing DIN-rail industrial power supply will directly affect gap voltage output and trigger nuisance trips. Include the power supply in your annual inspection checklist alongside the transducer.

For facilities running turbomachinery protection panels, it is best practice to maintain a consolidated spare parts kit that includes: the 330105-02-12-15-02-CN transducer, at least one matched extension cable, a spare Proximitor® conditioner, and the relevant monitor I/O module. Procurement engineers should also consider stocking the 330103 series 5 mm transducer for auxiliary bearing measurement points, as cross-referencing spare kits by shaft diameter and measurement range reduces emergency procurement lead times significantly.

Terminal block integrity within the junction box and control cabinet should be inspected during any transducer replacement. Loose or corroded terminals on the Proximitor® output wiring — particularly the OK, vibration, and gap voltage signal lines — can introduce noise that mimics sensor degradation. Use a calibrated millivolt source to verify the full signal chain from transducer tip to monitor input before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the Proximitor® supply at the cabinet power distribution point. Do not disconnect the transducer cable under live power; doing so can damage the Proximitor® input stage.

Step 2 — Gap Measurement Before Removal: Record the existing gap voltage (typically displayed on the monitor front panel or via the system’s condition monitoring software). This baseline confirms whether the transducer or the downstream electronics are the fault source.

Step 3 — Transducer Removal: Use the correct spanner for the 15 mm thread. Avoid applying torque to the cable connector body. Inspect the probe tip for physical damage, contamination, or shaft contact marks — these indicate a bearing or alignment issue that must be addressed before reinstallation.

Step 4 — New Unit Installation: Install the 330105-02-12-15-02-CN and set the gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for standard 8 mm tip transducers). Verify gap voltage at the Proximitor® output: –12 VDC ±0.5 VDC at nominal gap confirms correct installation.

Step 5 — System Verification: Re-energize the Proximitor® supply and confirm OK relay status at the monitor. Perform a slow-roll check if the machine can be safely barred over. Log the replacement in the site CMMS with the new unit’s serial number and support terms start date.

Step 6 — Return to Service: Clear any latched alarms at the monitor. Confirm that the condition monitoring software is receiving valid vibration and position data before authorizing machine start.

Spare Parts Support FAQ

Q1: Is the 330105-02-12-15-02-CN a direct drop-in replacement for other 330105 variants?
The 330105 series shares the same 8 mm tip diameter and M14 thread, but cable length and connector type vary by suffix. The -02-12-15-02-CN designation specifies a 12-inch integral cable with a standard armored connector. Verify your existing cable length and connector configuration before ordering to ensure a direct fit without field modification.

Q2: What is the recommended inventory strategy for this transducer?
For facilities with four or more 3300 XL measurement points, a minimum of two spare transducers per shaft plane is recommended. Given typical lead times for original Bently Nevada parts, maintaining a 12–24 month forward stock position is prudent for critical turbomachinery applications. KNMKS supports long-term supply agreements to lock in pricing and availability.

Q3: How is each unit tested before shipment?
Every 330105-02-12-15-02-CN dispatched by KNMKS undergoes pre-shipment functional verification: gap voltage output is measured at nominal gap using a calibrated test rig, and scale factor linearity is confirmed across the operating range. A test report is available upon request. Units are shipped in ESD-safe packaging with physical protection for the probe tip and cable connector.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, shaft contact, or operation outside the specified temperature and gap range. KNMKS provides direct technical support for support requests and can expedite replacement units to minimize machine downtime.
