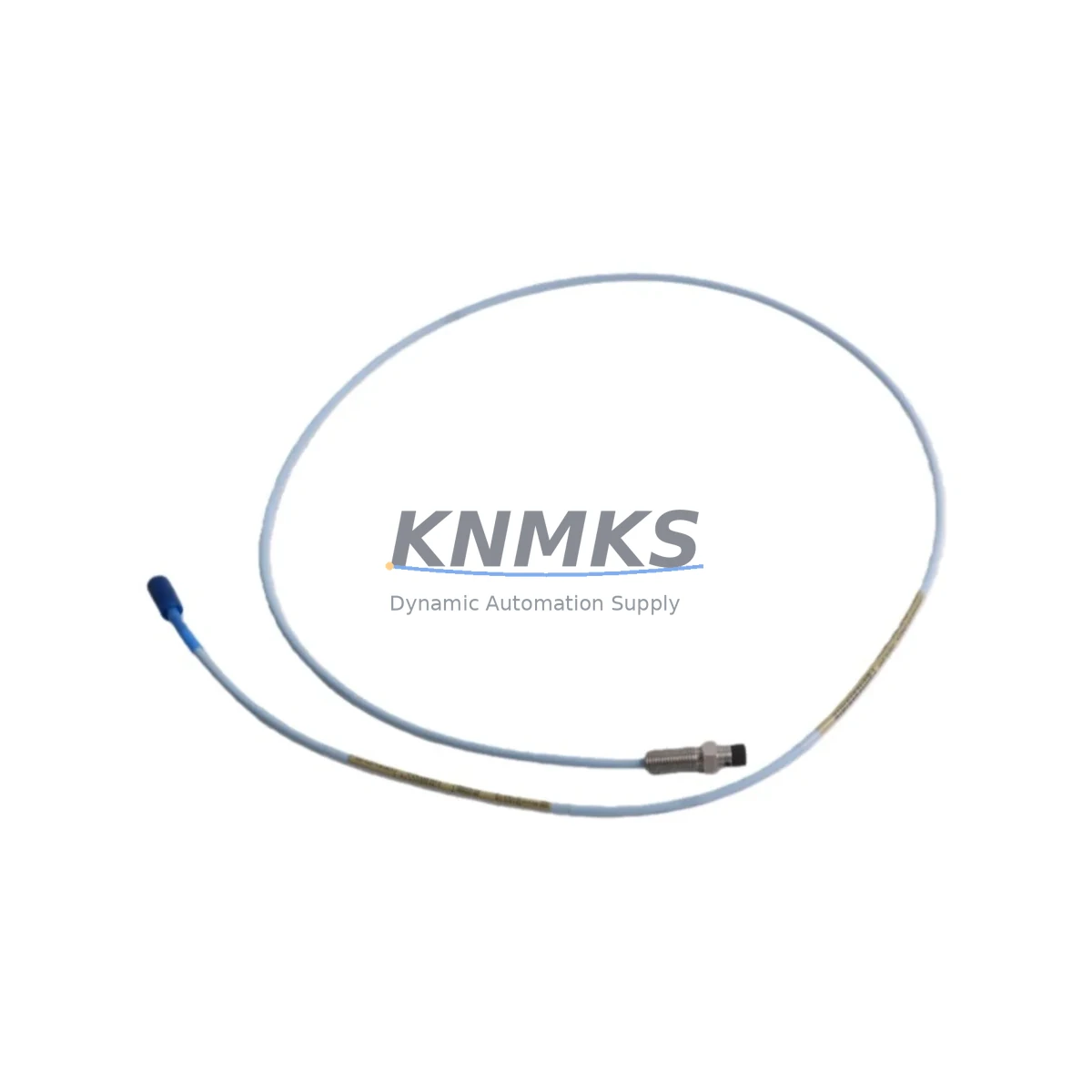

Bently Nevada 330105-02-12-10-12-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330105-02-12-10-12-CN Fail-Safe Proximity Probe: Fault-Proof Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330105-02-12-10-12-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and offshore platforms, this probe delivers the measurement precision and signal integrity that safety-critical rotating machinery demands — without compromise.

In high-stakes control environments where an undetected shaft displacement or bearing fault can cascade into catastrophic equipment failure, the 330105-02-12-10-12-CN provides the front-line sensing reliability that plant engineers and reliability teams depend on. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring consistent output over extended service intervals even under continuous 24/7 operation. The probe is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 series), forming a complete, calibrated measurement chain that meets API 670 machinery protection standards.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330105-02-12-10-12-CN probe does not operate in isolation — it is the sensing front-end of a layered protection architecture. The probe feeds its analog signal into the Bently Nevada 3300 XL Proximitor Sensor (330180-X1-CN), which conditions and amplifies the eddy-current signal before it reaches the monitoring rack. From there, the Bently Nevada 3500/42M Proximitor / Seismic Monitor processes the vibration data, applies alarm and danger setpoints, and triggers relay outputs to the safety interlock system.

To protect the signal chain from power-line transients and surge events — a common threat in heavy industrial environments — the installation should incorporate a Bently Nevada 3500/15 Power Supply Module with redundant input capability, ensuring that a single power fault does not interrupt the monitoring chain. In high-EMI environments such as variable-frequency drive (VFD) rooms or switchgear bays, the coaxial cable assembly of the 330105-02-12-10-12-CN provides inherent shielding, but additional signal isolators or surge protection barriers (such as those from the MTL or P+F series) are recommended at the cabinet entry point.

For plants running Bently Nevada System 1 Evolution software, the probe data integrates seamlessly into the asset health monitoring platform, enabling trend analysis, alarm management, and predictive maintenance workflows without additional signal conversion. Where the control architecture includes a Bently Nevada 3500/22M Transient Data Interface, the 330105-02-12-10-12-CN supports high-resolution transient capture during startup and coast-down events — critical for identifying resonance issues before they escalate to bearing or seal failures.

In cabinets where multiple proximity probes monitor X-Y shaft displacement, radial vibration, and axial position simultaneously, consistent use of matched 3300 XL Series probes and extension cables ensures calibration traceability across all measurement points, reducing the risk of signal drift or cross-channel mismatch that could mask a developing fault condition.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: Compressor trains, centrifugal pumps, and turbine expanders in continuous process units require uninterrupted shaft monitoring. The 330105-02-12-10-12-CN provides the real-time radial vibration data that feeds emergency shutdown (ESD) systems, preventing catastrophic seal failures or bearing collapses in hydrogen, ethylene, or LNG service.

Power Generation (Thermal, Gas, and Hydro): Steam turbines and gas turbines operating at 3,000–3,600 RPM demand sub-micron measurement resolution. This probe’s 7.87 V/mm sensitivity and wide frequency response (DC to 10 kHz) make it suitable for both slow-roll monitoring and high-speed vibration analysis, supporting both API 670 protection and ISO 10816 condition monitoring requirements.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in extreme dust, moisture, and vibration conditions. The 330105-02-12-10-12-CN’s robust construction and non-contact sensing principle eliminate the probe wear and signal degradation that contact-type sensors suffer in these environments, reducing unplanned maintenance interventions.

Water and Wastewater Treatment: High-speed centrifugal blowers and vertical turbine pumps in water infrastructure require reliable bearing condition monitoring to prevent service interruptions. The probe’s compatibility with the 3500 series monitoring rack allows integration into SCADA-connected protection systems with minimal engineering effort.

Metallurgy and Steel Production: Rolling mill drives, converter fans, and continuous casting machine drives operate under severe thermal and electromagnetic stress. The probe’s high-temperature rating (up to +121°C) and EMI-resistant coaxial construction maintain signal integrity even in proximity to large induction furnaces or arc furnace transformers.

Port, Marine, and Offshore: Diesel generator sets, propulsion shaft lines, and cargo pump turbines on vessels and offshore platforms require vibration monitoring solutions that withstand salt spray, condensation, and mechanical shock. The 330105-02-12-10-12-CN meets these demands while remaining fully interchangeable with existing 3300 XL installations for rapid spare-part replacement during port calls.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the 330105-02-12-10-12-CN?
All units supplied by KNMKS carry a 12-month functional support terms from the date of shipment. If the probe fails to perform within its specified parameters under normal operating conditions during this period, KNMKS will provide a replacement unit or documented resolution support. Support requests are processed within 5 business days upon receipt of the returned item.

Q2: How is each unit tested before shipment?
Every 330105-02-12-10-12-CN unit undergoes a 100% pre-shipment functional test, including signal output verification, cable continuity check, and connector integrity inspection. Units that do not meet Bently Nevada’s original specification are quarantined and not dispatched. A test report is available upon request for critical plant applications.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 series monitors?
Yes. The 330105-02-12-10-12-CN is a direct, drop-in compatible replacement for all standard 3300 XL Series 8mm probe assemblies. It is calibrated to work with the 330180 Proximitor Sensor and is fully supported by the Bently Nevada 3500 series monitoring rack. No recalibration of the Proximitor or monitor is required when replacing a like-for-like probe in the same cable length configuration.

Q4: Can KNMKS support long-term or blanket supply agreements for this part?
Yes. KNMKS maintains dedicated inventory reserves for high-demand Bently Nevada 3300 XL Series components, including the 330105-02-12-10-12-CN. We support scheduled delivery programs, consignment stock arrangements, and emergency same-day dispatch for critical plant shutdowns. Contact our team to discuss long-term supply commitments tailored to your maintenance planning cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330105-02-12-10-12-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330105-02-12-10-12-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
