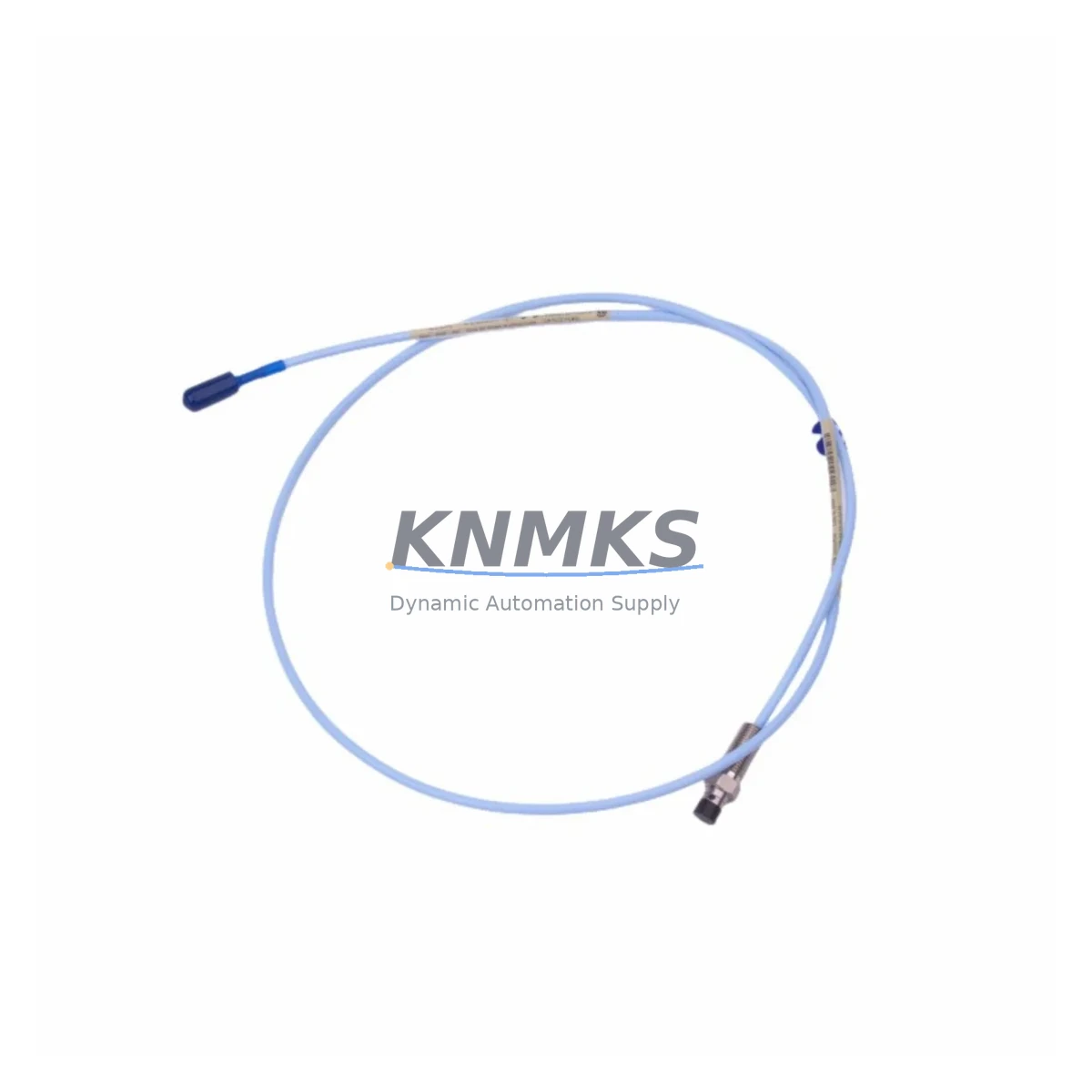

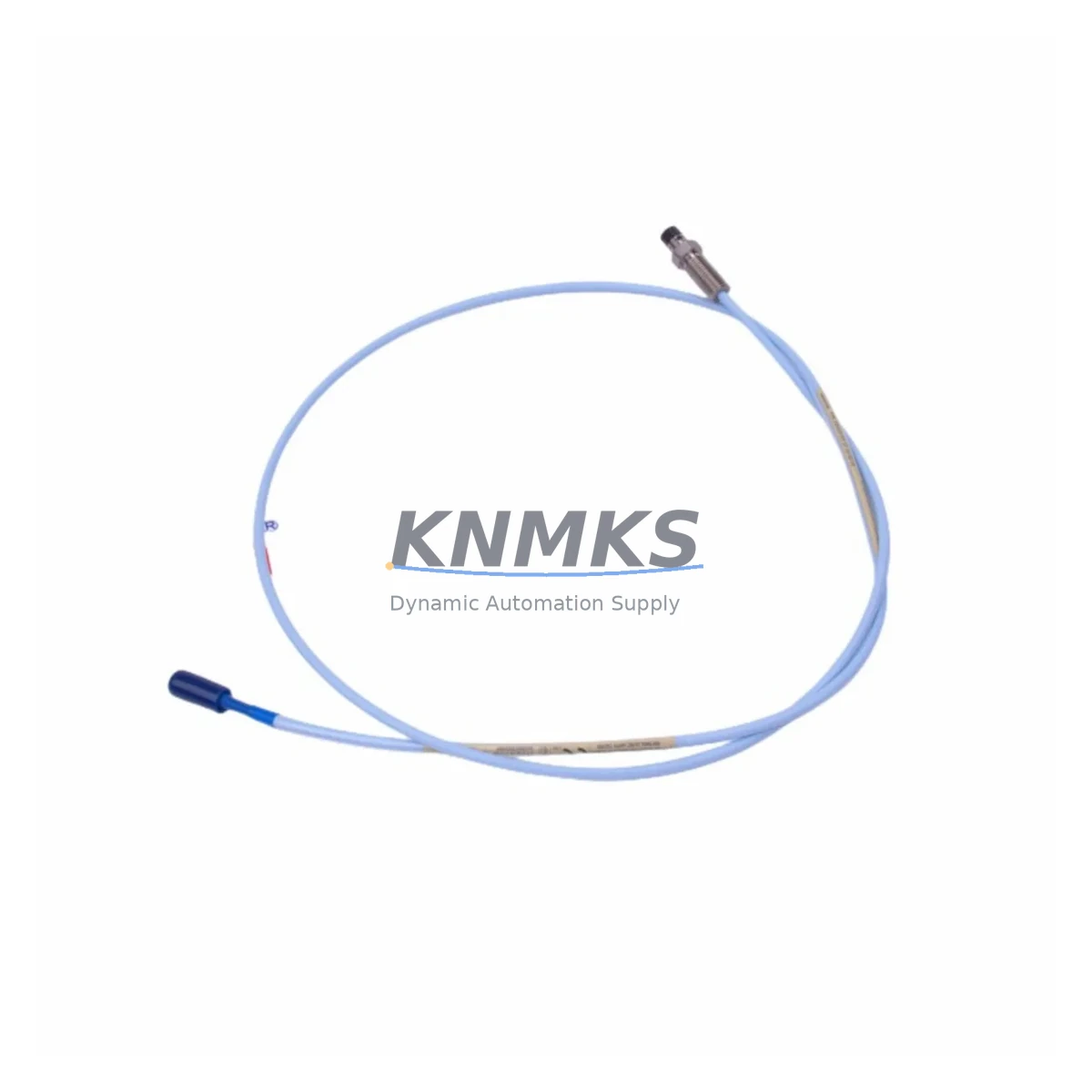

Bently Nevada 330105-02-12-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330105-02-12-10-02-05 Fail-Safe Proximity Probe: Industrial Control Reliability

The Bently Nevada 330105-02-12-10-02-05 is an 8mm proximity probe from the industry-renowned 3300 XL Series, engineered for fail-safe, continuous vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this probe delivers consistent, drift-free signal output even under conditions of high electromagnetic interference, extreme temperature cycling, mechanical vibration, and corrosive atmospheres. Whether deployed in a petrochemical compressor train, a power generation turbine hall, or a heavy-duty mining conveyor drive, the 330105-02-12-10-02-05 is built to keep your control loop intact and your machinery protected around the clock.

In critical industrial facilities where unplanned downtime translates directly into production loss and safety risk, the integrity of every sensor in the protection chain is non-negotiable. The 330105-02-12-10-02-05 proximity probe is designed with this reality in mind. Its eddy-current sensing principle provides non-contact, wear-free measurement of shaft radial vibration, axial position, and differential expansion — parameters that are central to any machinery health and safety interlock system. The probe’s output is fully compatible with the Bently Nevada 3300 XL proximitor/extension cable system, ensuring seamless integration into existing protection architectures without signal conditioning compromise.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330105-02-12-10-02-05 proximity probe does not operate in isolation. It forms the front-end sensing element of a complete vibration and position monitoring chain. The probe connects via a matched Bently Nevada 330130 extension cable to a 3300 XL proximitor such as the Bently Nevada 330180-51-00, which conditions the raw eddy-current signal into a calibrated DC voltage for the protection system. This signal is then processed by a Bently Nevada 3500/42M Proximitor I/O Module within the 3500 Series rack, where alarm and danger setpoints are configured for automatic machinery trip.

To ensure the integrity of the power supply feeding the proximitor and I/O modules, a dedicated 24 VDC redundant power supply — such as those from the Phoenix Contact QUINT series — is recommended within the same control cabinet. Surge protection devices installed on the signal cables, for example the MTL 7787+ or equivalent Zener barrier, protect the probe circuit from transient overvoltages caused by nearby motor starts, welding operations, or lightning-induced surges on field cable runs. In high-vibration environments such as compressor skids or turbine pedestals, the probe mounting adaptor and armored conduit should be selected to match the mechanical frequency spectrum of the machine, preventing resonance-induced signal noise that could trigger spurious trips or mask genuine fault conditions.

For facilities operating under IEC 61511 functional safety requirements, the 330105-02-12-10-02-05 is commonly integrated into SIL-rated safety instrumented systems alongside dedicated safety PLCs and voting logic solvers. Its proven field reliability and API 670 compliance make it a preferred choice for safety loop designers who require documented, traceable sensor performance data for SIL verification reports.

Critical Industrial Safety Applications

The 330105-02-12-10-02-05 proximity probe is deployed across a broad spectrum of critical industrial applications where machinery failure carries significant safety and financial consequences:

Petrochemical & Refinery: Installed on centrifugal compressors, process pumps, and steam turbine-driven trains to monitor shaft radial vibration and axial thrust position. In these environments, a missed high-vibration alarm can result in catastrophic seal failure, process gas release, and fire risk. The probe’s high-temperature rating and chemical resistance make it suitable for hot gas and hydrocarbon service.

Power Generation: Used on gas turbines, steam turbines, and large generator sets to provide continuous shaft monitoring data to the turbine control system. The non-contact measurement principle eliminates wear-related drift, ensuring that vibration alarm setpoints remain accurate over years of continuous operation without recalibration.

Mining & Minerals Processing: Applied to large ball mills, SAG mills, and crusher drives where high dust loading, water spray, and structural vibration are constant challenges. The probe’s robust construction and sealed cable assembly resist ingress of abrasive particles that would degrade contact-type sensors.

Water & Wastewater Treatment: Monitors large vertical turbine pumps and blower units in treatment plants where continuous operation is required for regulatory compliance. Early detection of bearing wear or rotor imbalance through vibration trending allows maintenance to be scheduled during planned outages rather than emergency shutdowns.

Metallurgy & Steel: Deployed on rolling mill drives, ID fans, and converter vessel tilting drives in steel plants where high ambient temperatures, electromagnetic noise from arc furnaces, and mechanical shock loads are routine. The 3300 XL probe’s EMI-shielded design maintains signal integrity in these electrically hostile environments.

Port & Marine: Used on large diesel generator sets and propulsion system auxiliaries aboard vessels and in port power stations, where saltwater corrosion resistance and vibration tolerance are essential for reliable long-term service.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330105-02-12-10-02-05?
The support terms confirmed by quotation cover all manufacturing defects, signal output performance deviations, and cable integrity failures under normal operating conditions. Each unit is individually tested and calibrated prior to shipment. Support requests are supported with replacement or repair, with documented traceability of the original test records.

Q2: How is the probe tested before shipment?
Every 330105-02-12-10-02-05 unit undergoes a full pre-shipment functional verification including gap-versus-output linearity check, scale factor confirmation at 200 mV/mil, insulation resistance test, and visual inspection of the cable jacket and connector. A calibration record is available upon request for quality documentation purposes.

Q3: Is the 330105-02-12-10-02-05 compatible with existing 3300 XL proximitor and extension cable systems?
Yes. The 330105-02-12-10-02-05 is fully compatible with the Bently Nevada 3300 XL proximitor/extension cable system, including the 330130 series extension cables and 330180 series proximitors. It is a direct replacement for equivalent 3300 XL 8mm probes and requires no recalibration of the proximitor when substituting a like-for-like unit.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated stock of the 330105-02-12-10-02-05 and related 3300 XL series components to support ongoing maintenance programs, planned turnaround outages, and emergency replacement requirements. Orders are processed with same-day or next-business-day dispatch, and export documentation is provided for international shipments.
