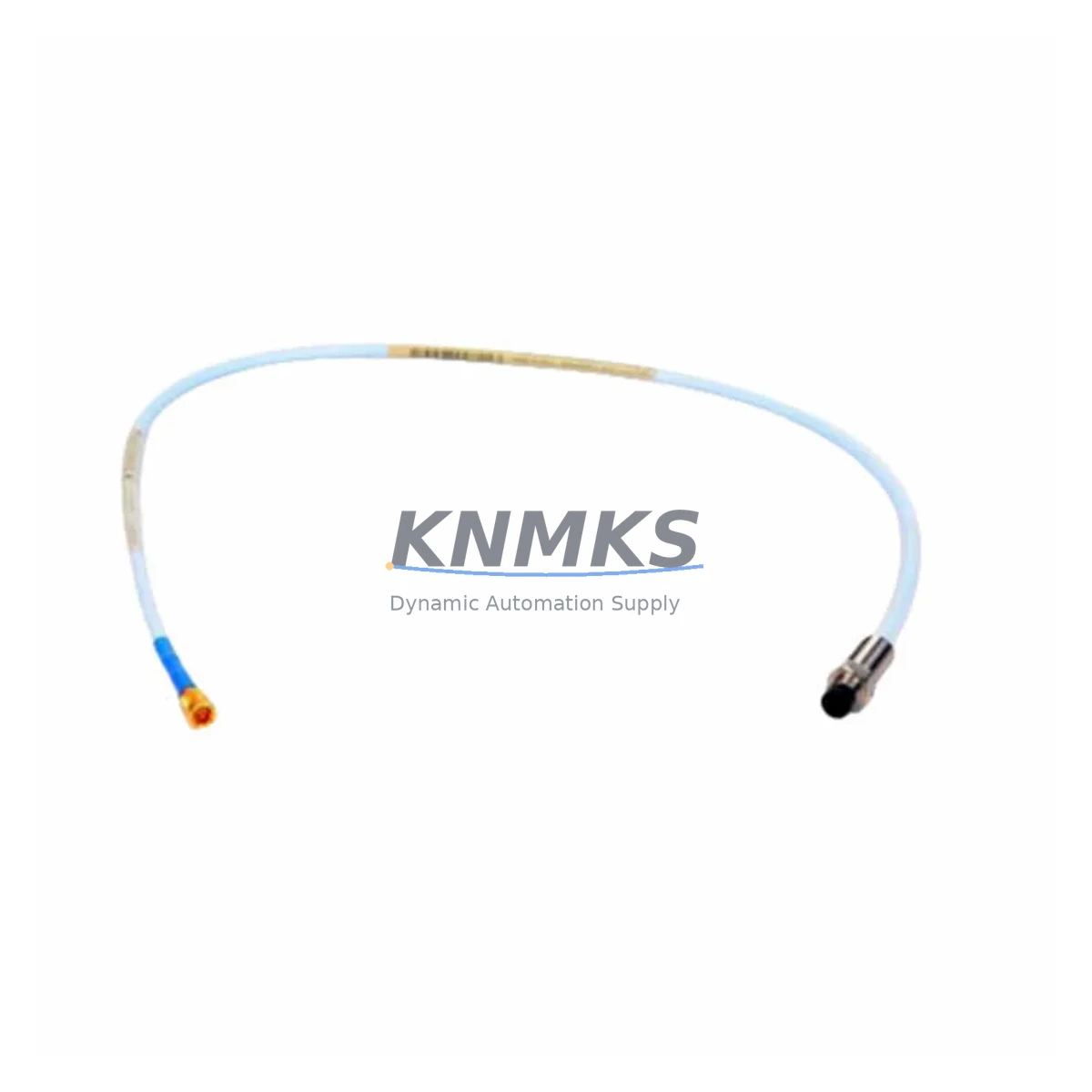

Bently Nevada 330105-02-12-10-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330105-02-12-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330105-02-12-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life, this probe serves as a verified drop-in replacement for discontinued 330105-series variants, enabling plant engineers to extend the operational life of existing monitor racks without full system overhaul.

Designed for radial vibration, axial position, and speed measurement on turbines, compressors, pumps, and motors, the 330105-02-12-10-02-00 integrates directly into existing 3300 XL monitor slots. Its 8mm tip diameter, 5-metre extension cable configuration, and -24 VDC bias voltage output are fully compatible with the Bently Nevada 3300/16 Monitor and 3300/20 Monitor channel inputs, eliminating the need for signal conditioning adapters during retrofit.

For facilities managing aging DCS or PLC-based machinery protection architectures, this probe is a critical stocking item. Procurement teams sourcing replacements for the 330105-02-12-10-01-00 or 330105-02-12-10-02-CN variants will find the 330105-02-12-10-02-00 a functionally equivalent substitute, subject to cable length and connector verification against the installed conduit routing.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330105-02-12-10-02-00 retrofit begins well before the maintenance window opens. Plant engineers should pull the existing monitor configuration from the Bently Nevada System 1 software or the legacy ADRE 408 DSPi data acquisition system to document current gap voltage, alert setpoints, and danger thresholds. These values must be re-entered or verified after probe swap to avoid nuisance trips during restart.

In installations where the 330105 probe feeds a Bently Nevada 3500/42M Proximitor/Seismic Monitor, engineers should confirm that the monitor’s internal Proximitor supply rail is within specification before installing the new probe. A degraded power supply rail — common in racks that have operated continuously for 10–15 years — can cause the replacement probe to read erratically even when the probe itself is healthy. Pairing the probe replacement with a 3500/15 Power Supply Module inspection or swap is recommended practice for aging rack assemblies.

For plants running hybrid architectures where the 3300 XL monitor rack interfaces with a Rockwell Automation ControlLogix or Siemens S7-400 PLC via hardwired 4–20 mA or discrete relay outputs, no changes to the PLC I/O module wiring are required. The 330105-02-12-10-02-00 outputs the same analogue signal chain as its predecessor, preserving existing ladder logic, function block diagrams, and HMI tag mappings without modification.

Where the machinery protection system connects to a DeltaV DCS or Honeywell Experion PKS via Modbus RTU or OPC-DA, the monitor rack acts as the protocol gateway. Replacing the probe does not affect the communication link; however, this is an appropriate time to audit the 3500/92 Communication Gateway Module firmware version and confirm compatibility with the site’s historian or DCS server software revision.

During the physical installation, technicians should use a calibrated gap-setting tool to position the probe tip at the manufacturer-specified gap (typically 1.0–1.5 mm from the shaft surface for 8mm probes), verify the gap voltage reads within the linear range (-10 to -18 VDC), and document the as-found and as-left readings in the maintenance management system. If the installation includes a 330180 Proximitor Sensor in the signal chain, confirm its input impedance matches the new probe’s output characteristics before closing the junction box.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist. Before isolating the affected monitor channel, export the full rack configuration from System 1 or the 3500 Rack Configuration Software. This backup preserves all channel assignments, transducer types, scale factors, and alarm setpoints — the single most important step to ensure rapid recommissioning if the replacement window overruns.

For critical machinery where continuous monitoring is contractually or safety-mandated, consider using a portable vibration analyser (such as the ADRE 408 or equivalent) to maintain temporary surveillance on the shaft during the monitor channel bypass period. This approach keeps the control room informed of machine condition without relying on the permanent monitor rack, reducing the risk of operating blind during the swap.

Once the 330105-02-12-10-02-00 is installed and gapped, perform a static calibration check before re-enabling the monitor channel. Confirm that the gap voltage, sensitivity, and linearity readings fall within the 3300 XL system specifications. Only after this verification should the channel be returned to normal monitoring mode and alarm outputs re-enabled. This sequence protects the original program logic — no PLC or DCS program changes are required — and maintains field control continuity throughout the retrofit.

For multi-machine outage campaigns where several probes are being replaced across a turbine train, stagger the channel bypasses to ensure at least one radial and one axial channel remains active per machine at all times. This practice, combined with pre-tested and pre-gapped replacement probes, routinely reduces per-probe swap time to under 45 minutes and keeps total machinery protection downtime within a single planned maintenance shift.

Retrofit Support FAQ

Q1: Is the 330105-02-12-10-02-00 a direct replacement for the 330105-02-12-10-01-00?
Functionally yes — both are 8mm, 5m, 200 mV/mil probes for the 3300 XL platform. The primary difference is the connector/cable termination style. Verify the existing junction box connector type before ordering to confirm a direct swap without field re-termination.

Q2: Does replacing this probe require any PLC or DCS program changes?
No. The 330105-02-12-10-02-00 is a passive analogue transducer. It outputs the same signal characteristics as the original probe. Existing ladder logic, function blocks, HMI tags, and DCS loop configurations remain unchanged. Only the gap voltage setpoint may need minor field adjustment after installation.

Q3: What pre-shipment testing is performed on this unit?
Each 330105-02-12-10-02-00 unit undergoes sensitivity verification, gap-voltage linearity check, and connector integrity test prior to dispatch. A test report is available upon request. Units are shipped in anti-static packaging with calibration data included.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, sensitivity drift beyond published specification, and connector/cable integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap, shaft contact, or exposure to fluids beyond the probe’s IP rating. In-stock units are available for immediate dispatch to minimise your system downtime.
