Bently Nevada 330105-02-12-05-02-00 Maintenance-Proven Spare Part

Overview

Bently Nevada 330105-02-12-05-02-00 Maintenance-Proven Spare Part for Factory Uptime

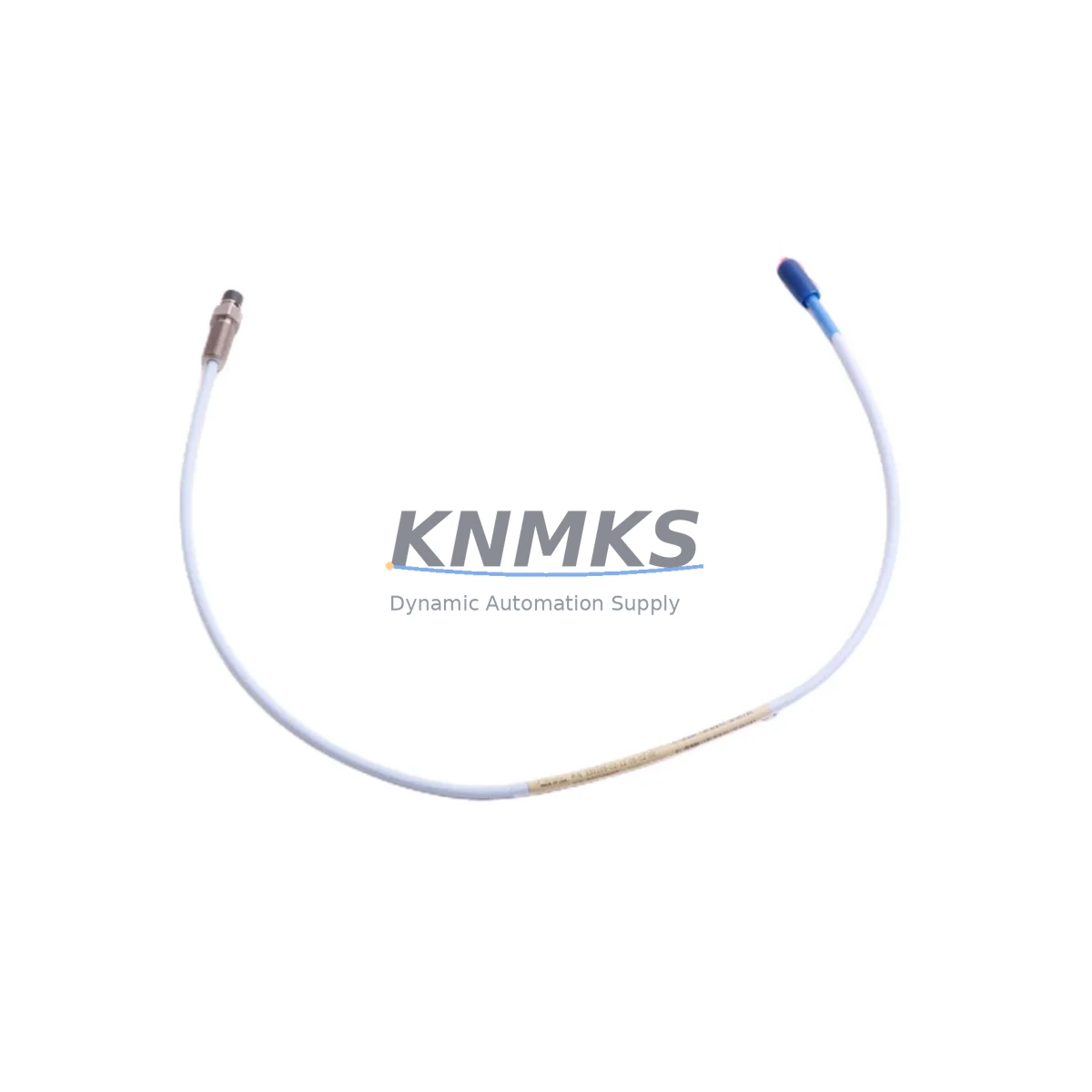

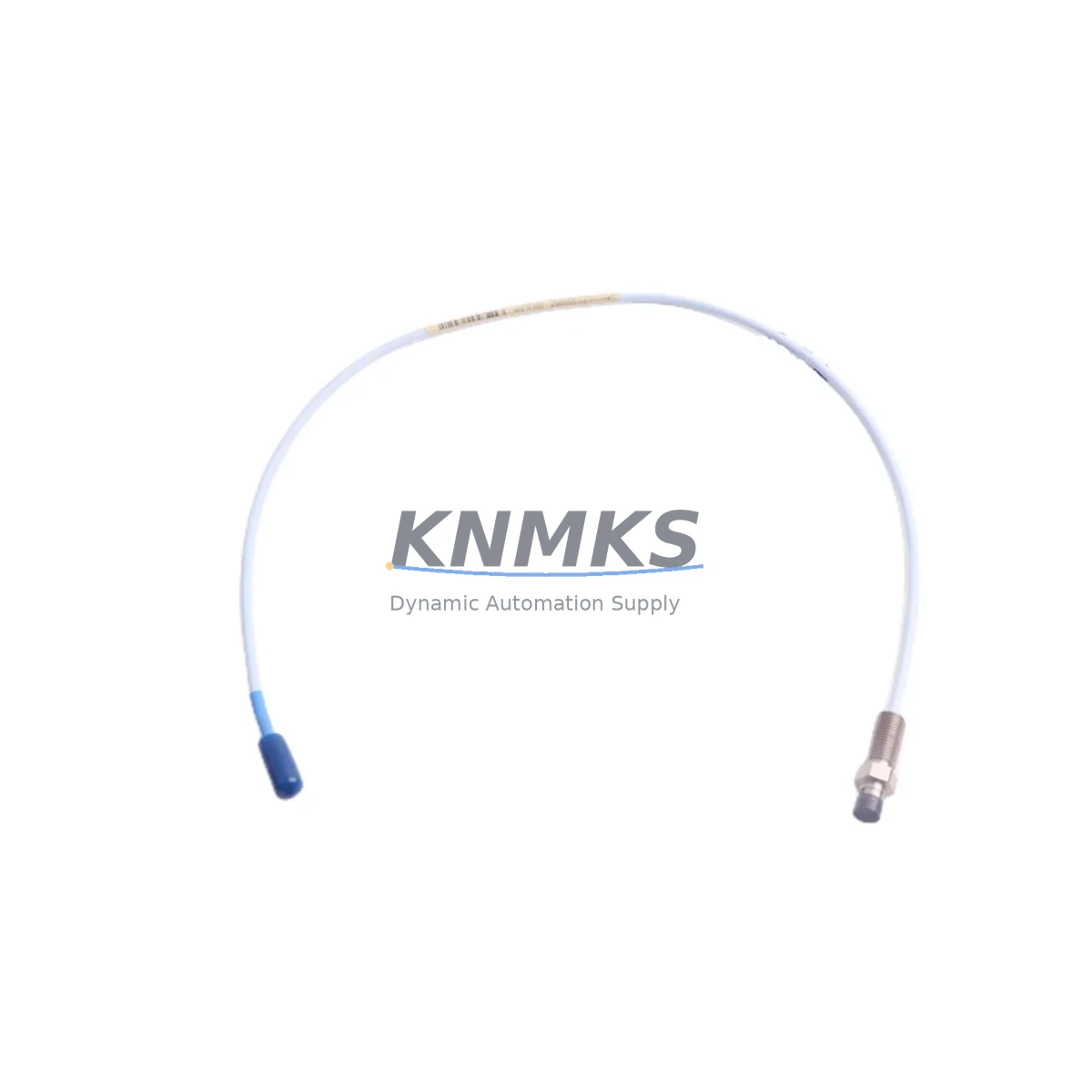

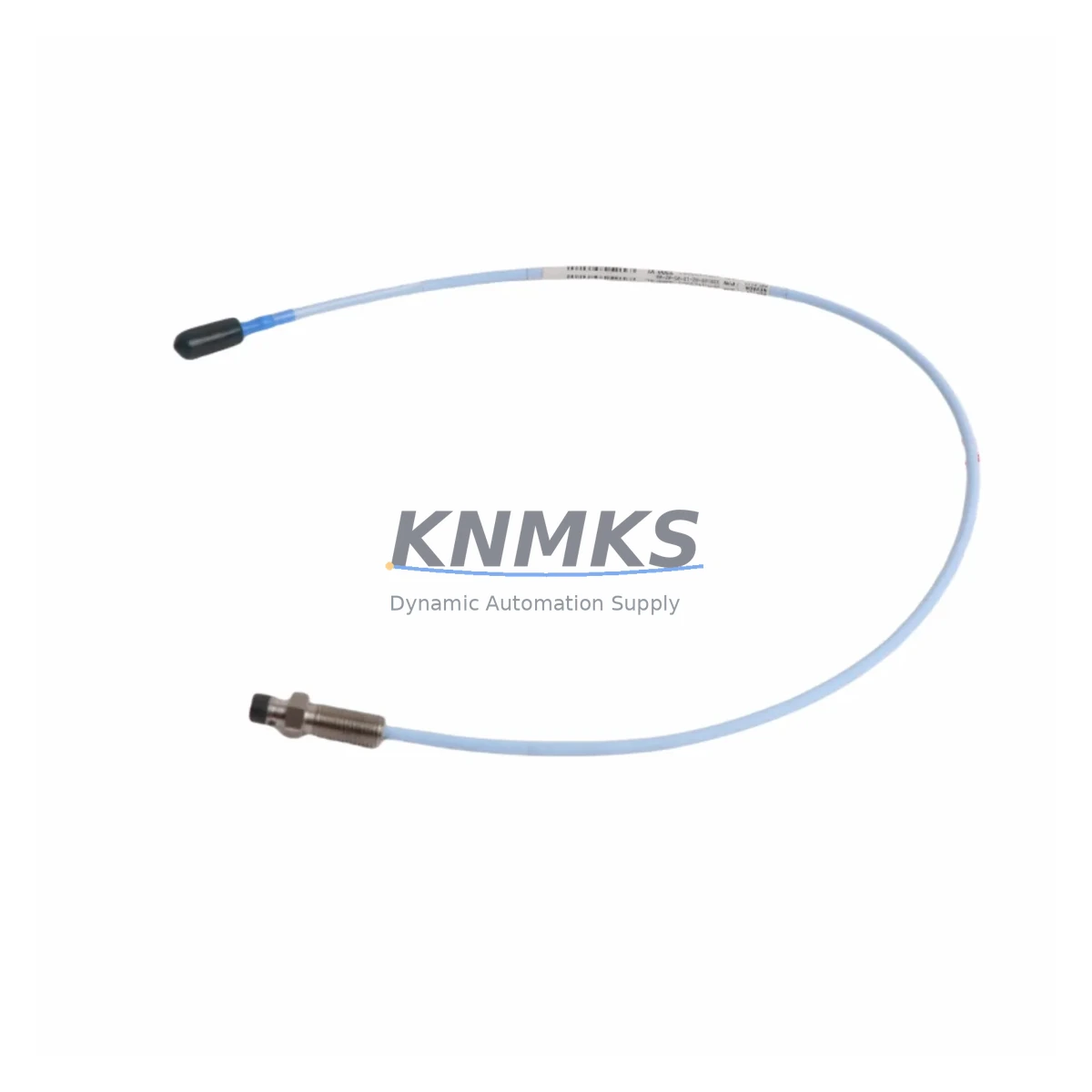

The Bently Nevada 330105-02-12-05-02-00 is an 8mm reverse-mount proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. Designed as a core component of the Bently Nevada 3300 XL Series monitoring system, this probe delivers reliable eddy-current sensing performance in demanding industrial environments including turbines, compressors, pumps, and gearboxes. Sourced as an original spare, each unit is pre-shipment tested and backed by a support terms confirmed by quotation, making it a trusted choice for maintenance engineers managing critical asset uptime and procurement engineers building resilient spare parts inventories.

For rotating machinery protection systems, the 330105-02-12-05-02-00 is a front-line component in vibration monitoring loops. Its 8mm tip diameter and reverse-mount configuration make it compatible with standard 3300 XL probe holders and conduit assemblies. When integrated with the 3300 XL proximitor/seismic transducer module, it provides the radial shaft vibration and axial position signals required by plant DCS and safety systems. Maintaining a stocked unit of this probe — alongside its matched extension cable and proximitor — is a fundamental practice for any facility operating Bently Nevada-based machinery protection systems.

Procurement engineers should note that the 330105-02-12-05-02-00 is part of a matched probe-cable-proximitor system. Replacing only the probe without verifying the condition of the companion 330130 series extension cable and the 3300 XL proximitor (such as the 330180 or 330185 series) can introduce signal errors that mimic shaft faults. Always confirm system calibration after replacement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3300 XL-based machinery protection loop requires more than a single probe replacement. When scheduling a planned outage or responding to a vibration alarm, maintenance engineers should treat the 330105-02-12-05-02-00 as part of a system-level inspection. The matched 330130 series extension cable — typically 5m or 9m — should be inspected for jacket damage, connector corrosion, and continuity. A degraded extension cable is a common source of intermittent vibration readings that are incorrectly attributed to probe failure.

The 3300 XL proximitor module (e.g., 330180-X0-05 or 330185-X0-05) should be verified for correct gap voltage output, typically between -10 VDC and -18 VDC at the nominal air gap. If the proximitor is approaching its recommended service interval or shows signs of drift, replacing it alongside the probe during the same outage window eliminates a second unplanned shutdown. The 3300 XL monitor rack and its associated 3500 series I/O modules should also be checked for alarm setpoint integrity and channel configuration after any probe replacement.

For facilities running integrated DCS or safety instrumented systems, verify that the vibration channel signal is correctly received at the DCS analog input card or safety relay module after probe replacement. Signal isolation barriers or galvanic isolators in the signal path should be tested for correct output range. Additionally, inspect the terminal strip and field junction box for moisture ingress, loose terminations, and correct shielding continuity — these are frequent sources of noise that can mask or simulate vibration faults.

For annual maintenance cycles, procurement engineers should consider stocking a minimum of one spare 330105-02-12-05-02-00 probe per monitored machine train, along with a matched extension cable set and at least one spare proximitor module. This inventory posture supports a same-shift replacement capability and eliminates the lead-time risk associated with sourcing critical spares during an unplanned outage.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the machinery protection channel at the monitor rack. Do not remove the probe while the machine is running unless the system is configured for hot-swap and the channel is bypassed.

Step 2 — Gap Measurement: Before removing the old probe, record the existing air gap (typically 1.0mm to 1.5mm for 8mm probes) using a feeler gauge or the proximitor gap voltage reading. This baseline is required for reinstallation.

Step 3 — Probe Removal: Disconnect the extension cable at the field junction box. Unthread the probe from the probe holder using the appropriate spanner. Inspect the probe holder threads and the target area for wear or contamination.

Step 4 — New Probe Installation: Install the 330105-02-12-05-02-00 and set the air gap to the recorded baseline or the OEM-specified nominal gap. Reconnect the extension cable and verify connector seating and locking.

Step 5 — System Verification: Power the proximitor and verify gap voltage is within the linear range. Check the monitor rack for correct channel reading and confirm alarm setpoints are active. Document the replacement in the maintenance management system.

Step 6 — Return to Service: Remove the channel bypass, confirm the machine protection system is fully operational, and close the work permit. Retain the replaced probe for failure analysis if applicable.

Spare Parts Support FAQ

Q1: Is the 330105-02-12-05-02-00 compatible with both 3300 XL and older 3300 series monitors?
The 330105-02-12-05-02-00 is designed and calibrated for the 3300 XL system. While the physical connector and probe geometry may be similar to earlier 3300 series probes, the calibration curve and sensitivity specification are optimized for 3300 XL proximitors. Using this probe with non-XL proximitors may result in calibration errors. Always verify system compatibility before installation.

Q2: What is included in the support terms confirmed by quotation and pre-shipment testing?
Each 330105-02-12-05-02-00 unit undergoes functional verification including tip resistance check, cable continuity, and connector integrity before dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside specified parameters.

Q3: Can you support long-term supply agreements for this part number?
Yes. For facilities requiring guaranteed availability over 12 to 36 months, we support blanket order arrangements with scheduled releases. This is particularly relevant for plants operating legacy 3300 XL systems where OEM supply continuity is uncertain. Contact our sales team to discuss volume, lead time, and consignment stocking options.

Q4: How do I verify the probe is genuine and not a counterfeit replacement?
Genuine Bently Nevada 330105-02-12-05-02-00 probes carry OEM part markings on the probe body and connector. Upon request, we can provide traceability documentation and test records. We recommend verifying gap voltage output against the 3300 XL calibration curve as a functional authenticity check after installation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330105-02-12-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330105-02-12-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
