Bently Nevada 330104-15-25-10-01-CN Maintenance Spare Probe: Verified Spare for Factory Uptime

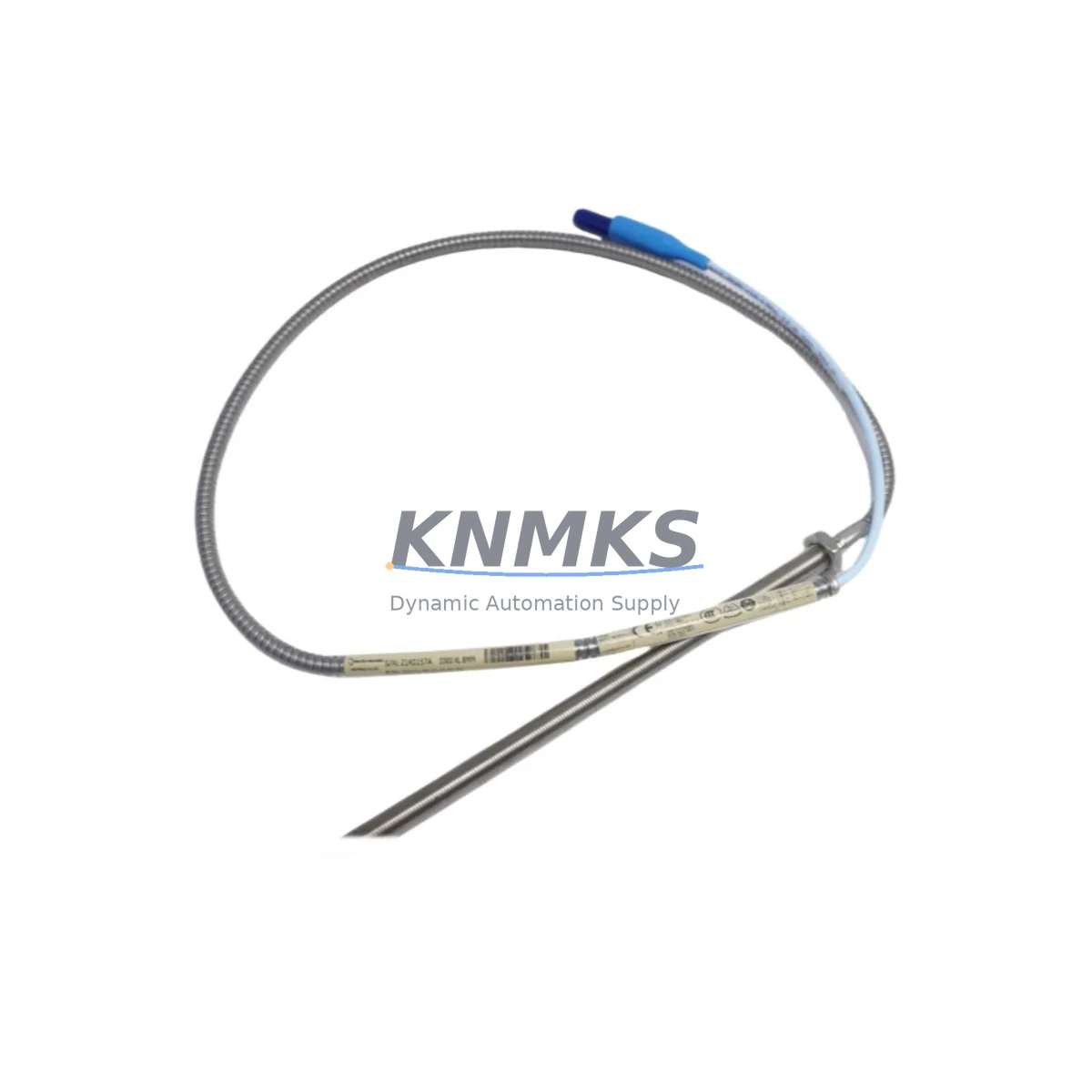

The Bently Nevada 330104-15-25-10-01-CN is an original 8mm eddy-current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-proven spare part, this probe is a critical component in turbine protection systems, compressor trains, pump sets, and motor-driven equipment where unplanned downtime carries severe operational and financial consequences. Sourced as an original Bently Nevada component, each unit is tested prior to shipment and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams the confidence to stock it as a primary or emergency replacement.

For facilities running Bently Nevada 3300 XL monitoring systems, maintaining a verified spare of the 330104-15-25-10-01-CN on the shelf is a fundamental element of any predictive maintenance or reliability-centered maintenance (RCM) program. The probe’s 8mm tip diameter, standard 5-metre cable configuration, and -CN connector designation make it a direct drop-in replacement for aging or damaged probes without requiring recalibration of the entire monitoring loop — provided the matched extension cable and proximitor remain within the same series.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-15-25-10-01-CN proximity probe is flagged during routine point inspection or condition monitoring review, the replacement workflow should never be limited to the probe alone. A disciplined maintenance engineer will simultaneously verify the integrity of the matched 330130 Series extension cable, since cable damage, connector corrosion, or impedance mismatch is a leading cause of false vibration readings that can mask real machinery faults or trigger nuisance trips. The extension cable and probe must always be treated as a matched pair within the 3300 XL system.

The 3300 XL Proximitor module — typically a 3300/16 or 3300/20 — should be inspected for output voltage drift, connector pin condition, and power supply rail stability. A proximitor operating outside its nominal -24 VDC supply range will produce inaccurate gap voltage readings even with a new probe installed. Confirm the 3300 Series power supply module is delivering clean, regulated DC before completing the probe swap.

For facilities with Bently Nevada System 1 or 3500 Series rack infrastructure, the I/O wiring between the proximitor and the monitoring rack’s 3500/42 Proximitor I/O Module should be checked for loose terminations, shield grounding continuity, and correct polarity. Loose field wiring at the terminal block is a common source of intermittent channel faults that are misdiagnosed as probe failures. Inspect the terminal strip and DIN rail mounting hardware inside the control cabinet at the same time.

Where the 3300 XL system feeds into a DCS or safety instrumented system (SIS), verify that the signal isolator or barrier in the loop — often a Zener barrier or galvanic isolator — is within calibration and has not degraded. Signal isolation components are frequently overlooked during probe replacements but are a critical link in maintaining measurement accuracy and intrinsic safety compliance in hazardous area installations.

Annual shutdown inspections are also the right time to audit the 3300 XL rack backplane and monitor modules for firmware currency, relay output contact condition, and alarm setpoint integrity. Procurement teams supporting long-running machinery protection systems should maintain a minimum buffer stock of one probe assembly, one extension cable, and one proximitor per critical machine train — a practice that reduces mean time to repair (MTTR) from days to hours during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the monitoring channel at the rack. Do not remove the probe under live machine conditions unless the system is configured for hot-swap and the machine is in a safe operating state.

Step 2 — Gap Voltage Baseline: Before removal, record the existing gap voltage from the proximitor output. This baseline confirms the probe’s installed gap and provides a reference for the replacement unit.

Step 3 — Probe Removal: Unthread the 330104-15-25-10-01-CN from its mounting bracket. Inspect the bracket threads, probe tip, and cable connector for mechanical damage. If the bracket shows wear or corrosion, replace it concurrently to avoid repeat failures.

Step 4 — New Probe Installation: Install the replacement 330104-15-25-10-01-CN and set the probe gap to the manufacturer’s recommended value (typically 1.0–1.5 mm for most shaft applications). Use a calibrated gap-setting tool or feeler gauge. Reconnect the extension cable and verify connector seating.

Step 5 — System Verification: Restore power to the proximitor and confirm the output gap voltage falls within the linear range (approximately -10 VDC at nominal gap). Check the monitoring system for channel OK status and confirm alarm and danger setpoints are active.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the new probe serial number, installation date, gap voltage reading, and technician sign-off. Update the spare parts inventory to trigger replenishment of the consumed unit.

This structured workflow ensures system compatibility is maintained, reduces the risk of re-work, and supports audit readiness for machinery protection systems operating under API 670 or equivalent standards.

Spare Parts Support FAQ

Q1: Is the 330104-15-25-10-01-CN compatible with both 3300 XL and earlier 3300 Series systems?
The 330104-15-25-10-01-CN is designed for the 3300 XL Series. While the physical connector may appear compatible with earlier 3300 Series proximitors, Bently Nevada specifies matched system use (probe + extension cable + proximitor from the same series) to guarantee calibration accuracy. Cross-series mixing is not recommended without a full system recalibration. Confirm your proximitor model before ordering.

Q2: What pre-shipment testing is performed on each unit?
Each 330104-15-25-10-01-CN spare is functionally tested for output sensitivity, linear range, and connector integrity before dispatch. Units that do not meet Bently Nevada’s original performance specifications are not shipped. A support terms confirmed by quotation cover manufacturing defects and performance deviations from the point of delivery.

Q3: How should this probe be stored as a long-term spare?
Store in the original packaging or an anti-static, moisture-controlled environment at 15–35°C. Avoid coiling the cable tightly or exposing the probe tip to mechanical impact. Inspect stored units annually for connector oxidation and cable jacket integrity. Rotate stock on a first-in, first-out basis to prevent shelf-life degradation.

Q4: Can long-term supply be arranged for facilities with multiple machine trains?
Yes. Blanket purchase orders and scheduled delivery programs are available for facilities requiring ongoing supply of the 330104-15-25-10-01-CN across multiple units or sites. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements that align with your annual maintenance budget cycle.
