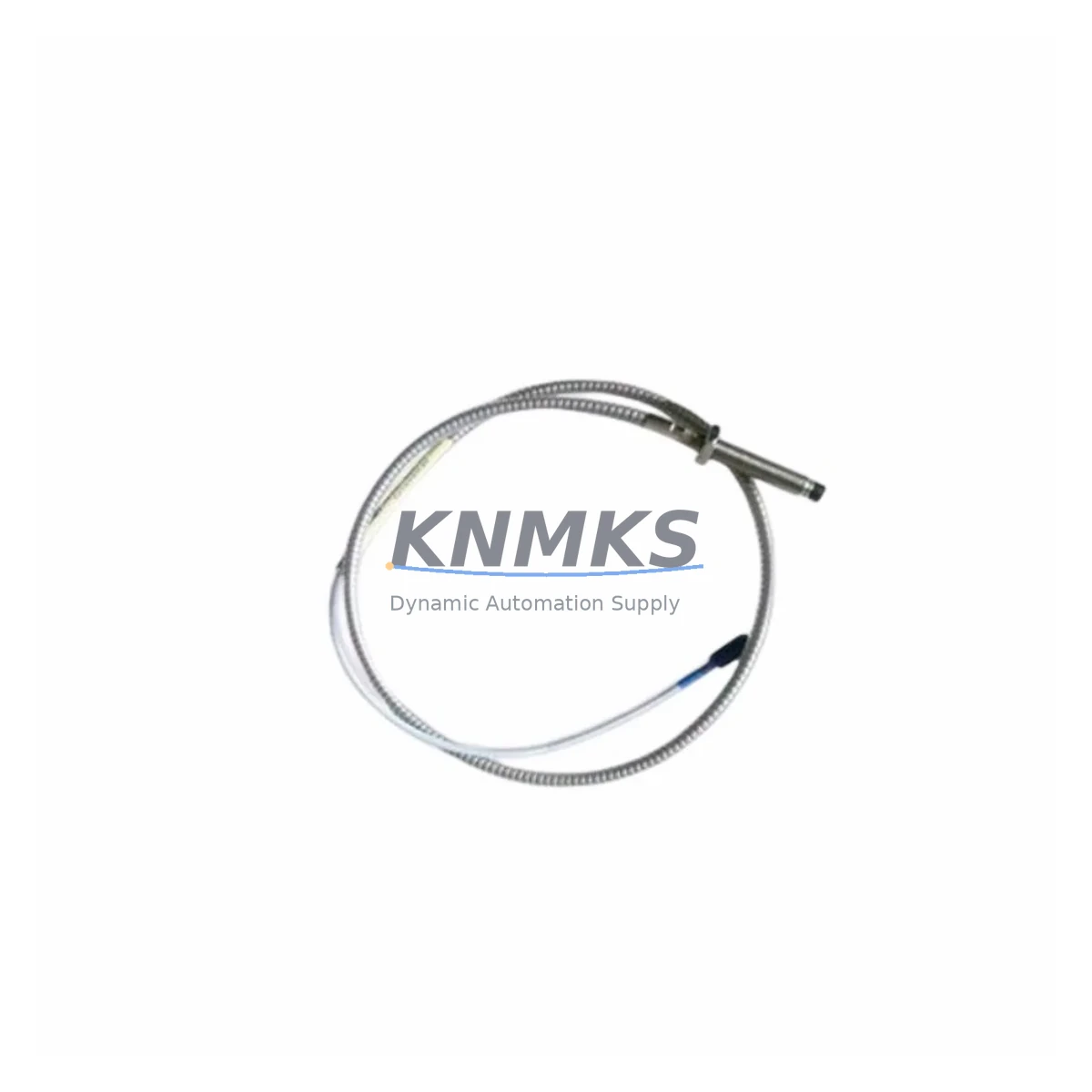

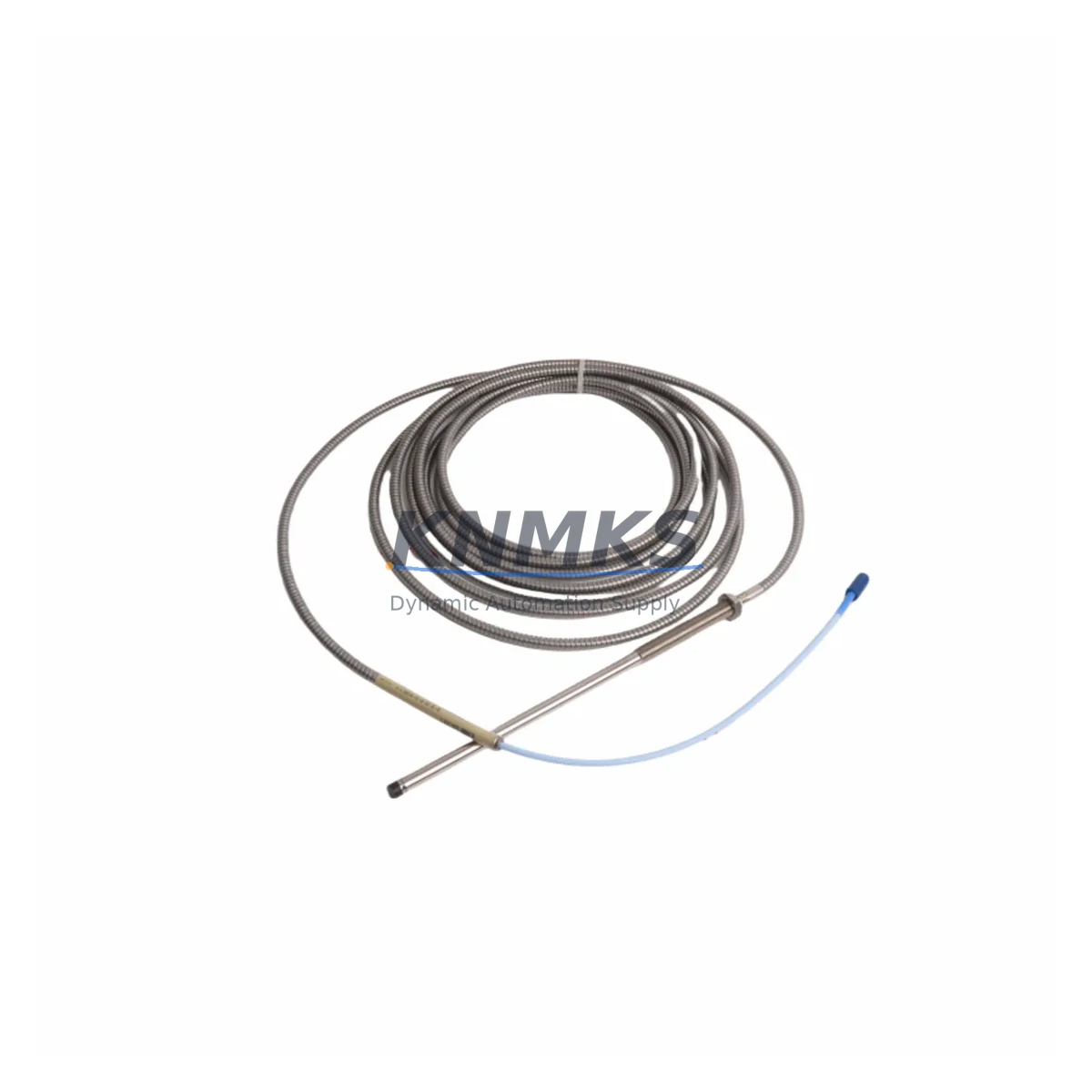

Bently Nevada 330104-15-23-50-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-15-23-50-02-00 Fail-Safe Proximity Probe: Industrial Fault Protection and Critical Field Reliability

The Bently Nevada 330104-15-23-50-02-00 is a 15mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high electromagnetic interference, elevated temperature, mechanical vibration, moisture ingress, and chemically aggressive atmospheres, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

In critical control cabinets and safety instrumented systems, signal integrity is non-negotiable. The 330104-15-23-50-02-00 delivers a stable, low-noise output signal that resists drift under thermal cycling and electrical transients, directly reducing the risk of spurious trips, missed fault detection, and unplanned shutdowns. Its hardened coaxial cable assembly and precision-wound sensing coil maintain calibrated sensitivity across the full operating range, ensuring that the Bently Nevada 3300 XL Proximitor® sensor receives a clean, consistent signal even when installed adjacent to high-power drives, transformers, or bus bars generating significant electromagnetic noise.

When integrated into a complete machinery protection loop — pairing this probe with the Bently Nevada 3300 XL 8mm Extension Cable and the Bently Nevada 3300/16 Proximitor® Monitor — the system provides end-to-end vibration measurement with automatic fault annunciation. This architecture is specifically designed to meet API 670 machinery protection requirements, making it the preferred solution for turbine, compressor, pump, and motor protection in safety-critical installations. The probe’s stainless steel housing and PTFE-jacketed cable provide robust protection against hydraulic fluid, lubricating oil, and process gas exposure, maintaining measurement accuracy where lesser sensors would fail.

For control cabinet builders and system integrators, the 330104-15-23-50-02-00 simplifies installation with its standardized 15mm thread body and defined gap voltage characteristics. When combined with the Bently Nevada 330130 Proximitor® Sensor and properly routed through EMI-shielded cable trays, the complete measurement chain achieves the signal-to-noise performance required for early fault detection — identifying shaft imbalance, misalignment, oil whirl, and rub conditions before they escalate to catastrophic failure. In high-vibration environments such as reciprocating compressor skids or rolling mill drives, this early warning capability directly translates to reduced maintenance costs and extended mean time between failures.

Power supply stability is equally critical in these applications. Pairing the proximity probe system with a Bently Nevada 3300/20 Power Supply or equivalent regulated DC supply ensures that the Proximitor® sensor operates within its specified input voltage window, preventing measurement offset errors caused by supply ripple or transient voltage sags. In facilities where power quality is compromised by large motor starts or welding operations, this supply-side protection is an essential element of the overall machinery safety strategy.

The 330104-15-23-50-02-00 is also fully compatible with the Bently Nevada System 1® condition monitoring platform, enabling real-time trend analysis, alarm management, and predictive maintenance workflows. This integration allows plant engineers to correlate vibration data with process variables — temperature, flow, pressure — to identify developing faults with greater confidence and schedule maintenance during planned outages rather than responding to emergency shutdowns. In continuous process industries where a single unplanned compressor or turbine trip can cost hundreds of thousands of dollars in lost production, this predictive capability delivers measurable return on investment.

KNMKS maintains verified stock of the Bently Nevada 330104-15-23-50-02-00 with full traceability documentation, supporting rapid spare parts replacement for both planned maintenance and emergency breakdown scenarios. Each unit undergoes pre-shipment functional verification to confirm gap voltage output, cable continuity, and housing integrity before dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330104-15-23-50-02-00 proximity probe integrates multiple layers of fault detection and signal conditioning. The probe connects via a matched Bently Nevada 3300 XL Extension Cable to the 3300/16 Proximitor® Monitor, which provides buffered output signals for both the protection system and the condition monitoring network. Upstream, a Bently Nevada 3300/20 Power Supply delivers clean, regulated –24 VDC to the Proximitor® sensor, isolated from cabinet power bus disturbances. For facilities running the Bently Nevada System 1® platform, the monitor rack communicates over a dedicated data highway, feeding real-time vibration vectors to the control room historian. In safety instrumented system architectures, the monitor’s relay outputs interface directly with the emergency shutdown (ESD) logic solver, ensuring that a confirmed high-vibration condition triggers a controlled, safe machine trip rather than a destructive mechanical failure. Surge protection devices installed at the cabinet entry points guard all signal cables — including the proximity probe coaxial lines — against lightning-induced transients and switching surges from adjacent high-voltage equipment, preserving measurement integrity throughout the service life of the installation.

Critical Industrial Safety Applications

The Bently Nevada 330104-15-23-50-02-00 is deployed across a wide spectrum of safety-critical industrial applications. In petrochemical and refinery facilities, it monitors shaft radial vibration on centrifugal compressors and process pumps handling flammable and toxic media, where an undetected bearing failure could result in seal loss and process release. In power generation plants — both thermal and combined-cycle — it provides continuous shaft position and vibration data on steam and gas turbines, supporting both normal operation monitoring and overspeed protection system validation. Mining and mineral processing operations rely on this probe series for mill drive and crusher bearing protection, where the high dust loading and shock vibration environment demands the robust construction and stable output that the 3300 XL Series delivers. In water and wastewater treatment facilities, it monitors large vertical pump motors in humid, corrosive atmospheres, providing early warning of impeller imbalance before pump failure disrupts treatment capacity. Metallurgical and steel mill applications use the probe for rolling mill drive shaft monitoring, where thermal gradients and electromagnetic interference from induction heating equipment challenge lesser sensors. Port and marine installations deploy it on propulsion system bearings and cargo handling crane drives, where reliability in salt-air environments is essential for operational continuity.

Safety and Quality FAQ

Q: What support terms coverage is provided for the 330104-15-23-50-02-00?
A: KNMKS provides a support terms confirmed by quotation covering manufacturing defects and functional performance. Each unit is verified prior to shipment for gap voltage output, cable continuity, and housing integrity. Support requests are supported with direct technical assistance and replacement unit dispatch.

Q: How is the probe tested before shipment?
A: Every 330104-15-23-50-02-00 unit undergoes pre-shipment functional verification including gap voltage output measurement at the specified linear range, coaxial cable continuity and insulation resistance check, and visual inspection of the probe tip, housing threads, and cable jacket. Test records are available upon request for quality-critical installations.

Q: Is this probe compatible with existing 3300 XL Proximitor® sensors and monitors already installed in the field?
A: Yes. The 330104-15-23-50-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor® sensor family and 3300 Series monitor racks. It is a direct replacement for worn or damaged probes in existing installations without requiring recalibration of the monitor, provided the extension cable and Proximitor® sensor are also 3300 XL Series components.

Q: Can KNMKS support long-term and emergency spare parts supply for this model?
A: KNMKS maintains ongoing inventory of the 330104-15-23-50-02-00 and related 3300 XL Series components to support both planned maintenance schedules and emergency breakdown requirements. For facilities with critical spare parts programs, we can discuss consignment stock arrangements and priority dispatch agreements to minimize machine downtime risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-15-23-50-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-15-23-50-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
