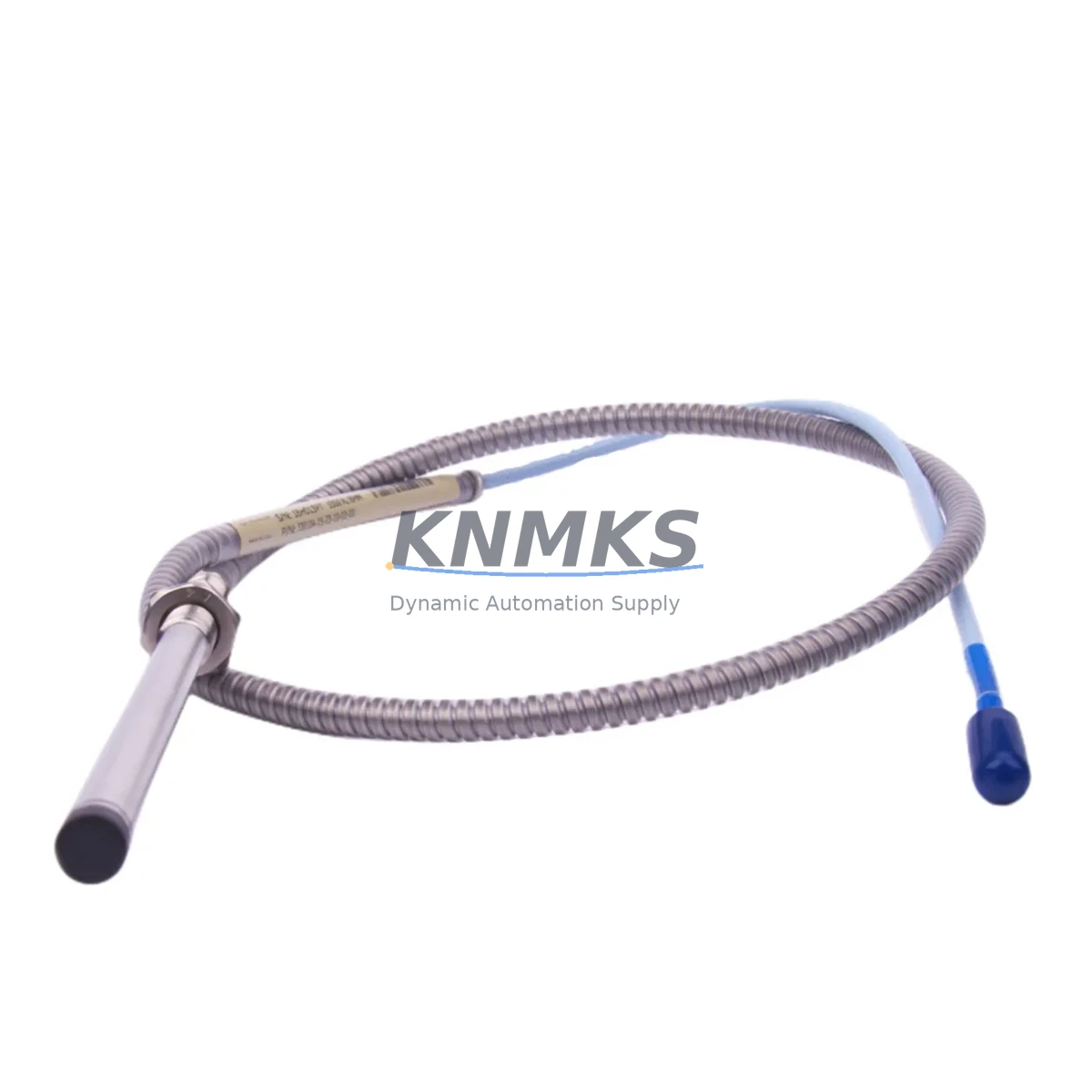

Bently Nevada 330104-15-23-10-02-00 Fail-Safe 8mm Proximity Transducer: Fault Protection for Critical Industrial Control Reliability

The Bently Nevada 330104-15-23-10-02-00 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to integrate seamlessly into machinery protection systems, safety instrumented systems (SIS), and critical rotating equipment monitoring loops, this transducer delivers the signal integrity and long-term stability that plant engineers and reliability teams depend on to prevent unplanned shutdowns and protect personnel.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, port machinery, and marine propulsion systems — control interruption is never acceptable. The 330104-15-23-10-02-00 is built to remain operational under high electromagnetic interference (EMI), mechanical vibration, thermal cycling, moisture ingress, and airborne particulate contamination. Its robust construction and precision-calibrated sensing gap ensure that signal drift, false trips, and missed fault events are minimized, giving your control system the reliable feedback it needs to make safe, accurate decisions at all times.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable proximity sensing begins at the transducer tip, but true fault protection extends across the entire measurement chain and control cabinet architecture. The Bently Nevada 330104-15-23-10-02-00 is designed to operate as part of a coordinated protection loop. In a typical critical machinery protection cabinet, this transducer pairs with a Bently Nevada 3300 XL Proximitor Sensor (330180 series) to condition the raw eddy-current signal into a clean, calibrated DC voltage that the monitoring system can process without ambiguity.

For installations where signal runs exceed the integral cable length, Bently Nevada 330130 series extension cables maintain signal fidelity over longer distances without introducing impedance mismatches or ground loops that could cause false readings or nuisance trips. In high-vibration or high-EMI environments — common in compressor trains, turbine bearing housings, and large motor drive systems — the coaxial shielded construction of the 330104 probe and its matched extension cables provides a critical barrier against interference from variable frequency drives (VFDs), high-current bus bars, and adjacent relay switching transients.

At the system level, the transducer output feeds into a Bently Nevada 3500 Series Machinery Protection System rack, where dedicated I/O modules perform real-time vibration, position, and speed monitoring with configurable alarm and trip setpoints. Integrating the 330104-15-23-10-02-00 into a 3500 rack with a 3500/42M Proximitor/Seismic Monitor module enables dual-channel redundancy, voted trip logic, and direct interface to plant DCS or safety PLC platforms via hardwired relay outputs or MODBUS/RS-485 communication. For plants operating under IEC 61511 functional safety requirements, this architecture supports the construction of SIL-rated safety instrumented functions (SIFs) for overspeed, high vibration, and thrust position protection.

Surge and transient protection at the cabinet terminal strip — using DIN-rail mounted surge protective devices (SPDs) on signal wiring — further reduces the risk of transducer damage from lightning-induced surges or switching transients in heavy industrial switchgear environments. Combining the 330104 transducer with proper cable routing, shielded conduit, and cabinet thermal management (including forced-air cooling or heat exchangers where ambient temperatures are elevated) ensures the entire protection loop remains within its rated operating envelope throughout the equipment lifecycle.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking units, compressor trains, and pump systems, the 330104-15-23-10-02-00 monitors shaft radial vibration and provides the early-warning signal that allows operators to schedule maintenance before a bearing failure escalates into a process safety event. Its resistance to hydrocarbon vapors, high ambient temperatures, and aggressive cleaning agents makes it a dependable choice for hazardous area installations.

Power Generation: Steam turbines, gas turbines, and large generator sets demand sub-millisecond fault detection. The 3300 XL proximity transducer’s fast response and stable scale factor ensure that shaft displacement excursions are captured accurately, enabling the turbine protection system to initiate a controlled trip before mechanical damage occurs. This is particularly critical in grid-connected generation where an uncontrolled trip can cascade into broader network instability.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drive motors, and slurry pumps operate in environments with extreme dust loading, high vibration, and frequent electrical transients from large motor starters. The 330104’s robust construction and EMI-shielded signal path maintain measurement integrity even when installed adjacent to high-power drive equipment, reducing the risk of false trips that would halt production and false clears that could allow equipment to run to destruction.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities require continuous bearing condition monitoring to prevent unplanned outages that could compromise public water supply. The non-contact sensing principle of the 330104 eliminates wear-related drift, ensuring that alarm setpoints remain valid over multi-year service intervals without recalibration.

Metallurgy and Steel Production: Rolling mill drives, continuous casting equipment, and induction furnace cooling pumps operate under severe thermal and mechanical stress. The 330104-15-23-10-02-00’s rated operating temperature range and vibration-resistant construction allow it to function reliably in these environments, providing the shaft position and vibration data that mill automation systems need to maintain product quality and prevent catastrophic mechanical failures.

Marine and Port Machinery: Shipboard propulsion systems, bow thrusters, and port crane hoisting drives require compact, reliable proximity sensing that can withstand salt-laden air, hull vibration, and wide temperature swings. The 3300 XL series transducer’s proven track record in marine machinery protection makes the 330104 a trusted replacement and upgrade component for vessel operators seeking to standardize on a globally supported platform.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330104-15-23-10-02-00?
The support terms confirmed by quotation cover manufacturing defects, calibration failures, and functional non-performance under normal operating conditions as specified in the Bently Nevada 3300 XL product documentation. If the transducer fails to meet its published sensitivity, linearity, or temperature specifications within the confirmed support period, we will provide a replacement unit. The confirmed support period begins from the date of shipment. Damage resulting from incorrect installation, overvoltage, or use outside the rated environmental envelope is not covered, but our technical team is available to assist with root-cause assessment.

Q2: How is each unit tested before shipment?
Every 330104-15-23-10-02-00 unit dispatched from our inventory undergoes pre-shipment functional verification, including output voltage check at a known gap distance, cable continuity and insulation resistance test, and visual inspection of the probe tip, connector, and cable jacket. Units that do not meet Bently Nevada’s published specifications are quarantined and not dispatched. A test record is available upon request for quality-critical applications.

Q3: Is the 330104-15-23-10-02-00 compatible with existing 3300 XL system installations?
Yes. The 330104-15-23-10-02-00 is a standard 3300 XL series 8mm proximity transducer and is fully compatible with Bently Nevada 3300 XL Proximitor Sensors, 330130 series extension cables, and 3500 Series Machinery Protection System racks. It is a direct replacement for other 330104 suffix variants when the cable length and connector configuration match. Always verify the full part number suffix against your system documentation to confirm dimensional and electrical compatibility before installation.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain stock of the 330104-15-23-10-02-00 and related 3300 XL series components to support planned maintenance, emergency replacement, and long-term spare parts programs. For facilities with critical machinery protection requirements, we recommend establishing a consignment or scheduled replenishment arrangement to ensure that replacement transducers are available on-site before they are needed. Contact our sales team to discuss volume pricing, lead time commitments, and spare parts program options tailored to your plant’s maintenance strategy.
