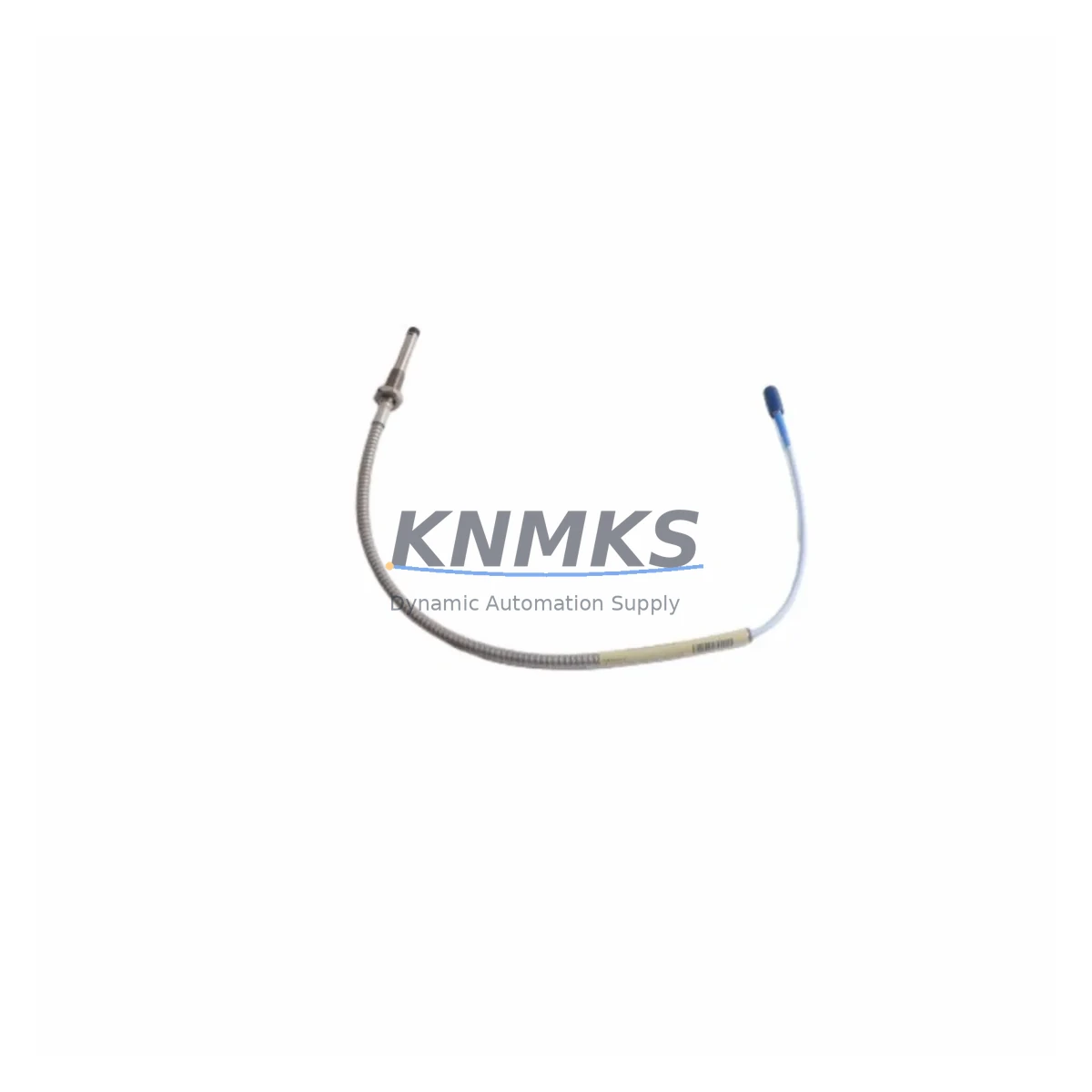

Bently Nevada 330104-13-20-10-02-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330104-13-20-10-02-00 Fail-Safe Proximity Transducer: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330104-13-20-10-02-00 is a high-performance proximity transducer from the renowned 3300 XL Series, engineered specifically for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this transducer delivers consistent, drift-free signal output even under conditions of high electromagnetic interference, mechanical vibration, extreme temperature cycling, and corrosive or humid atmospheres. For plant engineers and reliability teams responsible for critical rotating assets — turbines, compressors, pumps, and motors — the 330104-13-20-10-02-00 represents a proven, safety-rated solution that minimizes the risk of unplanned shutdowns and protects both personnel and capital equipment.

At the core of its design is an eddy-current sensing principle that provides non-contact, wear-free measurement of shaft displacement and vibration. Unlike contact-based sensors, this approach eliminates mechanical degradation over time, ensuring that the transducer maintains its calibrated accuracy across years of continuous operation. The 330104-13-20-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor signal conditioning system, forming a complete, integrated measurement chain that is widely accepted in API 670-compliant machinery protection architectures. When paired with the Bently Nevada 3500 Series Machinery Protection System rack, the transducer feeds real-time vibration data directly into trip and alarm logic, enabling automated protective shutdown before catastrophic bearing or seal failure can occur.

In high-EMI environments — such as those found adjacent to large variable frequency drives, high-voltage switchgear, or arc furnace installations — signal integrity is paramount. The 330104-13-20-10-02-00 incorporates shielded cable construction and a robust connector interface that resists induced noise, preventing false trips or missed alarms that could compromise safety interlock integrity. This makes it an ideal choice for control cabinets and junction boxes located in electrically noisy industrial zones, where lesser transducers may exhibit signal drift or erratic output that undermines the reliability of the entire protection loop.

The transducer’s stainless steel housing and sealed construction provide effective protection against dust ingress, moisture condensation, and chemical splash — conditions routinely encountered in petrochemical processing units, water treatment facilities, and offshore marine machinery rooms. Its operating temperature range accommodates both the ambient heat of tropical climates and the elevated temperatures found near hot process equipment, ensuring stable performance without recalibration or field adjustment. For installations subject to mechanical shock and vibration — such as reciprocating compressor skids or ship propulsion systems — the transducer’s robust mechanical design maintains electrical continuity and measurement accuracy without the connector loosening or cable fatigue failures that can plague less rugged alternatives.

From a system integration perspective, the 330104-13-20-10-02-00 works seamlessly within broader machinery protection architectures. It is commonly deployed alongside the Bently Nevada 330130 Extension Cable, which provides the precise electrical length required to maintain system sensitivity and scale factor accuracy — a critical consideration when the proximitor must be mounted remotely from the measurement point. The complete transducer system, including the probe, extension cable, and proximitor, is factory-calibrated as a matched set, eliminating field calibration uncertainty and reducing commissioning time. For facilities managing large fleets of rotating machines, this plug-and-play compatibility with existing 3300 XL infrastructure significantly reduces spare parts complexity and training requirements.

In safety instrumented system (SIS) applications, where IEC 61511 compliance demands documented proof of sensor reliability and diagnostic coverage, the 330104-13-20-10-02-00’s established field history and manufacturer safety documentation support the development of safety requirement specifications and proof test procedures. Its use in safety loops protecting against overspeed, high vibration, and axial displacement exceedance is well-established across the petrochemical, power generation, and LNG sectors. When integrated with a Bently Nevada 3500/42M Proximitor/Seismic Monitor module, the transducer contributes to a fully voted, redundant protection architecture capable of meeting SIL 2 requirements for critical machinery safeguarding.

For maintenance teams focused on minimizing mean time to repair (MTTR), the 330104-13-20-10-02-00 offers straightforward replacement procedures. Its standardized thread form, connector type, and cable routing are consistent across the 3300 XL product family, meaning that a technician familiar with any 3300 XL installation can execute a transducer swap efficiently — even under time pressure during an unplanned outage. Keeping a verified, tested spare of the 330104-13-20-10-02-00 in the control room or maintenance store is a recognized best practice for facilities where rotating machinery availability directly impacts production throughput and revenue.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including output signal check and insulation resistance testing, to confirm that the transducer meets its published specification before it leaves our facility. This outgoing quality control step provides an additional layer of assurance beyond the manufacturer’s production testing, giving maintenance engineers confidence that the replacement unit will perform correctly from the moment it is installed. All units are covered by a support terms confirmed by quotation against manufacturing defects, with responsive technical support available to assist with installation, commissioning, and troubleshooting queries.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for rotating machinery assets built around the Bently Nevada 330104-13-20-10-02-00 begins with ensuring signal chain integrity from the measurement point to the protection system rack. The transducer connects via a matched Bently Nevada 330130 Extension Cable to the 3300 XL Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated voltage output suitable for direct input to the Bently Nevada 3500 Series monitor rack. Within the rack, a 3500/42M Proximitor/Seismic Monitor module processes the vibration and position data, applying configurable alarm and trip setpoints that trigger protective relay outputs when machinery behavior exceeds safe operating limits.

To protect the signal wiring within the control cabinet from power supply transients and surge events — particularly in facilities where nearby switchgear operations or lightning strikes can induce damaging voltage spikes — the installation of dedicated surge protection devices on the transducer signal lines is strongly recommended. Similarly, the Bently Nevada 3500/15 Power Supply module, with its regulated, isolated DC output, ensures that the proximitor and monitor electronics receive clean, stable power even when the plant’s AC supply experiences voltage sags or harmonic distortion from large motor starts. This layered approach — quality transducer, matched signal conditioner, dedicated monitor module, and protected power supply — creates a protection architecture that is resilient to the full range of electrical disturbances encountered in heavy industrial facilities.

For installations in hazardous areas classified under IEC 60079 or NEC Article 500, the 3300 XL system’s intrinsic safety and explosion-proof installation options allow the 330104-13-20-10-02-00 to be deployed in Zone 1/Division 1 environments without compromising the area classification integrity of the installation. Proper cable segregation, grounding, and shielding practices — as detailed in the Bently Nevada installation manual — further reduce the risk of ground loops and common-mode noise that can degrade measurement accuracy in complex, multi-machine control cabinet environments.

Critical Industrial Safety Applications

The Bently Nevada 330104-13-20-10-02-00 proximity transducer is deployed across a wide spectrum of critical industrial applications where continuous, reliable shaft monitoring is a non-negotiable safety requirement.

In petrochemical and refinery facilities, it monitors the radial vibration and shaft position of centrifugal compressors and process pumps handling flammable or toxic hydrocarbons. A missed high-vibration alarm in these applications can result in seal failure, process fluid release, and potential fire or explosion — making the fail-safe reliability of the 330104-13-20-10-02-00 directly relevant to process safety management (PSM) compliance.

In power generation plants — both thermal and combined-cycle — the transducer is used to monitor steam turbine and gas turbine shaft behavior, providing the real-time data that protection systems use to execute emergency trips before blade rubs, bearing failures, or rotor instability events can cause catastrophic equipment damage or grid disturbances.

In mining and mineral processing operations, where large ball mills, SAG mills, and crusher drives operate continuously under heavy load, the 330104-13-20-10-02-00 provides the vibration monitoring data needed to detect developing bearing defects and misalignment conditions before they escalate to unplanned downtime events that halt production and trigger costly emergency repairs.

In water and wastewater treatment facilities, the transducer monitors the large vertical turbine pumps and blower units that are critical to continuous treatment process operation. Its sealed, corrosion-resistant construction is well-suited to the humid, chemically aggressive atmospheres found in pump stations and aeration basins.

In metallurgical and steel plants, where rolling mill drives and continuous casting machine motors operate in environments characterized by intense electromagnetic interference from arc furnaces and induction heaters, the transducer’s EMI-resistant design ensures that vibration monitoring data remains accurate and actionable even in the most electrically hostile areas of the facility.

In port and marine applications — including ship propulsion systems, bow thrusters, and cargo pump drives — the 330104-13-20-10-02-00’s ability to operate reliably across a wide temperature range and in high-humidity, salt-laden atmospheres makes it a preferred choice for vessel machinery monitoring systems that must function dependably throughout extended voyages without opportunity for shore-based maintenance intervention.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Bently Nevada 330104-13-20-10-02-00?
Every unit supplied by KNMKS is covered by a support terms confirmed by quotation against manufacturing defects, commencing from the date of shipment. If a unit fails to perform in accordance with its published specification within the confirmed support period under normal operating conditions, KNMKS will provide a replacement unit or issue a credit at our discretion. Our technical support team is available to assist with support terms assessment and to expedite replacement shipments for customers with urgent operational requirements.

Q2: What pre-shipment testing is performed on each unit?
Prior to dispatch, each 330104-13-20-10-02-00 unit undergoes a functional output signal verification test and an insulation resistance test to confirm that the transducer meets its published electrical specification. This outgoing quality control procedure is performed in addition to the manufacturer’s production testing and provides an independent confirmation of unit integrity. Test records are retained and can be provided upon request for customers with quality management system documentation requirements.

Q3: Is the 330104-13-20-10-02-00 compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330104-13-20-10-02-00 is a standard 3300 XL Series proximity transducer and is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and the 3500 Series Machinery Protection System monitor rack. It uses the standard 3300 XL connector interface and cable system, ensuring drop-in replacement compatibility with existing installations without the need for recalibration of the signal conditioner, provided that the replacement transducer, extension cable, and proximitor are used as a matched, factory-calibrated set.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains stock inventory of the Bently Nevada 330104-13-20-10-02-00 and related 3300 XL Series components to support both planned maintenance programs and emergency replacement requirements. We offer global delivery details confirmed by RFQ with expedited freight options available for customers facing unplanned outage situations. For facilities with critical spare parts programs, we can discuss consignment stock arrangements or scheduled supply agreements to ensure that verified, tested replacement units are available when needed, minimizing the risk of extended downtime due to spare parts unavailability.
