Bently Nevada 330104-12-17-10-01-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-12-17-10-01-05 Migration-Ready Proximity Probe for Legacy Control Systems

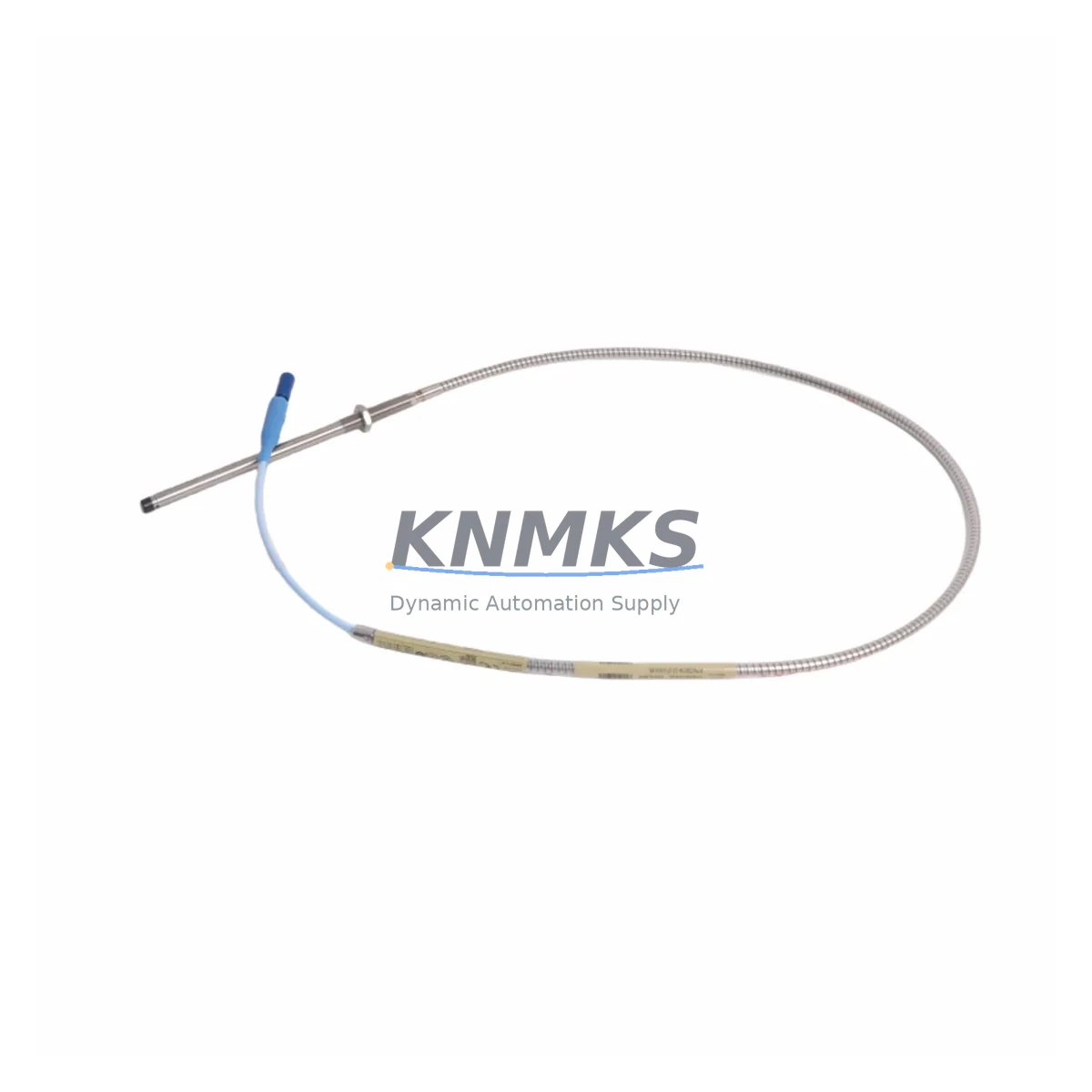

The Bently Nevada 330104-12-17-10-01-05 is a 3300 XL Series eddy current proximity probe engineered for direct drop-in replacement in legacy vibration monitoring and machinery protection systems. With a 12 mm probe tip diameter, 18-inch (457 mm) probe cable, and a 5-meter (17-foot) extension cable, this unit delivers the same signal output and mechanical footprint as the original OEM specification — making it the preferred choice for maintenance engineers managing aging turbomachinery, compressor trains, and rotating equipment platforms where system continuity is non-negotiable.

Whether you are executing a planned outage replacement, responding to an unplanned probe failure, or modernizing a legacy Bently Nevada 3300 Series rack to the current 3500 Series architecture, the 330104-12-17-10-01-05 provides a verified, pre-tested migration path that eliminates the guesswork from field commissioning. All units are pre-shipment tested against OEM electrical specifications, supplied with a support terms confirmed by quotation, and dispatched from multi-region stock to support both emergency and scheduled replacement timelines.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-12-17-10-01-05 begins well before the maintenance window opens. Engineers should first audit the existing probe holder, armored cable routing, and junction box terminations to confirm that the replacement probe’s 18-inch cable and 5-metre extension cable will reach the paired driver without additional splicing. In most 3300 XL installations, the driver module — typically a Bently Nevada 330180 3300 XL 8mm Driver or a 330130 3300 XL 11mm Driver — is mounted in a dedicated rack alongside the Bently Nevada 3500/42M Proximitor I/O Module, which handles signal conditioning and alarm setpoint management. Confirming that the driver’s gap voltage range matches the new probe’s sensitivity (200 mV/mil) before the outage eliminates the most common source of post-installation alarm nuisance trips.

For sites migrating from the legacy 3300 Series rack to the current Bently Nevada 3500 Series platform, the probe itself is electrically compatible, but the driver selection and I/O module addressing must be re-validated in the System 1 configuration software. Engineers should export the existing machine train configuration, update the probe and driver pairing in the database, and verify that the Bently Nevada 3500/20 Rack Interface Module reflects the correct channel assignments before the new hardware is energized. Where the control system interfaces with a DCS or safety instrumented system via a Bently Nevada 3500/92 Communication Gateway, the Modbus or Ethernet/IP tag mapping should be confirmed unchanged to avoid false trips at the SIS boundary.

Physical installation planning should include a torque check on the probe holder locknut, inspection of the armored cable for kinking or abrasion at the machine casing entry point, and confirmation that the extension cable’s TNC connectors are clean and fully seated. In high-temperature applications — steam turbines, hot gas expanders, or fired heater fans — verify that the probe body temperature rating is not exceeded at the installation point, and that the cable routing avoids contact with hot surfaces or vibrating structures that could accelerate cable fatigue.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear sequence of commissioning steps that can be executed within a defined maintenance window. For the 330104-12-17-10-01-05, the recommended sequence is: (1) isolate the channel at the monitor rack and inhibit the associated alarm and trip outputs to prevent a spurious machine trip during probe removal; (2) remove the failed or end-of-life probe without disturbing the probe holder thread or the armored cable anchor; (3) install the replacement probe, set the initial gap to the nominal 50 mil (1.27 mm) using a feeler gauge or gap-setting tool, and hand-tighten the locknut; (4) reconnect the extension cable and verify continuity at the driver input terminals; (5) energize the channel and confirm gap voltage at –10 VDC ±0.5 VDC before releasing the alarm inhibit; (6) document the as-left gap voltage and cable routing in the maintenance management system.

For sites where the original program logic in the Bently Nevada System 1 software contains machine-specific alarm setpoints, trend baselines, or vector filter settings, these parameters should be exported and backed up before any hardware change. The replacement probe will not alter the stored configuration, but a gap voltage outside the expected range can shift the DC bias on the vibration signal and cause the System 1 trend database to flag a step change — which, if unacknowledged, can trigger a condition monitoring alert in the connected DCS historian. A brief post-installation data review in System 1 confirms that the vibration baseline is stable and that no spurious events have been logged before the unit is returned to normal operation.

Retrofit Support FAQ

Q1: Is the 330104-12-17-10-01-05 a direct replacement for the original Bently Nevada OEM probe without re-ranging the driver?
Yes. The 330104-12-17-10-01-05 is manufactured to the same electrical and mechanical specification as the original OEM unit. When replacing a like-for-like probe in a 3300 XL system with the same driver model, no re-ranging of the driver or adjustment of the monitor setpoints is required. Gap voltage should be verified post-installation as a standard commissioning step.

Q2: What commissioning checks are required after installation?
After installation, confirm gap voltage at the driver output (nominal –10 VDC at 50 mil gap), verify that the vibration signal is within the expected baseline range in the monitor or System 1 software, and confirm that no alarm or trip outputs are active before releasing the channel inhibit. Document the as-left gap voltage in the site maintenance record.

Q3: Can this probe be used in a 3500 Series rack during a platform migration?
Yes, with the correct driver selection. The 330104-12-17-10-01-05 probe is electrically compatible with the 3500 Series platform when paired with the appropriate 3500-series Proximitor driver. The driver model must be selected to match the probe tip diameter (12 mm) and cable length. System 1 configuration must be updated to reflect the new hardware pairing before the channel is energized.

Q4: What is the support terms coverage and how is stock availability confirmed?
All 330104-12-17-10-01-05 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and electrical performance against OEM specification. Units are held in multi-region stock and are available for immediate dispatch to support both emergency replacements and scheduled outage planning. Contact admin@knmks.com or +86 18359268345 to confirm current stock availability and lead time for your region.
