Bently Nevada 330104-10-23-10-01-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-10-23-10-01-00 Migration-Ready Proximity Probe for Legacy Control Systems

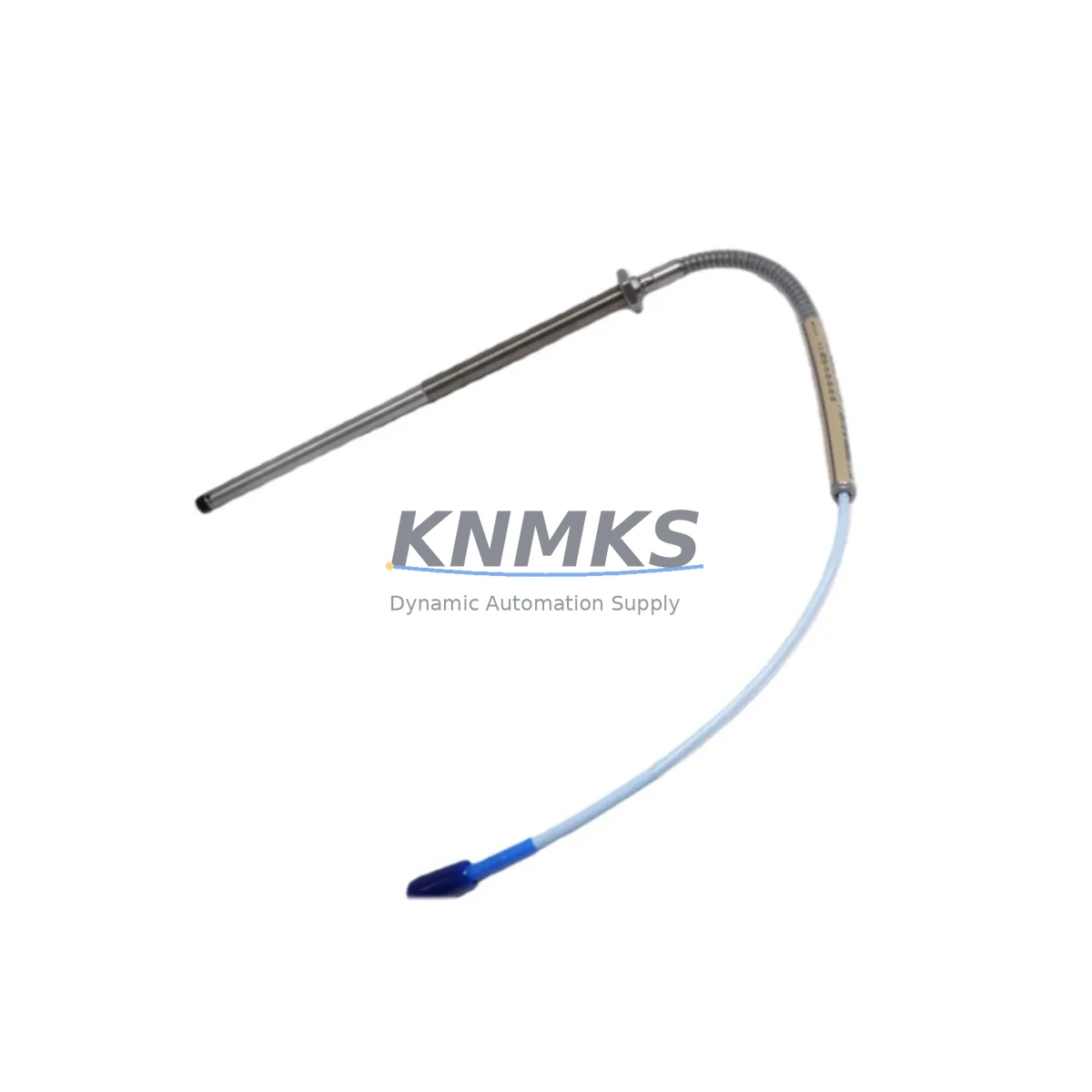

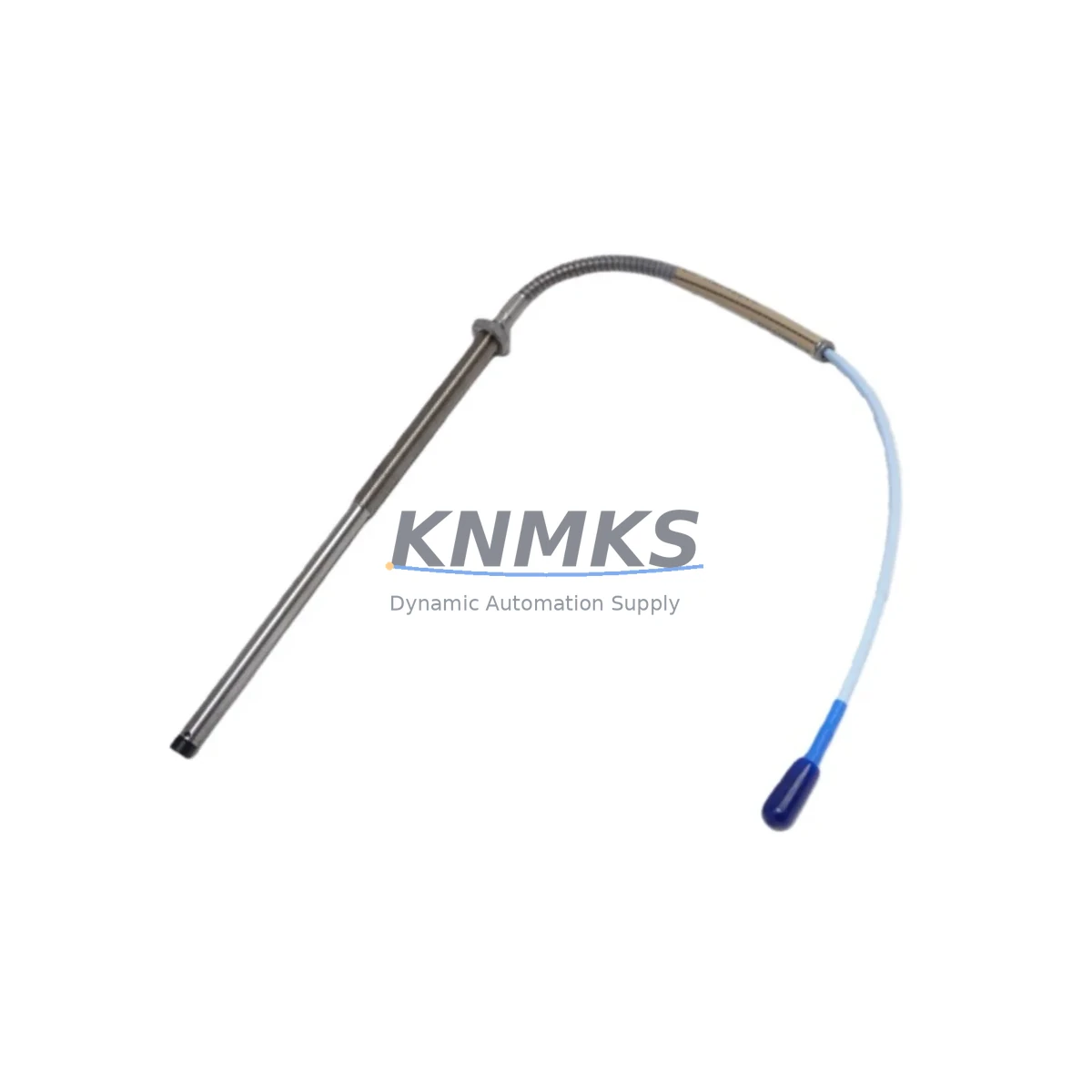

The Bently Nevada 330104-10-23-10-01-00 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industry. As original equipment reaches end-of-life and OEM support windows close, this probe remains a critical component for facilities managing legacy control infrastructure without the budget or downtime tolerance for a full system overhaul.

At KNMKS, we supply the 330104-10-23-10-01-00 as a verified, tested replacement unit with a support terms confirmed by quotation. Each unit is inspected prior to shipment to confirm dimensional integrity, cable continuity, and tip condition. Our inventory is maintained specifically to support unplanned failures, scheduled turnarounds, and phased migration projects where original Bently Nevada parts are no longer available through standard distribution channels.

This probe is designed for eddy-current sensing applications and is compatible with the Bently Nevada 3300 XL 8mm Proximitor Sensor (typically the 330180 series) when used as part of a complete proximity transducer system. Engineers planning a retrofit should confirm that the existing Proximitor sensor, extension cable, and monitor card are matched to the 8mm probe standard. Mismatches between probe series — for example, pairing an 8mm probe with a 5mm Proximitor — will result in calibration errors and incorrect gap voltage readings, which can trigger false alarms or mask real machinery faults.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in a live or recently shut-down rotating machinery train requires careful coordination across multiple system layers. The 330104-10-23-10-01-00 probe is only one element of a three-component transducer system. Before ordering, maintenance engineers should audit the full signal chain: the probe itself, the 330130 Series extension cable connecting the probe to the Proximitor, and the 330180 Series Proximitor Sensor that converts the eddy-current signal into a usable -18 VDC output for the monitor rack.

In many aging installations, the extension cable has been routed through conduit or cable trays for decades and may show insulation degradation, connector corrosion, or impedance drift that will affect the calibrated gap range even after a new probe is installed. It is strongly recommended to perform a full transducer system check — not just probe replacement — during any planned outage. If the 3500/42 Proximitor I/O Module in the monitor rack shows a NOT OK condition after probe swap, the fault may lie in the extension cable or Proximitor rather than the probe itself.

For facilities running the Bently Nevada 3500 Series machinery protection system alongside older 3300 Series hardware, the migration path often involves upgrading the monitor rack while retaining existing probe and cable infrastructure. In this scenario, the 330104-10-23-10-01-00 probe remains fully compatible, and the primary engineering effort shifts to reconfiguring the 3500/42 I/O module parameters, updating the System 1 software database, and verifying that alarm setpoints and danger thresholds are correctly transferred from the legacy configuration. HMI screens tied to the old 3300/16 monitor cards will need to be updated to reflect the new rack addressing if the monitor hardware is changed.

Where control cabinets are being upgraded as part of a broader plant modernization, installation space is a frequent constraint. The 3300 XL probe mounting hardware is standardized, but cable routing to a new rack location may require additional conduit runs or junction boxes. Confirm available DIN rail space and backplane slot assignments in the new cabinet before finalizing the rack layout. If the project also involves adding I/O capacity — for example, expanding from 4-channel to 8-channel vibration monitoring — the 3500/20 Rack Interface I/O Module may need to be included in the bill of materials alongside the replacement probe.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing proximity probes on critical rotating equipment. The 330104-10-23-10-01-00 is a direct replacement for the original Bently Nevada part, which means no firmware changes, no monitor card reconfiguration, and no changes to the existing System 1 database are required when the probe is swapped on a like-for-like basis. This significantly reduces the risk window during the replacement procedure.

The recommended approach for a controlled replacement is to pre-stage the new probe, verify its physical dimensions and cable length against the existing installation, and prepare the gap-setting tools before the equipment is taken offline. Once the machine is shut down and locked out, the probe can be removed, the new unit installed, and the gap set to the OEM-specified voltage — typically between -10 VDC and -18 VDC depending on the target material and gap distance — before the monitor is returned to normal operation. The entire procedure, when pre-planned, can typically be completed within a single shift.

For facilities that cannot tolerate even brief monitor bypass periods, a parallel monitoring strategy using a portable vibration analyzer can maintain machinery protection coverage during the swap window. This approach is particularly relevant for critical compressors, turbines, and pumps where continuous vibration data is required by insurance or regulatory frameworks. Once the new 330104-10-23-10-01-00 probe is installed and the gap voltage confirmed, the monitor OK relay should be verified before the portable analyzer is removed and the machine is returned to service.

Maintaining a small buffer stock of the 330104-10-23-10-01-00 and its associated extension cables is a practical risk management strategy for any facility running 3300 XL or 3500 Series machinery protection systems. As OEM production of legacy Bently Nevada components continues to wind down, lead times for new units through standard channels are extending. KNMKS maintains ready inventory specifically to support emergency replacement scenarios, with same-day shipping available for in-stock units.

Retrofit Support FAQ

Q: Is the 330104-10-23-10-01-00 a direct replacement for the original Bently Nevada part?
A: Yes. The 330104-10-23-10-01-00 is a direct, like-for-like replacement. It is dimensionally identical to the original OEM part and is compatible with the 3300 XL 8mm proximity transducer system, including the 330180 Proximitor and 330130 extension cable. No monitor reconfiguration is required for a like-for-like swap.

Q: What commissioning steps are required after installation?
A: After installing the new probe, set the gap to achieve the target gap voltage per the OEM specification for your specific target material (typically -10 VDC to -18 VDC). Verify the OK relay status on the monitor card, confirm that vibration and position readings are within expected ranges, and check that no alarms are active before returning the machine to service. Document the as-found and as-left gap voltage readings for maintenance records.

Q: What is the support terms coverage and what does it include?
A: All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested and inspected prior to shipment. For support requests, contact admin@knmks.com with the order reference and a description of the fault.

Q: Can KNMKS supply the full transducer system, including the Proximitor and extension cable?
A: Yes. KNMKS stocks a range of Bently Nevada 3300 XL and 3500 Series components, including 330180 Series Proximitor Sensors and 330130 Series extension cables. If you are planning a full transducer system replacement or a phased migration project, contact our team at admin@knmks.com or +86 18359268345 to confirm availability and lead times for the complete bill of materials.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-10-23-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-10-23-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
