Bently Nevada 330104-10-20-10-02-05 Proximity Probe Retrofit

Overview

Bently Nevada 330104-10-20-10-02-05 Proximity Probe Retrofit: Legacy System Migration & Compatibility Upgrade

The Bently Nevada 330104-10-20-10-02-05 is an eddy-current proximity probe engineered for the 3300 XL continuous vibration monitoring platform. As legacy 3300 Series installations approach end-of-support milestones, plant engineers and reliability teams are actively sourcing verified replacement units to sustain turbomachinery protection without triggering a full system overhaul. This listing supplies a migration-ready 330104-10-20-10-02-05 probe — tested, documented, and backed by a support terms confirmed by quotation — to support controlled, low-risk retrofits in operating facilities.

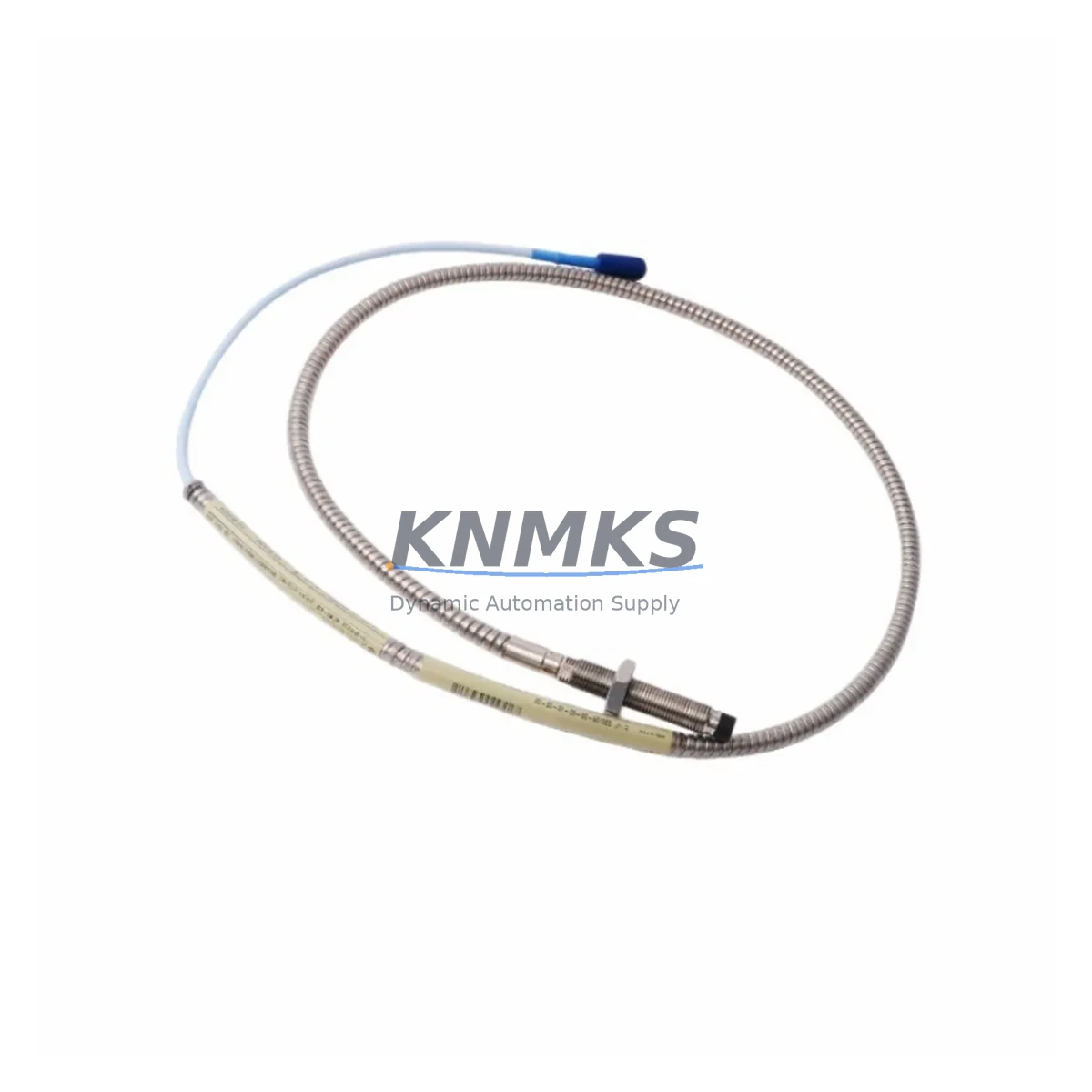

The 330104-10-20-10-02-05 probe is a 5-metre (standard) armored cable assembly with an 8 mm tip diameter, designed to interface directly with Bently Nevada 3300 XL proximitor/seismic monitors such as the 3300/16 and 3300/55 monitor modules. Its -24 VDC bias voltage output and 200 mV/mil (7.87 V/mm) sensitivity are fully compatible with existing 3300 XL signal conditioning chains, meaning no recalibration of the monitor card is required when performing a like-for-like probe swap. Engineers replacing worn or damaged probes on compressors, steam turbines, pumps, and gearboxes can install this unit without modifying the existing Keyphasor wiring, proximitor mounting bracket, or DCS/PLC input scaling.

When planning a retrofit around the 330104-10-20-10-02-05, the following parameters must be confirmed before installation: available gap voltage at the proximitor output (nominal -10 VDC at 50-mil gap), cable routing clearance inside the bearing housing pedestal, connector thread compatibility (standard 5/16-24 UNF tip thread), and armored cable bend radius relative to the existing conduit path. If the host system uses a Bently Nevada 3500/42M or 3500/45 monitor in a mixed-generation rack, verify that the proximitor extension cable — typically a 330130 series — is also within its service life, as probe replacement without extension cable inspection is a common source of post-retrofit signal noise.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330104-10-20-10-02-05 retrofit begins well before the maintenance window opens. The first step is a full audit of the existing probe-proximitor-monitor chain. In most 3300 XL installations, the probe is paired with a Bently Nevada 330180 or 330130 proximitor/extension cable assembly and feeds into a 3300/16 dual-channel monitor or a 3300/55 high-temperature monitor housed in a 3300 rack. If the facility is mid-migration to the Bently Nevada 3500 platform, the 3500/42M proximitor I/O module must be verified for compatibility with the 330104 probe family before the swap is executed.

Terminal wiring is a critical checkpoint. The 330104-10-20-10-02-05 uses a standard MIL-C-5015 style connector at the proximitor junction. Technicians should photograph and document the existing terminal block layout — including shield grounding points — before disconnecting the old probe. In control cabinets where the 3300 rack shares a backplane with Bently Nevada 3500/20 rack power supplies or 3500/22M transient data interface modules, care must be taken to avoid disturbing adjacent module seating during probe cable rerouting.

For facilities running Modbus RTU or FOUNDATION Fieldbus communication from the 3300 monitor to a DCS, the communication link should be verified live before and after the probe swap. A temporary bypass of the vibration trip relay — coordinated with the control room — prevents nuisance shutdowns during the gap voltage re-establishment period immediately after probe installation. If the plant uses a Bently Nevada 3500/92 communication gateway, confirm that the gateway’s polling cycle does not flag the brief signal interruption as a fault event requiring manual reset.

HMI faceplate updates are rarely required for a like-for-like 330104 replacement, but if the retrofit is part of a broader migration from the 3300 to the 3500 platform, operators should verify that vibration trend displays and alarm setpoint labels in the SCADA or DCS reflect the new monitor module’s tag assignments. Spare parts planning should also account for the 330130 extension cable and the proximitor itself, as these components share the probe’s service life and are frequently replaced as a matched set.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary driver behind stocking migration-ready 330104-10-20-10-02-05 units. The recommended approach is a pre-staged swap: the replacement probe is received, inspected, and gap-voltage bench-tested against a known-good proximitor before the maintenance window begins. This eliminates the most common source of extended downtime — discovering a defective replacement unit only after the machine is already offline.

During the swap, the original program logic in the host PLC or DCS requires no modification, as the 330104-10-20-10-02-05 is a passive analog sensor whose output is conditioned entirely within the 3300 XL monitor. The monitor configuration file (MCF), including full-scale range, alarm setpoints, and Keyphasor channel assignments, remains valid. This means the control room can resume normal monitoring within minutes of probe installation and gap voltage verification — typically a 15–30 minute field procedure for an experienced technician.

To further protect against extended outages, facilities should maintain at least one spare 330104-10-20-10-02-05 unit in the local storeroom, particularly for critical machinery trains where vibration monitoring is a safety-instrumented function. Our inventory is available for immediate dispatch, with pre-shipment testing completed and documented for each unit. The support terms confirmed by quotation begins from the date of shipment, providing coverage through the first full operating cycle after installation.

Retrofit Support FAQ

Q1: Is the 330104-10-20-10-02-05 a direct drop-in replacement for other 330104 suffix variants?
The 330104 family shares a common probe body and sensitivity specification. The numeric suffixes encode tip length, cable length, and connector type. The -10-20-10-02-05 configuration specifies a 10 mm tip, 5 m cable, and standard armored jacket. Before ordering, cross-reference the full suffix against your existing BOM or the original Bently Nevada probe datasheet to confirm dimensional compatibility with your bearing housing and conduit path.

Q2: What commissioning steps are required after installation?
After mechanical installation, measure the gap voltage at the proximitor output with the shaft stationary. The nominal value for a 3300 XL system at 50-mil (1.27 mm) gap is -10 VDC ± 0.5 VDC. Adjust the probe axial position until the gap voltage is within specification, then lock the probe in place and verify the dynamic signal on the 3300/16 or 3300/55 monitor display. No software or firmware changes are required. Document the as-left gap voltage in the maintenance record.

Q3: How is pre-shipment testing performed, and what documentation is provided?
Each 330104-10-20-10-02-05 unit is bench-tested for DC resistance, insulation integrity, and gap voltage linearity before dispatch. A test record is included with the shipment. Units are packaged in anti-static, impact-resistant packaging suitable for international freight. The support terms confirmed by quotation cover manufacturing defects identified during installation or normal operation and is supported by the pre-shipment test documentation.

Q4: Can this probe be used in a mixed 3300/3500 rack environment?
Yes, with verification. The 330104-10-20-10-02-05 probe is compatible with both 3300 XL proximitors and 3500/42M proximitor I/O modules. If your facility is running a hybrid rack — for example, a 3500 rack with 3500/42M modules replacing legacy 3300/16 monitors — confirm that the 3500/42M is configured for the 8 mm probe family and that the extension cable length budget is within the 3500 platform’s specification. Contact our technical team with your rack configuration for pre-order compatibility confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-10-20-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-10-20-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
