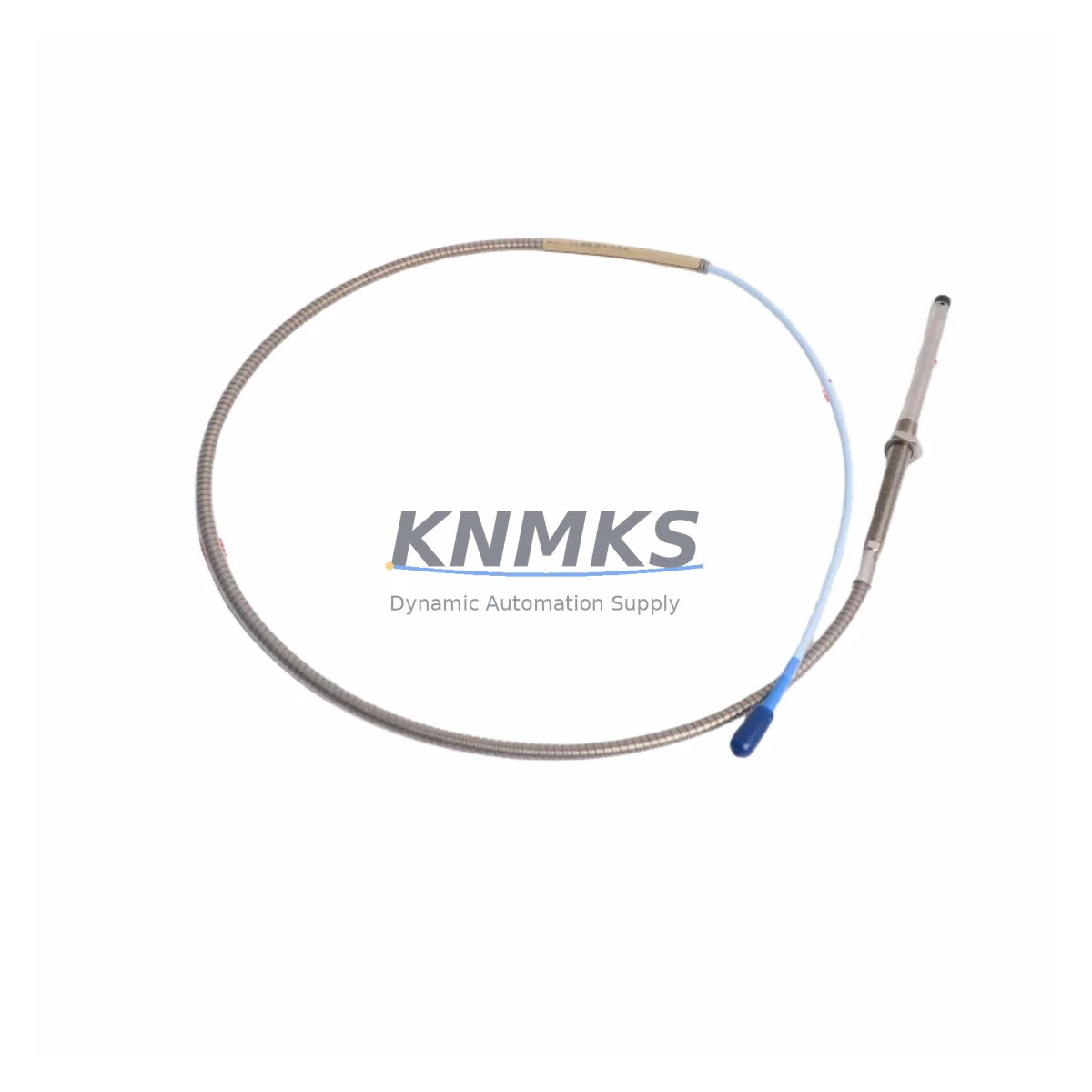

Bently Nevada 330104-08-16-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-08-16-10-02-00 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

The Bently Nevada 330104-08-16-10-02-00 is an 8mm eddy-current proximity probe engineered for fail-safe, continuous vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series monitoring system, this probe delivers uninterrupted shaft displacement measurement with SIL-rated signal integrity — making it the preferred choice for rotating machinery protection in petrochemical, power generation, mining, metallurgy, and continuous manufacturing facilities worldwide.

Designed to operate reliably under high electromagnetic interference, mechanical vibration, extreme temperature cycling, and moisture-laden or dusty atmospheres, the 330104-08-16-10-02-00 eliminates the signal drift and false-trip failures that cause unplanned shutdowns in critical control loops. Its hardened cable assembly and precision-machined probe tip maintain stable gap voltage output across the full operating range, ensuring that your machinery protection system receives clean, accurate data at all times — even during transient electrical surges or cabinet-level power fluctuations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-stakes rotating machinery protection cabinets, the 330104-08-16-10-02-00 proximity probe operates as the primary sensing element within a tightly integrated protection chain. It pairs directly with the Bently Nevada 3300 XL 8mm Extension Driver to condition the raw eddy-current signal before it reaches the Bently Nevada 3300/16 Dual Vibration Monitor, which executes the trip and alarm logic for shaft radial vibration. For axial position monitoring on the same shaft, the Bently Nevada 330180-X1-05 Thrust Position Probe complements the radial measurement, providing full-axis coverage within a single 3300 XL architecture.

Cabinet-level power quality is maintained by a dedicated Bently Nevada 3300/20 Power Supply Module, which isolates the monitoring system from upstream voltage transients and surge events that could otherwise corrupt gap voltage readings or trigger nuisance trips. In facilities with high-frequency variable-frequency drives or large motor starts, the shielded coaxial construction of the 330104-08-16-10-02-00 cable assembly provides critical EMI rejection, preventing signal contamination that would otherwise appear as false vibration events in the monitor’s trend data.

For plants running parallel safety instrumented systems, the probe’s SIL-rated output integrates cleanly with Bently Nevada 3500/42M Proximitor I/O Module inputs, enabling the machinery protection data to feed directly into the plant’s safety logic solver without additional signal conditioning hardware. This architecture reduces wiring complexity, minimizes potential failure points in the safety loop, and shortens the diagnostic test interval required to maintain SIL integrity over the asset lifecycle.

Critical Industrial Safety Applications

The 330104-08-16-10-02-00 is deployed across the full spectrum of critical rotating machinery in heavy industry. In petrochemical and refinery environments, it monitors compressor shaft displacement on ethylene crackers, hydrogen compressors, and crude charge pumps — where a single undetected vibration excursion can escalate to a catastrophic seal failure or fire event. The probe’s IP67 rating and high-temperature tolerance ensure reliable operation in hot, hydrocarbon-laden atmospheres without signal degradation.

In power generation facilities — including coal-fired, gas turbine, and nuclear auxiliary systems — the 330104-08-16-10-02-00 provides continuous shaft centerline monitoring on turbine-generator sets, boiler feed pumps, and induced draft fans. Its fail-safe design ensures that a probe or cable fault is immediately detected by the 3300 XL monitor as an out-of-range condition, triggering a protective shutdown rather than allowing the machine to run unprotected.

Mining and mineral processing operations rely on this probe for crusher drive shaft monitoring, SAG mill pinion bearing surveillance, and slurry pump protection — environments characterized by extreme dust loading, water ingress, and structural vibration that would rapidly degrade lesser sensing technologies. In metallurgical plants, the probe’s extended temperature range supports installation near induction furnace drives and rolling mill main drives, where ambient temperatures routinely exceed standard sensor ratings.

Water and wastewater treatment facilities use the 330104-08-16-10-02-00 on large vertical turbine pumps and blower trains, where continuous uptime is mandated by environmental compliance requirements. Port and marine applications include propulsion shaft monitoring on large vessels and crane hoist motor protection, where the probe’s corrosion-resistant construction withstands salt-laden, high-humidity operating conditions over extended service intervals.

Safety and Quality FAQ

Q1: Does the 330104-08-16-10-02-00 carry a support terms confirmed by quotation?
Yes. Every unit supplied by KNMKS carries a full support terms confirmed by quotation covering manufacturing defects and functional performance. Each probe undergoes 100% pre-shipment functional verification — including gap voltage linearity check and cable continuity test — before dispatch. Documentation is available upon request.

Q2: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series monitors?
Yes. The 330104-08-16-10-02-00 is a direct OEM-equivalent replacement for the Bently Nevada 3300 XL 8mm probe family. It is fully compatible with 3300 XL extension drivers, 3300/16 monitors, and 3500/42M Proximitor I/O modules without requiring recalibration of the existing monitor configuration, provided the driver gap voltage setpoints remain within the standard 3300 XL specification range.

Q3: Can this probe be safely installed in SIL-rated safety instrumented systems?
Yes. The 330104-08-16-10-02-00 is designed and tested to meet the signal integrity requirements of SIL-rated machinery protection loops. Its shielded coaxial construction minimizes common-mode EMI pickup, and its fail-to-danger rate is consistent with SIL 2 loop requirements when used with a compatible 3300 XL or 3500 Series monitor. Site-specific SIL verification should be performed by the responsible functional safety engineer.

Q4: What is the long-term supply availability for this part?
KNMKS maintains multi-region stock of the 330104-08-16-10-02-00 to support both emergency replacement and scheduled outage programs. We offer long-term supply agreements for facilities requiring guaranteed availability across multi-year maintenance cycles. Contact our team to discuss consignment stock, blanket order arrangements, or expedited dispatch for critical shutdowns.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-08-16-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-08-16-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
