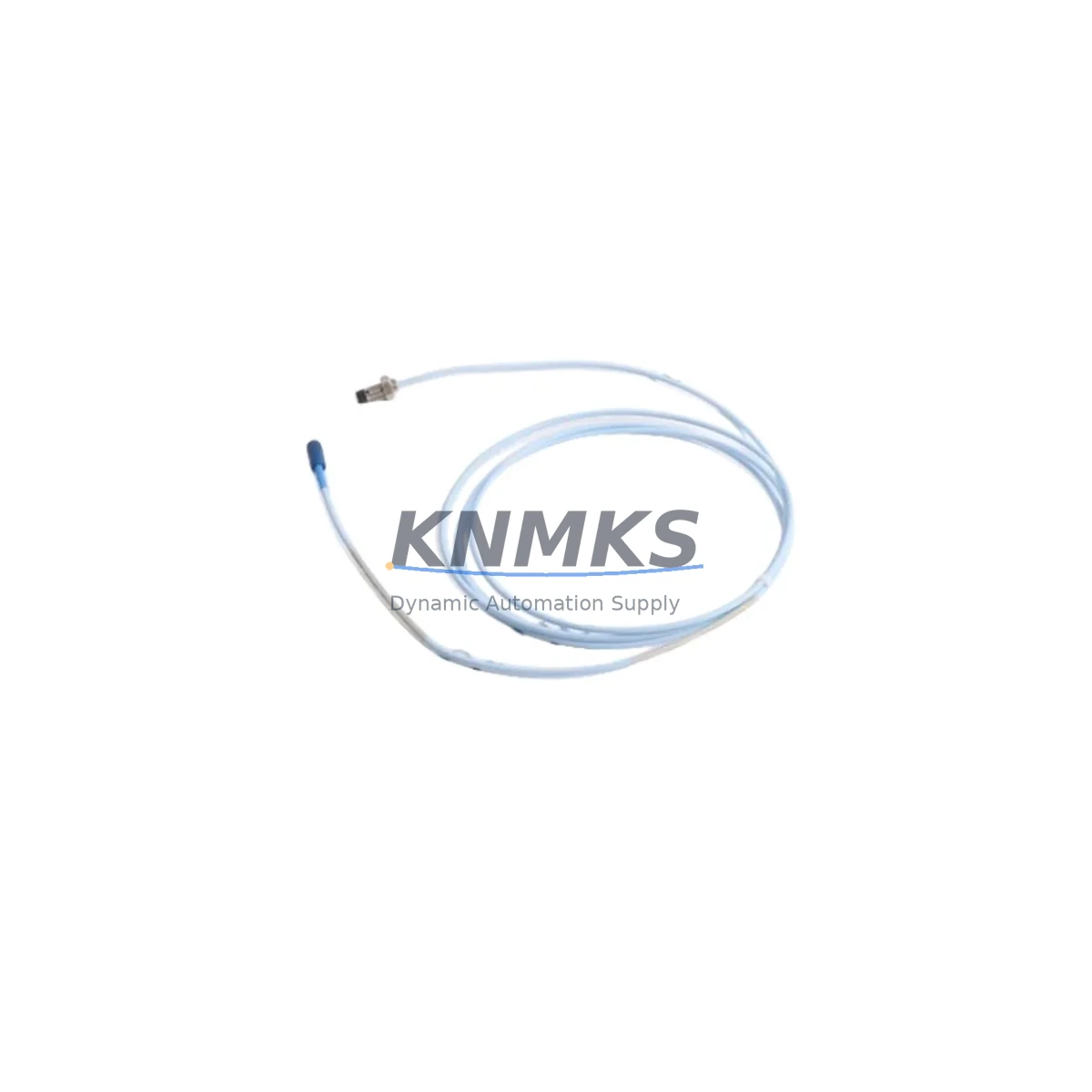

Bently Nevada 330104-08-15-10-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330104-08-15-10-02-05 Fail-Safe Proximity Transducer: Fault-Protected Reliability for Critical Industrial Control

The Bently Nevada 330104-08-15-10-02-05 is an 8mm proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s integrated machinery protection architecture, this transducer delivers stable, drift-free output signals even under severe electromagnetic interference, mechanical vibration, thermal cycling, and high-humidity conditions — making it a trusted component in safety-critical control loops across petrochemical, power generation, mining, metallurgy, and continuous manufacturing facilities.

In high-stakes industrial operations, a single point of signal failure in a rotating machinery protection circuit can trigger unplanned shutdowns, cascade interlock faults, or — in worst-case scenarios — catastrophic equipment damage. The 330104-08-15-10-02-05 is purpose-built to eliminate these risks. Its ruggedized construction, tight output linearity, and compatibility with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 series) ensure that the transducer chain maintains signal integrity from probe tip to monitor input, even in environments with heavy motor drives, arc furnaces, or high-frequency switching power supplies nearby.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330104-08-15-10-02-05 within a well-engineered control cabinet protection strategy is essential for achieving zero-unplanned-downtime targets. In a typical rotating machinery protection panel, this proximity transducer interfaces directly with a Bently Nevada 3300 XL Proximitor Sensor (330180-X1-05), which conditions the raw eddy-current signal before it reaches the Bently Nevada 3500/42M Proximitor / Seismic Monitor for real-time vibration and position alarming. The integrity of this signal chain depends on every component maintaining its calibrated output under load.

In cabinets housing variable frequency drives, soft starters, or high-current contactors, induced EMI can corrupt proximity signals and generate false trip events. Pairing the 330104-08-15-10-02-05 with properly grounded shielded conduit runs and a Bently Nevada 990 Vibration Transmitter for 4–20 mA loop isolation significantly reduces this risk. For power supply protection within the same panel, a dedicated Bently Nevada 3500/15 Power Supply Module provides regulated, isolated DC power to the monitoring rack, preventing voltage transients from propagating into the measurement chain.

In facilities where the control cabinet is located near high-voltage switchgear or in areas subject to frequent lightning-induced surges, supplementing the installation with surge protection devices on signal lines — and ensuring the Bently Nevada 3500 Series rack is properly bonded to the plant earth grid — is a standard field practice that preserves transducer calibration and extends service life. For installations requiring SIL-rated safety loops, the 330104-08-15-10-02-05 is commonly integrated alongside Bently Nevada 3500/33 16-Channel Relay Module outputs to drive emergency shutdown (ESD) logic in the safety instrumented system (SIS).

Critical Industrial Safety Applications

The Bently Nevada 330104-08-15-10-02-05 is deployed across a wide spectrum of safety-critical industrial sites where rotating machinery protection is non-negotiable:

Petrochemical & Refinery Plants: In compressor trains and centrifugal pump systems, this transducer monitors shaft radial vibration and axial position continuously. Any deviation beyond alarm setpoints triggers the DCS or SIS to initiate a controlled shutdown before bearing failure or seal damage occurs, preventing both production loss and hazardous material release.

Power Generation: Steam turbine and gas turbine protection systems rely on proximity transducers of this specification to detect rotor eccentricity, shaft bow, and critical speed crossings during startup and coast-down. The 330104-08-15-10-02-05’s stable output at elevated temperatures (up to 121°C at the probe tip) makes it suitable for high-temperature turbine bearing housings.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, high vibration, and frequent electrical transients from large motor starters. The ruggedized coaxial cable construction of this transducer resists mechanical abrasion and maintains signal continuity even under these conditions.

Water & Wastewater Treatment: High-humidity pump stations and blower buildings present corrosion and condensation risks to instrumentation. The 330104-08-15-10-02-05’s sealed construction and moisture-resistant cable jacket ensure reliable long-term operation in these environments without signal drift or insulation breakdown.

Metallurgy & Steel Production: In rolling mill drives and continuous casting equipment, proximity transducers must withstand intense electromagnetic fields from induction heating systems and high-current bus bars. The shielded design of this transducer provides the necessary EMI immunity to maintain accurate position feedback in these environments.

Port & Marine Applications: Crane drives, ship propulsion systems, and offshore platform compressors require machinery protection components that can tolerate salt-laden air, wide temperature swings, and vibration from wave action. The 3300 XL series, including the 330104-08-15-10-02-05, is a recognized standard for these demanding marine and port installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-08-15-10-02-05?
KNMKS provides a support terms confirmed by quotation on the Bently Nevada 330104-08-15-10-02-05 from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement coordination to minimize your site downtime.

Q2: Is the unit tested before shipment?
Yes. Every 330104-08-15-10-02-05 unit undergoes pre-shipment functional verification prior to dispatch. This includes output sensitivity checks, cable continuity testing, and connector integrity inspection to confirm the transducer meets 3300 XL series performance specifications before it reaches your facility.

Q3: Is this transducer compatible with existing Bently Nevada 3500 Series monitoring racks?
The 330104-08-15-10-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and integrates directly into 3500 Series machinery protection racks. It is also backward-compatible with legacy 3300 Series monitors, making it a reliable drop-in replacement for aging transducer assemblies without requiring rack reconfiguration or recalibration of monitor setpoints.

Q4: Can KNMKS support long-term or multi-site supply agreements for this part?
Yes. KNMKS maintains dedicated inventory of the 330104-08-15-10-02-05 and can support scheduled delivery programs for multi-site maintenance contracts, planned turnaround outages, and critical spare parts strategies with lead times of 12–36 months. Contact our team to discuss volume pricing, consignment stock arrangements, and priority allocation for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-08-15-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-08-15-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
