Bently Nevada 330104-08-12-10-02-00 Maintenance-Proven Spare

Overview

Bently Nevada 330104-08-12-10-02-00 Maintenance-Proven Spare for Factory Uptime

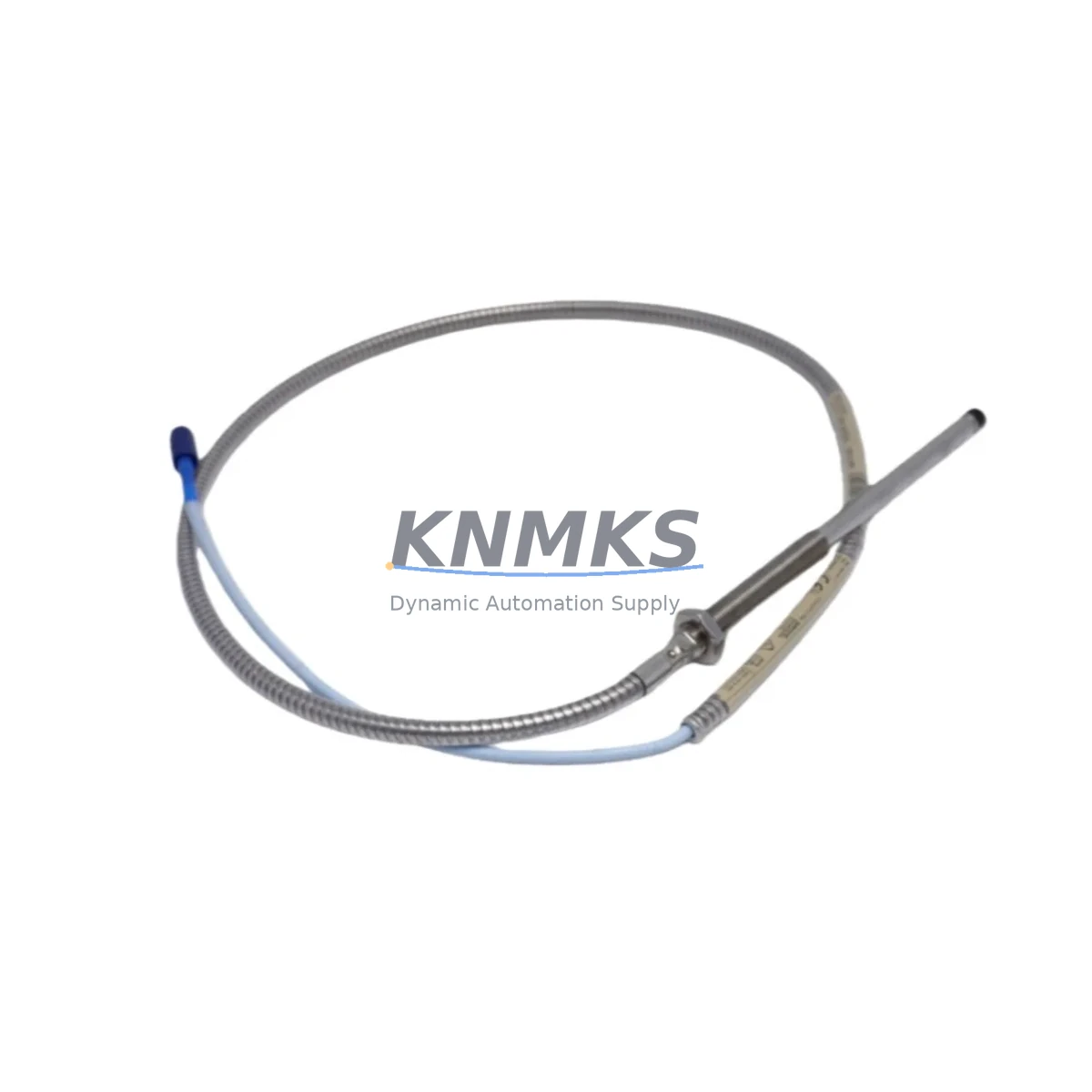

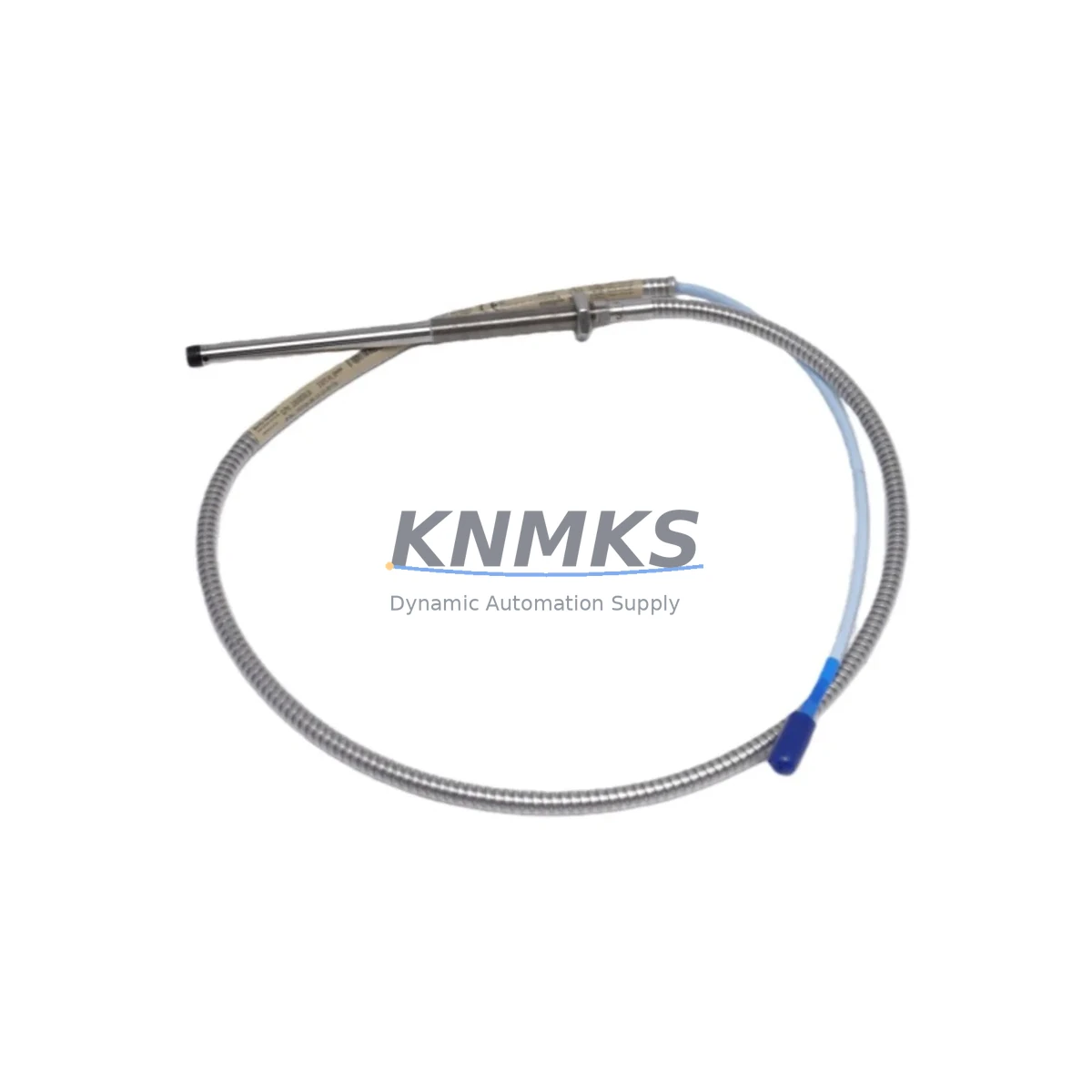

The Bently Nevada 330104-08-12-10-02-00 is an original 8mm eddy-current proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications including turbines, compressors, pumps, and gearboxes. Holding this part in your spare inventory is a direct investment in plant uptime — when a probe fails during a critical run, the difference between a 2-hour swap and a 48-hour shutdown is whether the right part is on the shelf.

Maintenance engineers working on Bently Nevada 3300 XL monitoring systems rely on the 330104-08-12-10-02-00 as a primary field-replaceable unit. Its 8mm tip diameter, 5-metre integral cable, and -24 VDC operating range make it directly interchangeable within standard 3300 XL probe-driver-extension cable assemblies without recalibration of the monitoring rack — provided the replacement probe is sourced from an original, verified supply chain. Counterfeit or non-OEM probes introduce gap voltage drift that can trigger false trips or, worse, mask genuine shaft excursions.

For procurement engineers, the 330104-08-12-10-02-00 represents a low-risk, high-value line item. Its long production history within the 3300 XL platform means it is compatible with a wide installed base, reducing the number of unique SKUs required in a rotating equipment spare parts programme. Stocking two to four units per critical machine train is a widely adopted practice in petrochemical, power generation, and LNG facilities operating under API 670 machinery protection standards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-08-12-10-02-00 probe is scheduled for replacement during a planned outage or emergency shutdown, experienced maintenance teams treat the event as a trigger for a broader 3300 XL system health check. The probe does not operate in isolation — it is one node in a measurement chain that includes the 330130-080-00-00 extension cable, the 330180-X1-05 proximitor/driver, and the 3300/16 or 3300/20 monitor module seated in the rack backplane. Any degradation in the extension cable’s coaxial shielding or a worn connector at the proximitor input will produce the same symptom as a failed probe: erratic gap voltage or a system OK relay dropout.

During the same access window, maintenance engineers should verify the condition of the 3300 XL rack power supply module (typically a -24 VDC regulated supply feeding the driver cards) and inspect the terminal strip wiring at the I/O barrier or Zener barrier if the installation is in a hazardous area. Loose terminations at the barrier introduce common-mode noise that corrupts the 200 mV/mil output signal and can cause nuisance trips on the associated 3500/42M or 3500/45 monitor if the system has been migrated to the 3500 platform.

For facilities running older 3300 Series racks alongside newer 3500 Series hardware, it is advisable to maintain a parallel spare inventory covering both probe generations. The 330104-08-12-10-02-00 is specific to the 3300 XL 8mm system; installations using the 3300/55 or 3300/65 monitors with 5mm probes require the 330101 series instead. Mixing probe diameters within a single measurement loop is a common source of calibration errors during emergency replacements — a risk that structured spare parts labelling and a clear bill of materials can eliminate.

Procurement teams should also consider stocking the 330130 series extension cables in the most common lengths used on site (1.5 m, 5 m, 9 m) alongside the probes. Extension cables are a frequent wear item in high-vibration environments and are often overlooked in annual spare parts reviews until a cable failure grounds a critical machine.

Site Replacement Workflow

1. Pre-replacement verification: Confirm the replacement 330104-08-12-10-02-00 probe is from a verified original supply. Check the label, connector markings, and cable jacket colour against the OEM specification sheet. Counterfeit probes often pass visual inspection but fail gap voltage linearity tests.

2. Isolation and de-energisation: Inhibit the associated monitor channel at the 3300 XL or 3500 rack before disconnecting the probe. This prevents a false trip from propagating to the machine protection relay or DCS interlock. Document the inhibit in the permit-to-work system.

3. Gap setting: Install the replacement probe and set the air gap to the OEM-specified nominal gap (typically 1.0 mm / 40 mil for 8mm probes on AISI 4140 targets). Verify the proximitor output reads -10.0 VDC ±0.5 VDC at nominal gap using a calibrated multimeter before re-energising the monitor channel.

4. System re-commissioning: Remove the channel inhibit, confirm the monitor OK relay closes, and verify the vibration reading is within the expected baseline range for the machine at rest. Log the as-found and as-left gap voltages in the maintenance management system (CMMS) for trend analysis.

5. Disposal of the failed probe: Retain the removed probe for root-cause analysis. Probe failures in 3300 XL systems are most commonly caused by mechanical impact, chemical contamination of the probe tip, or cable damage at the conduit entry point — all of which indicate a correctable installation issue rather than a product defect.

Spare Parts Support FAQ

Q1: Is the 330104-08-12-10-02-00 compatible with both 3300 XL and 3500 Series monitors?
The 330104-08-12-10-02-00 probe is designed for the 3300 XL 8mm measurement system. It is electrically compatible with 3500 Series monitors when used with the correct 330180 proximitor driver, as the 3500 platform accepts standard 3300 XL probe-driver assemblies. Always verify the monitor channel configuration and scale factor settings when integrating 3300 XL probes into a 3500 rack.

Q2: What is your inventory and lead time for the 330104-08-12-10-02-00?
We maintain stock of the 330104-08-12-10-02-00 for immediate shipment. Standard orders are processed and dispatched within 1–3 business days. For urgent shutdown recovery requirements, contact admin@knmks.com or call +86 18359268345 to confirm real-time availability and expedited freight options.

Q3: How is the 330104-08-12-10-02-00 tested before shipment?
Every unit undergoes electrical continuity verification, gap voltage linearity testing against a calibrated AISI 4140 target, and visual inspection of the connector, cable jacket, and probe tip before dispatch. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: Can you support long-term supply agreements for the 330104-08-12-10-02-00?
Yes. We offer long-term supply commitments for facilities requiring scheduled replenishment of 3300 XL spare parts. Frame agreements covering annual or multi-year volumes are available, with fixed pricing and priority allocation during periods of market tightness. Contact our sales team to discuss your site’s spare parts programme requirements.
