Bently Nevada 330104-05-18-50-02-CN Migration-Ready Proximity Probe

Overview

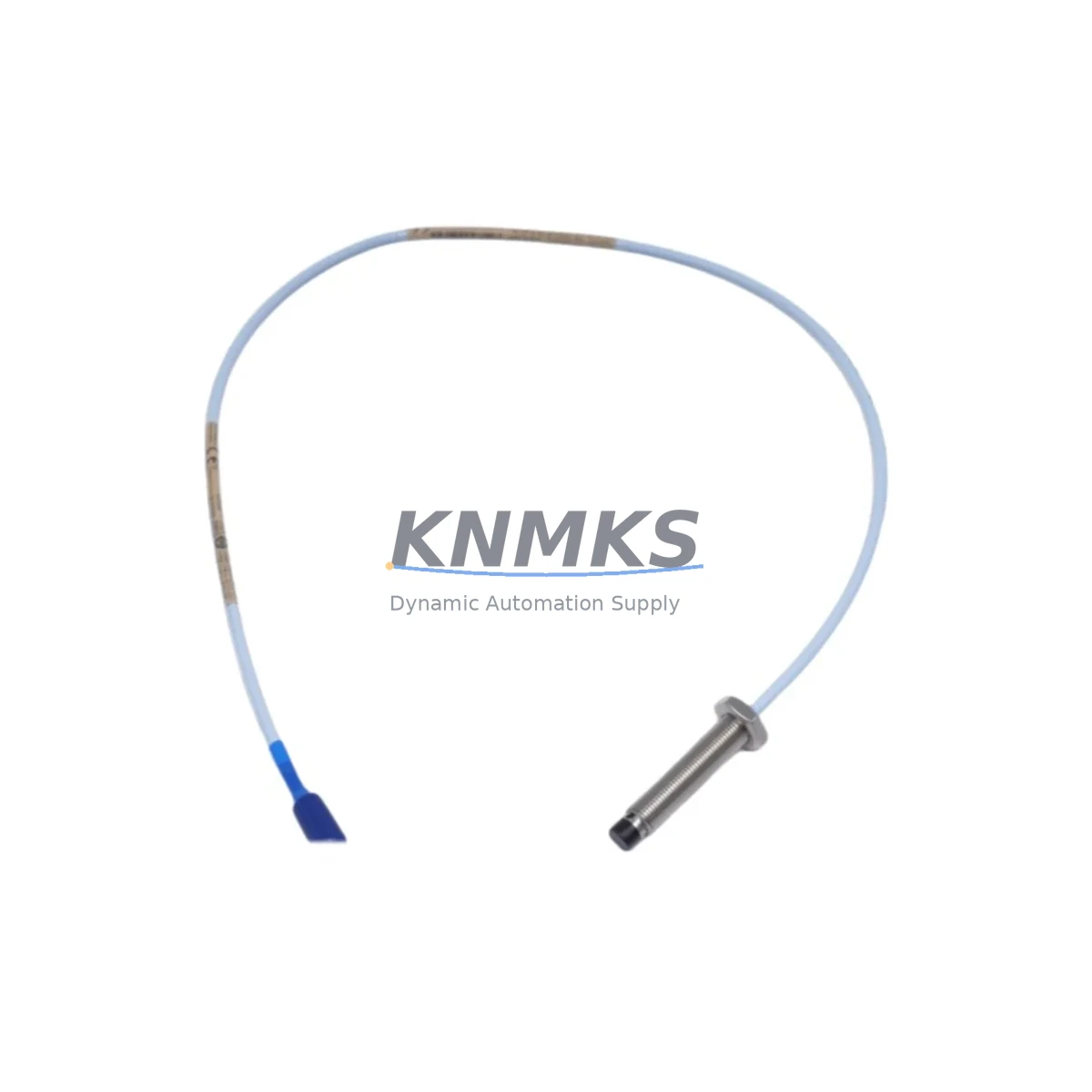

Bently Nevada 330104-05-18-50-02-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330104-05-18-50-02-CN is an 8mm eddy-current proximity probe engineered for direct drop-in replacement in legacy vibration monitoring and machinery protection systems. As original Bently Nevada 3300 XL Series hardware reaches end-of-life and spare-part availability tightens, plant engineers and reliability teams increasingly rely on migration-ready equivalents that preserve existing wiring, signal conditioning, and system logic without forcing a full platform overhaul. The 330104-05-18-50-02-CN is stocked and pre-tested to meet that demand, offering a verified retrofit path for rotating machinery applications including turbines, compressors, pumps, and gearboxes.

This probe is designed to interface directly with the Bently Nevada 3300 XL proximitor/seismic transducer system. Its -18 cable length, -50 extension cable compatibility, and -02 connector configuration align with the most common field installations found in legacy control cabinets. When replacing a discontinued or degraded probe in an existing rack, engineers must confirm the proximitor supply voltage (typically -24 VDC), the gap voltage calibration range, and the output sensitivity (nominally 7.87 V/mm). These parameters must be validated against the existing Bently Nevada 3500 Series rack or equivalent monitoring chassis before commissioning.

Stock is maintained in-region to support urgent MRO and planned shutdown windows. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and signal performance within rated specifications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit in a legacy machinery protection environment requires more than a physical swap. Before removing the failed or end-of-life probe, the maintenance team should document the existing gap voltage reading, the channel alarm setpoints configured in the Bently Nevada 3500/40M or 3500/42M monitor module, and the current vibration baseline trend data stored in the System 1 condition monitoring software. This baseline is critical for post-installation acceptance testing and for demonstrating that the replacement probe has not introduced any signal offset.

In installations where the 330104-05-18-50-02-CN replaces a probe connected via a Bently Nevada 330130 extension cable, the total system scale factor must be re-verified. The extension cable adds capacitance to the coaxial circuit, and any mismatch between the probe, extension, and proximitor model — such as the 3300 XL 8mm proximitor — will shift the output linearity range. Engineers should use the Bently Nevada calibration fixture or a precision gap simulation tool to confirm the -10 VDC ±0.5 VDC output at the nominal air gap before returning the machine to service.

For control cabinets undergoing broader modernization, the probe replacement is often coordinated with upgrades to adjacent components. It is common to simultaneously replace the 3300 XL proximitor with a current-production equivalent, inspect the Bently Nevada 3500 rack backplane connectors for corrosion or fretting, and verify that the I/O terminal blocks feeding the DCS analog input cards are correctly labeled and torqued. In some projects, a Bently Nevada TK-3 proximity transducer calibration kit is used on-site to validate the full measurement chain — probe, extension, proximitor, and monitor — before the machine is restarted. Where the control system interfaces with a Rockwell Automation ControlLogix or Siemens S7-400 safety PLC via a hardwired trip relay, the relay output wiring from the 3500 rack should also be continuity-tested as part of the commissioning checklist.

For plants migrating from older Bently Nevada 7200 Series or 3300 NSv systems to the current 3500 platform, the 330104-05-18-50-02-CN is compatible with the new rack architecture, but the proximitor model must be selected to match. The 3300 XL 8mm proximitor (part number 330180-X1-05) is the recommended pairing for this probe in a 3500 rack environment. Confirm that the monitor channel is configured for the correct transducer type and that the OK relay logic has been tested before closing the cabinet.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is a primary concern for operations and reliability teams. The 330104-05-18-50-02-CN is stocked ready-to-ship to support both planned turnaround windows and emergency MRO scenarios. When a probe failure triggers a machinery protection trip, having a verified replacement on the shelf — rather than waiting on a 6–12 week OEM lead time for a discontinued part — can mean the difference between a two-hour repair and a multi-day production loss.

To protect the original program logic and alarm configuration during the swap, the maintenance team should export the current 3500 rack configuration using Bently Nevada’s Rack Configuration software before disconnecting any hardware. This configuration file preserves all channel setpoints, OK limits, alarm delays, and relay assignments. After the new probe is installed and the gap voltage is confirmed, the configuration can be reloaded and verified against the exported baseline, ensuring that no setpoint drift has occurred during the physical replacement.

For machines that cannot be taken offline for an extended period, a staged replacement approach is recommended: install the new probe in a spare channel or on a parallel measurement point, validate its signal against the existing probe output while the machine is running, and then perform the final cutover during the next scheduled maintenance window. This approach maintains continuous vibration monitoring coverage and eliminates the risk of a blind period during which a developing fault could go undetected.

All units are pre-tested for signal linearity and output sensitivity before shipment. A test certificate is available upon request. The support terms confirmed by quotation cover the full measurement chain performance of the probe within its rated operating range, providing assurance for both the maintenance team and the plant’s reliability program.

Retrofit Support FAQ

Q1: Is the 330104-05-18-50-02-CN a direct replacement for the original Bently Nevada 330104-05-18-50-02-CN, and will it work with my existing 3300 XL proximitor?
Yes. This unit is a migration-ready equivalent built to the same mechanical and electrical specification as the original. It is compatible with the Bently Nevada 3300 XL 8mm proximitor system. Confirm the proximitor model number and supply voltage before installation. No wiring changes are required for a like-for-like swap in a standard -02 connector installation.

Q2: What commissioning steps are required after installation?
After physical installation, set the air gap to the manufacturer’s recommended nominal value (typically 1.0–1.5 mm for 8mm probes), then measure the proximitor output voltage. The target is -10 VDC ±0.5 VDC at nominal gap. Verify the OK relay status in the 3500 monitor module, confirm alarm setpoints are unchanged, and run a brief operational check before returning the machine to service. Document the as-found and as-left gap voltage readings for your maintenance records.

Q3: Can this probe be used in a Bently Nevada 3500 rack replacing a probe previously connected to a 3300 NSv or 7200 Series system?
Yes, with the correct proximitor selection. The 330104-05-18-50-02-CN is compatible with the 3500 rack architecture when paired with the appropriate 3300 XL 8mm proximitor. If migrating from a 7200 Series or 3300 NSv installation, the proximitor and monitor channel configuration must be updated to match the 3300 XL transducer family. Consult the Bently Nevada 3500 System Installation Manual for channel configuration details.

Q4: What is the support terms coverage, and is pre-shipment testing included?
Each 330104-05-18-50-02-CN unit is pre-tested for signal linearity and output sensitivity before shipment. A support terms confirmed by quotation is included, covering manufacturing defects and signal performance within the rated operating specification. Test certificates are available upon request. In-region stock is maintained to support urgent MRO and planned shutdown schedules without extended lead times.
