Bently Nevada 330104-05-15-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-05-15-05-02-00 Fail-Safe Proximity Probe: Fault Protection for Critical Industrial Machinery

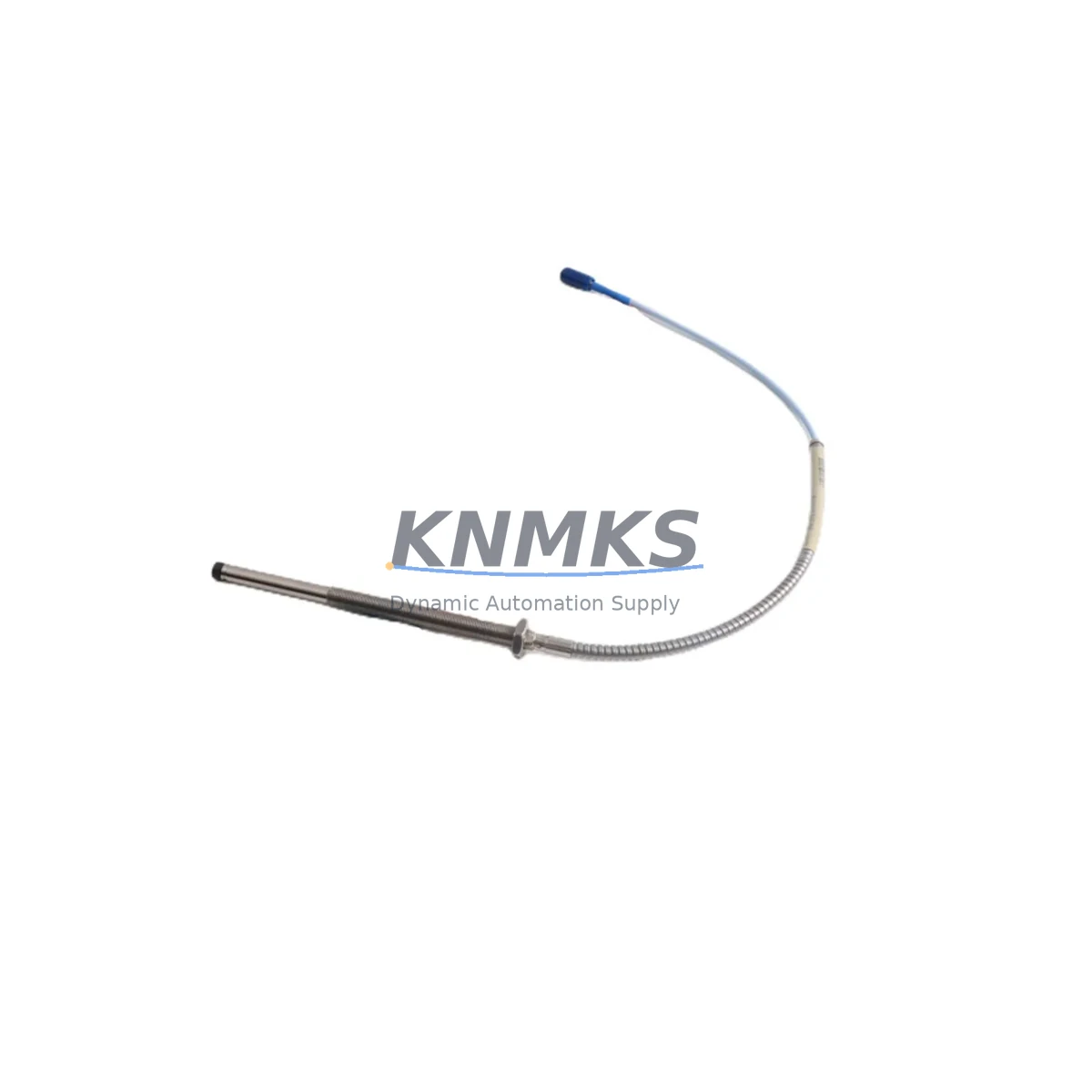

The Bently Nevada 330104-05-15-05-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and marine propulsion systems, this probe delivers the measurement precision and environmental resilience that critical rotating machinery protection demands.

In high-stakes control environments — where a single sensor failure can cascade into unplanned downtime, equipment damage, or a safety incident — the 330104-05-15-05-02-00 provides the signal integrity and mechanical durability that plant engineers and reliability teams depend on. Its eddy-current sensing principle is inherently immune to contamination from oil mist, dust, moisture, and non-conductive process media, making it the preferred choice for turbine bearing housings, compressor shafts, pump seal monitoring, and gearbox displacement measurement.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330104-05-15-05-02-00 proximity probe does not operate in isolation — it is the field-sensing front end of a complete machinery protection architecture. In a properly engineered control cabinet, the probe signal is conditioned by the Bently Nevada 3300 XL 8mm Proximitor Sensor (such as the 330180-91-00), which converts the raw eddy-current signal into a calibrated DC voltage proportional to gap distance. This conditioned output feeds directly into the Bently Nevada 3500/42M Proximitor Monitor, which performs real-time vibration and eccentricity alarming with configurable danger and alert setpoints.

For installations requiring integrated safety loop management, the monitor output interfaces with Rockwell Automation GuardLogix or Siemens S7-300F safety PLCs via hardwired relay contacts or FOUNDATION Fieldbus, enabling automatic machine trip on vibration overrange. In high-electromagnetic-interference environments — common in variable-frequency drive (VFD) cabinets, arc furnace control rooms, and offshore switchgear panels — the probe’s shielded coaxial cable construction and the Proximitor’s differential input architecture suppress common-mode noise that would otherwise cause signal drift or false trips.

Power supply stability is equally critical. Pairing the 3300 XL system with a Phoenix Contact QUINT 24VDC power supply with SFB (Selective Fuse Breaking) technology ensures that a downstream short circuit does not collapse the supply rail and blind the entire vibration monitoring loop. For cabinet thermal management in high-ambient installations, integrating a Rittal TopTherm fan-and-filter unit maintains the Proximitor and associated signal conditioning modules within their rated operating temperature, preventing measurement drift caused by thermal expansion of internal components.

Where communication to the DCS or SCADA layer is required, the Bently Nevada System 1 software platform aggregates probe data from multiple 3500 Series monitors over Ethernet, providing trend logging, spectrum analysis, and predictive maintenance alerts — closing the loop between field sensor reliability and plant-level safety decision-making.

Critical Industrial Safety Applications

Petrochemical & Refinery: In catalytic cracking units and centrifugal compressor trains, the 330104-05-15-05-02-00 monitors shaft radial vibration and axial position continuously. Any bearing wear, rotor imbalance, or surge event that causes shaft displacement beyond the danger setpoint triggers an automatic machine trip before mechanical contact occurs — preventing catastrophic seal failure and potential hydrocarbon release.

Power Generation: Steam turbine and gas turbine installations rely on proximity probe arrays to monitor journal bearing clearance and rotor eccentricity during startup, steady-state operation, and coastdown. The 3300 XL probe’s wide frequency response (DC to 10 kHz) captures both slow-roll runout and high-frequency sub-synchronous instability, giving operators early warning of oil whirl or whip conditions that precede bearing failure.

Mining & Mineral Processing: Ball mill trunnion bearing monitoring, crusher shaft displacement, and slurry pump seal face position measurement all benefit from the probe’s resistance to dust ingress and moisture. In underground mining environments where explosive atmosphere certification is required, the 3300 XL system’s intrinsic safety options provide compliant field installation without sacrificing measurement bandwidth.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water infrastructure operate continuously with minimal maintenance windows. Proximity probe monitoring enables condition-based maintenance scheduling, replacing fixed-interval bearing replacements with data-driven interventions that reduce both maintenance cost and unplanned outage risk.

Metallurgy & Steel: Rolling mill drive shafts, continuous caster pinch rolls, and induction furnace cooling pump motors operate in extreme thermal and vibration environments. The 330104-05-15-05-02-00’s rated operating temperature of up to 177°C and its robust coaxial construction make it suitable for direct installation near hot process equipment where standard sensors would fail prematurely.

Port & Marine: Shipboard propulsion shaft monitoring, bow thruster bearing surveillance, and crane hoist gearbox displacement measurement require sensors that withstand salt spray, condensation cycling, and high mechanical shock. The 3300 XL probe’s sealed construction and wide environmental tolerance make it a reliable choice for marine classification society-approved machinery protection systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330104-05-15-05-02-00?
The support terms confirmed by quotation cover all manufacturing defects, functional failures under normal operating conditions, and out-of-specification sensitivity or linearity. If the probe fails to meet its published performance parameters within the confirmed support period, we provide replacement or documented resolution support. Support requests are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330104-05-15-05-02-00 unit undergoes functional verification prior to dispatch, including sensitivity check against a calibrated target, cable continuity and insulation resistance test, and connector integrity inspection. Units that do not meet Bently Nevada’s published specifications are quarantined and not shipped. A test record is available upon request for critical installation documentation.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330104-05-15-05-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and the 3500 Series machinery protection monitors. The probe, extension cable, and Proximitor must be used as a matched system to maintain calibration accuracy. Mixing components from different series or manufacturers will compromise sensitivity and linearity and is not recommended for safety-critical applications.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
We maintain dedicated inventory of the 330104-05-15-05-02-00 and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and multi-unit spare parts programs. For facilities with critical machinery protection requirements, we recommend establishing a consignment or blanket order arrangement to ensure zero lead-time availability during unplanned outage events. Contact our technical sales team to discuss your site’s specific spare parts strategy.
