Bently Nevada 330104-05-10-50-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-05-10-50-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

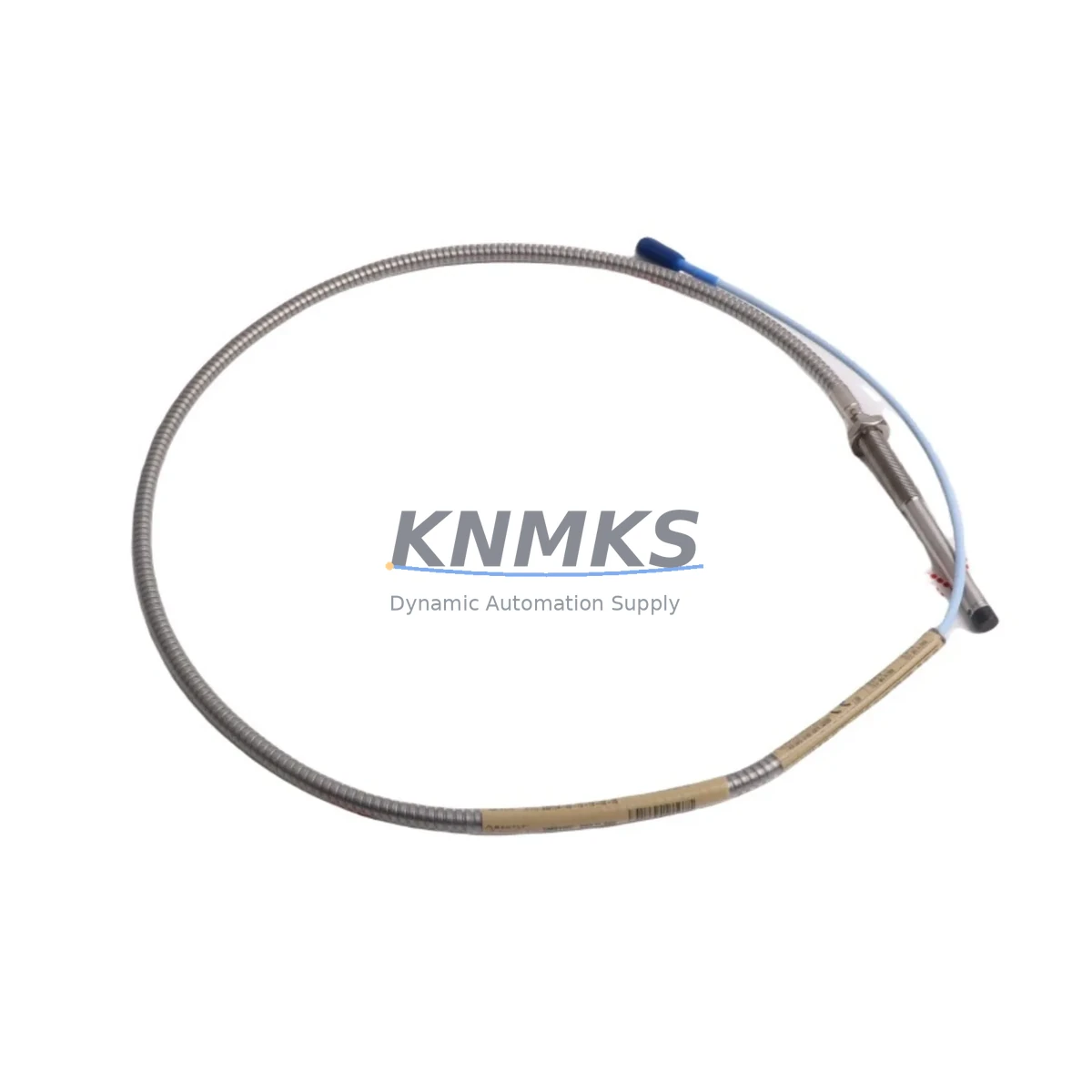

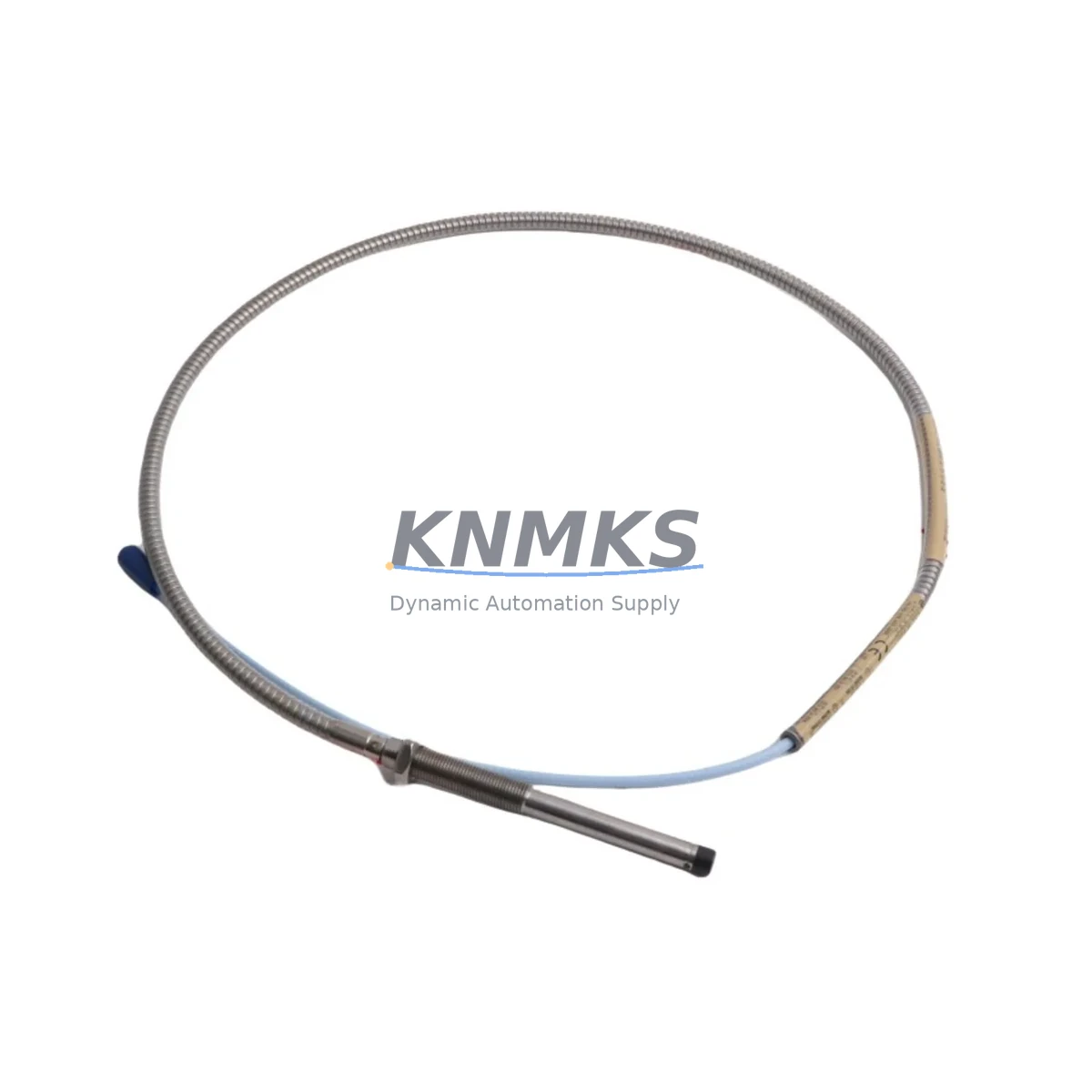

The Bently Nevada 330104-05-10-50-02-00 is an 8mm eddy current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery applications. Designed as a migration-ready replacement for legacy 3300 XL Series installations, this probe maintains full signal chain compatibility with existing Bently Nevada proximitor/driver assemblies, field wiring, and monitoring rack infrastructure — enabling direct substitution without reprogramming or rewiring in the majority of retrofit scenarios.

Industrial facilities operating gas turbines, steam turbines, compressors, pumps, and gearboxes that were originally commissioned with Bently Nevada 3300 XL proximity systems frequently encounter obsolescence challenges as original probes reach end-of-service life. The 330104-05-10-50-02-00 addresses this directly: its 5-metre armored cable, -5V to -24V output range, and standard TNC connector interface are dimensionally and electrically equivalent to the original factory specification, allowing maintenance teams to execute probe replacement during planned outages without modifying the associated 3300 XL proximitor (such as the 330180 or 330130 series) or the Bently Nevada 3500/40M or 3500/42M vibration monitor rack cards.

Before installation, engineers should verify the target shaft material and surface finish, confirm the gap voltage calibration range against the existing proximitor output, and check that the conduit entry and junction box fittings are compatible with the replacement probe’s cable diameter. Where the original probe was mounted in a custom bracket, the 330104-05-10-50-02-00’s 8mm thread pitch and probe body length should be measured against the bracket bore to confirm a direct fit without machining.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Bently Nevada 330104-05-10-50-02-00 into an existing vibration monitoring system requires a structured pre-outage assessment. The probe operates as part of a three-component measurement chain: the probe itself, the proximitor/driver (typically a 330130 or 330180 series extension cable and driver assembly), and the monitor rack card (such as the 3500/40M proximity monitor or 3500/42M dual-channel card). All three components must be evaluated for compatibility before the replacement probe is installed.

Field teams should begin by documenting the existing gap voltage at the proximitor output — typically between -10V and -12V for a properly gapped 8mm probe on a steel shaft. This baseline reading confirms that the proximitor is functioning correctly and that the fault lies with the probe rather than the driver or rack card. If the proximitor output is outside the normal range, the 330130 or 330180 proximitor itself may also require replacement as part of the retrofit scope.

Wiring continuity from the probe tip through the armored cable to the TNC connector should be verified with a cable tester before the new probe is installed. In installations where the original cable was routed through rigid conduit, the replacement cable’s outer diameter must be confirmed against the conduit inner diameter to avoid pull-through damage. Junction box terminal blocks should be inspected for corrosion, and any damaged terminals should be replaced with equivalent DIN-rail mounted terminal blocks rated for the signal voltage range.

For facilities running Bently Nevada System 1 or System 1 Evolution condition monitoring software, the probe replacement does not require any software configuration changes, as the monitor rack card handles signal conditioning and the software reads processed vibration data from the rack via Modbus TCP or the proprietary Bently Nevada communication protocol. However, after installation, the System 1 trend data baseline should be reset to reflect the new probe’s gap voltage and sensitivity characteristics. Facilities using older Bently Nevada Data Manager 2000 historian platforms should verify that the rack card’s analog output scaling matches the historian’s configured engineering unit range.

In multi-channel installations where the 3500/42M card monitors both X and Y axis probes on a single bearing, replacing only one probe requires careful attention to channel assignment and gap voltage balance between the two channels. An imbalance greater than 1V between channels may trigger a differential alarm in the monitor rack, so both probes should ideally be replaced simultaneously if one is found to be degraded. Signal isolators installed between the proximitor output and the DCS analog input card — such as those used in Emerson DeltaV or Honeywell Experion PKS integrations — should also be checked for output range compatibility after the probe replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all replacement components before the maintenance window opens. The 330104-05-10-50-02-00 should be bench-tested with a compatible 330130 or 330180 proximitor and a calibration target block to verify the output voltage curve before the unit is taken to the field. This pre-installation verification step eliminates the risk of discovering a defective replacement probe after the machine has already been taken offline.

During the outage, the original probe’s gap voltage reading, alarm setpoints, and danger setpoints stored in the 3500/40M or 3500/42M rack card should be recorded and preserved. These values must be re-entered or verified after the new probe is installed and gapped, as some rack card firmware versions reset channel parameters when a probe input is disconnected for an extended period. Maintenance teams should also confirm that the machine’s keyphasor signal — typically provided by a separate Bently Nevada 330980 or 330905 keyphasor probe — remains stable throughout the probe replacement, as keyphasor loss will affect phase reference measurements and balance calculations in the vibration monitoring system.

After the replacement probe is installed and gapped to the correct voltage, a short coast-down or run-up test should be performed to confirm that the vibration waveform, 1X amplitude, and phase angle readings are consistent with the historical baseline stored in System 1 or the facility’s DCS historian. Any deviation greater than 10% from the pre-replacement baseline should be investigated before the machine is returned to full load. This structured commissioning approach protects the original program logic, preserves alarm integrity, and ensures that the control system’s protective functions remain active throughout the transition.

Retrofit Support FAQ

Q1: Is the 330104-05-10-50-02-00 a direct drop-in replacement for the original Bently Nevada 3300 XL 8mm probe?
Yes. The 330104-05-10-50-02-00 is dimensionally and electrically equivalent to the original 3300 XL 8mm proximity probe specification. It is compatible with the 330130 and 330180 proximitor series and the 3500/40M and 3500/42M monitor rack cards without modification. Confirm the cable length and connector type match your installation before ordering.

Q2: Does replacing the probe require reconfiguration of the Bently Nevada 3500 rack card or System 1 software?
In most cases, no. The rack card alarm setpoints and channel configuration are stored in the rack card’s non-volatile memory and are not affected by probe replacement. However, after installation, the gap voltage should be verified and the System 1 trend baseline should be reset to reflect the new probe’s characteristics. Consult your rack card firmware release notes for version-specific behavior.

Q3: What wiring checks are required before installing the replacement probe?
Verify cable continuity from the probe tip to the TNC connector, inspect junction box terminals for corrosion, confirm conduit inner diameter is compatible with the replacement cable, and check that the proximitor power supply voltage (typically -24V DC) is within specification. If the proximitor output voltage is outside the -5V to -24V range before probe replacement, the proximitor itself should also be evaluated.

Q4: What does the support terms confirmed by quotation cover, and how is stock availability managed?
The support terms confirmed by quotation cover manufacturing defects, signal integrity failures, and connector interface faults under normal operating conditions. Units are pre-tested before shipment to verify output voltage linearity and cable integrity. Stock is maintained in regional warehouses to support urgent replacement requirements, with typical lead times available on request. Contact admin@knmks.com or +86 18359268345 for current inventory status and expedited shipping options.
