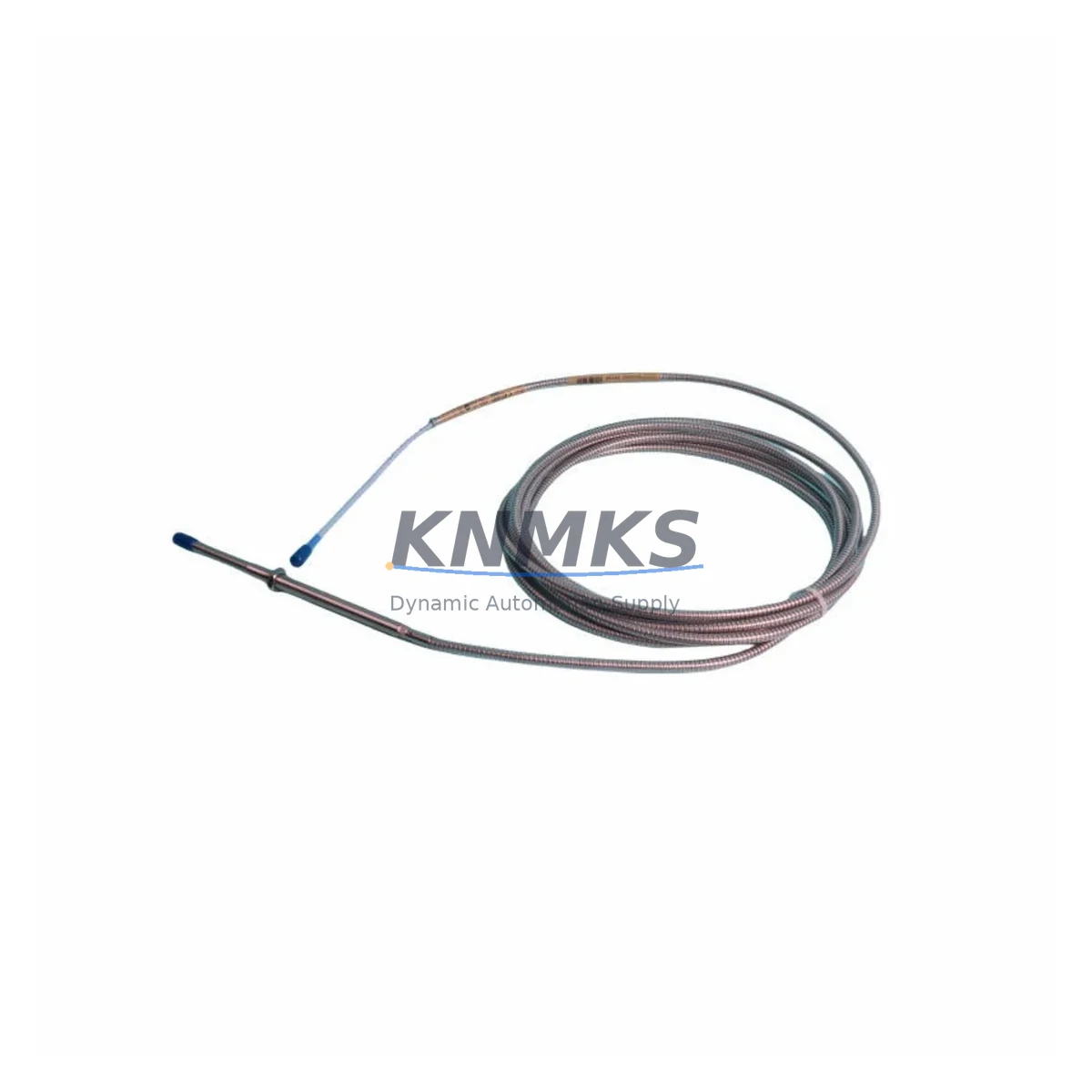

Bently Nevada 330104-05-10-05-02-CN Fail-Safe Proximity Transducer

Overview

Bently Nevada 330104-05-10-05-02-CN Fail-Safe Proximity Transducer: Fault Protection and Critical Industrial Field Reliability

In continuous production environments where unplanned downtime carries severe operational and safety consequences, the Bently Nevada 330104-05-10-05-02-CN proximity transducer delivers the fail-safe performance that critical rotating machinery monitoring demands. Part of the industry-proven Bently Nevada 3300 XL Series, this eddy-current proximity transducer is engineered to maintain signal integrity and measurement accuracy even under the most demanding field conditions — including high electromagnetic interference, mechanical vibration, thermal cycling, and moisture-laden or dusty atmospheres.

The 330104-05-10-05-02-CN is a 5-metre extension cable system transducer designed for shaft radial vibration, axial position, and differential expansion measurement on turbines, compressors, pumps, and other critical rotating assets. Its robust construction and tightly controlled output characteristics make it a cornerstone component in safety instrumented systems (SIS), machinery protection systems, and continuous monitoring architectures where signal drift or measurement failure is not an option.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330104-05-10-05-02-CN as part of a comprehensive control cabinet protection strategy requires careful attention to the entire signal chain. The transducer works in conjunction with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 series) to condition the raw eddy-current signal into a clean, calibrated voltage output suitable for direct input to machinery protection monitors. Within the same control cabinet, the Bently Nevada 3500/42M Proximitor/Seismic Monitor processes these signals and triggers protective relay outputs when vibration or position thresholds are exceeded — forming the backbone of a fail-safe interlock loop.

To protect the signal integrity of the 330104-05-10-05-02-CN in high-EMI environments — common in motor control centres, variable frequency drive (VFD) cabinets, and arc furnace control rooms — proper grounding of the coaxial cable shield at a single point is essential. Surge protection devices, such as those in the Bently Nevada 3500 I/O Module family, provide additional transient suppression at the rack input terminals, guarding against voltage spikes from nearby contactors, solenoids, or power switching events.

In cabinets where thermal management is a concern, pairing the proximity transducer system with adequate forced-air cooling or heat exchanger units ensures that the Proximitor electronics — typically mounted in a Bently Nevada 3500 Rack — remain within their rated operating temperature range. Overheating of the signal conditioning electronics is a leading cause of measurement drift and false trips in continuous monitoring systems. Additionally, the Bently Nevada TK-3 Transducer Calibration Kit enables periodic in-situ verification of the transducer-Proximitor system without removing the sensor from service, minimising maintenance downtime and supporting ongoing safety compliance.

Critical Industrial Safety Applications

The Bently Nevada 330104-05-10-05-02-CN proximity transducer is deployed across the most demanding industrial sectors where rotating machinery failure carries catastrophic consequences.

In petrochemical and refinery facilities, it monitors shaft radial vibration on critical centrifugal compressors and process pumps, providing early warning of rotor imbalance, bearing wear, and seal degradation before a failure event can trigger a hazardous release. The transducer’s resistance to hydrocarbon vapours and its wide operating temperature range make it suitable for installation in classified hazardous areas.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the 330104-05-10-05-02-CN is used for turbine shaft monitoring, where axial position measurement is critical to preventing blade-to-casing contact during thermal transients. Its high-frequency response (DC to 10,000 Hz) captures both low-speed runout and high-frequency blade-pass events with equal fidelity.

In mining and mineral processing operations, where crusher drives, ball mill pinion shafts, and slurry pump bearings operate in extreme dust and vibration environments, the transducer’s shielded coaxial construction and robust tip assembly maintain reliable measurement continuity. Unplanned stoppages in these environments can result in significant production losses and safety incidents.

In water and wastewater treatment plants, the transducer supports continuous monitoring of large vertical pump motors and blower units, where bearing failure can disrupt critical municipal services. In metallurgical and port and marine applications — including crane drives, ship propulsion systems, and rolling mill main drives — the 330104-05-10-05-02-CN provides the measurement reliability required to support both planned maintenance programmes and emergency shutdown systems.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-05-10-05-02-CN?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch to minimise field downtime.

Q2: How is each unit tested before shipment?
Every 330104-05-10-05-02-CN undergoes full functional verification prior to dispatch, including scale factor confirmation, gap-versus-output linearity check, and cable continuity and insulation resistance testing. A calibration record is available upon request to support site commissioning and safety documentation requirements.

Q3: Is the 330104-05-10-05-02-CN compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330104-05-10-05-02-CN is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and integrates directly with the 3500 Series machinery protection rack. It is a direct replacement for equivalent 3300 XL transducer assemblies and requires no recalibration of the Proximitor when replacing a like-for-like unit.

Q4: Can long-term supply and spare parts support be guaranteed?
KNMKS maintains dedicated inventory of the 330104-05-10-05-02-CN and related 3300 XL Series components to support both planned maintenance schedules and emergency replacement requirements. Our supply chain is structured to support critical industries where lead time directly impacts plant safety and production continuity. Contact our team to discuss consignment stock arrangements or long-term supply agreements.
