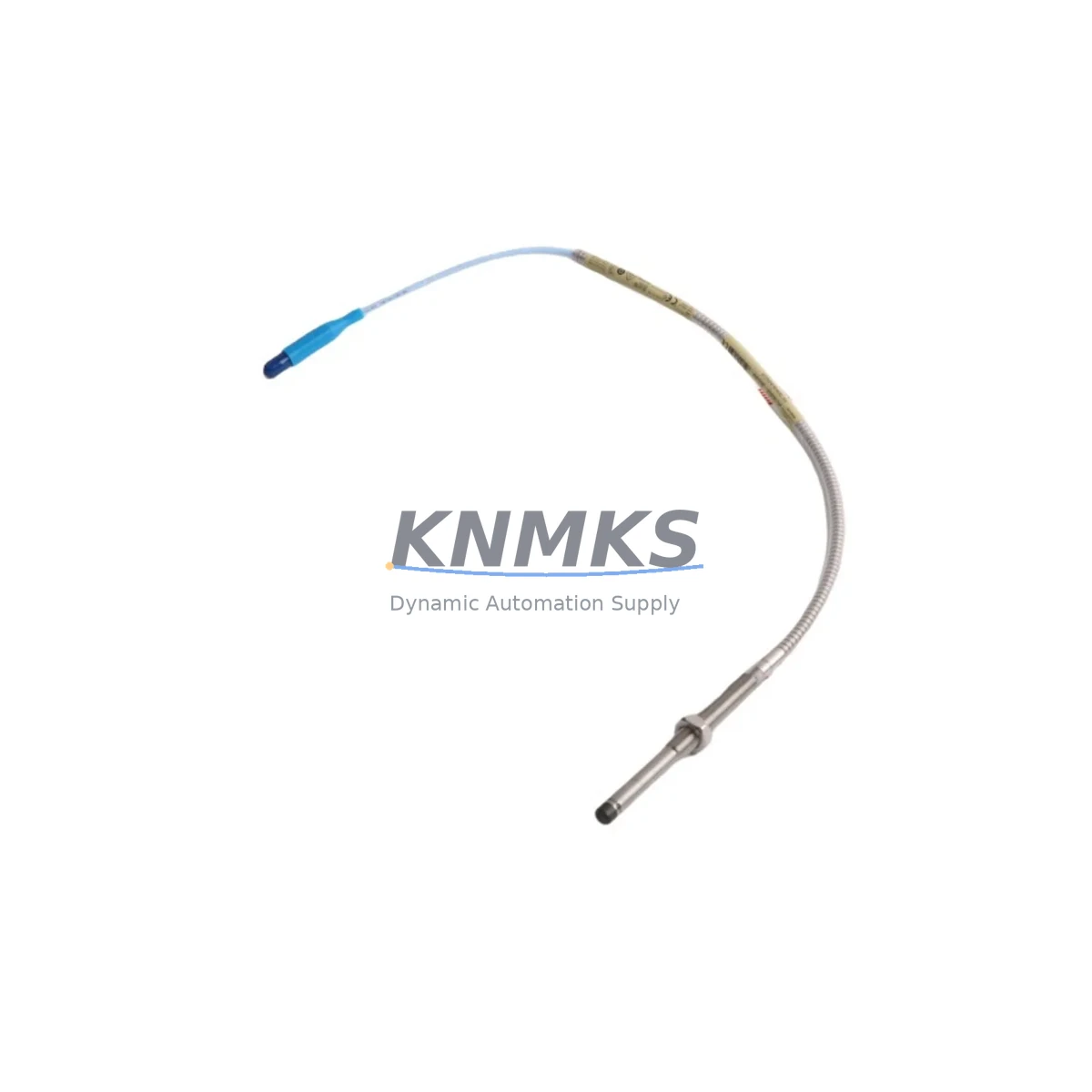

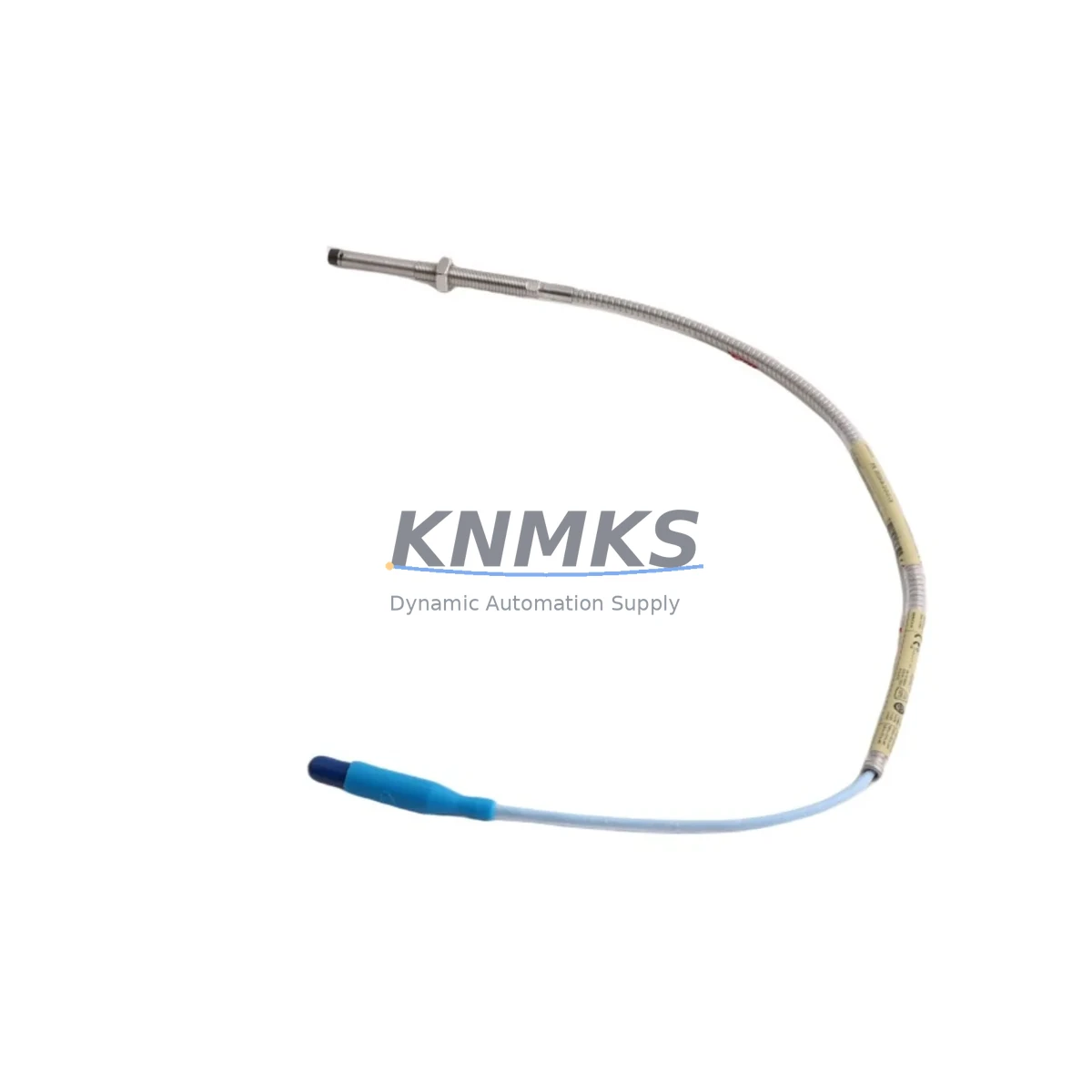

Bently Nevada 330104-04-10-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-04-10-10-02-05 Fail-Safe Proximity Probe: Critical Industrial Control Reliability

The Bently Nevada 330104-04-10-10-02-05 is an 8mm eddy current proximity probe engineered for fail-safe, continuous vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series machinery protection system, this probe delivers uninterrupted shaft displacement measurement with the precision and reliability required for critical rotating equipment — including steam turbines, gas compressors, centrifugal pumps, and large induction motors in petrochemical, power generation, mining, and metallurgical facilities.

Designed to operate reliably under high electromagnetic interference, elevated ambient temperatures, mechanical vibration, and moisture-laden or dusty atmospheres, the 330104-04-10-10-02-05 maintains signal integrity where conventional sensors fail. Its non-contact eddy current sensing principle eliminates mechanical wear, ensuring long service life and consistent output even in continuous 24/7 production cycles. Every unit shipped from KNMKS inventory undergoes pre-shipment functional verification to confirm probe sensitivity, gap voltage linearity, and cable continuity — providing documented assurance before the component reaches your control cabinet.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully protected rotating machinery monitoring loop, the 330104-04-10-10-02-05 probe operates as the field-sensing element within a three-component transducer system. It pairs directly with the Bently Nevada 330130-045-00-00 extension cable and the Bently Nevada 330180-X1-05 proximitor/driver to deliver a calibrated –24 VDC output signal to the monitoring rack. Within the control cabinet, the Bently Nevada 3500/42M proximitor I/O module receives and conditions this signal, feeding shaft displacement data to the 3500/22M transient data interface for event capture and alarm management.

To protect the entire measurement chain from power-side disturbances, the cabinet power rail supplying the 3500 rack should be conditioned through a dedicated DC/DC isolation module or UPS buffer — preventing voltage sags, switching transients, and ground loops from corrupting the –24 VDC proximitor supply. In high-EMI environments such as variable frequency drive (VFD) motor rooms or arc furnace bays, additional shielded cable routing and ferrite suppression on the coaxial run between the probe and proximitor are recommended to maintain signal-to-noise ratios within API 670 acceptance limits.

For installations requiring simultaneous radial vibration and axial thrust monitoring, the 330104-04-10-10-02-05 is commonly deployed alongside a Bently Nevada 330500-02-05 thrust probe on the same shaft, with both channels monitored by a dual-channel 3500/40M monitor card. This configuration provides comprehensive shaft dynamic protection — covering both lateral instability and axial overload conditions — within a single 3500 rack slot, minimizing cabinet footprint while maximizing protection coverage.

Critical Industrial Safety Applications

The 330104-04-10-10-02-05 is deployed across a broad spectrum of critical industrial applications where unplanned rotating equipment failure carries severe safety, environmental, and financial consequences:

Petrochemical and Refinery Plants: Installed on process gas compressors, reactor feed pumps, and crude distillation column overhead compressors, this probe provides the continuous shaft orbit data required for API 670-compliant machinery protection. Early detection of rotor instability, oil whirl, or bearing wear allows operators to schedule maintenance during planned turnarounds rather than responding to catastrophic failures.

Power Generation: Steam turbine and gas turbine installations rely on proximity probe arrays to monitor shaft eccentricity, differential expansion, and rotor runout. The 330104-04-10-10-02-05, integrated into a 3500 series rack, feeds real-time displacement data to the plant DCS — enabling automatic trip logic that protects turbine internals from contact damage during transient events such as load rejection or grid fault.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pump drives operate in environments with extreme dust loading, high vibration floors, and wide ambient temperature swings. The IP67-rated probe body and high-temperature cable construction of the 330104-04-10-10-02-05 maintain measurement integrity in these conditions, supporting continuous mill availability and reducing unscheduled liner change-outs caused by undetected bearing degradation.

Water and Wastewater Treatment: High-service pumping stations and blower trains in municipal water infrastructure require long-interval, unattended operation. Proximity probe monitoring enables condition-based maintenance strategies that extend mean time between overhauls and reduce the risk of pump seizure events that could interrupt water supply to critical distribution networks.

Metallurgy and Steel Production: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains operate under heavy cyclic loads and thermal cycling. Proximity probe data from the 330104-04-10-10-02-05 supports predictive maintenance programs that identify developing rotor asymmetry or coupling misalignment before they propagate into catastrophic shaft failures.

Safety and Quality FAQ

Q1: What support terms coverage applies to the Bently Nevada 330104-04-10-10-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects, sensitivity drift beyond specification, and cable/connector integrity failures. Support requests are supported with replacement dispatch and failure analysis documentation upon request.

Q2: What pre-shipment testing is performed on each probe?
Every 330104-04-10-10-02-05 unit undergoes bench verification of gap voltage output at the nominal 1.0 mm gap, scale factor linearity across the full sensing range, and coaxial cable continuity and insulation resistance. Test records are available upon request for quality-critical procurement processes.

Q3: Is this probe a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330104-04-10-10-02-05 is dimensionally and electrically compatible with all standard 3300 XL series extension cables and proximitor drivers. No recalibration of the 3500 monitor rack is required when replacing a like-for-like probe in an existing installation, provided the target material and gap setting remain unchanged.

Q4: Can KNMKS support long-term or blanket supply requirements for this SKU?
Yes. KNMKS maintains regional inventory of the 330104-04-10-10-02-05 to support both emergency replacement and planned maintenance programs. Blanket purchase agreements with scheduled release quantities are available for facilities operating multiple monitored machines, ensuring supply continuity without lead-time exposure on critical spare parts.
