Bently Nevada 330104-03-12-10-02-00 Maintenance Spare

Overview

Bently Nevada 330104-03-12-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

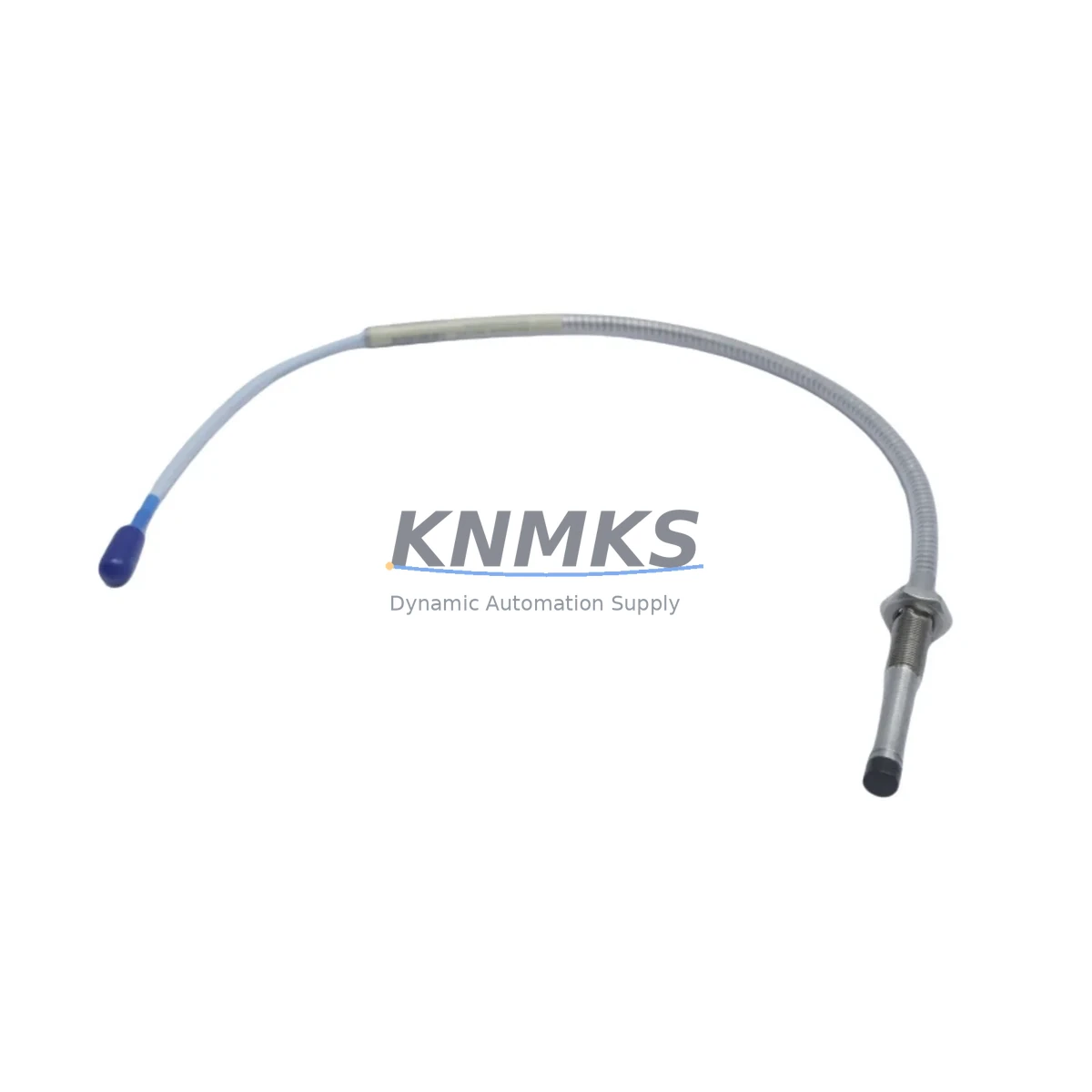

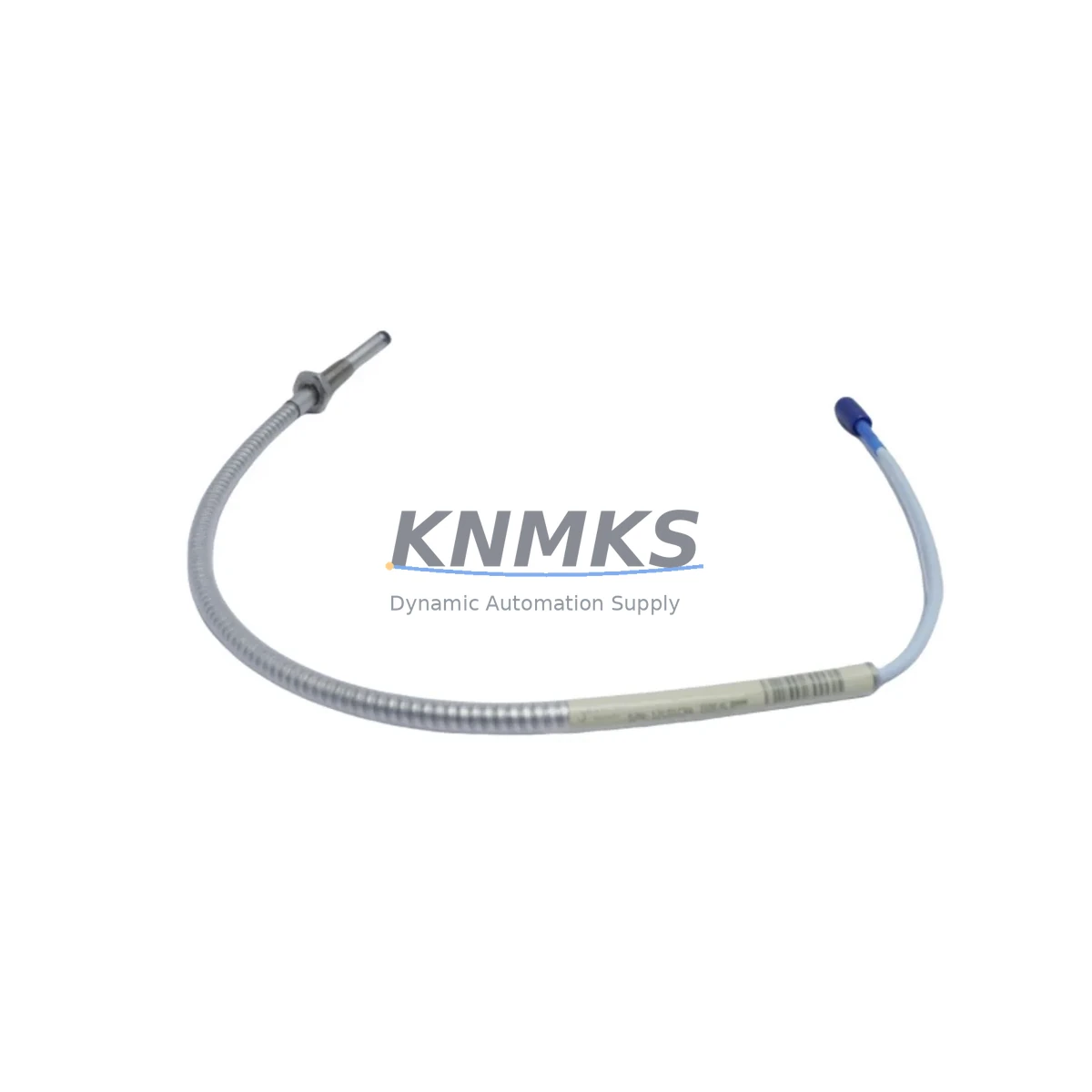

The Bently Nevada 330104-03-12-10-02-00 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core sensing element within the 3300 XL Series monitoring system, this probe delivers the signal integrity and mechanical durability that maintenance engineers depend on during both planned shutdowns and emergency fault-isolation events. Whether you are managing a turbine train, compressor skid, or pump monitoring loop, keeping a verified spare of the 330104-03-12-10-02-00 on the shelf is a fundamental pillar of any predictive maintenance program.

Procurement engineers sourcing replacement probes for legacy 3300 XL installations will find this unit fully compatible with the standard Bently Nevada interconnect architecture — including the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor® Sensor — without requiring firmware changes or recalibration of the monitoring rack. The probe ships pre-tested against OEM electrical specifications, reducing commissioning time and minimizing the risk of introducing a defective component into a live monitoring loop.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-03-12-10-02-00 proximity probe is flagged during a routine control-cabinet inspection or a vibration alarm event, experienced maintenance engineers know that the probe itself is rarely the only component that warrants attention. A systematic replacement workflow should include verification of the paired 3300 XL Extension Cable (typically the 330130 series) for jacket abrasion, connector corrosion, or impedance drift caused by mechanical fatigue near the probe holder. The 3300 XL Proximitor® Sensor (such as the 330180 series) should be bench-checked for output voltage linearity before the new probe is installed, since a degraded Proximitor can mask or misrepresent probe performance data.

At the rack level, inspect the 3300 XL Monitoring Module input card for any alarm relay contacts showing signs of pitting or high contact resistance — relay degradation is a common secondary failure mode in high-vibration environments. If the installation includes a 3300 XL I/O Module or a dedicated signal isolator between the Proximitor output and the DCS analog input card, verify that the isolation barrier is within its rated input range and that the 4–20 mA or voltage output is clean and free of ripple. Fuse holders and terminal blocks in the junction box should be inspected for loose terminations, which can introduce noise into the proximity signal and trigger nuisance alarms.

For sites running a System 1 or System 1 Evolution software platform, confirm that the channel configuration — gap voltage setpoints, alert and danger thresholds, and transducer scale factor — is documented and backed up before the probe swap. This prevents configuration drift during emergency replacements performed under time pressure. Where the monitoring loop feeds a Bently Nevada 3500 Series rack or a third-party safety PLC via hardwired relay outputs, coordinate with the control room to suppress alarms during the replacement window to avoid spurious trips.

Stocking a minimum of two 330104-03-12-10-02-00 probes per critical machine train — alongside matched extension cables and at least one spare Proximitor® Sensor — is a widely adopted inventory strategy for facilities with long lead-time exposure or remote site logistics constraints. This approach supports a same-shift replacement capability and eliminates the production risk associated with single-unit spare strategies.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Coordinate with the control room to place the affected channel in bypass or maintenance mode within the monitoring rack. Record the existing gap voltage (typically −10 VDC ± 1 V for a correctly gapped 8mm probe) as a baseline reference for the new installation.

Step 2 — Probe Removal: Loosen the locknut and back the probe out of the probe holder. Inspect the probe tip for impact damage or target surface contamination. Inspect the probe holder threads and the target area (shaft or thrust collar) for wear, scoring, or runout anomalies that could affect the new probe’s performance.

Step 3 — Cable and Connector Inspection: Before installing the 330104-03-12-10-02-00 replacement, inspect the extension cable connector at both the probe end and the Proximitor® Sensor end. Clean contacts with an approved electrical contact cleaner. Replace the extension cable if the outer jacket shows cracking, kinking, or moisture ingress.

Step 4 — Installation and Gapping: Thread the new probe into the holder and adjust the gap to achieve the nominal −10 VDC output from the Proximitor® Sensor, per the 3300 XL installation manual. Secure the locknut to the specified torque. Verify that the cable routing does not create mechanical stress at the probe body.

Step 5 — Functional Verification: Restore the channel from bypass mode and confirm that gap voltage, vibration baseline, and alarm setpoints are within expected ranges. Log the replacement in the site CMMS with the new probe serial number and installation date to support support terms tracking and future maintenance planning.

This workflow is applicable whether the 330104-03-12-10-02-00 is replacing a like-for-like unit on an existing 3300 XL system or is being installed as part of a partial system upgrade. The probe’s backward compatibility with legacy 3300 XL Proximitor® Sensors and extension cables means no rack-level reconfiguration is required in most standard replacement scenarios, significantly reducing downtime exposure.

Spare Parts Support FAQ

Q1: Is the 330104-03-12-10-02-00 compatible with both older 3300 XL racks and current 3500 Series monitoring systems?
The 330104-03-12-10-02-00 is designed for the 3300 XL 8mm Proximity Transducer System and is fully compatible with 3300 XL Proximitor® Sensors and extension cables. For 3500 Series installations, compatibility depends on the specific transducer input module configuration; consult the rack’s channel setup documentation to confirm scale factor and gap voltage requirements before installation.

Q2: What pre-shipment testing is performed on each unit?
Each 330104-03-12-10-02-00 spare is electrically tested prior to shipment to verify output voltage linearity across the specified linear range, cable continuity, and connector integrity. Units that do not meet OEM electrical specifications are quarantined and not dispatched. A support terms confirmed by quotation cover defects in materials and workmanship from the date of delivery.

Q3: How should this probe be stored if it is held as a long-term shelf spare?
Store the probe in its original packaging or an anti-static, moisture-resistant bag in a temperature-controlled environment (0 °C to 40 °C, relative humidity below 85% non-condensing). Avoid storing the probe near strong magnetic fields or in areas subject to mechanical vibration. Inspect the probe tip and cable connector annually for corrosion or physical damage before committing the unit to a critical installation.

Q4: Can KNMKS support long-term or blanket-order supply agreements for the 330104-03-12-10-02-00?
Yes. KNMKS supports scheduled release orders and blanket stock programs for maintenance-critical spare parts including the 330104-03-12-10-02-00. Long-term supply agreements help facilities lock in pricing, guarantee allocation during periods of market shortage, and reduce the administrative burden of repeated spot purchases. Contact our team to discuss minimum order quantities, lead times, and regional warehousing options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-03-12-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-03-12-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
