Bently Nevada 330104-02-24-10-01-00 Maintenance-Proven Spare

Overview

Bently Nevada 330104-02-24-10-01-00 Maintenance-Proven Spare Part for Factory Uptime

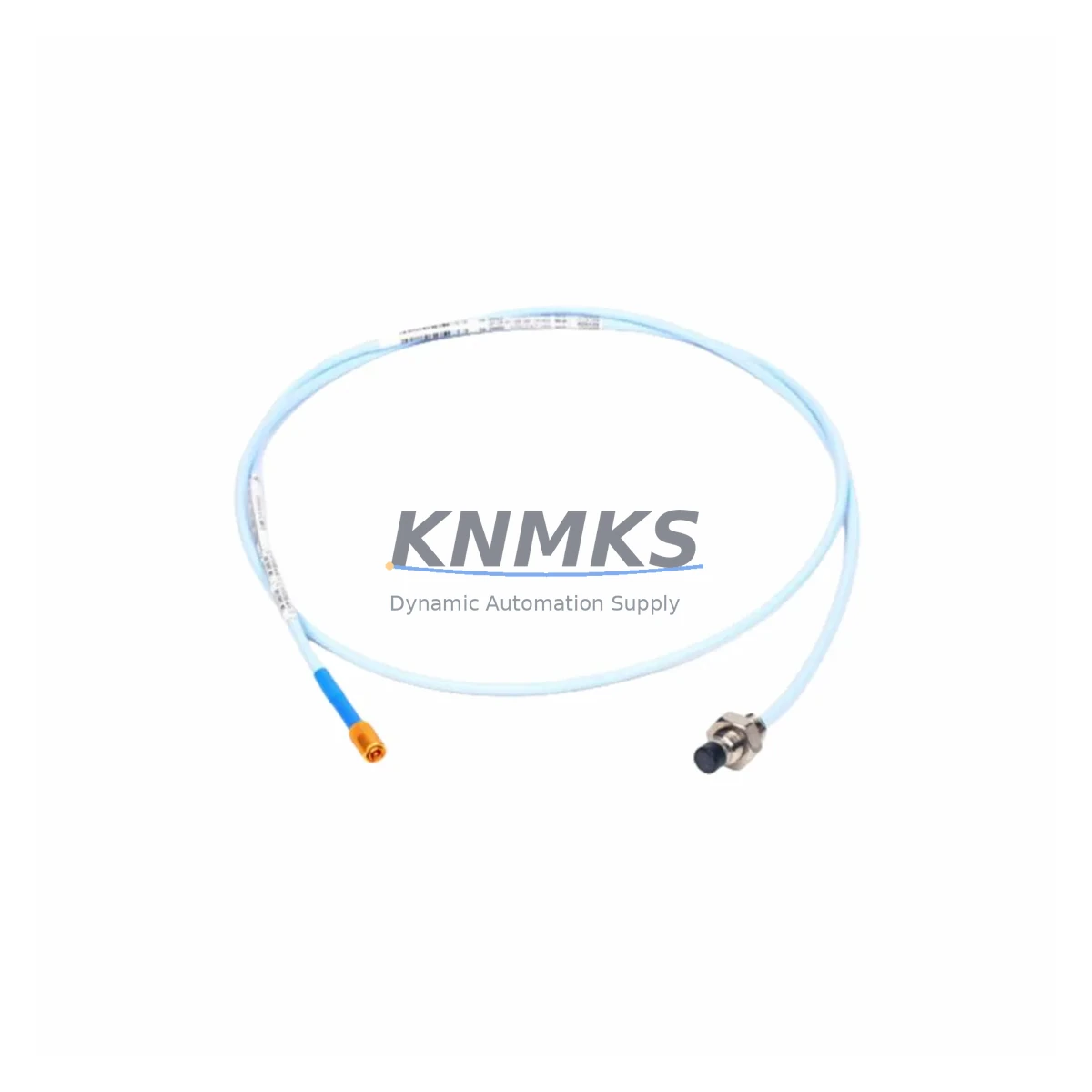

The Bently Nevada 330104-02-24-10-01-00 is a 24-inch (610 mm) proximity extension cable engineered for the 3300 XL continuous vibration monitoring system. Designed to transmit low-level signals between the 3300 XL 8mm proximity transducer and the Bently Nevada 3300 XL proximitor/seismic monitor, this cable is a critical link in rotating machinery protection circuits found in turbines, compressors, pumps, and gearboxes across energy, petrochemical, and heavy manufacturing facilities.

For maintenance engineers managing predictive maintenance (PdM) programs, the 330104-02-24-10-01-00 is a front-line spare. Signal degradation, connector corrosion, cable jacket damage from heat or chemical exposure, and mechanical fatigue at the conduit entry point are the most common failure modes. Keeping a verified OEM replacement in your spare parts cabinet eliminates the risk of extended downtime caused by sourcing delays — particularly critical during unplanned shutdowns or annual turnaround windows.

Procurement engineers sourcing for multi-unit facilities should note that this cable is part of the standardized 3300 XL probe-cable-proximitor assembly. Stocking the 330104-02-24-10-01-00 alongside matched transducers such as the Bently Nevada 330104-00-24-10-01-00 (standard tip clearance variant) and the 3300 XL proximitor module (e.g., 3300/16-02-01-01-00-00) ensures a complete replacement kit is available for any vibration channel failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-02-24-10-01-00 extension cable during a planned or emergency maintenance event, a thorough inspection of the entire vibration measurement loop is strongly recommended. Signal integrity in a 3300 XL channel depends on the matched impedance and gap voltage of the complete probe-cable-proximitor assembly. A cable swap without verifying adjacent components can introduce measurement errors that trigger nuisance trips or, worse, mask genuine machinery faults.

Begin by inspecting the Bently Nevada 3300 XL 8mm proximity probe (e.g., 330104-00-24-10-01-00 or equivalent tip-clearance variant) for tip wear, thread damage, and contamination. Verify the probe gap voltage at the proximitor output — typically –10 VDC ±0.5 V at the nominal air gap — using a calibrated voltmeter. If the gap voltage is out of range after cable replacement, the probe itself may require replacement.

Next, inspect the 3300 XL proximitor/seismic monitor module (e.g., 3300/16-02-01-01-00-00). Check the barrier terminal connections, verify the –24 VDC power supply rail feeding the proximitor, and confirm that the OK relay output is energized. A failed OK relay is a common indicator of a damaged cable or probe assembly. If the proximitor module shows no output after cable replacement, the module’s internal oscillator circuit may have been damaged by a short circuit caused by the failed cable.

The –24 VDC power supply module feeding the 3300 XL rack should also be verified. Bently Nevada rack-mount power supplies (e.g., 3300/20 or equivalent) can develop output voltage droop under load, which degrades the eddy-current driver circuit performance. Measure the supply voltage at the rack backplane terminals, not just at the power supply output, to account for wiring resistance losses.

For facilities running Bently Nevada System 1 or System 1 Evolution software, confirm that the channel configuration in the software matches the new cable’s length and the probe’s sensitivity factor (typically 7.87 V/mm for 8mm probes). Incorrect sensitivity settings after a cable swap will produce erroneous vibration amplitude readings and may require a full channel recalibration.

Additionally, inspect the rack I/O terminal strips and signal conditioning barriers (e.g., Bently Nevada 3300/10 or 3300/15 series barriers) for corrosion, loose screws, and insulation breakdown. In high-humidity or chemically aggressive environments, barrier terminal blocks are a common secondary failure point that is often overlooked during cable-focused maintenance events.

For facilities with Modbus or PROFIBUS communication cards installed in the 3300 XL rack, verify that the communication module (e.g., 3300/46 or 3300/47) remains online after the maintenance event. A rack power interruption during cable replacement can cause communication modules to lose their configuration and require re-initialization.

Site Replacement Workflow

Step 1 — Isolate the channel. In System 1 or the local rack display, place the affected vibration channel in bypass mode to prevent a nuisance trip during the replacement. Document the current gap voltage, direct vibration amplitude, and 1X/2X vector readings as a baseline for post-replacement verification.

Step 2 — Disconnect and remove the failed cable. At the proximitor end, unscrew the MIL-spec coaxial connector carefully — do not use pliers on the connector body. At the probe end, unscrew the cable from the probe tip. Inspect both connectors for bent center pins, contamination, or corrosion. If the probe connector shows damage, replace the probe as well.

Step 3 — Install the 330104-02-24-10-01-00 replacement cable. Route the new cable through the existing conduit, avoiding sharp bends at the conduit entry point (minimum bend radius: 25 mm). Hand-tighten the MIL-spec connectors — do not over-torque. Secure the cable with cable ties at 150 mm intervals to prevent vibration-induced fatigue at the connectors.

Step 4 — Verify gap voltage and signal output. With the probe at the nominal air gap, measure the proximitor output voltage. Adjust the probe gap if necessary to achieve the target gap voltage. Confirm that the OK relay energizes and that the System 1 channel shows a valid vibration reading within the expected baseline range.

Step 5 — Remove bypass and return to service. Remove the channel bypass in System 1, confirm that the alarm and danger setpoints are active, and document the post-replacement readings in the maintenance management system (CMMS). Update the spare parts inventory to reflect the consumed cable and initiate a replenishment order to maintain minimum stock levels.

This workflow minimizes downtime to under 30 minutes for a trained technician and ensures full system compatibility without requiring a full rack recalibration.

Spare Parts Support FAQ

Q1: Is the 330104-02-24-10-01-00 a direct drop-in replacement for older Bently Nevada 3300 series extension cables?
A: The 330104-02-24-10-01-00 is designed for the 3300 XL system and uses the same MIL-spec coaxial connector standard as earlier 3300 series cables. In most installations, it is a direct mechanical and electrical replacement. However, always verify the cable length suffix (–24 = 24 inches) and the sensitivity factor matches your proximitor configuration before installation. If your system uses an older 3300/05 or 3300/10 proximitor, consult the system documentation to confirm compatibility.

Q2: What is included in the support terms confirmed by quotation and what does the pre-shipment testing cover?
A: Every 330104-02-24-10-01-00 unit is function-tested prior to shipment to verify connector integrity, cable continuity, and shield isolation. The support terms confirmed by quotation cover manufacturing defects and premature failure under normal operating conditions. It does not cover damage caused by improper installation, over-torqued connectors, or exposure to conditions outside the rated operating range. Support requests are processed with a replacement unit dispatched within 5 business days of fault confirmation.

Q3: How many units should a facility stock as a minimum spare parts inventory?
A: For facilities with 10 or more 3300 XL vibration channels, a minimum of 2–3 extension cables per cable length variant is recommended. Critical machinery trains (main turbines, high-pressure compressors) should have a dedicated spare set. For facilities with annual turnaround cycles, pre-positioning spares 60 days before the planned shutdown window eliminates sourcing risk. We support long-term supply agreements for facilities requiring guaranteed stock availability.

Q4: Can you supply the 330104-02-24-10-01-00 for long-term or blanket purchase orders?
A: Yes. We support long-term supply commitments, blanket purchase orders, and consignment stock arrangements for MRO procurement teams. Lead times for standard stock are 1–3 business days. For bulk orders or annual supply contracts, contact our sales team to discuss pricing, delivery scheduling, and quality documentation (test reports, certificates of conformance). All units are sourced from verified supply channels and carry the support terms confirmed by quotation regardless of order volume.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-02-24-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-02-24-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
