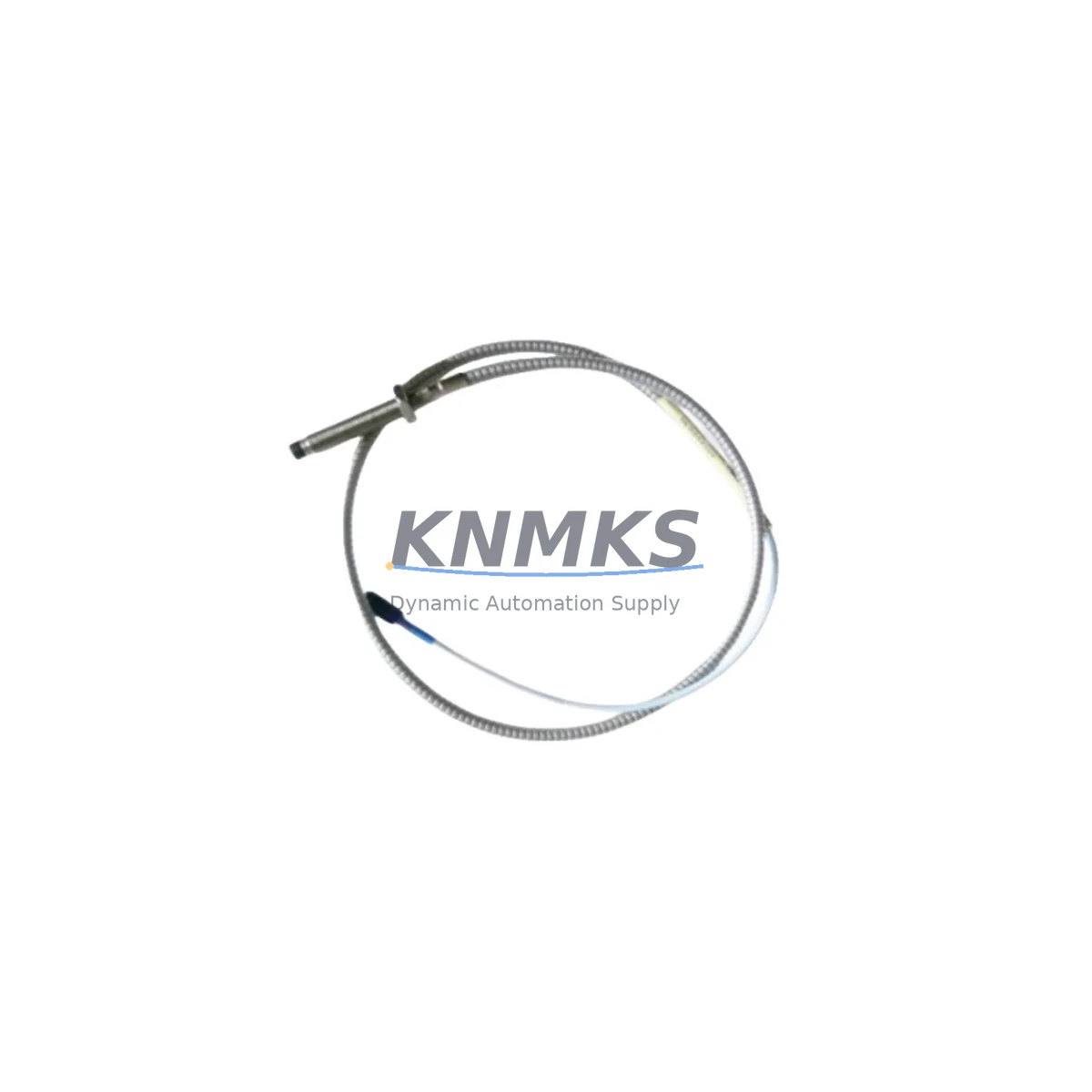

Bently Nevada 330104-02-10-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-02-10-10-02-00 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330104-02-10-10-02-00 is a high-performance eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe operation in the most demanding industrial control environments. Designed to deliver precise, non-contact vibration and position measurement, this probe is a cornerstone component in rotating machinery protection systems where unplanned downtime, signal drift, or measurement failure carries unacceptable safety and financial consequences.

In critical industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and continuous manufacturing environments — the integrity of shaft vibration monitoring directly determines whether a machine trip is timely and protective, or delayed and catastrophic. The 330104-02-10-10-02-00 is built to eliminate that uncertainty.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330104-02-10-10-02-00 proximity probe does not operate in isolation — its reliability is inseparable from the integrity of the complete measurement chain and the control cabinet architecture surrounding it. In a properly engineered machinery protection loop, this probe pairs with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180 series driver), which conditions the raw eddy-current signal into a calibrated DC output suitable for the monitoring system. Signal integrity from probe tip to monitor input is paramount: any impedance mismatch, cable damage, or connector corrosion introduces measurement error that can mask developing faults or trigger nuisance trips.

Within the control cabinet, the Bently Nevada 3500 Series Machinery Protection System serves as the primary monitoring platform, accepting inputs from multiple 3300 XL probe channels and executing configurable trip and alarm logic. To protect the entire monitoring system from power-related disturbances — including voltage sags, surges, and conducted EMI from variable frequency drives or large motor starts — a dedicated DC power supply module with surge suppression capability should be installed upstream of the 3500 rack. In high-EMI environments such as arc furnace control rooms or large compressor stations, additional signal isolators or barriers between the Proximitor output and the monitor input card further reduce the risk of ground loops and interference-induced false readings.

For safety-instrumented systems operating under IEC 61511 or IEC 61508 frameworks, the proximity probe measurement channel may feed into a Safety PLC or dedicated safety logic solver alongside other process variables. In such architectures, the 330104-02-10-10-02-00 contributes to the overall Safety Integrity Level (SIL) assessment of the machinery protection function. Complementary components such as Bently Nevada 3300 XL extension cables (330130 series) and armored conduit assemblies protect the signal path in environments with mechanical abrasion, chemical exposure, or extreme thermal cycling — conditions common in steel mills, offshore platforms, and cement plants.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In hydrocarbon processing facilities, rotating equipment such as centrifugal compressors, turbines, and pumps operate continuously under strict API 670 machinery protection requirements. The 330104-02-10-10-02-00 provides the radial vibration and axial position measurements that feed directly into trip systems designed to prevent catastrophic seal failures, bearing collapses, and rotor-stator contact events. In these environments, a single undetected vibration excursion can result in fire, explosion, or toxic release — making the fail-safe signal architecture of the 3300 XL system a non-negotiable safety requirement.

Power Generation: Steam turbines, gas turbines, and large generator sets in power plants rely on proximity probe arrays to monitor shaft eccentricity, differential expansion, and thrust position. The 330104-02-10-10-02-00, integrated into a 3500 Series monitoring rack, enables operators to detect developing faults — such as bearing wear, rotor imbalance, or misalignment — well before they reach trip thresholds, supporting condition-based maintenance strategies that reduce forced outages.

Mining and Mineral Processing: Ball mills, SAG mills, crushers, and conveyor drive systems in mining operations are subject to extreme vibration, dust ingress, and temperature fluctuations. The ruggedized construction of the 3300 XL probe series, combined with the shielded cable assembly of the 330104-02-10-10-02-00, ensures measurement continuity even in these harsh conditions. Early detection of drive-end bearing degradation or gear mesh anomalies prevents unplanned mill stoppages that can halt entire production circuits.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities operate in humid, chemically aggressive environments. Proximity probe monitoring of these assets supports predictive maintenance programs that extend equipment life and ensure regulatory compliance for continuous water supply operations.

Metallurgical and Steel Processing: Rolling mills, continuous casters, and induction furnace drives represent some of the most mechanically demanding applications for proximity measurement. The thermal stability and EMI immunity of the 330104-02-10-10-02-00 make it suitable for installation in close proximity to high-current bus bars and induction heating equipment without signal degradation.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-02-10-10-02-00?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each probe undergoes pre-shipment functional testing to verify output linearity, cable continuity, and connector integrity before dispatch. Documentation of test results is available upon request for quality assurance records.

Q2: How is compatibility with existing 3300 XL systems verified before shipment?
The 330104-02-10-10-02-00 is a direct-fit replacement for standard 3300 XL 8 mm probe assemblies with 1.0 m integral cable and 1.0 m extension. Compatibility is confirmed against the Bently Nevada 3300 XL system documentation. If your installation uses a non-standard cable length configuration or a specialized target material, our technical team will verify the correct part number before order confirmation to prevent field incompatibility.

Q3: Is long-term supply availability assured for critical spare parts programs?
KNMKS maintains dedicated inventory of 3300 XL series proximity probes, drivers, and extension cables to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. For facilities requiring guaranteed stock availability over 12–36 month horizons, we offer structured supply agreements with reserved inventory allocation and priority dispatch commitments.

Q4: What field safety considerations apply when replacing a proximity probe in a live control cabinet?
Proximity probe replacement in an operating machinery protection system requires coordination with the control room to place the affected channel in bypass mode before disconnecting the probe assembly, preventing a false trip signal from initiating an unplanned machine shutdown. The replacement probe must be gap-set to the correct voltage per the 3300 XL calibration procedure before the channel is returned to service. KNMKS provides technical support documentation for field replacement procedures upon request.
