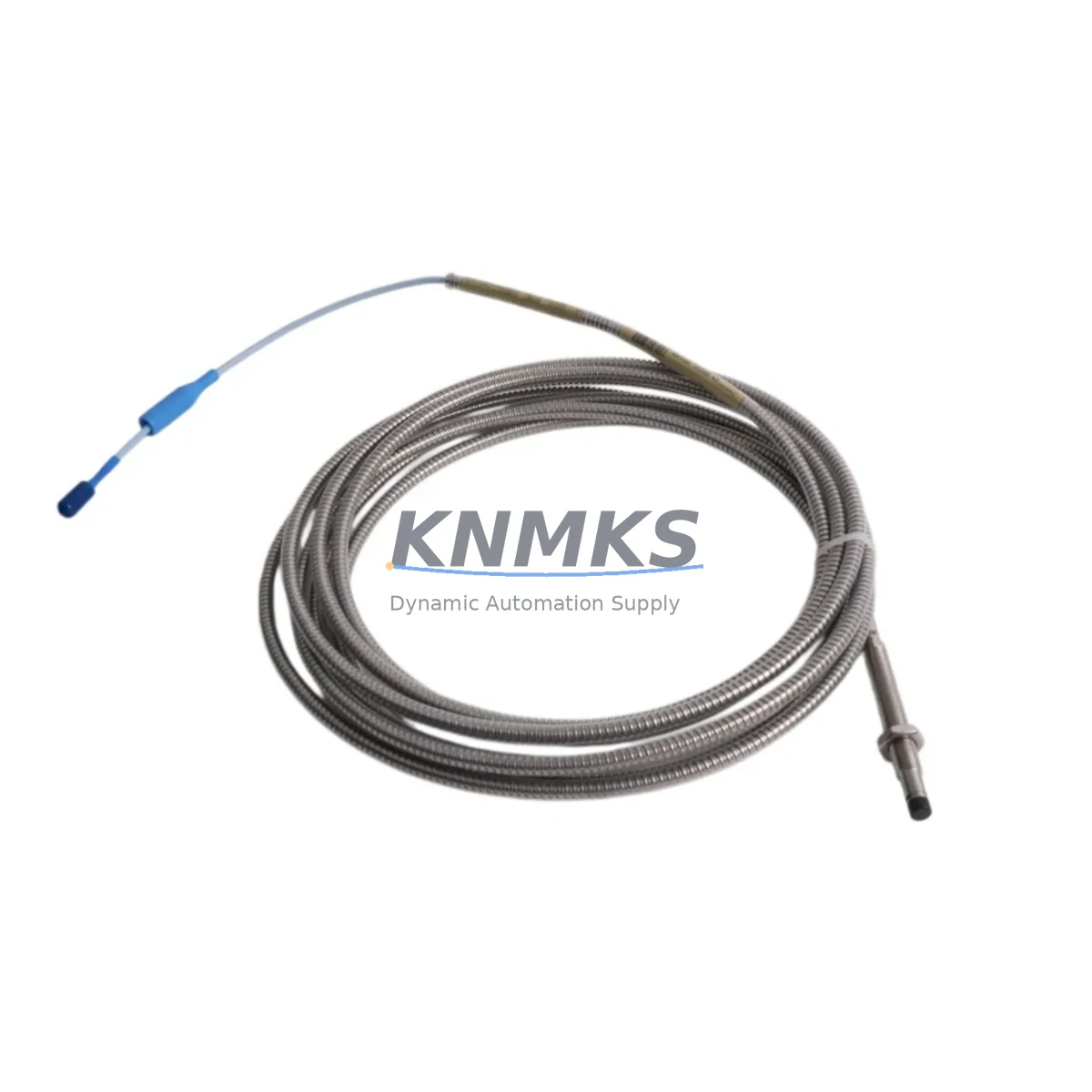

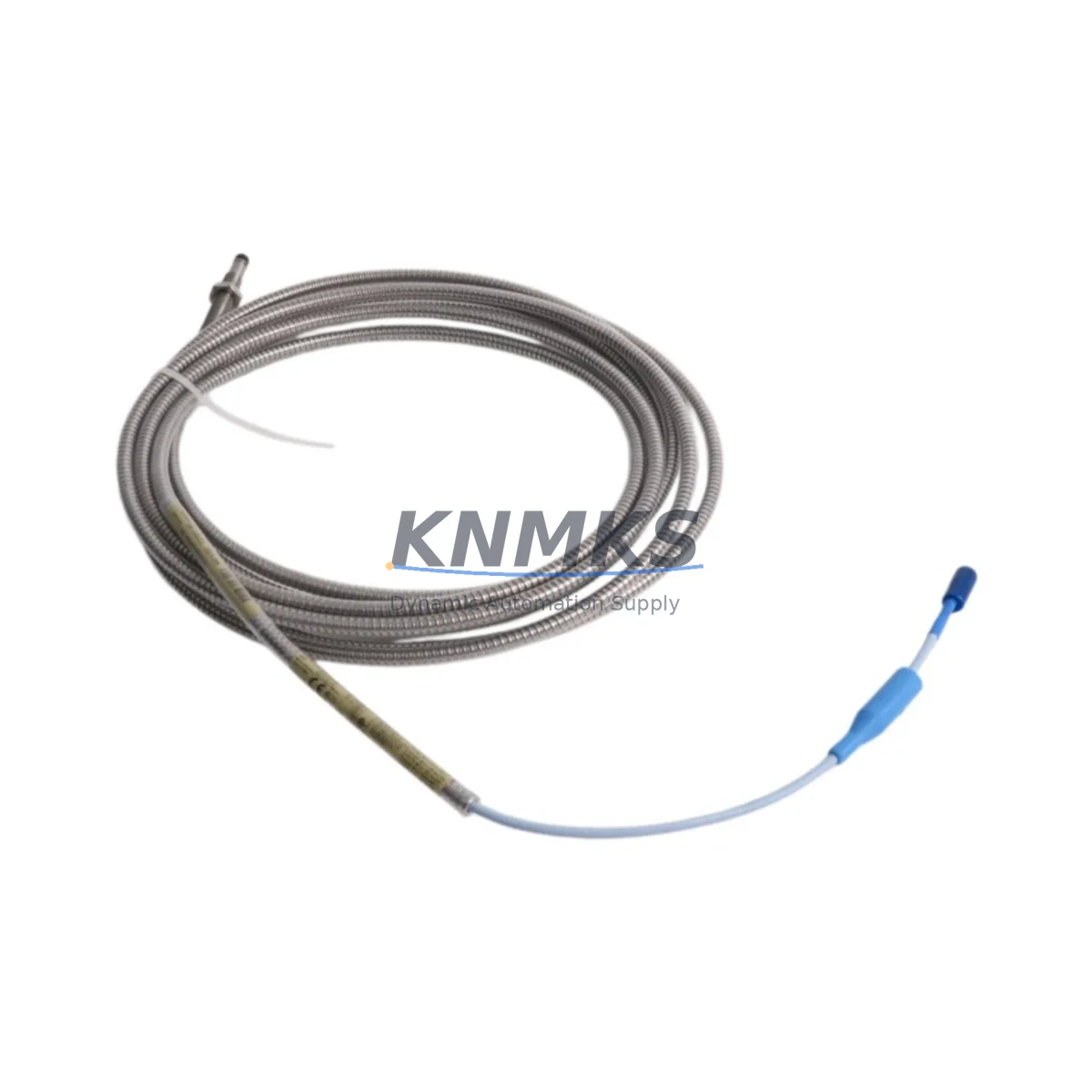

Bently Nevada 330104-01-15-50-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-01-15-50-02-05 Fail-Safe Proximity Probe: Fault-Tolerant Sensing for Critical Industrial Reliability

In continuous production environments where unplanned downtime is never an option, the Bently Nevada 330104-01-15-50-02-05 8mm eddy-current proximity probe delivers the fail-safe performance that rotating machinery protection demands. Engineered as a core component of the Bently Nevada 3300 XL Series vibration monitoring system, this probe is purpose-built to maintain signal integrity under the harshest field conditions — from high electromagnetic interference in motor control centers to dust-laden, moisture-rich atmospheres in mining and petrochemical plants.

Unlike generic sensing solutions, the 330104-01-15-50-02-05 is factory-calibrated and surge-protected, ensuring that voltage transients, ground loops, and cable-induced noise do not corrupt the vibration and position signals that your safety interlock system depends on. Every unit shipped by KNMKS undergoes full functional testing against OEM specifications before dispatch, giving maintenance engineers the confidence that a replacement probe will perform identically to the original — with no re-calibration surprises at startup.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330104-01-15-50-02-05 probe does not operate in isolation — its reliability is only as strong as the protection architecture surrounding it inside the control cabinet. In a well-designed rotating machinery protection loop, the probe signal feeds directly into a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 driver), which conditions the raw eddy-current signal into a clean DC voltage before it reaches the Bently Nevada 3500/42M Proximitor Monitor card. Any signal drift, cable fault, or probe gap deviation is immediately flagged as a system alert, preventing false trips and missed alarms alike.

To protect the entire measurement chain from power-side disturbances, pairing this probe system with a Bently Nevada 3500/15 Power Supply Module ensures regulated, isolated DC power that eliminates ripple-induced noise at the Proximitor input. In cabinets where multiple I/O channels share a common backplane — such as those running Bently Nevada 3500/22M Transient Data Interface cards alongside vibration monitors — proper grounding discipline and shielded cable routing are critical. The double-shielded coaxial construction of the 330104-01-15-50-02-05 cable assembly is specifically designed to reject the common-mode interference that plagues open-frame cable trays in high-voltage switchgear rooms.

For installations in hazardous-area classified zones (Zone 1 / Division 1), the probe is typically paired with a Bently Nevada 330130 Series Zener Barrier or an approved galvanic isolator to maintain intrinsic safety compliance. In high-temperature turbine bearing housings where ambient temperatures approach the probe’s rated ceiling, supplementary thermal insulation sleeves and periodic gap verification using a Bently Nevada 330910 Proximitor Calibration Fixture are recommended to sustain measurement accuracy over the full maintenance interval.

Critical Industrial Safety Applications

The 330104-01-15-50-02-05 is deployed across the most demanding continuous-process industries where shaft vibration and axial position monitoring are non-negotiable safety functions:

Petrochemical & Refining: Installed on compressor trains and centrifugal pumps in API 670-compliant machinery protection systems, this probe provides the real-time radial vibration data that prevents catastrophic bearing failures in ethylene crackers, hydrotreaters, and LNG liquefaction trains. A single undetected bearing fault in these environments can trigger a multi-day unplanned shutdown costing millions — the 330104-01-15-50-02-05 is the first line of defense.

Power Generation: Steam turbine and gas turbine protection systems in thermal and combined-cycle power plants rely on 3300 XL proximity probes to monitor shaft eccentricity, differential expansion, and thrust position. The probe’s wide operating temperature range and vibration-hardened cable assembly make it suitable for installation directly on turbine bearing pedestals where temperatures and mechanical shock loads are extreme.

Mining & Mineral Processing: In SAG mill drives, slurry pump stations, and conveyor gearboxes operating in dusty, wet, and corrosive atmospheres, the IP67-rated probe housing resists ingress that would destroy standard industrial sensors. Continuous monitoring of these assets reduces unplanned downtime and extends planned maintenance intervals.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water infrastructure increasingly adopt API 670-style vibration monitoring. The 330104-01-15-50-02-05 provides the long-term signal stability required for trend-based predictive maintenance programs in these 24/7 critical utility assets.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains operate under extreme vibration, thermal cycling, and electromagnetic interference from large variable-frequency drives. The probe’s EMI-shielded cable construction maintains signal fidelity even when routed alongside high-current power cables in congested cable trays.

Marine & Offshore: Propulsion shaft monitoring on LNG carriers and FPSO vessels demands sensors that withstand salt-laden humid air, vessel motion, and the vibration spectrum of slow-speed diesel engines. The 330104-01-15-50-02-05’s robust mechanical construction and corrosion-resistant housing meet the environmental demands of offshore rotating equipment protection.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover, and how is a claim processed?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions consistent with Bently Nevada 3300 XL system specifications. If a unit fails within the confirmed support period, KNMKS provides a direct replacement or documented resolution support after fault verification. Contact admin@knmks.com with your order number and a brief fault description to initiate a claim — typical resolution time is 3–5 business days.

Q2: How is each unit tested before shipment?
Every 330104-01-15-50-02-05 unit undergoes a full functional test protocol prior to dispatch: gap-versus-output voltage linearity verification across the full 0–2.54 mm sensing range, cable continuity and insulation resistance check, connector integrity inspection, and visual examination for housing damage. Test records are retained and can be provided upon request for critical-application procurement audits.

Q3: Is this probe a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330104-01-15-50-02-05 is a direct OEM-equivalent replacement for the same part number in any Bently Nevada 3300 XL proximity probe system. The 1.5 m probe cable, 5.0 m extension cable, and 02-05 connector configuration are factory-matched to the standard 3300 XL Proximitor driver. No re-calibration of the driver or monitor is required when replacing a like-for-like probe — simply verify the installed gap (typically 1.0–1.5 mm) with a calibrated gap tool after installation.

Q4: Can KNMKS guarantee long-term supply for ongoing maintenance programs?
KNMKS maintains dedicated inventory of high-demand Bently Nevada 3300 XL series components, including the 330104-01-15-50-02-05, to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. For facilities managing large fleets of rotating machinery, we offer blanket order arrangements with reserved stock allocation. Contact our team to discuss your annual consumption requirements and establish a supply continuity plan.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-01-15-50-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-01-15-50-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
