Bently Nevada 330104-01-14-10-01 Spare Probe Uptime

Overview

Bently Nevada 330104-01-14-10-01 Maintenance-Proven Spare Part for Factory Uptime

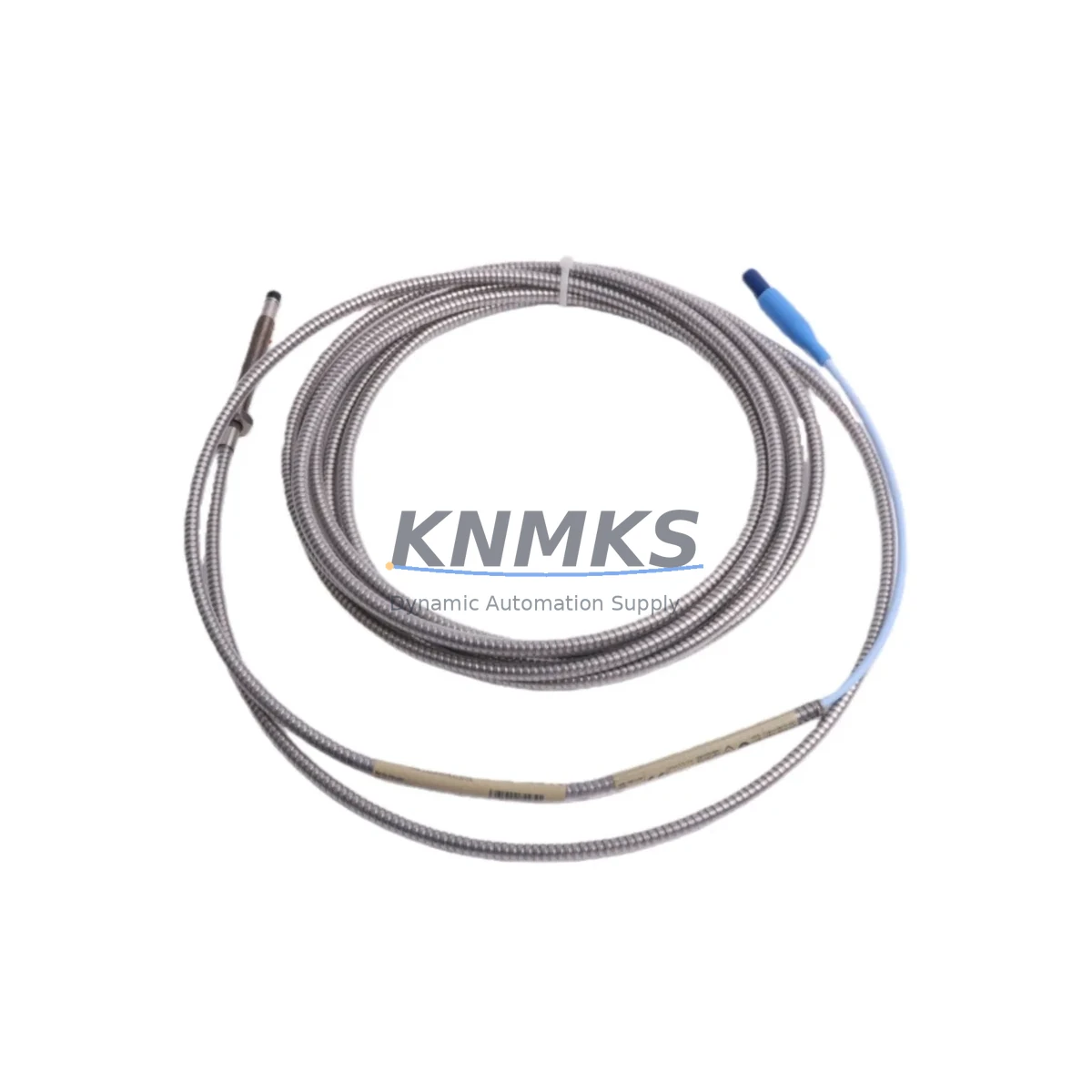

The Bently Nevada 330104-01-14-10-01 is an original 8mm proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications across energy generation, petrochemical processing, compressor stations, and heavy manufacturing. As a maintenance-proven spare part, this probe is a critical component in any predictive maintenance program where shaft displacement, radial vibration, and axial position data must be captured with precision and reliability.

Sourced as an original Bently Nevada component, the 330104-01-14-10-01 is fully compatible with the 3300 XL monitoring system architecture, including standard 3300 XL proximitor/seismic monitors and associated signal conditioning modules. Each unit is inspected and tested prior to shipment, ensuring that the probe tip, cable assembly, and connector interface meet OEM specifications. With a support terms confirmed by quotation and verified stock availability, this spare part supports both emergency replacement and planned annual overhaul programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-01-14-10-01 proximity probe during a scheduled outage or emergency shutdown, maintenance engineers should treat the replacement as an opportunity to audit the entire vibration monitoring loop. The probe alone does not operate in isolation — its signal integrity depends on the condition of the paired extension cable (typically a 330130-series cable) and the proximitor module mounted in the monitor rack. A degraded extension cable or a proximitor with drift in its output stage will produce erroneous gap voltage readings even with a new probe installed, leading to false alarms or missed fault detection.

During the same maintenance window, inspect the 3300 XL monitor card installed in the machinery protection rack. Cards such as the 3300/16 or 3300/20 series should be checked for proper channel configuration, OK relay status, and alarm setpoint integrity. If the monitor card has not been recalibrated within the last two years, this is an appropriate time to schedule a bench calibration or swap in a verified spare card from your critical spares inventory.

Power supply integrity is equally important. The 3300 XL system relies on a stable -24 VDC supply rail. Verify that the rack power supply — often a 3300/05 or equivalent — is delivering within specification. A marginal power supply can cause intermittent OK dropouts that are frequently misdiagnosed as probe failures. Similarly, check the terminal strip connections and field wiring for corrosion, loose terminations, or shield grounding issues that can introduce noise into the proximity signal chain.

For plants running DCS-integrated machinery protection, confirm that the 4–20 mA or digital output from the monitor is correctly received at the DCS I/O card. Signal isolators or barriers in the loop should also be inspected for drift. If the plant uses a System 1 or System 1 Evolution software platform for online machinery diagnostics, verify that the channel configuration in the software matches the new probe’s sensitivity and gap voltage parameters after replacement.

Procurement engineers building annual spare parts budgets should consider stocking at minimum one probe-cable-proximitor set per critical machine train. For high-criticality assets such as main steam turbines, boiler feed pumps, or gas compressors, a two-set minimum is recommended to cover both planned and unplanned outages without waiting on lead times.

Site Replacement Workflow

Step 1 — Isolation: Coordinate with the control room to acknowledge and bypass the vibration channel alarm before probe removal. Document the current gap voltage reading as a baseline reference.

Step 2 — Removal: Disconnect the extension cable from the existing probe at the field junction. Remove the probe from the bearing housing bracket, noting the installed gap distance (typically 1.0–1.5 mm for 8mm probes on steel targets).

Step 3 — Installation: Thread the 330104-01-14-10-01 replacement probe into the bracket. Set the gap to match the documented baseline or OEM specification. Reconnect the extension cable and verify the coaxial connector is fully seated and locked.

Step 4 — Verification: With the machine at rest, confirm the gap voltage at the proximitor output is within the linear range (-10 VDC ±1 VDC is typical for a 1.0 mm gap on a steel target). Restore the alarm channel in the monitor and confirm OK relay status.

Step 5 — Documentation: Record the replacement date, new gap voltage, and probe serial number in the plant maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of a replacement unit.

This workflow minimizes machine downtime to under two hours for a single-probe replacement on an accessible bearing housing, and ensures the monitoring system is returned to full protective function before the machine is restarted.

Spare Parts Support FAQ

Q1: Is the 330104-01-14-10-01 compatible with older 3300 series monitors, not just the 3300 XL?
The 330104-01-14-10-01 is designed and specified for the 3300 XL 8mm system. While the physical connector may appear similar to earlier 3300 series components, sensitivity and gap voltage characteristics differ between generations. Always verify the monitor card’s input specification before installing this probe in a non-XL rack to avoid measurement errors or system faults.

Q2: What is included in the support terms confirmed by quotation, and what does it cover?
The support terms confirmed by quotation cover manufacturing defects and verified functional failures under normal operating conditions. Each unit is tested prior to shipment. The confirmed support period begins from the date of shipment. Damage resulting from improper installation, incorrect gap setting, or operation outside the specified temperature and voltage range is not covered.

Q3: Can you supply long-term or blanket purchase orders for this part?
Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for critical spare parts including the 330104-01-14-10-01. This is particularly suited for plants with multiple machine trains using 3300 XL monitoring, where annual consumption can be forecasted. Contact our sales team to discuss pricing, lead time commitments, and consignment stock options.

Q4: How is the probe tested and verified before shipment?
Each 330104-01-14-10-01 unit undergoes a pre-shipment functional check including gap voltage linearity verification and connector integrity inspection. Units that do not meet OEM specification thresholds are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-01-14-10-01
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-01-14-10-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
