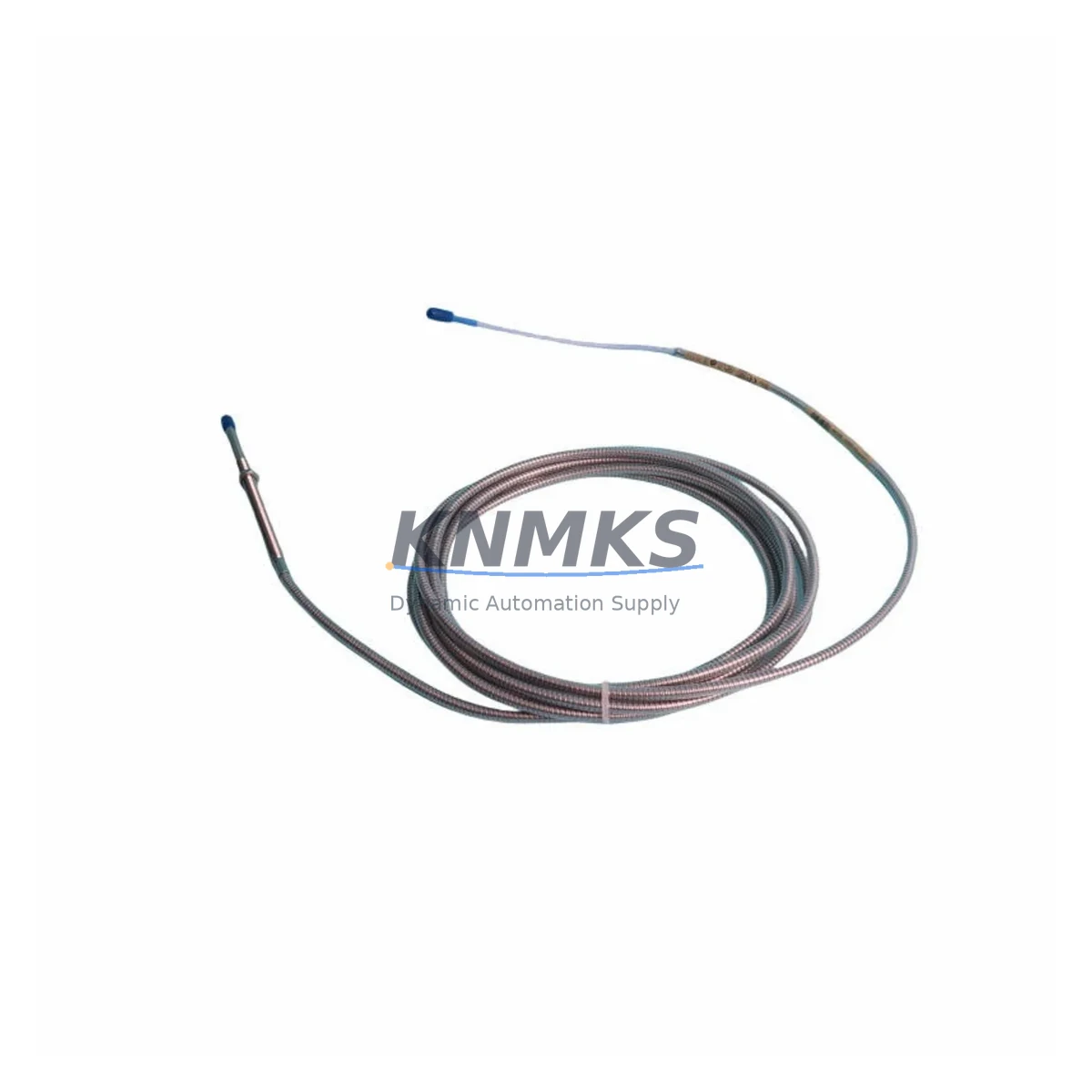

Bently Nevada 330104-01-14-05-01-CN Fail-Safe Proximity Transducer

Overview

Bently Nevada 330104-01-14-05-01-CN Fail-Safe Proximity Transducer: Critical Industrial Field Reliability

The Bently Nevada 330104-01-14-05-01-CN is an 8mm proximity transducer from the renowned 3300 XL Series, engineered specifically for fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of continuous production facilities, this transducer delivers unwavering signal integrity even under conditions of high electromagnetic interference, mechanical vibration, extreme temperature cycling, and corrosive atmospheres. For plant engineers and reliability teams who cannot afford unplanned downtime, the 330104-01-14-05-01-CN represents a mission-critical component in any rotating machinery protection strategy.

In petrochemical refineries, power generation turbines, mining conveyors, and metallurgical processing lines, shaft displacement monitoring is not optional — it is the first line of defense against catastrophic mechanical failure. The 330104-01-14-05-01-CN integrates seamlessly into the Bently Nevada 3300 XL monitoring architecture, providing precise eddy-current-based proximity sensing that detects shaft radial vibration, axial position, and differential expansion with sub-micron resolution. Its robust construction ensures that signal drift, false trips, and measurement anomalies are minimized even in the harshest field conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the transducer, but true fail-safe protection requires a coordinated system approach within the control cabinet and safety loop. The 330104-01-14-05-01-CN proximity transducer is typically paired with the Bently Nevada 3300 XL Extension Cable (330130 Series) to maintain signal integrity over long cable runs between the machine and the monitoring rack. The conditioned signal is then fed into the Bently Nevada 3500/42M Proximitor / Seismic Monitor, which provides real-time alarm and danger setpoint processing with relay output for interlock activation.

Within the same control cabinet, power supply stability is paramount. Fluctuations or micro-interruptions in the 24 VDC supply rail can cause false vibration alarms or missed danger trips. Integrating a Bently Nevada 3500/15 Power Supply Module with redundant input capability ensures that the monitoring system remains energized even during upstream power disturbances. For installations in high-EMI environments — such as near variable frequency drives or large motor starters — shielded cable trays and ferrite suppression cores on the 330130-045-00-00 extension cable are recommended to prevent signal contamination.

In safety instrumented systems (SIS), the proximity transducer output is often routed through a Bently Nevada 3500/22M Transient Data Interface or directly to a safety PLC input card for SIL 2 interlock logic. Surge protection devices installed at the cabinet entry point protect the 330104-01-14-05-01-CN signal path from lightning-induced transients and ground potential differences common in outdoor substations and offshore platforms. Thermal management within the cabinet — ensured by proper ventilation and temperature monitoring via a 3500 Series rack temperature sensor — prevents measurement drift caused by ambient heat buildup, maintaining the transducer’s calibrated scale factor accuracy throughout the operating cycle.

Critical Industrial Safety Applications

The 330104-01-14-05-01-CN proximity transducer is deployed across a wide spectrum of critical industrial applications where rotating machinery protection is non-negotiable:

Petrochemical & Refining: Installed on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors, this transducer monitors shaft radial vibration and provides early warning of bearing wear, rotor imbalance, and seal degradation. In API 670-compliant machinery protection systems, it serves as the primary sensing element for high-vibration shutdown interlock circuits.

Power Generation: Steam turbine and gas turbine installations rely on the 3300 XL proximity transducer system for continuous shaft position monitoring. The 330104-01-14-05-01-CN’s wide frequency response (DC to 10 kHz) captures both low-speed thermal bow events and high-frequency blade-pass vibration signatures, enabling predictive maintenance before forced outages occur.

Mining & Mineral Processing: In ball mills, SAG mills, and slurry pumps operating in dusty, high-humidity environments, the IP67-rated stainless steel probe body of the 330104-01-14-05-01-CN resists ingress of abrasive particles and moisture. Its non-contact sensing principle eliminates mechanical wear, ensuring consistent performance over multi-year service intervals without recalibration.

Water & Wastewater Treatment: Large vertical turbine pumps and blower units in municipal water treatment facilities benefit from continuous vibration monitoring to prevent catastrophic bearing failures that would interrupt water supply. The transducer’s compatibility with the Bently Nevada 3500 monitoring platform allows integration with plant DCS systems via Modbus or FOUNDATION Fieldbus.

Metallurgy & Steel Production: Rolling mill drive trains, continuous casting machine drives, and blast furnace blowers operate under extreme thermal and mechanical stress. The 330104-01-14-05-01-CN’s high-temperature rating (up to +177°C) makes it suitable for proximity sensing in hot-zone applications where standard transducers would fail prematurely.

Port & Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane hoisting machinery require vibration monitoring solutions that withstand salt spray, condensation, and continuous mechanical shock. The robust construction and proven reliability of the 3300 XL series make the 330104-01-14-05-01-CN a preferred choice for marine classification society-approved machinery monitoring installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-01-14-05-01-CN?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are processed with priority support, and replacement units are dispatched from in-stock inventory to minimize field downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330104-01-14-05-01-CN proximity transducer undergoes functional verification prior to shipment, including scale factor confirmation, linearity check across the full measurement range, and insulation resistance testing. Units are shipped with test documentation available upon request, ensuring traceability for safety-critical installations.

Q3: Is the 330104-01-14-05-01-CN compatible with existing Bently Nevada 3500 Series monitoring racks?
The 330104-01-14-05-01-CN is natively compatible with the Bently Nevada 3300 XL monitoring system. Integration with the 3500 Series platform is achievable using the appropriate Proximitor driver module and extension cable configuration. KNMKS technical support can advise on specific compatibility requirements for your installation.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
KNMKS maintains dedicated inventory of the 330104-01-14-05-01-CN and related 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Our supply chain is structured to provide consistent availability for critical infrastructure operators who cannot accept lead-time uncertainty on safety-critical spares.
