Bently Nevada 330104-01-09-50-02-05 Maintenance Spare Part

Overview

Bently Nevada 330104-01-09-50-02-05 Maintenance-Proven Spare Part for Factory Uptime

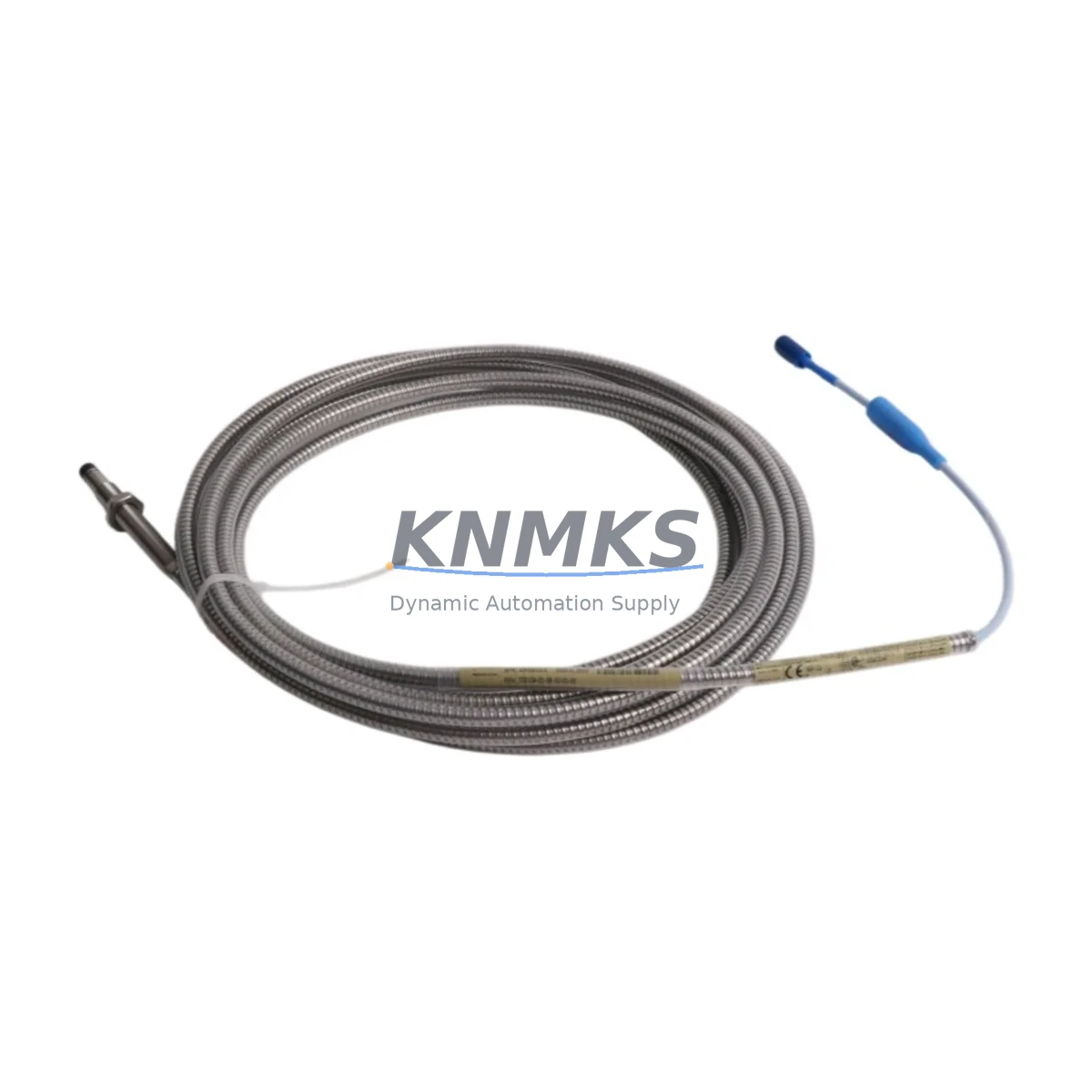

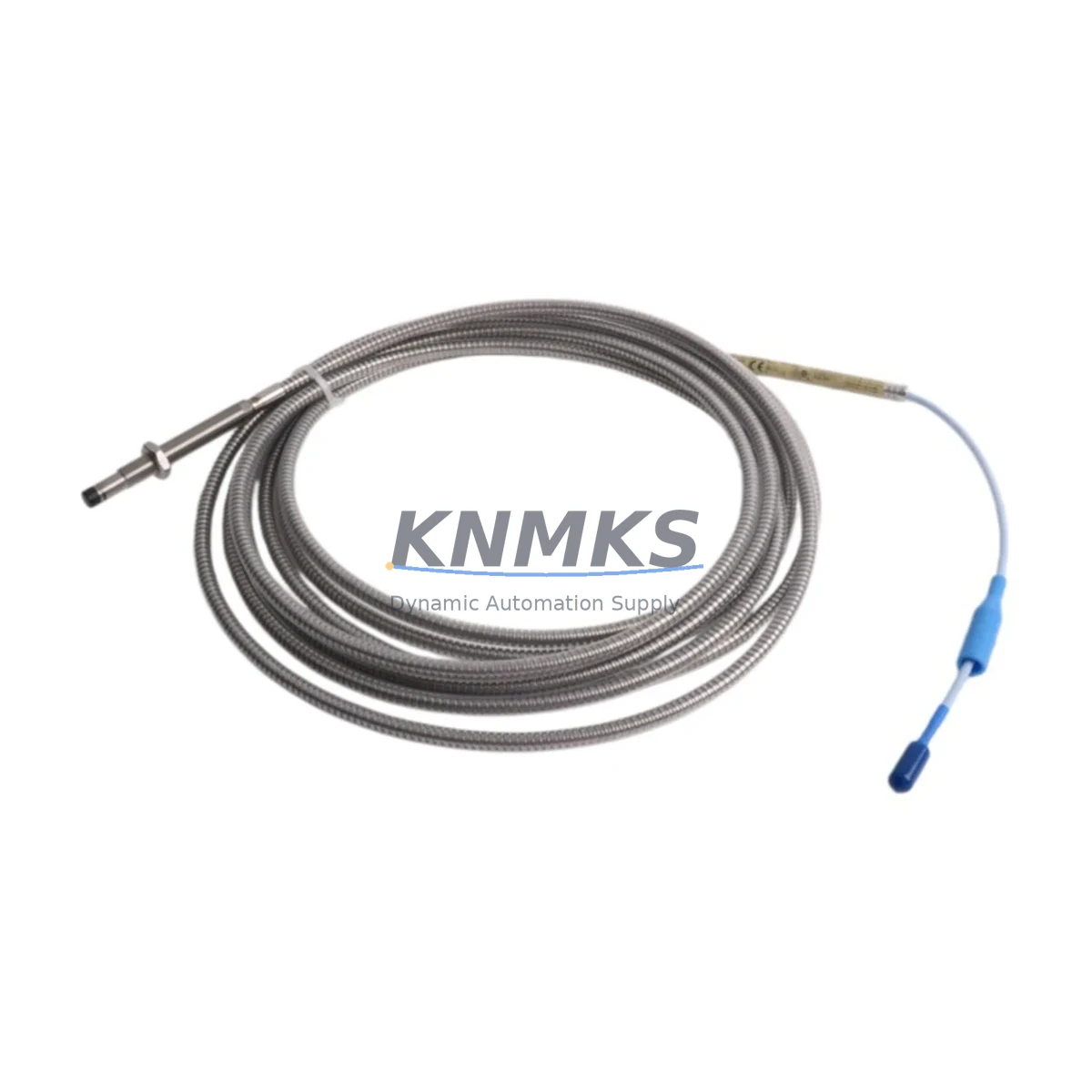

The Bently Nevada 330104-01-09-50-02-05 is an original proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned annual overhaul, responding to an unscheduled shutdown, or building a strategic spare parts inventory for your turbine, compressor, or pump train, this probe delivers the dimensional accuracy, signal linearity, and environmental resilience required to restore full monitoring capability with minimal downtime.

Sourced from verified supply channels, each unit undergoes pre-shipment functional inspection covering gap voltage output, cable continuity, connector integrity, and housing condition. Orders are dispatched within 1–3 business days and backed by a support terms confirmed by quotation against manufacturing defects.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-01-09-50-02-05 proximity probe is flagged during routine point inspection or condition monitoring review, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A complete corrective maintenance cycle for a 3300 XL channel should include systematic verification of the entire signal chain.

Begin with the 330180-series Proximitor Sensor — the signal conditioning module that powers the probe and converts gap distance into a usable voltage signal. A degraded Proximitor can produce erratic gap readings even when the probe is new, so always verify its output voltage and power supply rail before closing the work order. The 3300 XL I/O module in the rack should also be inspected for terminal corrosion, loose field wiring, and correct channel configuration in the System 1 or Rack Configuration Software.

Check the 3300 XL Power Supply module — typically a 24 VDC or 28 VDC unit — for output stability under load. A marginal power supply is a common root cause of intermittent vibration alarms that are incorrectly attributed to probe failure. While the cabinet is open, inspect the terminal blocks and field wiring connectors for insulation breakdown, moisture ingress, and proper torque, particularly in high-vibration or high-temperature environments.

If the machine train includes a Keyphasor module (such as the 3300 XL Keyphasor), verify its gap and signal output as part of the same maintenance window — phase reference errors can corrupt vector data across all channels. For facilities running System 1 Evolution or legacy System 1 software, confirm that the replacement probe’s scale factor and gap range are correctly entered in the channel configuration to avoid false alerts after restart.

Finally, review the rack backplane connections and any signal isolators or barriers installed between the field device and the monitoring rack, especially in hazardous area installations where Zener barriers or galvanic isolators are used. A complete spare parts kit for a 3300 XL monitoring loop should include the probe, extension cable, Proximitor, and at least one spare I/O module to support rapid channel restoration during an unplanned outage.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the rack. Do not rely solely on software inhibit; physically disconnect the field wiring at the terminal block to prevent false trips during probe removal.

Step 2 — Gap Measurement & Removal: Record the existing probe gap voltage before removal. Use a non-contact gap tool or feeler gauge to document the installed gap distance. Remove the probe by rotating counter-clockwise; note the number of turns for reinstallation reference.

Step 3 — Installation of 330104-01-09-50-02-05: Thread the replacement probe to the same depth, then fine-adjust to achieve the target gap voltage specified in the machine’s vibration monitoring datasheet (typically −10 VDC ± 0.5 VDC at nominal gap). Lock the probe with the jam nut to the specified torque.

Step 4 — Signal Verification: Reconnect field wiring and verify gap voltage at the Proximitor output. Confirm the reading is within the linear range and matches the pre-removal baseline within acceptable tolerance. Check for noise or signal drift over a 5-minute observation window.

Step 5 — System Restore & Documentation: Remove the channel inhibit, restore normal monitoring, and update the maintenance management system (CMMS) with the replacement date, new probe serial number, and gap voltage. Schedule the next inspection interval per OEM recommendations.

This workflow supports direct replacement of legacy 330104-series probes without requiring rack reconfiguration, preserving system compatibility and reducing total restoration time to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 330104-01-09-50-02-05 a direct drop-in replacement for older 330104-series probes?
Yes. The 330104-01-09-50-02-05 is dimensionally and electrically compatible with other 330104-series probes used in 3300 XL monitoring systems. No rack reconfiguration is required provided the scale factor and gap range settings in the channel configuration remain unchanged. Always verify the gap voltage after installation before returning the channel to service.

Q2: What is included in the support terms confirmed by quotation, and what does the pre-shipment test cover?
Each unit is inspected for gap voltage output within specification, cable and connector continuity, housing integrity, and thread condition before dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified temperature and target material range.

Q3: How should I structure my spare parts inventory for a 3300 XL monitoring system?
Industry best practice for rotating equipment facilities is to maintain a minimum of one spare probe per monitored machine train, plus one spare Proximitor per rack. For critical machines (turbines, high-speed compressors), a two-probe buffer per channel is recommended to support immediate replacement during unplanned outages. Probes should be stored in their original packaging in a dry, temperature-controlled environment and inspected annually for connector oxidation.

Q4: Can you support long-term or blanket purchase orders for ongoing MRO supply?
Yes. KNMKS supports scheduled delivery agreements and blanket PO arrangements for maintenance teams requiring consistent supply of 330104-01-09-50-02-05 and related 3300 XL components. Contact our technical sales team to discuss lead times, volume pricing, and consignment stock options tailored to your facility’s maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-01-09-50-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-01-09-50-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
