Bently Nevada 330104-01-09-10-12-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-01-09-10-12-05 Migration-Ready Proximity Probe for Legacy Control Systems

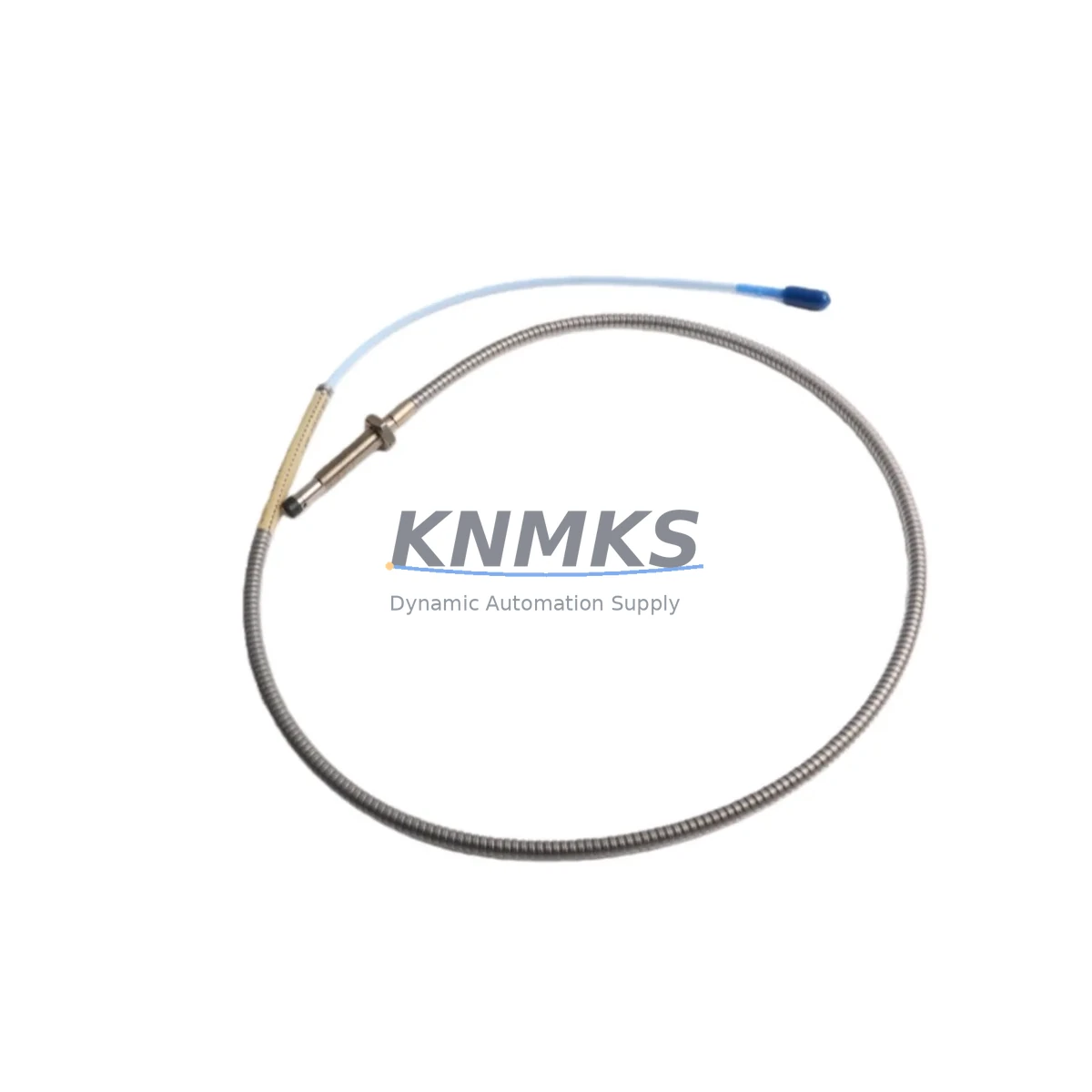

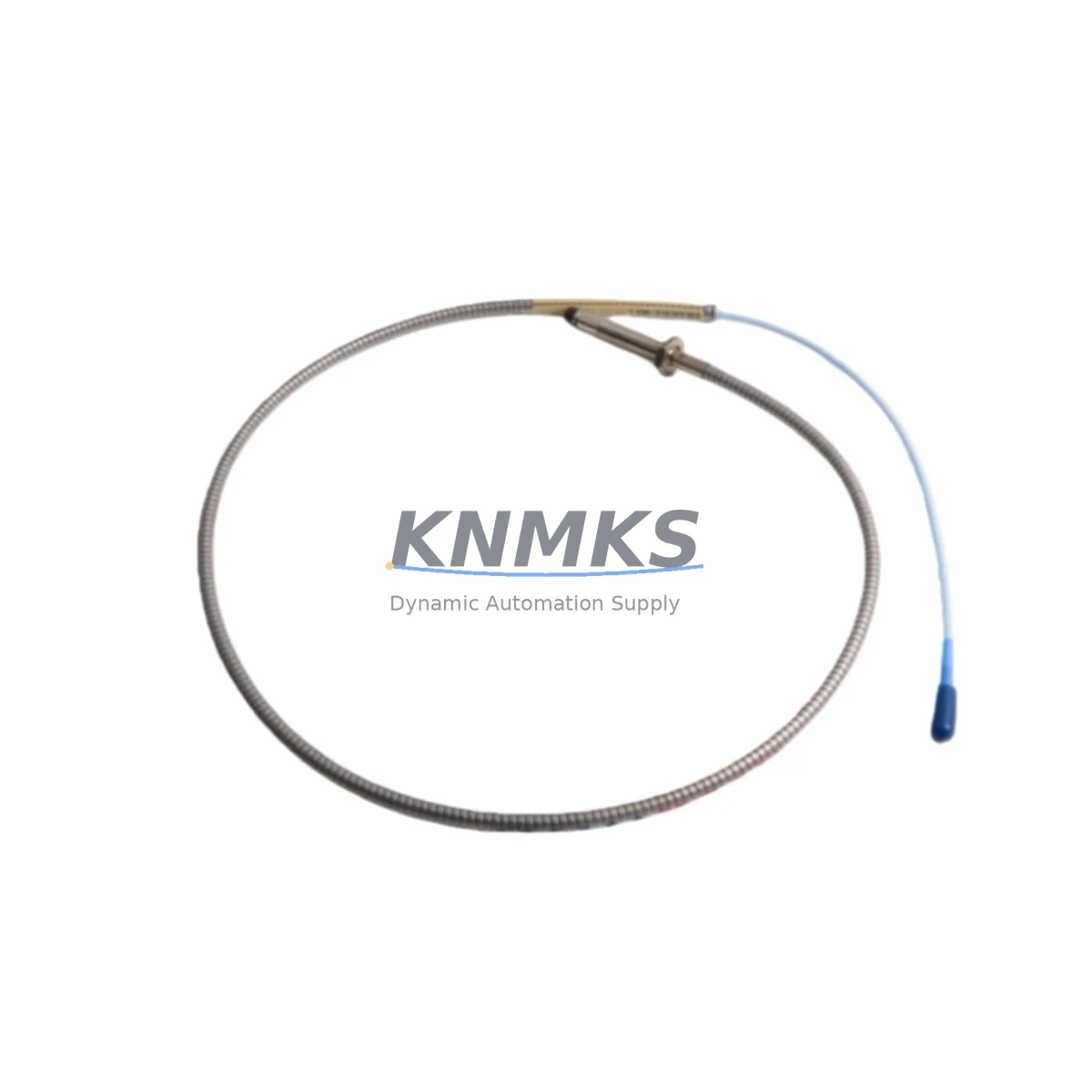

The Bently Nevada 330104-01-09-10-12-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy Bently Nevada 3300 Series installations approach end-of-support milestones, this probe serves as the primary migration-ready replacement for discontinued 3300 Series probes, enabling engineers to restore continuous shaft vibration and position monitoring without redesigning the existing monitoring architecture. Whether you are managing a planned outage, responding to an unplanned failure, or executing a phased control system modernization, the 330104-01-09-10-12-05 is stocked and ready for immediate dispatch.

Before installing this probe into a legacy rack, engineers should confirm the following: power supply rail compatibility (typically –24 VDC from the 3300 XL power module), barrier terminal wiring continuity from the field junction box to the monitor card, probe cable length and extension cable pairing (the matching Bently Nevada 330130 extension cable must be verified for total system length), and the gap voltage calibration range (nominally –10 VDC at 50 mil gap for this probe tip diameter). Incorrect gap voltage will cause the 3300 XL monitor to report a Not OK condition and suppress alarm outputs.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-01-09-10-12-05 into an operating plant begins well before the maintenance window opens. The 3300 XL monitoring system is typically installed in a dedicated vibration monitoring cabinet alongside the Bently Nevada 3300 XL 16-channel monitor cards, the 3300 XL power supply module, and the system rack backplane. Engineers planning a probe replacement should first audit the existing Bently Nevada 330130 extension cable for insulation integrity and connector condition — a degraded extension cable is a common source of intermittent Not OK alarms that are misdiagnosed as probe failures.

For installations where the 3300 XL rack also hosts a Bently Nevada 3500 Series monitor in an adjacent bay (a common configuration in turbine control upgrades), confirm that the shared –24 VDC bus has sufficient current capacity to support the additional probe load. The 3300 XL power module datasheet specifies per-channel current draw; exceeding this limit will cause voltage sag and erratic vibration readings across all channels in the rack.

In plants where the vibration data feeds into a DCS or safety instrumented system via a Bently Nevada 3300 XL communication gateway or a Modbus/TCP interface card, verify that the channel mapping in the gateway configuration matches the physical slot assignment of the replacement probe. A mismatch between the physical channel and the gateway tag will cause the DCS historian to log incorrect machine health data — a critical issue in facilities subject to API 670 compliance audits.

Where the existing installation uses a Bently Nevada TK-3 proximitor (driver) mounted in a field enclosure rather than a rack-mounted driver, confirm that the proximitor supply voltage and output load resistance are within specification for the 330104-01-09-10-12-05. Field-mounted proximitors in older installations are sometimes powered from a non-regulated 24 VDC rail; a regulated –24 VDC supply is required for accurate gap voltage output. If the field enclosure also houses a signal isolator or barrier for intrinsically safe area classification, verify that the barrier’s entity parameters are compatible with the probe’s capacitance and inductance values before energizing the circuit.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear rollback procedure. Before de-energizing the 3300 XL channel, capture the current gap voltage reading from the monitor front panel or the connected HMI display — this value is your baseline for post-installation verification. If the plant HMI is running a Bently Nevada System 1 software instance, export the current machine trend data and alarm setpoints before beginning work; this ensures that the historical baseline is preserved and that alarm thresholds can be restored exactly after the replacement.

During the physical swap, protect the probe cable connector from contamination and avoid bending the cable within 150 mm of the probe body. After threading the new 330104-01-09-10-12-05 into the probe boss, set the initial gap to the manufacturer’s recommended starting point (typically 50 mil / 1.27 mm) and measure the output voltage before tightening the locknut. Only after confirming that the gap voltage is within the linear range of the 3300 XL monitor should the locknut be torqued to specification.

Re-energize the channel and observe the monitor’s OK relay status. If the channel returns to OK within 30 seconds and the gap voltage matches the pre-outage baseline (within ±0.5 VDC), the replacement is complete. If the channel remains in Not OK, the most common causes are: incorrect gap distance, extension cable fault, or a proximitor supply voltage outside tolerance. A structured fault isolation sequence — probe, cable, proximitor, power supply — will identify the root cause without requiring a full rack shutdown, preserving control continuity on adjacent monitoring channels throughout the diagnostic process.

Retrofit Support FAQ

Q: Is the 330104-01-09-10-12-05 a direct replacement for discontinued Bently Nevada 3300 Series 8mm probes?
A: Yes. The 330104-01-09-10-12-05 is the current production equivalent for legacy 3300 Series 8mm proximity probes. It uses the same M10×1 thread, the same –24 VDC supply, and the same 200 mV/mil sensitivity, making it a direct mechanical and electrical drop-in replacement. No monitor card reconfiguration is required.

Q: What extension cable must be paired with this probe, and does the total system length affect calibration?
A: The 330104-01-09-10-12-05 must be paired with a Bently Nevada 330130 Series extension cable. Total system length (probe cable + extension cable) must match the proximitor driver’s calibrated length — typically 5 m, 9 m, or 15 m total. Using a mismatched length will shift the gap voltage output and cause the 3300 XL monitor to report incorrect vibration amplitude values.

Q: Is pre-shipment functional testing performed, and what does the support terms confirmed by quotation cover?
A: Every unit is functionally tested prior to dispatch, including output sensitivity verification and insulation resistance check. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Support requests are processed with a return authorization; replacement units are dispatched within 5 business days of fault confirmation.

Q: What is the typical lead time, and is stock available for urgent plant maintenance requirements?
A: The 330104-01-09-10-12-05 is maintained availability confirmed by RFQ for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination. For urgent plant maintenance requirements, expedited shipping options are available — contact the sales team directly to confirm current stock levels and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-01-09-10-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-01-09-10-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
