Bently Nevada 330104-01-08-50-01-CN 3300 XL Maintenance-Proven Spare

Overview

Bently Nevada 330104-01-08-50-01-CN 3300 XL Maintenance-Proven Spare Part for Factory Uptime

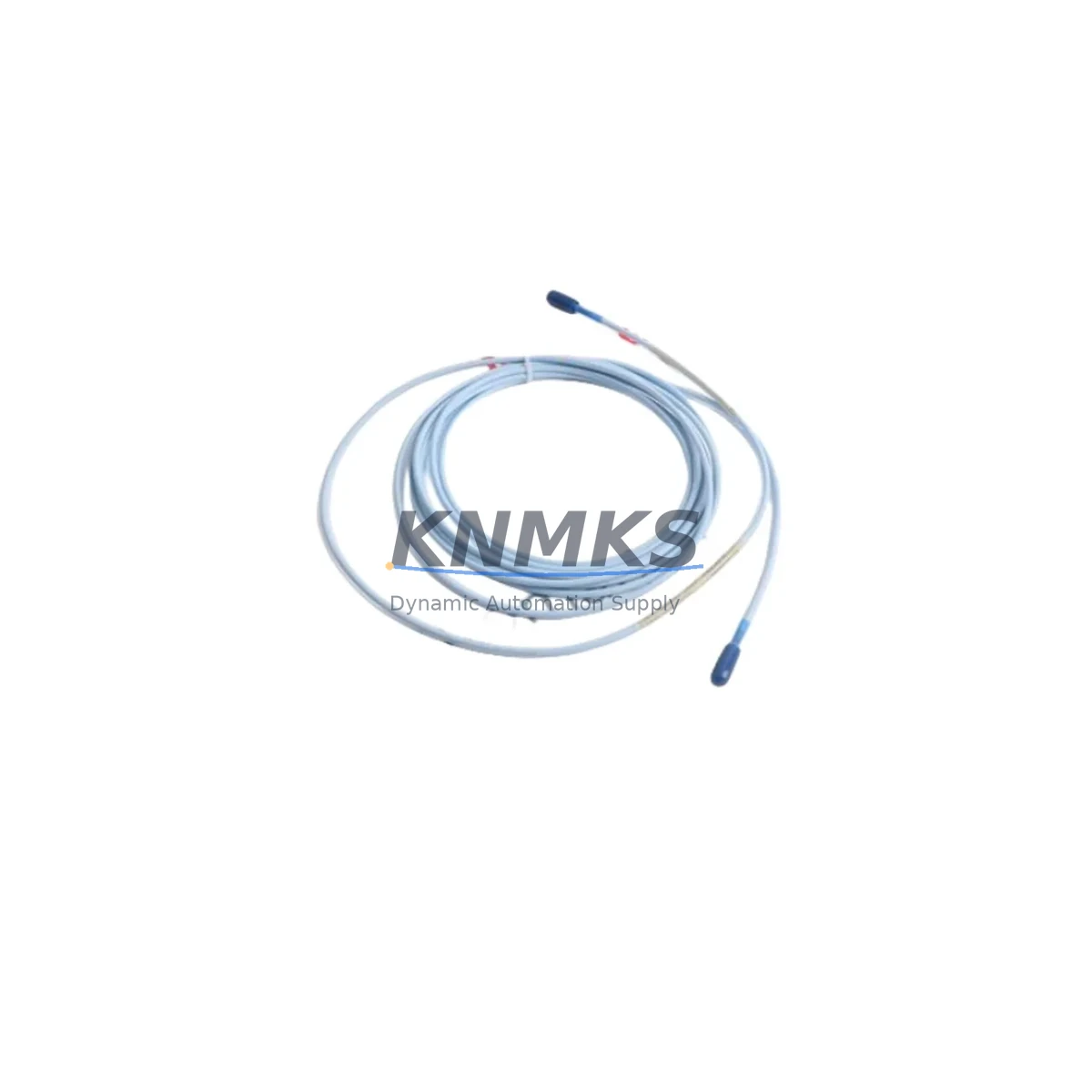

The Bently Nevada 330104-01-08-50-01-CN is an original 8mm eddy-current proximity probe from the industry-standard 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed for critical turbine, compressor, pump, and motor protection systems, this probe delivers the measurement accuracy and long-term reliability that maintenance engineers depend on to prevent unplanned shutdowns. Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for a multi-unit plant, the 330104-01-08-50-01-CN is a direct, drop-in replacement that preserves system calibration and minimises downtime.

The CN connector variant is specifically matched to 3300 XL extension cable assemblies and proximitor/driver modules. Substituting a non-CN connector probe introduces impedance mismatch and calibration drift — a risk that experienced maintenance teams eliminate by stocking the exact OEM part number. KNMKS supplies this probe pre-tested, with full electrical verification completed before shipment, backed by a support terms confirmed by quotation from the date of delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-01-08-50-01-CN probe is flagged for replacement — whether due to physical damage, sensitivity drift, or a routine calibration audit — the maintenance window should be used to inspect the entire vibration monitoring loop. The probe does not operate in isolation: its output is only as reliable as the components it connects to.

Begin with the 3300 XL extension cable (typically a 330130-series assembly). Extension cables are subject to connector corrosion, jacket abrasion near cable trays, and intermittent continuity faults that mimic probe failure. A damaged extension cable will cause the same high-gap or low-gap alarm as a failed probe, so both should be verified before closing the work order.

Next, inspect the 3300 XL Proximitor/Driver Module (such as the 3300/16 or 3300/20) mounted in the monitor rack. The proximitor provides the –24 VDC bias voltage and converts the probe gap signal to a calibrated output. A proximitor with degraded internal components will produce erratic readings even with a new probe installed. Confirm the output voltage is within the –10 V to –18 V gap range under static conditions before declaring the loop healthy.

The 3500 Series rack power supply or equivalent DIN-rail 24 VDC industrial power supply feeding the monitor chassis should also be checked. Voltage ripple or transient drops on the supply rail introduce noise into the proximity measurement and can trigger nuisance trips. Use a calibrated multimeter or oscilloscope to verify supply stability during the replacement procedure.

For plants running 3500/22M Transient Data Interface or similar communication modules, confirm that the channel configuration in the System 1 software reflects the new probe’s scale factor and gap voltage. Misconfigured channel parameters after a probe swap are a common source of post-maintenance alarms that delay production restart.

Procurement engineers building a strategic spare parts list should also consider stocking the 330180-X0-05 Velomitor or equivalent seismic transducer for bearing housing measurements on machines where proximity probes are complemented by velocity sensors. Maintaining both probe types in inventory ensures that a single sensor failure — regardless of measurement technology — does not extend a shutdown beyond the planned maintenance window.

Finally, review the terminal strip and field wiring in the junction box. Loose terminations, moisture ingress, and corroded ferrules at the field terminal block are frequently overlooked during probe replacements and can cause intermittent signal loss after the panel is closed. Torque all terminals to specification and apply conformal coating where humidity is a concern.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or cold-work permit as required by site safety procedures. Confirm whether the machine can be taken offline or whether the replacement must be performed on a running machine with the monitor in bypass mode.

Step 2 — Gap measurement before removal: Record the existing probe gap voltage using the proximitor front-panel test point or the System 1 interface. This baseline confirms whether the old probe was still within calibration or had already drifted, and provides a reference for setting the new probe gap.

Step 3 — Probe removal: Loosen the probe locknut and back the probe out carefully. Inspect the probe tip for impact marks, oil contamination, or thread damage. Inspect the shaft surface at the measurement zone for scoring or runout that could affect the new probe’s reading.

Step 4 — New probe installation: Thread the 330104-01-08-50-01-CN into the probe holder. Set the gap to the target voltage specified in the machine’s vibration monitoring datasheet — typically –10.0 V to –11.0 V for a 2 mm nominal gap on steel targets. Tighten the locknut to the torque value specified in the Bently Nevada installation manual.

Step 5 — Loop verification: Reconnect the extension cable CN connector. Confirm the gap voltage at the proximitor test point. Verify that the 3500 monitor channel shows a healthy gap reading and that no alarms are active. Document the as-left gap voltage in the maintenance record.

Step 6 — Return to service: Remove the monitor bypass, confirm that the channel is active and alarming correctly, and close the work order. Update the spare parts inventory to reflect the consumed probe and initiate a replenishment order to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 330104-01-08-50-01-CN a direct replacement for other 330104-series probes?
The 330104 series uses a common 8mm probe body, but the suffix defines cable length, connector type, and temperature rating. The -01-08-50-01-CN variant has a 0.5 m cable and CN connector. It is directly interchangeable with other CN-connector 330104 probes of the same cable length. Substituting a different connector type (e.g., a standard coaxial BNC variant) requires an adapter and may affect calibration — always match the full part number when replacing in a calibrated loop.

Q2: What is the recommended inventory quantity for a plant with multiple 3300 XL monitoring loops?
Industry practice for critical rotating machinery is to maintain a minimum of one spare probe per monitored machine, with an additional buffer of 10–20% of the total installed count for plants with more than ten monitored shafts. For facilities with long lead times or remote locations, a 12–24 month forward stock is advisable. KNMKS supports long-term supply agreements to lock in pricing and ensure availability over extended maintenance cycles.

Q3: How does KNMKS verify the probe before shipment?
Every 330104-01-08-50-01-CN unit is electrically tested prior to dispatch. Testing includes coil impedance measurement, insulation resistance check, and functional gap-voltage verification against a reference steel target. Units that do not meet Bently Nevada specification are quarantined and not shipped. A test record is available upon request. All units are shipped in ESD-safe, anti-vibration packaging to prevent transit damage.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects, coil failure, connector integrity, and cable jacket integrity under normal operating conditions. It does not cover physical damage caused by improper installation, shaft contact, chemical exposure beyond the probe’s rated environment, or use outside the specified temperature and gap range. Support requests are processed through KNMKS directly — contact [email protected] with the order number and a description of the fault.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
