Bently Nevada 330104-01-06-10-01-05 Maintenance-Proven Spare Part for Factory Uptime

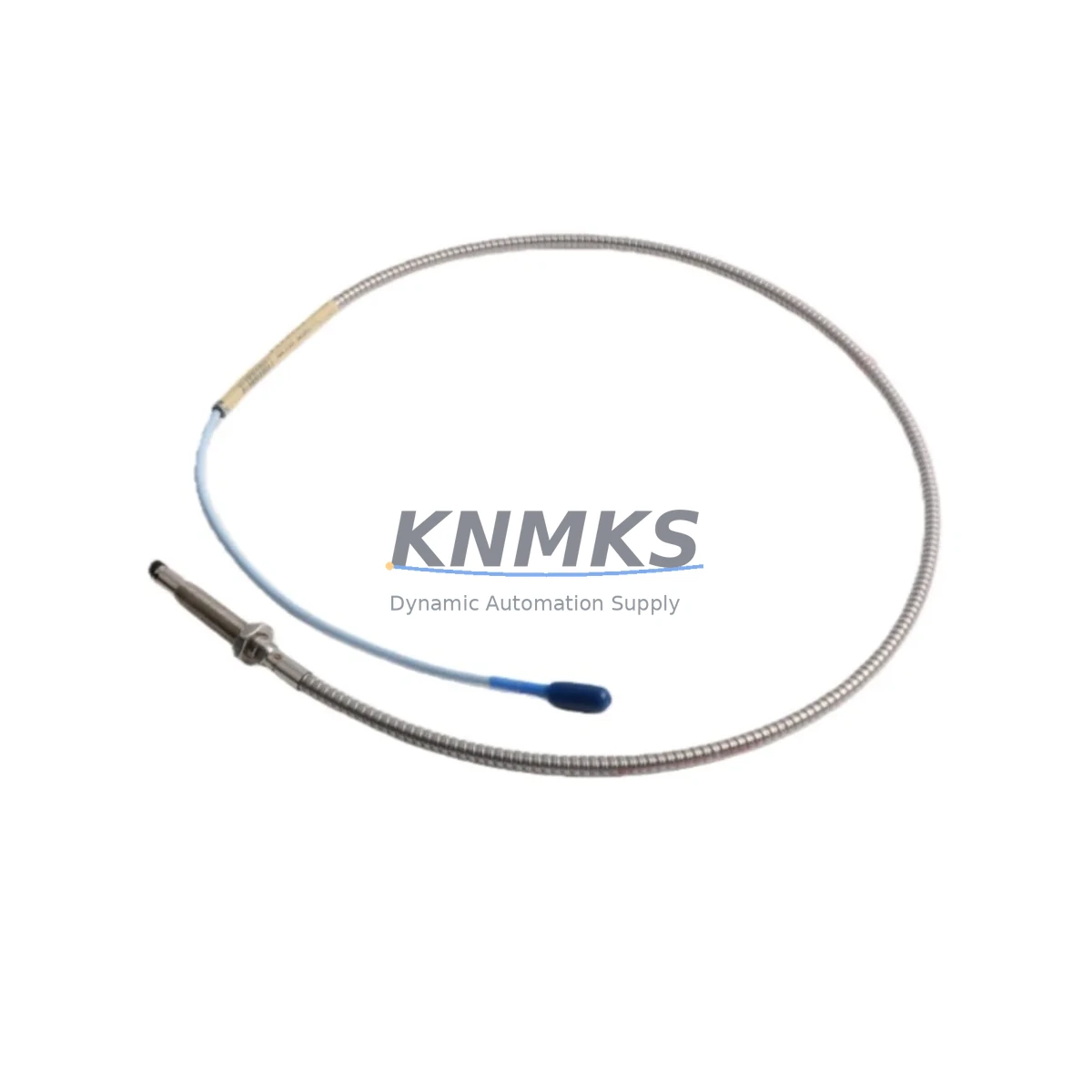

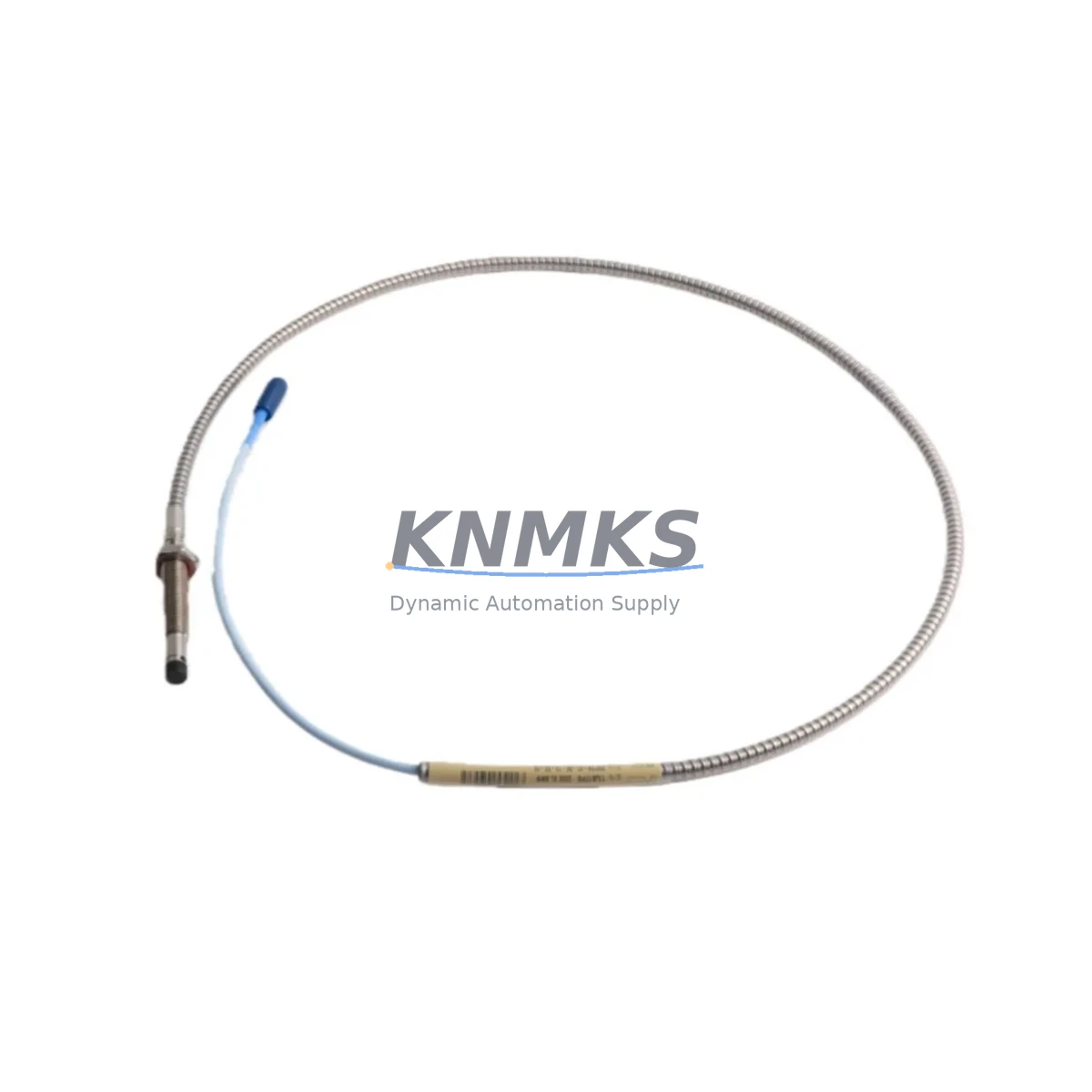

The Bently Nevada 330104-01-06-10-01-05 is an original 8mm eddy current proximity probe engineered for the 3300 XL series vibration monitoring system. Widely deployed across rotating machinery in power generation, petrochemical, oil & gas, and heavy manufacturing facilities, this probe is a critical component in continuous shaft vibration and position measurement loops. Maintaining a verified spare of the 330104-01-06-10-01-05 in your parts inventory is a fundamental requirement for any maintenance team operating turbines, compressors, pumps, or gearboxes under API 670 protection standards.

Each unit shipped from KNMKS is sourced from authorized supply channels, individually inspected, and function-tested prior to dispatch. Our support terms confirmed by quotation cover manufacturing defects and ensures your procurement team has documented quality assurance for audit and compliance purposes. Long-term supply commitments are available for facilities requiring scheduled annual replenishment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-01-06-10-01-05 probe is flagged during a routine vibration survey or fails during a trip event, the replacement scope rarely ends at the probe alone. A disciplined maintenance engineer will simultaneously verify the condition of the paired 330130-080-01-00 or equivalent 3300 XL extension cable, since cable connector corrosion and jacket cracking are leading causes of signal drift that mimic probe failure. The 330180-X1-05 Proximitor® sensor module mounted in the machinery protection rack should be bench-tested for output linearity and bias voltage stability — a degraded driver will cause a new probe to read incorrectly from day one.

At the rack level, inspect the 3500/42M or 3300/16 monitor card for alarm setpoint integrity and channel configuration. Loose terminal block connections on the I/O side of the monitor are a common source of intermittent high-vibration alarms that are incorrectly attributed to probe wear. If the installation uses a 3500/20 Power Supply module, verify output voltage under load — an under-voltage condition degrades the entire measurement chain. For facilities running redundant protection loops, the 3500/22M transient data interface should be checked to confirm that waveform capture is active and that the channel is not in bypass mode.

Signal integrity between the Proximitor output and the DCS or safety system should be validated through any installed signal isolator or barrier (such as a Pepperl+Fuchs or MTL Zener barrier in hazardous area installations). A failed barrier will pass a DC offset that saturates the monitor input. Finally, review the fuse rating on the rack power distribution board — an oversized fuse will not protect the monitor card during a wiring fault, and an undersized fuse will cause nuisance trips during cold-start inrush. Stocking a complete probe system kit — probe, extension cable, and Proximitor sensor — eliminates the most common causes of extended downtime during emergency replacements.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and confirm the machinery is in a safe state. Do not remove the probe from a live, rotating machine. Place the monitor channel in bypass mode via the 3500 rack keyswitch or software bypass to prevent a spurious trip during disconnection.

Step 2 — Document Baseline: Record the existing probe gap voltage (typically –10.0 VDC ±0.5 V for a standard 50-mil gap on 4140 steel) and note the alarm and danger setpoints from the monitor display or configuration software (System 1® or Rack Configuration Software).

Step 3 — Remove Old Probe: Disconnect the extension cable at the field junction box. Unthread the probe from the bracket using the correct spanner — avoid gripping the cable. Inspect the probe tip for impact damage or contamination that may indicate a bearing or seal failure requiring further investigation.

Step 4 — Install 330104-01-06-10-01-05: Thread the new probe into the bracket finger-tight, then back off to achieve the target gap. Use a calibrated gap tool or measure bias voltage with a DVM: adjust gap until output reads within the linear range (–10.0 VDC ±0.2 V recommended). Reconnect the extension cable and verify connector seating.

Step 5 — Functional Verification: Remove the bypass, observe the monitor channel for stable readings, and confirm no alarms are active at rest. Log the as-left gap voltage in the maintenance management system (CMMS) for future reference. Update the spare parts record to trigger reorder of a replacement 330104-01-06-10-01-05 for the next event.

Spare Parts Support FAQ

Q1: Is the 330104-01-06-10-01-05 compatible with older 3300 (non-XL) systems?
The 330104 series is designed and calibrated for the 3300 XL 8mm Proximitor® driver. While the physical connector may fit older 3300 series drivers, the sensitivity calibration (–7.87 V/mm) is matched to the XL driver output. Using this probe with a non-XL driver will produce measurement errors. Always confirm the Proximitor model number before ordering.

Q2: How do you verify the probe is genuine and not a counterfeit?
All units supplied by KNMKS are sourced through authorized distribution channels. Each probe ships with original Bently Nevada labeling, a traceable lot code, and a pre-shipment test report confirming bias voltage and sensitivity within factory specification. We do not supply remanufactured or relabeled units.

Q3: What is your lead time and can you support long-term supply agreements?
In-stock units ship within 3 business days. For facilities requiring scheduled annual or semi-annual replenishment, KNMKS offers long-term supply agreements with price protection and priority allocation. Contact admin@knmks.com to discuss volume and scheduling requirements.

Q4: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from improper installation, mechanical impact, or operation outside the specified environmental limits. Support requests are processed with a replacement unit dispatched after return and inspection of the failed part.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-01-06-10-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-01-06-10-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
