Bently Nevada 330104-01-06-10-01-00 3300 XL Proximity Probe: Migration-Ready Replacement for Legacy Vibration Monitoring Systems

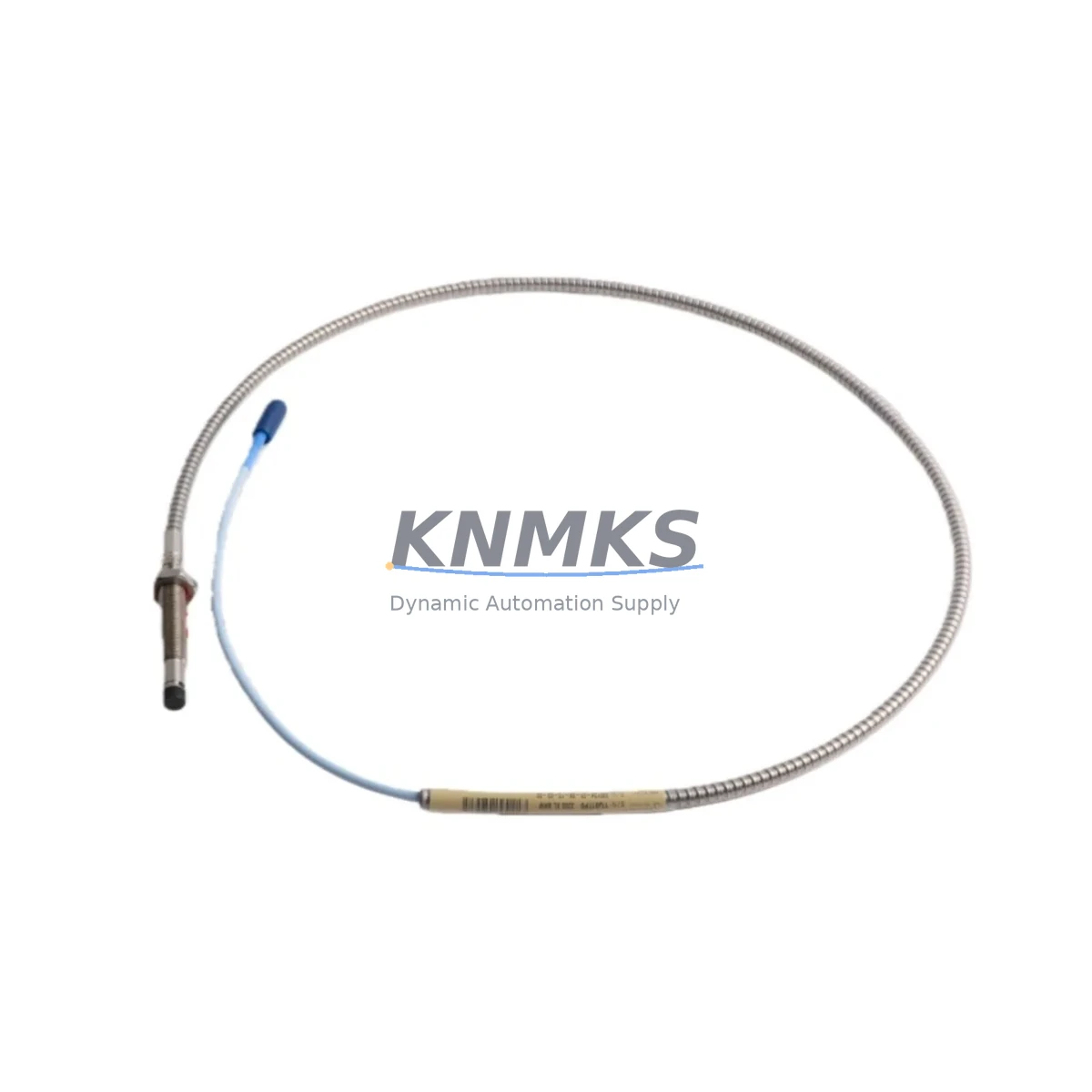

The Bently Nevada 330104-01-06-10-01-00 is an 8mm eddy current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration, position, and eccentricity measurement in rotating machinery. As legacy turbomachinery protection systems approach end-of-life, this probe serves as a direct migration-ready replacement for older 3300 Series and 7200 Series probe assemblies, enabling facilities to restore full monitoring capability without redesigning the entire protection architecture.

Designed for use in petrochemical, power generation, oil & gas, and heavy manufacturing environments, the 330104-01-06-10-01-00 integrates directly with Bently Nevada 3500 Series rack-based monitoring systems. Its standardized 5-metre cable configuration and -18.5 Vdc driver output ensure backward compatibility with existing field wiring, junction boxes, and monitor card inputs — minimizing retrofit scope and reducing installation risk during planned or emergency shutdowns.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-01-06-10-01-00 into an existing machinery protection system requires a structured pre-installation review. Before removing the legacy probe assembly, engineers should document the current gap voltage reading, bearing housing clearance, and cable routing path. The replacement probe must be paired with a compatible Bently Nevada 330130 or 330180 extension cable to maintain the calibrated system length — any deviation in total cable length will shift the output scale factor and require recalibration of the associated 3500/40M or 3500/42M vibration monitor card.

In multi-channel protection racks, the 3500 Series chassis typically houses a combination of modules: the 3500/20 rack interface module manages power distribution and communication, while individual monitor cards handle channel-specific signal conditioning. When replacing probes on a live rack, it is critical to confirm that the 3500/20 firmware supports the probe type and that no channel inhibit flags are active in the System 1 or System 1 Evolution software before re-enabling the trip multiplier.

For facilities running older Keyphasor-based torsional analysis, the 330104-01-06-10-01-00 can also serve as a replacement Keyphasor probe when paired with a 3500/25 Keyphasor module, provided the target wheel tooth count and gap geometry are re-entered into the monitor configuration. This is particularly relevant in compressor trains and steam turbine applications where phase reference accuracy directly affects balancing and diagnostic quality.

Where the control cabinet includes a Bently Nevada 3500/92 communication gateway, verify that the Modbus RTU or Ethernet/IP address mapping for the replaced channel remains consistent after probe swap. Any change in channel order or rack slot assignment will require an update to the DCS or SCADA tag database — a step often overlooked during emergency replacements that can trigger nuisance alarms or mask genuine vibration events.

Signal isolation between the probe circuit and the DCS analog input should also be reviewed. In older installations, a signal isolator or barrier may be installed between the monitor output and the control system input. Confirm that the isolator’s input range (typically 4–20 mA or ±10 Vdc) remains within specification after the probe replacement, particularly if the new probe’s scale factor differs from the original calibration sheet.

Downtime Control During System Migration

Minimizing unplanned downtime during probe replacement begins with pre-staging all components before the maintenance window opens. The 330104-01-06-10-01-00 should be bench-tested against a known-good driver — such as the Bently Nevada 330180-51-05 or equivalent — to confirm output linearity and gap response before the unit is installed in the field. A functional test report should accompany each shipment to reduce on-site verification time.

During the replacement window, the recommended sequence is: inhibit the affected channel in the 3500 rack, remove the legacy probe and extension cable as a matched set, install the new 330104-01-06-10-01-00 with its paired extension cable, set the air gap to the midpoint of the linear range (approximately 1.0–1.27 mm / 40–50 mil), and verify the DC gap voltage at the monitor card terminal before re-enabling the channel. This sequence preserves the original program logic in the safety PLC or DCS and avoids triggering a full system restart.

Where the machinery cannot be taken offline, a temporary bypass relay or channel inhibit — supported by the 3500/20 rack interface — allows the replacement to proceed without interrupting the overall protection system. All bypass actions must be logged in the site MOC (Management of Change) system and cleared before the unit returns to normal operation. This approach has been validated in continuous-process environments including ethylene crackers, LNG compressor trains, and combined-cycle power plant auxiliaries, where stopping the machine for probe replacement is not operationally feasible.

Post-installation, a 30-minute trend observation in System 1 or the site historian is recommended to confirm that the new probe’s gap voltage, 1X amplitude, and phase angle are consistent with the pre-replacement baseline. Any deviation greater than 10% should be investigated before the bypass is cleared.

Retrofit Support FAQ

Q1: Is the 330104-01-06-10-01-00 a direct replacement for older 3300 Series probes?
Yes. The 330104-01-06-10-01-00 is mechanically and electrically compatible with the legacy 3300 Series 8mm probe family. The connector type, cable diameter, and output characteristics are identical, allowing direct substitution without modifying the probe holder, junction box, or monitor card wiring. A gap re-check is always recommended after installation.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to the midpoint of the linear range and measure the DC gap voltage at the monitor card terminal. Compare the reading against the calibration curve supplied with the probe. If the reading deviates by more than ±0.5 Vdc from the expected value, inspect the extension cable connection and verify total system length. Re-enter the scale factor in the 3500 monitor card configuration if a different cable length is used.

Q3: Can this probe be used with non-Bently Nevada monitor systems?
The 330104-01-06-10-01-00 outputs a standard eddy current signal compatible with most third-party vibration monitors that accept a -18.5 Vdc driver supply and a scale factor of approximately 7.87 V/mm (200 mV/mil). Compatibility with specific third-party systems should be confirmed against the monitor’s input specification sheet before installation.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time?
Each unit is covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional performance against the published specification. Units are pre-tested before dispatch and shipped with a functional test report. Standard lead time is 3–7 business days for in-stock units. For urgent requirements, expedited shipping is available. Contact [email protected] or call +86 18359268345 to confirm current stock availability.
