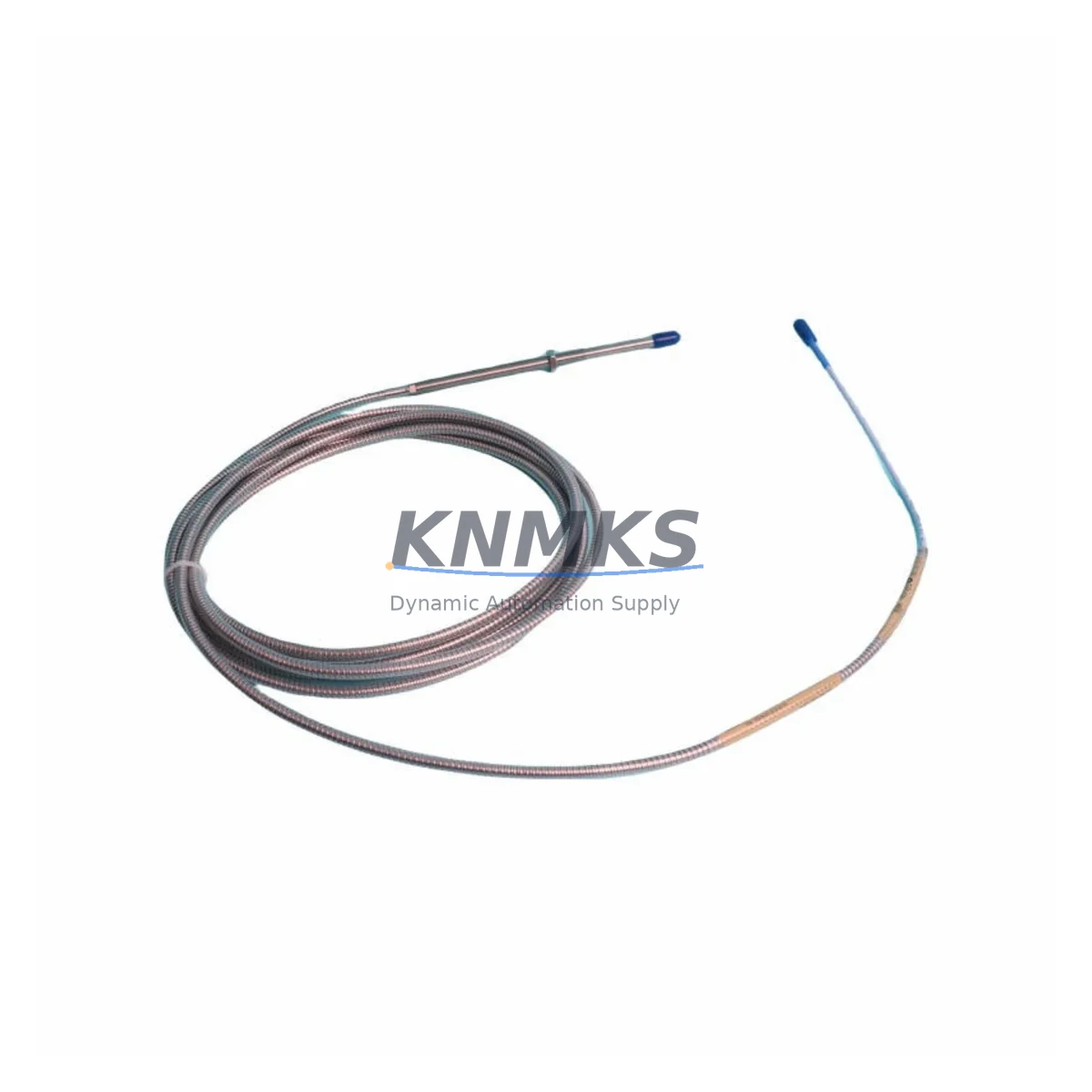

Bently Nevada 330104-00-25-10-02-CN Fail-Safe Proximity Transducer

Overview

Bently Nevada 330104-00-25-10-02-CN Fail-Safe Proximity Transducer: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330104-00-25-10-02-CN is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered to deliver fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed for continuous operation in critical rotating machinery protection systems, this transducer provides high-resolution, non-contact measurement with exceptional immunity to electromagnetic interference, signal drift, and power fluctuation — making it a cornerstone component in safety-critical control cabinets across heavy industry.

In continuous production facilities where unplanned downtime carries severe operational and financial consequences, the 330104-00-25-10-02-CN serves as the first line of defense against mechanical failure. Its eddy-current sensing principle eliminates physical contact with the target shaft, removing wear-related degradation and ensuring measurement integrity over extended service intervals. The transducer’s output signal remains stable even in the presence of strong electromagnetic fields generated by variable frequency drives, high-current bus bars, and adjacent motor control centers — conditions that routinely cause signal drift or false trips in lesser-grade sensors.

When integrated with the Bently Nevada 3300 XL proximitor/sensor system — including the companion 330130-040-00-00 extension cable and 330180-X0-05 proximitor — the 330104-00-25-10-02-CN forms a complete, calibrated measurement chain that meets API 670 machinery protection standards. This full-chain approach is essential in safety instrumented systems (SIS) where measurement accuracy directly governs protective relay actuation and emergency shutdown (ESD) logic. Pairing this transducer with a Bently Nevada 3500/42M proximitor monitor card within a 3500 Series rack ensures that vibration alarm and danger setpoints are enforced with the sub-millisecond response times required by functional safety standards.

In heavy-load control cabinets operating in high-temperature, high-vibration, or dust-laden environments — such as those found in coal preparation plants, cement mills, and offshore compressor platforms — the 330104-00-25-10-02-CN’s robust stainless-steel housing and sealed connector interface resist ingress of particulates and moisture. Its wide operating temperature range and vibration-rated construction ensure that the transducer continues to deliver accurate shaft displacement readings even when the surrounding cabinet environment is subject to thermal cycling or mechanical shock. For installations in hazardous classified areas, the CN variant is specifically configured for compatibility with intrinsically safe barriers and Zener diode isolators, preventing ignition risk in explosive atmospheres.

Control loop protection is further enhanced when the 330104-00-25-10-02-CN is deployed alongside surge-protective devices on the signal wiring — particularly in outdoor substations, petrochemical plants, and port crane electrical rooms where lightning-induced transients and switching surges are common. Combining this transducer with a Phoenix Contact or Weidmüller signal surge arrester on the proximitor input circuit eliminates the risk of front-end damage that would otherwise cause a complete loss of vibration monitoring on a critical asset. Similarly, powering the proximitor system through a redundant 24 VDC rail with an OMRON S8VK-series or Siemens SITOP PSU100S power supply ensures that a single power supply failure does not interrupt the protection chain.

For water treatment facilities, metallurgical plants, and continuous chemical processing lines, the 330104-00-25-10-02-CN supports predictive maintenance strategies by providing the high-fidelity shaft vibration data needed to detect early-stage bearing wear, rotor imbalance, and misalignment before they escalate into catastrophic failures. When this data is fed into a Bently Nevada System 1 condition monitoring platform, maintenance teams gain real-time trend analysis and alarm management capabilities that dramatically reduce the frequency of unplanned shutdowns and extend mean time between failures (MTBF) on critical rotating assets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330104-00-25-10-02-CN requires careful integration of complementary components to ensure that no single point of failure can compromise the safety loop. The transducer connects to the proximitor via the Bently Nevada 330130-040-00-00 extension cable, which maintains signal integrity over the full cable run from the machine casing to the control room rack. Within the rack, the Bently Nevada 3500/42M four-channel proximitor monitor processes the raw transducer signal and enforces alarm and danger setpoints, providing relay outputs that interface directly with the plant’s distributed control system (DCS) or safety PLC.

To protect the signal chain from power-side disturbances, the 24 VDC supply rail feeding the proximitor system should be backed by a Siemens SITOP PSU100S redundant power supply module, ensuring that a primary supply fault does not interrupt vibration monitoring during a critical process upset. On the signal wiring side, installing a Phoenix Contact TRABTECH surge arrester at the cabinet entry point guards against lightning-induced transients that could otherwise damage the proximitor input circuitry and cause a loss of protection on the monitored machine.

In high-EMI environments — such as those adjacent to large variable frequency drives or medium-voltage switchgear — shielded twisted-pair signal cables with properly grounded drain wires are essential to prevent common-mode noise from corrupting the transducer’s DC gap voltage output. Combining these cable practices with the inherent EMI rejection of the 3300 XL measurement chain ensures that the 330104-00-25-10-02-CN delivers clean, drift-free signals even in electrically noisy control rooms. For cabinets in hot or poorly ventilated locations, supplementing the rack with a Rittal TopTherm cabinet cooling unit maintains the internal temperature within the operating range of all installed electronics, preventing thermal-induced measurement errors and premature component failure.

Critical Industrial Safety Applications

The 330104-00-25-10-02-CN is deployed across a wide spectrum of critical industrial applications where continuous, reliable shaft vibration monitoring is non-negotiable. In petrochemical and refinery environments, it protects high-speed centrifugal compressors and process pumps that operate continuously in flammable or toxic service — where an undetected bearing failure could trigger a catastrophic release. The CN variant’s intrinsic safety compatibility makes it directly suitable for Zone 1 and Zone 2 hazardous area installations without the need for additional explosion-proof enclosures on the transducer itself.

In electric power generation plants — including gas turbine, steam turbine, and hydroelectric facilities — the 330104-00-25-10-02-CN monitors shaft radial vibration and axial position on generator rotors and turbine shafts, providing the early warning data that allows operators to take corrective action before a vibration exceedance forces an emergency trip. Mining and mineral processing operations rely on this transducer to protect large ball mills, SAG mills, and crusher drive trains, where the consequences of an unplanned mechanical failure include not only equipment damage but also significant safety risk to personnel working in the vicinity.

Water and wastewater treatment facilities use the 330104-00-25-10-02-CN on high-capacity centrifugal pumps and blower trains that must operate continuously to maintain treatment capacity. Port and marine applications — including shipboard propulsion machinery and harbor crane hoisting drives — benefit from the transducer’s wide temperature range and sealed construction, which allow it to perform reliably in the salt-laden, high-humidity environments typical of coastal and offshore installations. In all of these applications, the 330104-00-25-10-02-CN’s combination of measurement accuracy, environmental robustness, and fail-safe signal behavior makes it the preferred choice for machinery protection engineers specifying replacement or upgrade components.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-00-25-10-02-CN?
Every 330104-00-25-10-02-CN unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides support terms support including failure analysis, replacement coordination, and field troubleshooting guidance throughout the confirmed support period.

Q2: What pre-shipment testing and inspection is performed on each unit?
Each 330104-00-25-10-02-CN undergoes functional verification prior to shipment, including gap voltage output check, scale factor verification, and connector integrity inspection. Units are shipped with original or equivalent calibration documentation where available. We source from authorized distribution channels and maintain traceability records to support your incoming inspection and quality management requirements.

Q3: Is the 330104-00-25-10-02-CN a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330104-00-25-10-02-CN is fully compatible with the Bently Nevada 3300 XL proximitor/sensor system and is a direct replacement for units of the same part number in existing installations. It maintains the same 7.87 V/mm scale factor, connector configuration, and cable length as the original specification, requiring no recalibration of the proximitor or adjustment of alarm setpoints when used as a like-for-like replacement.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
KNMKS maintains standing inventory of the 330104-00-25-10-02-CN to support planned maintenance schedules, emergency spare requirements, and multi-unit procurement for new installations. We offer volume pricing for blanket orders and can provide lead-time commitments aligned with your plant maintenance windows. Contact our sales team at [email protected] or +86 18359268345 to discuss your supply program requirements.
