Bently Nevada 330104-00-25-10-02-00 Maintenance-Proven Spare Part

Overview

Bently Nevada 330104-00-25-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

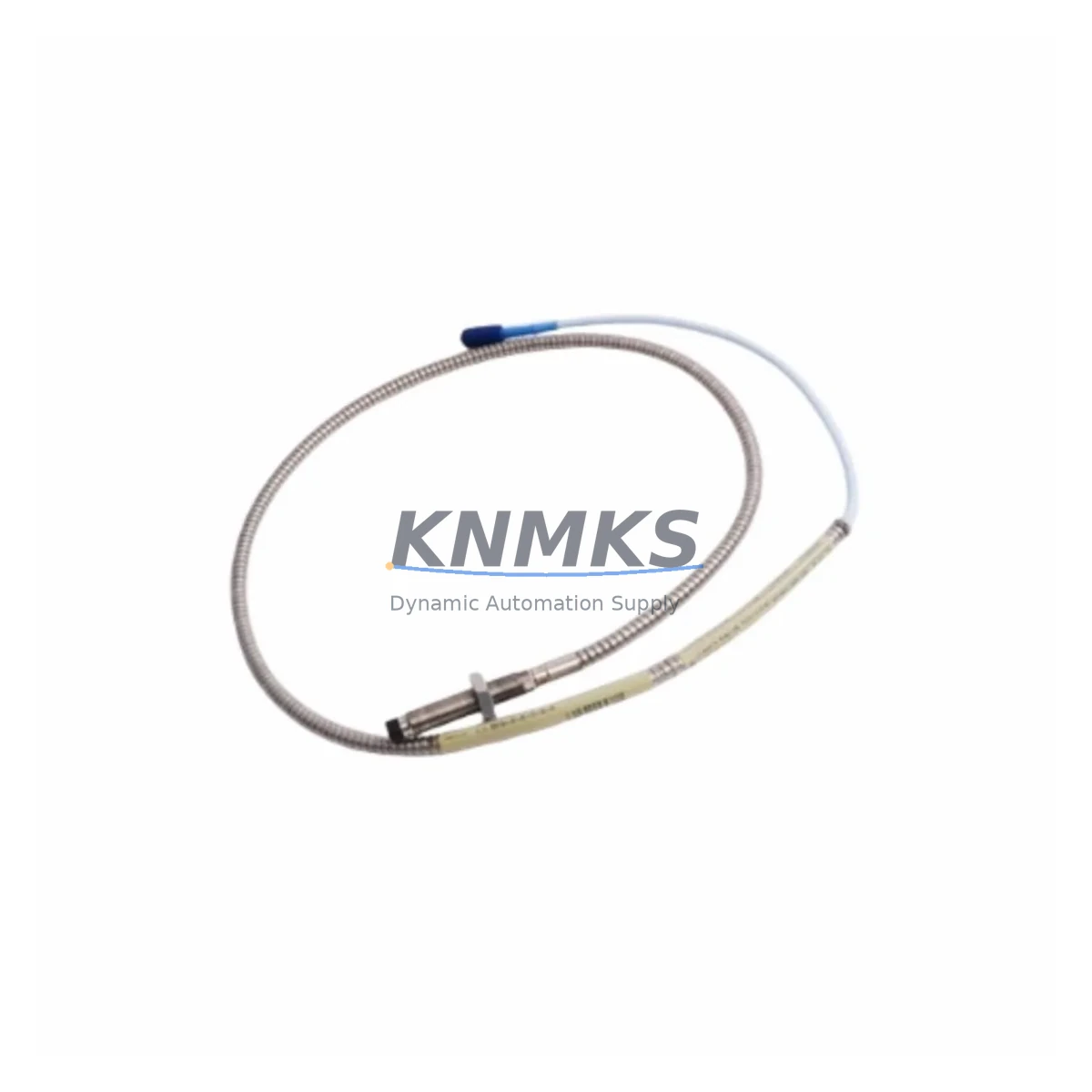

The Bently Nevada 330104-00-25-10-02-00 is a 25 mm eddy-current proximity probe engineered for the 3300 XL machinery protection system. As the primary sensing element in continuous shaft vibration monitoring, this probe measures radial displacement in real time, feeding critical data to the 3300 XL monitor rack to detect imbalance, misalignment, bearing wear, and rotor instability before they escalate into unplanned shutdowns. For maintenance and procurement engineers managing rotating equipment in power generation, petrochemical, oil & gas, or heavy manufacturing environments, a verified spare of the 330104-00-25-10-02-00 on the shelf is a fundamental risk-reduction strategy. Probe failure or signal drift is one of the most common causes of false trips and missed fault detection in turbine and compressor protection systems. A pre-tested, ready-to-install replacement eliminates the procurement lead time that turns a minor fault into a multi-day production loss.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the 330104-00-25-10-02-00 is flagged for replacement — whether due to signal noise, gap voltage drift, physical tip damage, or a scheduled annual overhaul — the procedure should be treated as a system-level inspection, not a single-component swap. Probe replacement is the optimal window to audit the full measurement chain and the surrounding cabinet components that share the same protection loop.

Start with the 330130 Series extension cable that links the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation in high-vibration or high-temperature environments. A probe in perfect condition paired with a degraded extension cable will still produce unreliable gap voltage readings. Bench-test or replace the extension cable alongside the probe whenever the operating hours are comparable.

Next, inspect the 330180 or 330185 Proximitor sensor. The proximitor converts the probe’s impedance change into a DC voltage signal proportional to shaft gap. If the proximitor has accumulated similar operating hours to the failed probe, proactive replacement during the same maintenance window avoids a second outage within months. Verify the proximitor output voltage against the probe’s linear range specification before returning the system to service.

Within the 3300 XL monitor rack, confirm that the associated monitor module — such as the 3300/16 or 3300/20 series — is reading the correct gap voltage and that alarm and trip setpoints have not drifted. Rack backplane connectors should be inspected for oxidation or loose seating, as intermittent backplane contact is a known source of spurious trips in aging 3300 XL installations. If the rack power supply module is approaching its recommended service interval, replacing it during the same outage window is a low-cost insurance policy for high-criticality assets.

For facilities running extended equipment life programs on legacy turbines or compressors, also review the condition of terminal blocks and field wiring in the junction box between the probe and the control cabinet. Loose terminations or corroded conductors introduce resistance that shifts the effective gap voltage and can trigger false proximity alarms. Re-torquing terminal connections during probe replacement adds minimal time but significantly improves long-term signal integrity and reduces nuisance trips.

Site Replacement Workflow

The 330104-00-25-10-02-00 is a direct replacement for earlier 3300 XL 25 mm probe configurations. Before installation, confirm the replacement probe’s part number suffix matches the original — the suffix encodes cable length, connector type, and temperature rating. A mismatch in cable length alters total cable resistance and shifts the linear range, requiring re-gapping and recalibration at the monitor module.

1. Isolate and lock out the monitor channel or place the system in bypass mode per site safety procedures.
2. Record the existing gap voltage from the monitor display before removal — this serves as the baseline for the new probe installation.
3. Remove the locknut and unthread the probe from the bracket. Inspect bracket threads and probe tip for mechanical damage.
4. Install the new 330104-00-25-10-02-00, threading carefully to avoid tip damage. Set the initial gap to the manufacturer’s recommended starting point (typically 1.0–1.5 mm for a 25 mm probe).
5. Reconnect the 330130 Series extension cable and verify connector seating. Power up the 330180/330185 Proximitor and read the gap voltage at the monitor.
6. Fine-adjust the probe gap until the gap voltage falls within the linear range center. Tighten the locknut to the specified torque.
7. Verify alarm and trip setpoints at the 3300 XL monitor module. Remove bypass and return the channel to normal protection mode.
8. Document the replacement in the equipment maintenance log, including the new probe serial number, gap voltage reading, and technician sign-off.

This workflow applies equally to emergency replacements during unplanned outages and to planned replacements during scheduled turnarounds. A pre-tested spare on site reduces total replacement time from hours to under 30 minutes, directly cutting MTTR for the affected asset.

Spare Parts Support FAQ

Q1: Is the 330104-00-25-10-02-00 compatible with all 3300 XL monitor modules?
Yes. This probe is designed for the Bently Nevada 3300 XL system and is compatible with standard 3300 XL monitor modules when used with the correct 330130 Series extension cable and 330180/330185 Proximitor. Always verify that the total cable length (probe + extension) matches the proximitor’s calibrated range before installation to avoid gap voltage offset errors.

Q2: How is each unit tested before shipment?
Every 330104-00-25-10-02-00 unit undergoes pre-shipment functional testing, including gap voltage verification across the full linear range and insulation resistance checks. Units that do not meet original specification are not shipped. A support terms confirmed by quotation cover manufacturing defects and functional performance from the date of delivery.

Q3: What is the recommended stocking strategy for this probe?
For critical rotating equipment — turbines, compressors, and high-speed pumps — industry best practice recommends stocking a minimum of one spare probe per monitored shaft, plus one spare 330130 Series extension cable per measurement plane. Facilities operating multiple 3300 XL systems benefit from a shared pool of 2–3 probes per probe diameter to balance inventory cost against emergency coverage.

Q4: Can long-term supply be arranged for this configuration?
Yes. Long-term supply agreements are available for 3300 XL series components, including the 330104-00-25-10-02-00 and related extension cables and proximitors. Contact our team to discuss annual volume commitments, consignment stocking, and multi-year supply contracts that protect your maintenance program from market shortages and end-of-life procurement risk.
