Bently Nevada 330104-00-24-50-02-00 Maintenance Spare Part

Overview

Bently Nevada 330104-00-24-50-02-00 Maintenance-Proven Spare Part for Factory Uptime

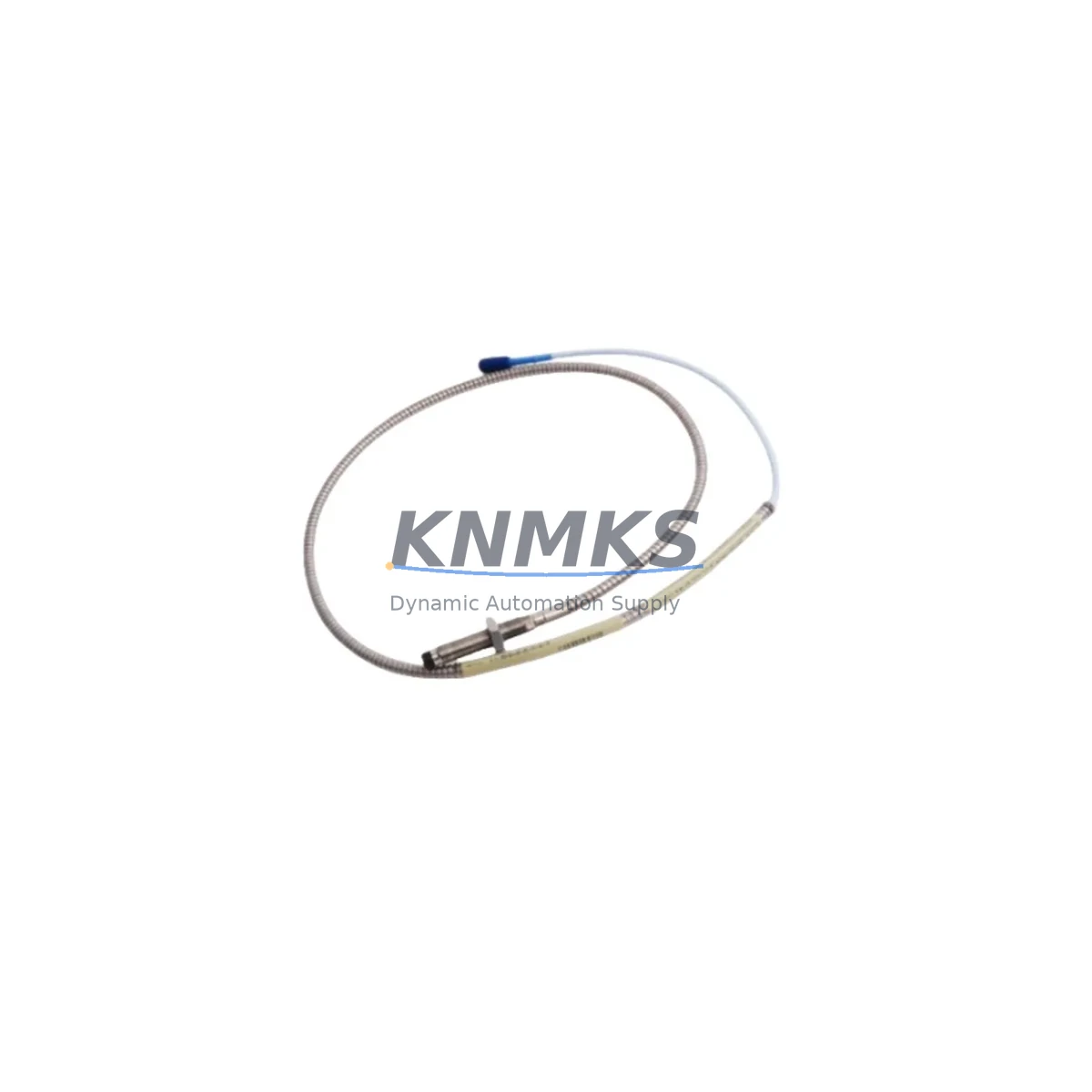

The Bently Nevada 330104-00-24-50-02-00 is an eddy-current proximity transducer engineered for continuous vibration and position monitoring in rotating machinery. As a core component of the 3300 XL monitoring system, this transducer delivers reliable shaft displacement measurements in turbines, compressors, pumps, and other critical rotating assets. Maintaining an on-hand spare of the 330104-00-24-50-02-00 is a fundamental practice for any maintenance team operating Bently Nevada-based condition monitoring infrastructure.

For maintenance engineers, the 330104-00-24-50-02-00 represents a direct-fit replacement that eliminates the need for recalibration of the entire monitoring loop when a transducer fails. Its 24-inch extension cable and 50-mil gap range make it compatible with the vast majority of 3300 XL field installations. Procurement engineers sourcing this part should verify the full part number — including the cable length and gap suffix — to ensure exact interchangeability with the installed unit. KNMKS supplies this transducer as an original spare, pre-shipment tested, with a support terms confirmed by quotation covering manufacturing defects and functional performance.

In turbomachinery maintenance environments, unplanned downtime caused by a failed proximity transducer can cascade into extended production losses. Stocking the 330104-00-24-50-02-00 as part of a rotating equipment spare parts kit — alongside the companion 330130-080-00-00 extension cable and the 3300 XL proximitor/seismic monitor module — ensures that field replacement can be completed within a single maintenance window. This approach is consistent with API 670 spare parts recommendations for critical machinery protection systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for the 330104-00-24-50-02-00 should account for the full signal chain from the transducer tip to the monitoring system rack. During annual inspections or after any machinery overhaul, maintenance teams should inspect not only the transducer itself but also the associated 330130-080-00-00 extension cable for insulation damage, connector corrosion, or mechanical wear at the cable entry point. The 3300 XL proximitor module — typically a 330180-X1-05 or equivalent — should be verified for correct bias voltage output (typically -10 VDC at the nominal gap) and gap voltage within the linear range.

Power supply integrity is equally critical. The 3300 XL system relies on a stable -24 VDC supply rail; any deviation caused by a failing 3300 Power Supply module can produce false vibration readings that mimic transducer failure. Before condemning a 330104-00-24-50-02-00, maintenance engineers should confirm supply voltage at the proximitor terminal strip using a calibrated multimeter.

For control cabinet inspections, the signal wiring from the proximitor to the 3300 XL monitor card should be checked for ground loops, shield continuity, and terminal tightness. Loose terminals on the I/O barrier strip are a common source of intermittent high-vibration trips that are incorrectly attributed to transducer degradation. Where signal isolation is required between the field device and the DCS or safety system, a dedicated signal isolator/repeater should be included in the spare parts inventory alongside the transducer.

For plants operating legacy Bently Nevada 7200 series or 3500 series systems alongside 3300 XL installations, it is advisable to maintain a cross-referenced spare parts register. While the 330104-00-24-50-02-00 is specific to the 3300 XL architecture, the maintenance workflow — gap setting, bias voltage verification, and cable continuity check — is transferable across Bently Nevada proximity systems, reducing training overhead for multi-system maintenance teams.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machinery is at rest and the monitoring system is in bypass or maintenance mode to prevent spurious trips during transducer replacement.

Step 2 — Gap Measurement and Documentation: Before removing the old transducer, record the installed gap distance using a feeler gauge or the existing bias voltage reading. This baseline is required to set the replacement unit to the same gap, preserving calibration continuity.

Step 3 — Transducer Removal: Disconnect the extension cable at the proximitor. Unthread the transducer from the mounting bracket. Inspect the bracket, locknut, and target area for wear, contamination, or mechanical damage.

Step 4 — Installation of 330104-00-24-50-02-00: Thread the new transducer into the bracket. Set the gap to the documented value (typically 50 mil / 1.27 mm for this model). Secure with locknut. Reconnect the extension cable, ensuring the connector is fully seated and the locking ring is engaged.

Step 5 — Verification: Restore power to the proximitor. Confirm bias voltage at the monitor input is within the linear range (-10 VDC ±1 VDC at nominal gap). Check the 3300 XL monitor display for a valid, stable vibration reading. Clear bypass and return the system to normal monitoring mode.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the new transducer serial number, installation date, gap setting, and verified bias voltage. Update the spare parts inventory to trigger reorder of a replacement unit.

Spare Parts Support FAQ

Q1: What is the recommended spare parts holding strategy for the 330104-00-24-50-02-00?
For critical rotating machinery (turbines, compressors, main process pumps), a minimum of one spare transducer per monitored shaft should be held on-site. For plants with multiple 3300 XL installations, a pooled inventory of 2–4 units is recommended, supplemented by a long-term supply agreement to ensure replenishment within 5–10 business days. KNMKS supports 12–36 month supply agreements with fixed pricing for high-volume customers.

Q2: How do I verify compatibility before installation?
Confirm the full part number suffix: 330104-00-cable length–gap range–target material–connector type. The 330104-00-24-50-02-00 is calibrated for AISI 4140 steel targets with a 50-mil gap range and a 24-inch integral cable. If your installation uses a different target material or gap range, a different suffix variant is required. KNMKS technical support can assist with part number cross-referencing.

Q3: What pre-shipment testing does KNMKS perform on this transducer?
Every 330104-00-24-50-02-00 shipped by KNMKS undergoes functional output verification: bias voltage at nominal gap, sensitivity linearity across the measurement range, and connector integrity check. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the shipment date.

Q4: Can KNMKS support long-term supply for end-of-life or discontinued Bently Nevada parts?
Yes. KNMKS maintains inventory of both current-production and legacy Bently Nevada proximity system components. For parts approaching end-of-life, we recommend a last-time-buy or annual blanket order arrangement to secure supply for the remaining operational life of the machinery. Contact our team to discuss a customized long-term supply plan.
