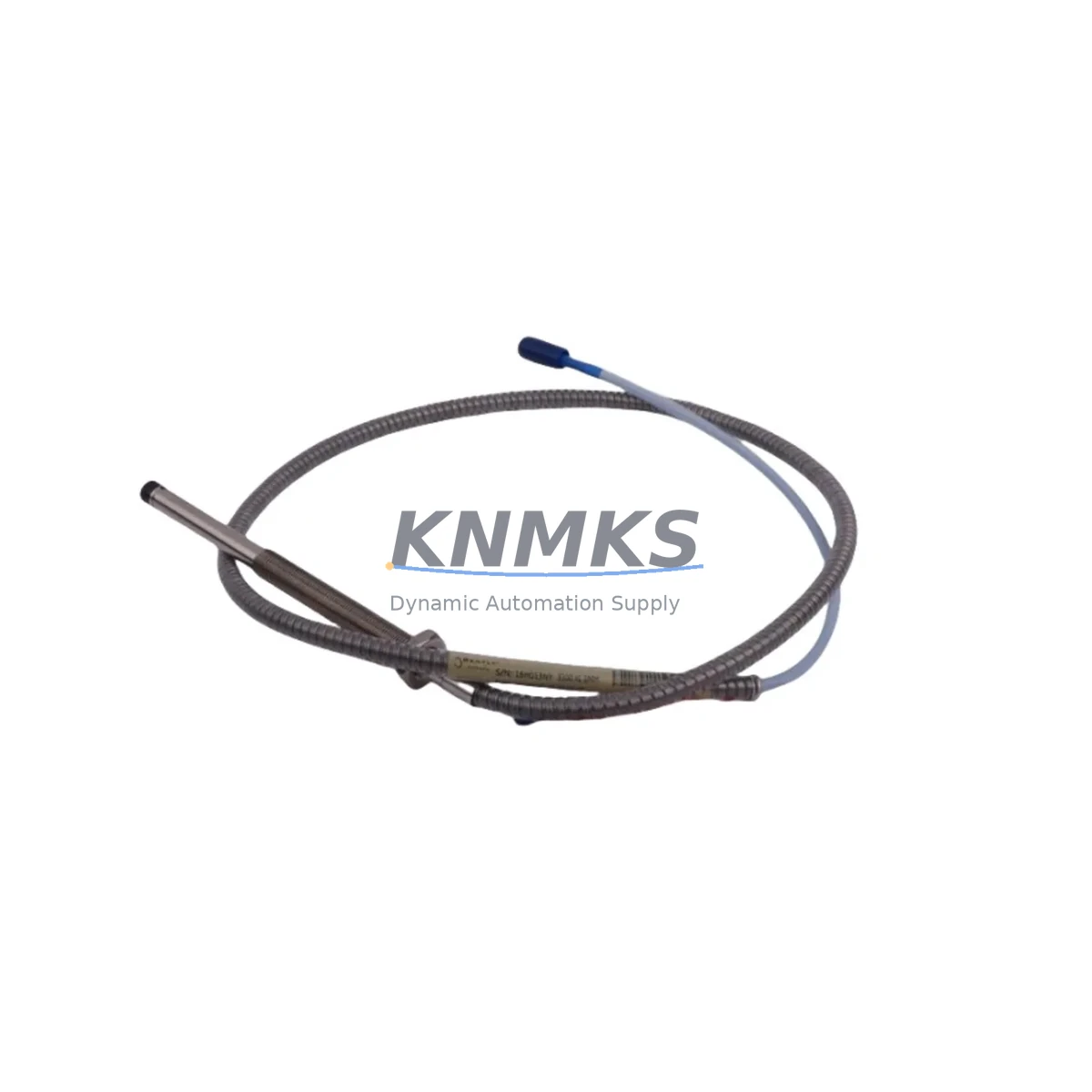

Bently Nevada 330104-00-22-10-02-CN Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-00-22-10-02-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330104-00-22-10-02-CN is a 3300 XL Series proximity probe engineered for continuous vibration monitoring in rotating machinery applications. As legacy Bently Nevada 3300 Series installations approach end-of-support cycles, plant engineers and reliability teams are increasingly required to source migration-ready replacements that maintain signal integrity, dimensional compatibility, and system-level interoperability without triggering full-scale control system overhauls. This unit is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation — making it a dependable choice for emergency replacement, planned maintenance, and phased system upgrades.

The 330104-00-22-10-02-CN is a 5-metre cable extension probe with an 8mm tip diameter, designed for eddy-current sensing in high-temperature, high-vibration environments. It operates within the standard Bently Nevada 3300 XL signal conditioning chain, interfacing directly with the 3300 XL 8mm Proximitor Sensor (e.g., 330180-X1-05) and feeding conditioned output to the 3500/42M Proximitor/Seismic Monitor or equivalent rack-mounted monitoring modules. When replacing this probe in an existing 3300 XL installation, engineers must verify the Proximitor gap voltage (typically –10.0 VDC at mid-gap), confirm the cable routing length matches the original 5-metre specification, and validate that the field wiring termination at the junction box or terminal strip has not been modified.

For sites migrating from the earlier Bently Nevada 3300 Series (non-XL) to the 3300 XL platform, the 330104-00-22-10-02-CN serves as a direct upgrade path. The 3300 XL system introduced improved signal-to-noise performance and tighter gap sensitivity tolerances compared to the legacy 3300 Series probes. During migration, technicians should cross-reference the existing probe part number against the 3300 XL compatibility matrix, confirm that the Proximitor model installed in the field supports XL-series probes, and re-gap the probe to the XL-specified nominal gap (typically 1.27 mm / 50 mils for 8mm probes). If the existing Proximitor is a legacy 3300 (non-XL) unit such as the 330130-040-01-00, it must be replaced with a 3300 XL Proximitor before the new probe can be commissioned correctly.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-00-22-10-02-CN into an existing vibration monitoring system requires a structured review of the surrounding hardware and signal chain. In most 3300 XL installations, the probe is one component in a three-part assembly: the probe itself, the extension cable, and the Proximitor sensor. When replacing only the probe, engineers must confirm that the existing extension cable (e.g., a 330130-Series cable) is undamaged and that its total combined length with the new probe matches the Proximitor’s calibrated range. Mismatched cable lengths will shift the gap voltage curve and produce inaccurate vibration readings.

In control cabinets housing 3500 Series rack systems, the probe signal terminates at the 3500/42M Proximitor/Seismic Monitor input card. Before hot-swapping the probe, verify that the monitor card is in bypass or that the associated alarm setpoints have been temporarily inhibited to prevent spurious trips during the re-gapping procedure. If the installation includes a 3500/20 Rack Interface Module, confirm that the rack communication link to the DCS or historian (typically via Modbus RTU or the System 1 software interface) remains active throughout the swap to preserve trend data continuity.

Sites running parallel vibration monitoring with a Bently Nevada 3500/15 Power Supply Module should verify that the rack power budget accommodates the probe and Proximitor load without exceeding the supply’s rated output. In older installations where the power supply has not been replaced alongside the monitoring cards, this is a common oversight that can cause intermittent signal dropouts after probe replacement. Similarly, if the control cabinet includes a 3500/92 Communication Gateway Module for Ethernet or FOUNDATION Fieldbus integration, no firmware changes are required for a like-for-like probe swap — but the gateway’s tag mapping should be audited if the probe channel address has changed during the retrofit.

For plants upgrading from a standalone 3300 XL system to a fully integrated 3500 Series rack, the 330104-00-22-10-02-CN is compatible with both platforms, simplifying the transition. During such upgrades, the I/O wiring from the junction box to the monitor rack typically requires re-termination to match the 3500 Series terminal block pinout. A wiring adapter or custom terminal strip may be needed if the original field cable uses a non-standard connector. Documenting the original wiring configuration before disconnection is essential for maintaining installation records and supporting future audits.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement on a live rotating machine requires careful pre-staging and a clearly defined commissioning sequence. Before the maintenance window opens, the replacement 330104-00-22-10-02-CN should be bench-verified: confirm the probe tip is undamaged, measure the cable resistance to rule out open circuits, and record the Proximitor output voltage at a known gap distance using a calibration target. This pre-check eliminates the risk of installing a defective unit and discovering the fault only after the machine is back online.

During the replacement window, the recommended sequence is: inhibit the associated monitor channel alarm, remove the legacy probe, install the new 330104-00-22-10-02-CN, set the nominal gap (typically 1.27 mm for 8mm probes), verify the Proximitor output voltage at mid-gap, restore the alarm setpoints, and confirm the vibration trend is tracking correctly in the DCS or System 1 historian before releasing the machine to operations. This sequence preserves the original program logic in the 3500 Series monitor — no parameter changes are required for a like-for-like replacement, which is a key advantage of using a migration-ready part rather than a non-OEM substitute.

For sites where continuous operation is mandatory and a hot-swap is not feasible, a temporary bypass using a spare Proximitor and a portable vibration analyser can maintain monitoring coverage while the primary channel is being serviced. This approach is particularly effective in compressor trains and turbine applications where API 670 compliance requires uninterrupted vibration monitoring. Once the new probe is installed and verified, the bypass is removed and the primary channel is restored without any interruption to the control narrative or alarm history.

Retrofit Support FAQ

Q1: Is the 330104-00-22-10-02-CN a direct replacement for legacy 3300 Series (non-XL) proximity probes?
A: It is a 3300 XL Series part and is not directly interchangeable with non-XL 3300 Series probes without also upgrading the Proximitor sensor. If your existing Proximitor is a legacy 3300 (non-XL) model, it must be replaced with a 3300 XL Proximitor (e.g., 330180-X1-05) before the 330104-00-22-10-02-CN can be correctly commissioned. Contact our team to confirm your Proximitor model and we will advise on the correct upgrade path.

Q2: What wiring changes are required when installing this probe in an existing 3500 Series rack?
A: For a like-for-like probe replacement within an existing 3300 XL / 3500 Series installation, no wiring changes are required at the monitor rack. The field wiring from the junction box to the Proximitor and from the Proximitor to the 3500/42M monitor card remains unchanged. If you are migrating from a different rack platform or changing the probe channel address, re-termination at the terminal block may be necessary — we recommend documenting the original wiring before any disconnection.

Q3: Is pre-shipment testing performed on this unit, and what does it cover?
A: Yes. Every 330104-00-22-10-02-CN unit is functionally tested before dispatch. Testing covers probe tip integrity, cable continuity and insulation resistance, and Proximitor output voltage verification at a calibrated gap distance. A test record is available on request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time, and is stock available for emergency orders?
A: This part is held availability confirmed by RFQ and is available for immediate dispatch. Standard international shipping typically delivers within 3–7 business days depending on destination. For emergency replacement requirements, expedited shipping options are available — contact our team directly to confirm current stock levels and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-22-10-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-22-10-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
