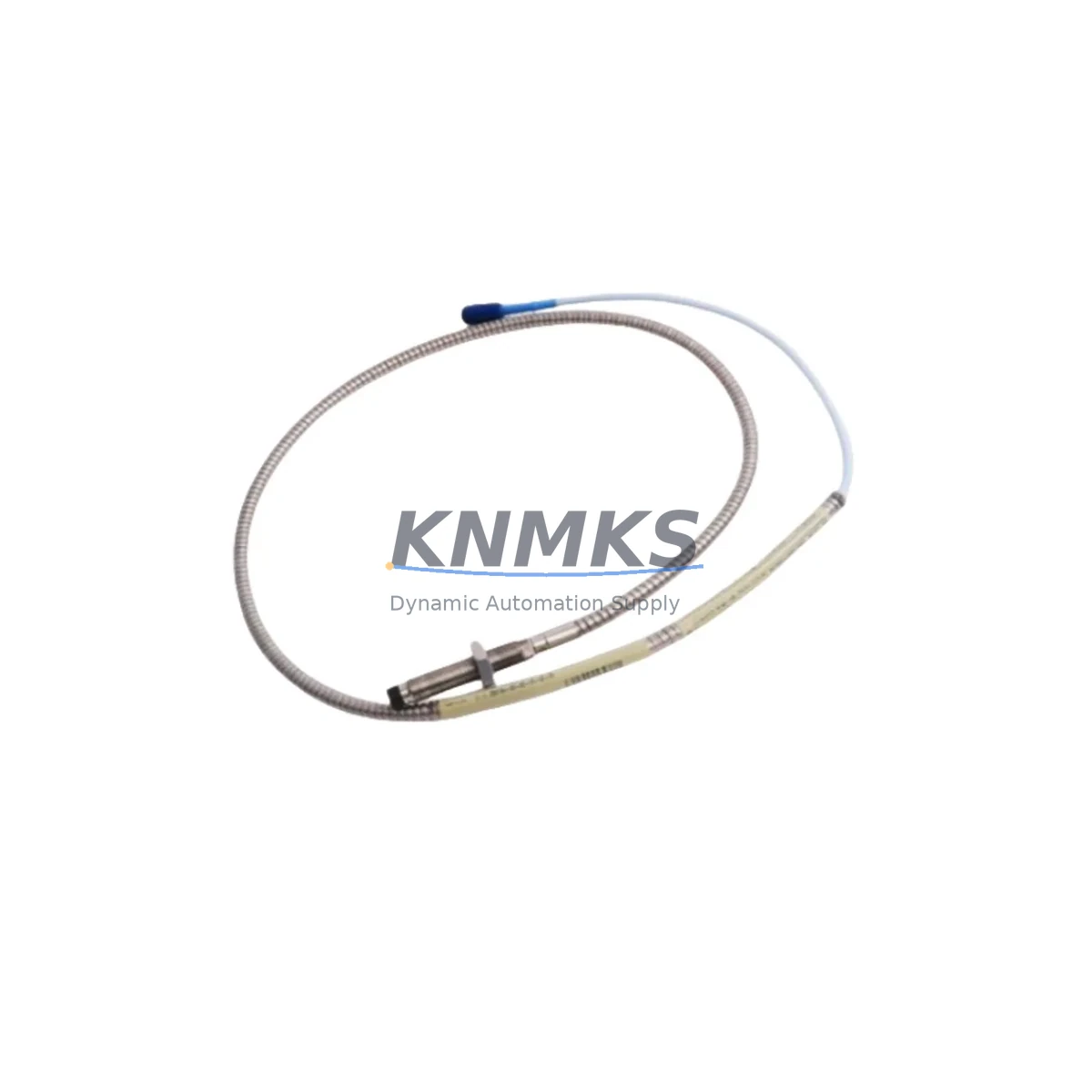

Bently Nevada 330104-00-20-10-01-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-00-20-10-01-CN Fail-Safe Proximity Probe: Fault-Protected Vibration Monitoring for Critical Industrial Reliability

The Bently Nevada 330104-00-20-10-01-CN is a high-precision eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and marine propulsion systems, this probe delivers the measurement accuracy and signal integrity that critical rotating machinery protection demands.

In high-stakes control environments — where a single measurement failure can trigger unplanned shutdowns, cascade interlock trips, or catastrophic equipment damage — the 330104-00-20-10-01-CN provides the stable, low-drift output signal that safety-critical machinery protection systems require. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring consistent performance over extended service intervals without signal degradation.

Every unit supplied by KNMKS undergoes rigorous pre-shipment functional testing, verifying output linearity, gap sensitivity, and signal stability before dispatch. Backed by a support terms confirmed by quotation, this probe is a trusted spare parts solution for maintenance engineers managing long-term asset reliability programs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330104-00-20-10-01-CN operates as part of a tightly integrated machinery protection architecture. In a typical critical control cabinet deployment, this probe pairs with the Bently Nevada 330180-X1-05 Proximitor® Sensor, which conditions the raw eddy-current signal into a clean, calibrated voltage output suitable for direct input to the Bently Nevada 3500/42M Proximitor®/Seismic Monitor — a rack-mounted module responsible for real-time vibration alarming and trip logic execution.

To ensure signal integrity across long cable runs in high electromagnetic interference environments — common in variable frequency drive (VFD) cabinets, motor control centers, and switchgear rooms — the probe’s shielded coaxial extension cable, such as the Bently Nevada 330130 Extension Cable, must be properly grounded at a single point to prevent ground loop interference. In installations where cabinet thermal management is a concern, pairing this probe system with adequate enclosure cooling and the Bently Nevada 3500/15 Power Supply Module ensures stable excitation voltage to the Proximitor® sensor, preventing measurement drift caused by supply fluctuation.

For plants operating dual-redundant protection architectures — such as SIL 2 or SIL 3 safety instrumented systems — the 330104-00-20-10-01-CN is frequently deployed in voted configurations alongside complementary Bently Nevada 330103 series probes (5 mm tip diameter variant) to provide independent measurement channels on the same shaft journal. This redundancy eliminates single-point failure risk in critical interlock loops, ensuring that a single probe fault does not result in a spurious trip or, more critically, a missed dangerous condition.

In high-dust and high-humidity environments — such as cement plants, coal handling facilities, and offshore platforms — the probe’s sealed construction and corrosion-resistant tip assembly maintain measurement accuracy without requiring frequent recalibration, reducing preventive maintenance burden and unplanned intervention costs.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: Continuous shaft vibration monitoring on compressor trains, turbine expanders, and boiler feed pumps where API 670 machinery protection compliance is mandatory. The 330104-00-20-10-01-CN provides the non-contact, wear-free measurement required for uninterrupted operation in hydrocarbon-rich, explosion-risk zones.

Power Generation: Steam turbine and gas turbine shaft monitoring in utility and industrial cogeneration plants. The probe’s wide operating temperature range and high EMI immunity make it suitable for generator hall environments where high-voltage switching transients and thermal cycling are constant challenges.

Mining and Mineral Processing: Monitoring of large ball mill pinion bearings, crusher drive shafts, and slurry pump rotating assemblies in dusty, high-vibration environments. Early detection of shaft eccentricity and bearing wear prevents catastrophic mechanical failures that result in extended production halts.

Water and Wastewater Treatment: Pump and blower shaft monitoring in facilities where continuous operation is a public safety obligation. The probe’s resistance to moisture ingress and chemical vapors ensures reliable measurement in wet, corrosive pump station environments.

Metallurgy and Steel Mills: Rolling mill drive shaft and motor bearing monitoring in high-temperature, high-vibration environments. The probe’s thermal stability up to +177°C allows direct installation near hot process equipment without signal compromise.

Port and Marine Applications: Shaft monitoring on ship propulsion systems, crane drive motors, and port conveyor drives where saltwater corrosion, mechanical shock, and continuous duty cycles demand the highest component reliability standards.

Safety and Quality FAQ

Q1: What support terms coverage does the 330104-00-20-10-01-CN carry?
All Bently Nevada 330104-00-20-10-01-CN units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment functional verification — including output linearity check, gap sensitivity confirmation, and cable continuity test — before dispatch. Support requests are supported with direct technical assistance and replacement unit coordination.

Q2: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor® installations?
Yes. The 330104-00-20-10-01-CN is a direct-fit replacement for existing Bently Nevada 3300 XL series proximity probe installations. It is fully compatible with the 330180 series Proximitor® Sensors and the 3500 series rack monitoring system. No recalibration of the Proximitor® is required when replacing a like-for-like probe of the same series and tip diameter, provided the installation gap is reset to the manufacturer-specified nominal value.

Q3: Can this probe be used in SIL-rated safety instrumented systems?
The 330104-00-20-10-01-CN is widely deployed in safety-critical machinery protection loops, including voted SIL 2 architectures, when used as part of a complete Bently Nevada 3500 series protection system. For formal SIL certification documentation requirements, consult the Bently Nevada 3500 system SIL assessment reports. KNMKS can provide technical support for integration planning and spare parts sourcing for SIL-compliant installations.

Q4: What is the long-term supply availability for this part?
KNMKS maintains dedicated inventory of the 330104-00-20-10-01-CN and related 3300 XL series components to support long-term maintenance programs with supply horizons of 12 to 36 months. For critical plant spare parts programs requiring guaranteed stock reservation, contact our sales team to discuss framework supply agreements with priority allocation and fixed lead times.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-20-10-01-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-20-10-01-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
