Bently Nevada 330104-00-18-10-02-00 3300 XL Proximity Transducer

Overview

Bently Nevada 330104-00-18-10-02-00 3300 XL Proximity Transducer: Legacy System Migration & Compatibility Upgrade

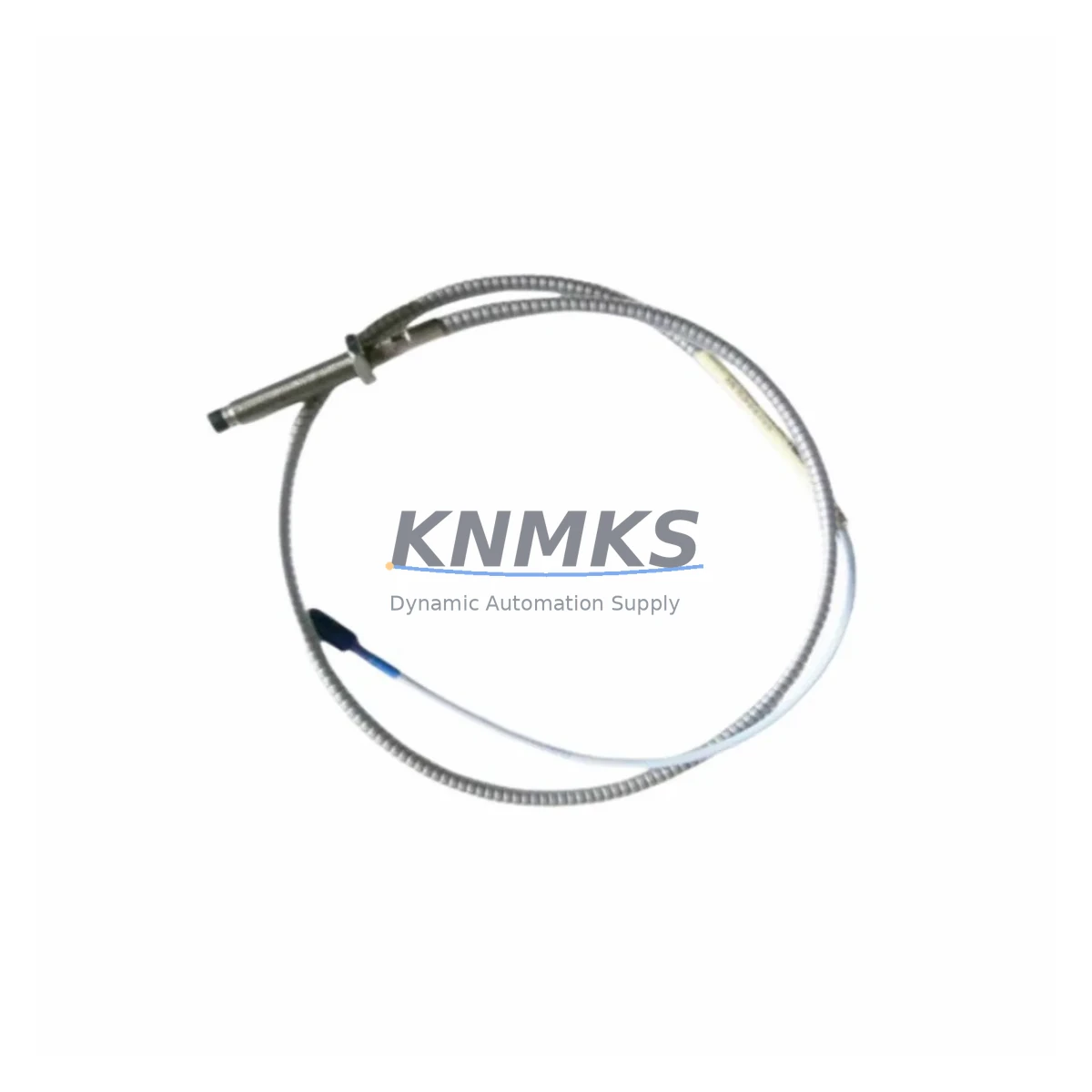

The Bently Nevada 330104-00-18-10-02-00 is a migration-ready eddy-current proximity transducer engineered for the 3300 XL vibration monitoring platform. As industrial facilities worldwide accelerate the retirement of aging condition-monitoring infrastructure, this transducer serves as a verified drop-in replacement for obsolete 3300 Series sensors, enabling seamless retrofit without reprogramming the host monitor or rewiring the field junction box. Whether you are upgrading a turbine protection loop, replacing a failed shaft-displacement sensor on a compressor train, or restoring a dormant monitoring channel on a legacy rack, the 330104-00-18-10-02-00 delivers the electrical and mechanical compatibility required to minimize downtime and preserve existing program logic.

Designed to the Bently Nevada standard 8 mm eddy-current sensing format, this transducer operates within the 3300 XL monitor ecosystem alongside companion components such as the 3300 XL 8 mm Extension Cable and the 3300 XL Proximitor® Sensor. The complete measurement chain — transducer, extension cable, and Proximitor — must be matched by part number to maintain calibrated output sensitivity (typically 7.87 V/mm or 200 mV/mil). When sourcing a replacement, engineers should confirm that the Proximitor model installed in the rack, such as the 330180 or 330181 series, is compatible with the 330104 transducer gap range and cable length specified in the original loop documentation.

For facilities operating 3500 Series monitors alongside legacy 3300 XL racks, the 330104-00-18-10-02-00 remains interoperable provided the 3500/42M or 3500/40M monitor card is configured for the correct transducer type and sensitivity. This cross-platform compatibility makes the 330104 a preferred stocking item for maintenance teams managing mixed-generation Bently Nevada installations. Procurement teams should also note that the 330130-080-00-00 extension cable and the 330103 transducer family are frequently ordered alongside the 330104 to complete a full channel replacement kit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-00-18-10-02-00 into an existing control architecture begins well before the sensor arrives on site. Maintenance engineers should pull the original loop drawing to confirm the probe length suffix (-18 inches in this configuration), the extension cable length, and the Proximitor model number. A mismatch in any of these three components will shift the calibrated output curve and trigger nuisance alarms or, worse, suppress genuine vibration events.

When the 3300 XL rack also houses 3300 XL Dual Voting or 3300 XL Tachometer modules, the replacement schedule should be coordinated to avoid partial rack shutdowns that could affect adjacent protection channels. If the facility is simultaneously migrating from a 3300 XL rack to a 3500 rack, the I/O wiring from the junction box to the monitor terminal block will need to be re-landed, and the new monitor card must be programmed with the correct transducer type, full-scale range, and danger/alert setpoints previously documented in the 3300 XL configuration printout.

Power supply integrity is a frequently overlooked element of proximity transducer retrofits. The Proximitor sensor requires a stable −24 VDC supply; if the rack power supply — such as the 3500/15 Power Supply — is aging or undersized for an expanded I/O count, it should be evaluated before the new transducer is commissioned. An unstable supply voltage will produce erratic gap readings and may prevent the OK relay from latching, causing the monitor to report a fault condition even when the transducer is correctly installed and gapped.

For facilities using a System 1 or System 1 Evolution condition-monitoring software platform, the channel tag, engineering units, and full-scale range configured in the software database must be updated to reflect the new transducer’s calibration data. This step is often deferred and later causes confusion during trend analysis, so it should be included in the commissioning checklist alongside the physical gap-voltage verification.

Downtime Control During System Migration

The 330104-00-18-10-02-00 is designed to support a rapid swap-out procedure that keeps total channel downtime to under two hours in most field scenarios. Because the transducer is a direct mechanical and electrical replacement for the existing 330104 family, the probe bracket, extension cable, and Proximitor can remain in place if they are within service life. The technician needs only to de-energize the Proximitor supply, remove the old probe, install the new 330104-00-18-10-02-00 to the same thread depth, reconnect the extension cable, restore power, and verify gap voltage before returning the channel to service.

To protect original program logic during the replacement, the monitor should be placed in bypass mode — not powered down — so that the host DCS or safety system does not interpret the channel dropout as a genuine machine fault. Most 3300 XL and 3500 monitors support a hardware bypass via front-panel keyswitch or software inhibit through the monitor configuration tool. Documenting the bypass start and end time in the maintenance management system satisfies audit requirements and provides a clear record for post-maintenance review.

Where the retrofit is part of a broader control-cabinet upgrade — for example, replacing an entire 3300 XL rack with a 3500 rack while the machine remains in standby — a parallel wiring strategy allows the new rack to be fully wired, configured, and loop-checked before the old rack is decommissioned. This approach eliminates the risk of a wiring error causing an unplanned trip and is strongly recommended when more than four channels are being migrated simultaneously.

All units supplied by KNMKS are pre-shipment tested for output sensitivity, OK relay function, and connector integrity. The support terms confirmed by quotation cover manufacturing defects and provides a clear escalation path if a unit fails to perform within specification after correct installation.

Retrofit Support FAQ

Q1: Is the 330104-00-18-10-02-00 a direct replacement for my existing 330104 transducer?
Yes, provided the full part-number suffix matches your existing installation. The suffix encodes probe length, extension cable length, temperature rating, and connector type. Confirm each field against your loop drawing before ordering. If your existing probe carries a different suffix, contact our technical team with your current part number and we will identify the correct replacement.

Q2: What commissioning steps are required after installation?
After mechanical installation, restore Proximitor power and measure the DC gap voltage at the Proximitor output terminal. The nominal gap voltage should fall within the linear range specified in the 3300 XL calibration curve (typically −10 VDC ± 1 V at the recommended air gap). Confirm the OK relay has latched, check that the monitor channel is not in alarm, and verify the reading in System 1 or your DCS historian before removing the bypass inhibit.

Q3: Can I use this transducer with a 3500 Series monitor?
Yes, with configuration. The 3500/40M and 3500/42M monitor cards support the 3300 XL 8 mm transducer family when the channel is configured for the correct transducer type and sensitivity. Ensure the Proximitor model is also compatible with the 3500 rack’s power supply voltage and that the channel configuration file is updated in the 3500 Rack Configuration Software before commissioning.

Q4: What is the support terms coverage and what does KNMKS stock?
All 330104-00-18-10-02-00 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and verified performance failures under correct installation conditions. We maintain ready stock of the 330104 family and associated extension cables and Proximitor sensors to support urgent replacement requirements. Pre-shipment functional testing is performed on every unit, and a test report is available upon request.
