Bently Nevada 330104-00-18-10-01-00 Spare Part for Factory Uptime

Overview

Bently Nevada 330104-00-18-10-01-00 Maintenance-Proven Spare Part for Factory Uptime

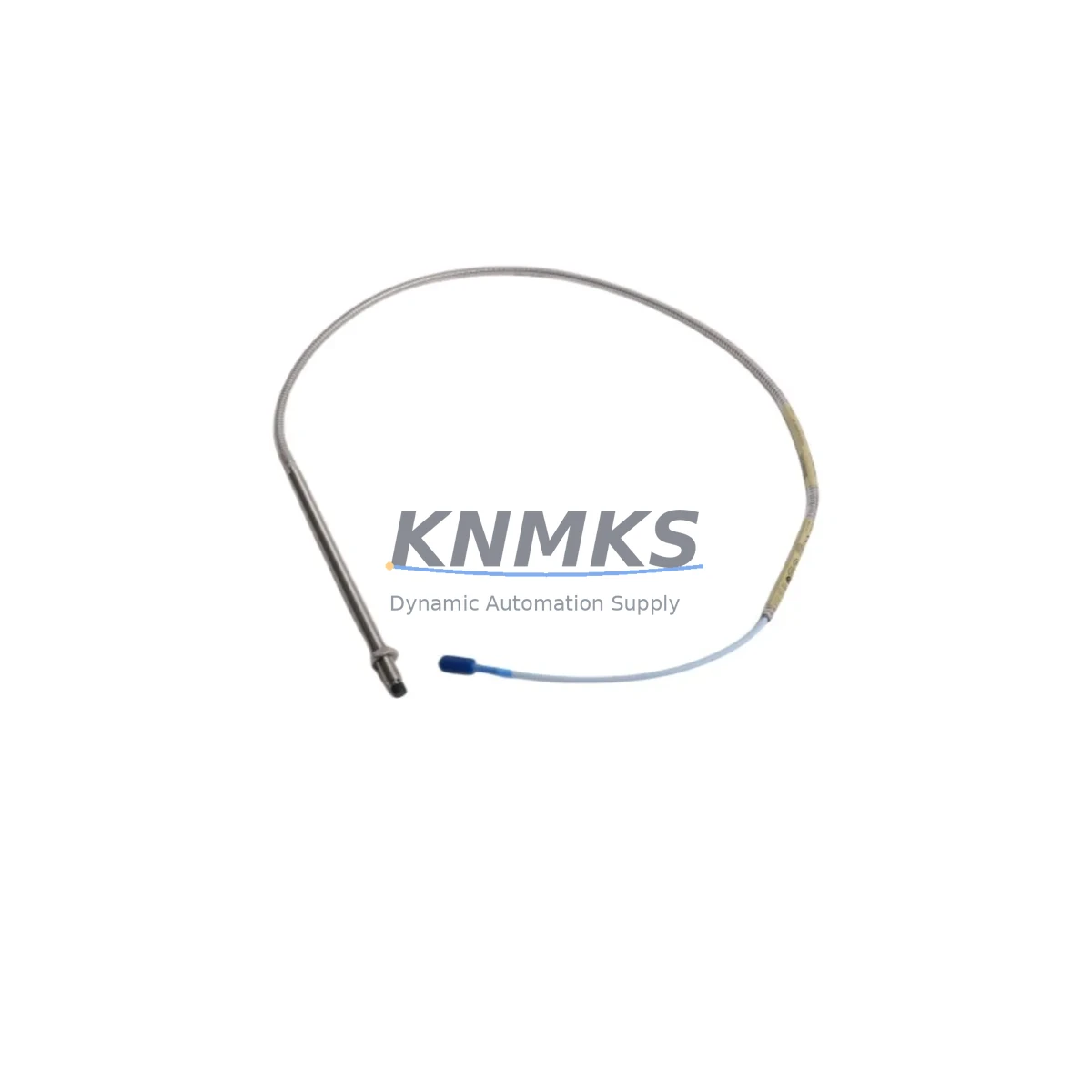

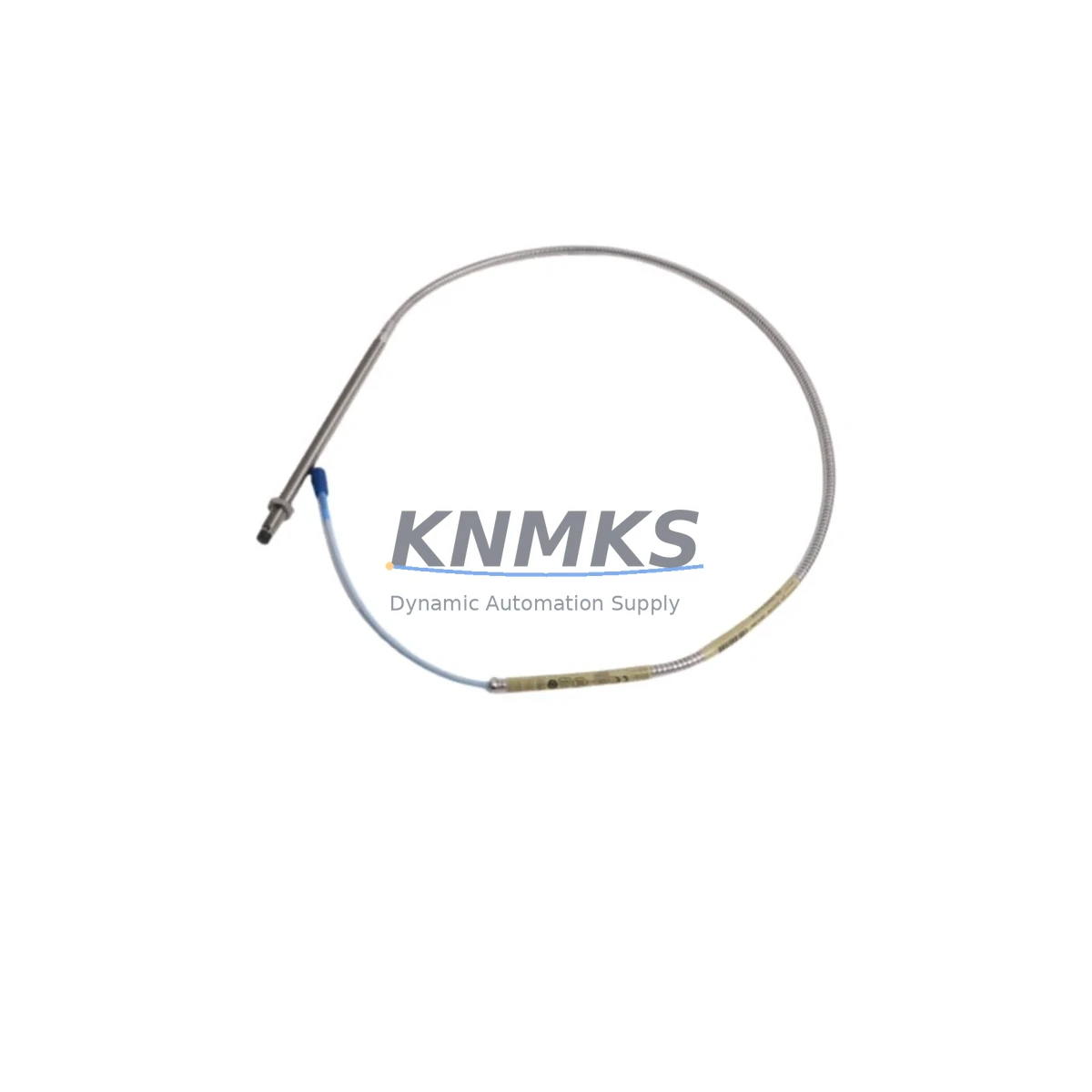

The Bently Nevada 330104-00-18-10-01-00 is an 8mm proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core sensing element within the Bently Nevada 3300 XL Series system, this probe delivers the high-frequency eddy-current response required for shaft displacement measurement on turbines, compressors, pumps, and motors operating in demanding industrial environments. Sourced as an original spare, each unit is inspected and tested prior to dispatch, ensuring drop-in compatibility with existing 3300 XL monitor racks without recalibration delays.

For maintenance engineers managing rotating equipment reliability programs, having a verified stock of the 330104-00-18-10-01-00 on the shelf is a fundamental risk-reduction strategy. Proximity probe failures are among the most common causes of unplanned machinery trips — a single degraded probe can trigger a false high-vibration alarm, forcing an emergency shutdown that costs far more than the probe itself. Keeping one or two units in your critical-spares cabinet eliminates that exposure and supports rapid fault isolation during scheduled outages.

Procurement engineers sourcing this part should confirm the full SKU — 330104-00-18-10-01-00 — against the installed system’s bill of materials. The 3300 XL platform uses a matched system approach: the probe, extension cable (such as the 330130 series), and proximitor/driver module (such as the 3300 XL 8mm Proximitor, 330180 series) must be ordered and replaced as a compatible set to maintain system sensitivity and gap voltage specifications. Substituting components from different series or cable lengths without recalculating the system scale factor will introduce measurement error and may void the monitor’s calibration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-18-10-01-00 during a planned outage or emergency callout, the maintenance window should be used to inspect the entire vibration monitoring loop — not just the probe tip. Begin at the proximitor module (330180 series or equivalent 3300 XL Proximitor): verify the gap voltage reading falls within the –10 VDC to –18 VDC linear range for an 8mm system. A gap voltage outside this window after probe replacement indicates either a cable length mismatch, a damaged proximitor, or incorrect probe-to-shaft gap setting.

Next, trace the extension cable (typically a 330130 series armored extension) from the probe connector to the proximitor input. Inspect the coaxial connectors at both ends for corrosion, mechanical damage, or intermittent contact — these are a frequent source of noise spikes that mimic real vibration events. If the cable shows any sign of jacket damage or has been in service for more than five years in a high-temperature zone, replace it alongside the probe rather than risk a repeat callout.

At the monitor rack level, confirm that the 3300 XL monitor card assigned to this channel is reading correctly after probe installation. If the channel shows a fault or the OK relay has dropped out, check the monitor’s configuration for the correct transducer type and scale factor. In multi-channel racks, also inspect adjacent I/O terminal blocks and signal wiring for loose terminations — vibration from nearby machinery can work screws loose over time.

For facilities running Bently Nevada System 1 or System 1 Evolution software, verify that the new probe’s serial number and installation date are logged in the asset database. This supports predictive maintenance trending and ensures the probe’s service life is tracked against the support terms confirmed by quotation period. If the control cabinet also houses a 3500 series rack or a TDI (Transient Data Interface) module, those units should be included in the same inspection round to avoid a second entry into the hazardous area.

Procurement teams managing multi-site operations should consider stocking the 330104-00-18-10-01-00 alongside its matched extension cable and a spare 330180 Proximitor as a complete replacement kit. This eliminates the risk of a partial repair — where a new probe is installed but a marginal proximitor causes the channel to fail again within weeks. A kit-based sparing strategy reduces mean time to repair (MTTR) and simplifies the purchasing process for maintenance planners.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and confirm the machinery is in a safe state. For online replacement (where permitted by the monitor’s bypass function), activate the channel bypass in the 3300 XL monitor to prevent a spurious trip during probe removal.

Step 2 — Remove the Old Probe: Disconnect the extension cable at the probe connector. Unscrew the probe from its mounting bracket, noting the number of turns to establish the approximate gap setting for the replacement unit.

Step 3 — Install the 330104-00-18-10-01-00: Thread the new probe into the bracket. Set the probe tip-to-shaft gap to the value specified in the system’s calibration record (typically 1.0–1.5 mm for an 8mm probe on steel). Reconnect the extension cable and verify connector seating.

Step 4 — Verify Gap Voltage: At the proximitor output, measure the DC gap voltage with a calibrated multimeter. Confirm the reading is within the linear range (–10 VDC to –18 VDC). Adjust the probe gap if necessary.

Step 5 — Functional Check & Bypass Release: Confirm the monitor channel shows an OK status and the vibration reading is within the expected baseline range. Release the channel bypass and restore normal monitoring. Document the replacement in the maintenance management system.

This workflow applies equally to legacy installations where the 330104-00-18-10-01-00 replaces an older 7200 series or 3300 series probe — the 3300 XL system’s backward-compatible mounting thread (10-32) and standard gap voltage specification make cross-generation replacement straightforward, provided the extension cable length is matched to the new probe’s integral cable length.

Spare Parts Support FAQ

Q1: Is the 330104-00-18-10-01-00 compatible with both 3300 XL and 3500 series monitor racks?
The 330104-00-18-10-01-00 is designed and calibrated for the Bently Nevada 3300 XL system. While the physical connector is compatible with 3500 series proximitor inputs, the system scale factor and sensitivity specification must be verified against the 3500 monitor’s configuration before use. We recommend confirming compatibility with your system documentation or contacting our technical team before ordering for a 3500 application.

Q2: What is included in the support terms confirmed by quotation, and how does the claims process work?
Every 330104-00-18-10-01-00 shipped from KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each unit is tested for continuity and output signal prior to dispatch. In the event of a support terms claim, contact admin@knmks.com with the order number and a description of the fault. We will arrange a replacement or repair at no additional cost within the confirmed support period.

Q3: How should I store the 330104-00-18-10-01-00 as a long-term spare?
Store the probe in its original packaging in a dry, temperature-controlled environment (0°C to 40°C) away from strong magnetic fields and mechanical shock. The coaxial connector should be capped to prevent contamination. For long-term storage beyond 12 months, inspect the connector and cable jacket annually and perform a continuity check before installation. KNMKS can supply sealed, individually tested units suitable for multi-year shelf storage on request.

Q4: Can KNMKS support ongoing supply for large-scale or multi-site maintenance programs?
Yes. KNMKS maintains stock of the 330104-00-18-10-01-00 and related 3300 XL components to support blanket purchase orders, annual maintenance contracts, and emergency call-off arrangements. We offer consolidated shipment for multi-part orders, pre-shipment functional testing reports, and long-term supply agreements to ensure your critical spares program is never interrupted. Contact admin@knmks.com or call +86 18359268345 to discuss your requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-18-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-18-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
