Bently Nevada 330104-00-17-10-11-05 3300 XL Maintenance Spare

Overview

Bently Nevada 330104-00-17-10-11-05 3300 XL Maintenance-Proven Spare Part for Factory Uptime

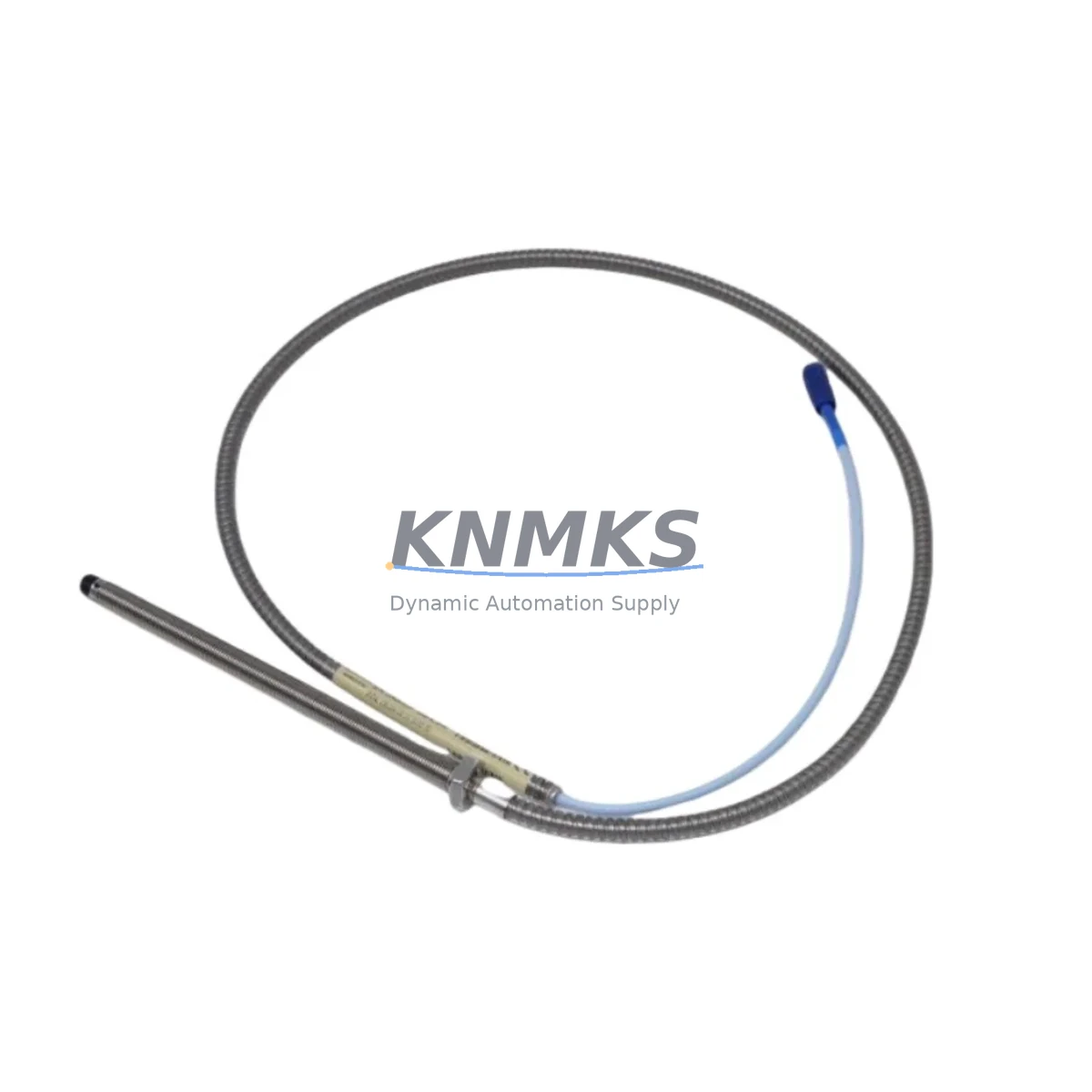

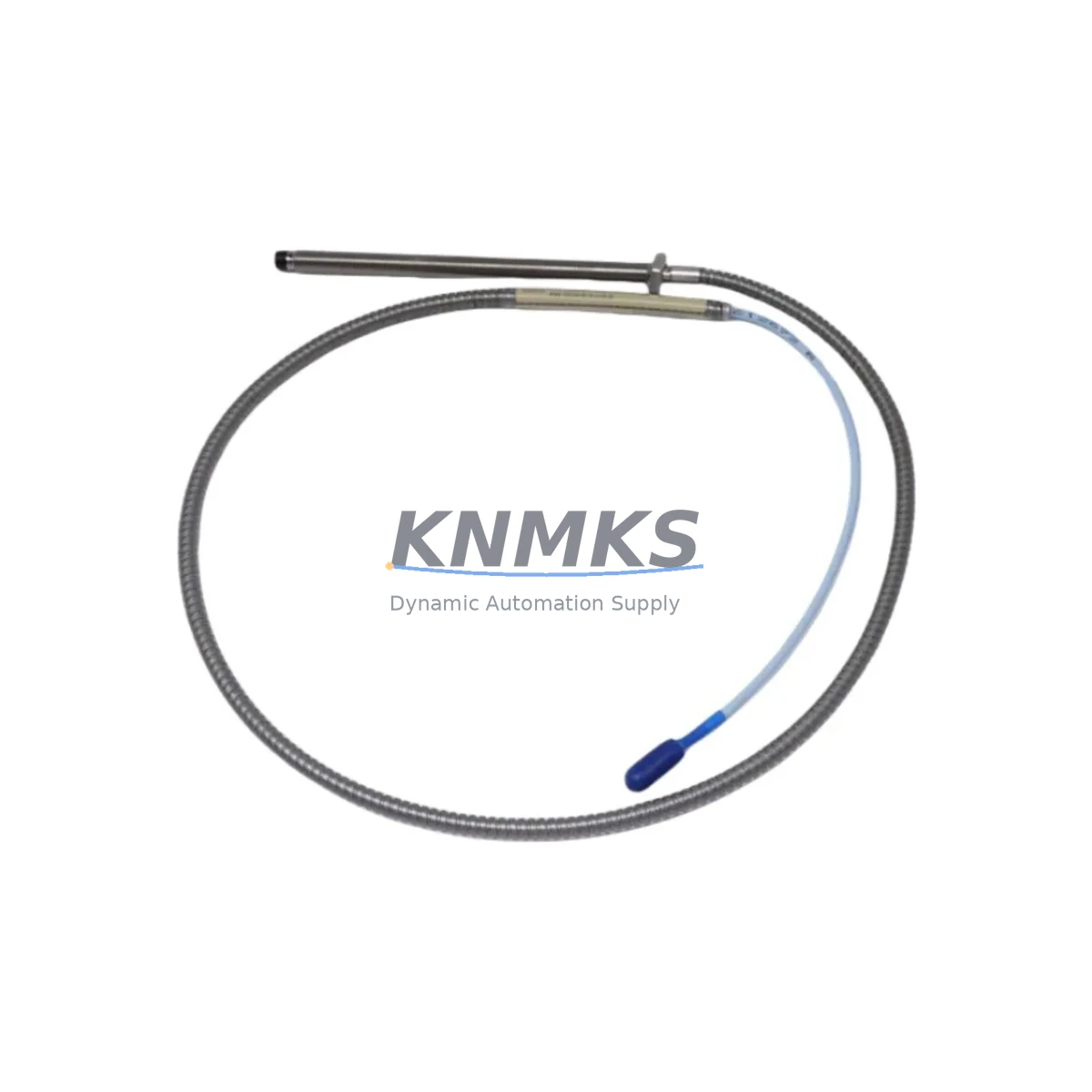

The Bently Nevada 330104-00-17-10-11-05 is an 8mm proximity probe designed for the 3300 XL Series continuous machinery monitoring system. Engineered to API 670 standards, this probe delivers reliable non-contact vibration and position measurement for rotating equipment including turbines, compressors, pumps, and motors across energy, petrochemical, and heavy manufacturing facilities. Maintaining a verified stock of this probe is a fundamental requirement for any maintenance program that cannot tolerate unplanned downtime on critical rotating assets.

For maintenance engineers, the 330104-00-17-10-11-05 is a direct replacement probe with a 5-metre integral cable, compatible with the 3300 XL proximitor/driver system. Its eddy-current sensing principle requires no physical contact with the shaft, making it a long-service-life component when installed correctly. However, probes are subject to cable fatigue, connector corrosion, and tip damage during routine inspections or emergency access events — making on-hand spares essential for rapid fault recovery.

For procurement engineers, sourcing this probe from a verified supplier with documented testing and a support terms confirmed by quotation eliminates the risk of counterfeit or out-of-specification parts entering a safety-critical monitoring loop. Each unit shipped by KNMKS is inspected and tested prior to dispatch, with full traceability documentation available on request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-17-10-11-05 probe in the field, a disciplined maintenance engineer will treat the event as a trigger for a broader inspection of the associated monitoring loop and control cabinet. The 3300 XL system is a multi-component architecture, and a probe failure or degraded signal rarely occurs in isolation.

Begin by inspecting the 3300 XL Proximitor/Driver (such as the 330180-51-05 or equivalent) for signs of moisture ingress, terminal corrosion, or output signal drift. The proximitor converts the probe’s eddy-current signal into a usable voltage output — a worn or contaminated proximitor will produce erratic readings even with a new probe installed. Simultaneously, check the extension cable (typically a 330130 series armoured extension) for jacket damage, connector pin integrity, and continuity. Extension cable failures are a common root cause of apparent probe faults.

Within the control cabinet, verify the barrier or signal isolator associated with the vibration channel. In hazardous area installations, a Zener barrier or galvanic isolator (such as those in the MTL or P+F series) protects the monitoring circuit from intrinsically safe zone requirements. These components have defined service lives and should be replaced on a scheduled basis rather than reactively. Also inspect the terminal blocks and wiring on the I/O side — loose terminations on vibration signal wiring introduce noise that can mask real machinery faults or trigger nuisance trips.

For facilities running a Bently Nevada 3500 Series rack alongside legacy 3300 XL installations, confirm that the replacement probe’s sensitivity and gap voltage specifications are compatible with the monitor card in use. Mixed-generation systems require careful compatibility verification before commissioning a replacement. If the plant uses a System 1 Evolution or similar condition monitoring software platform, recalibrate the channel after probe replacement and confirm that alarm setpoints are correctly restored.

Finally, review the fuse and power supply feeding the 3300 XL rack. A blown fuse or marginal DC power supply voltage is a frequently overlooked contributor to monitoring system faults. Stocking a set of replacement fuses and verifying the rack power supply output voltage during the maintenance window adds minimal time but significantly reduces the risk of a repeat callout.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit and confirm the machinery is in a safe state for probe access. For online replacement (where permitted by plant procedures), coordinate with the control room to acknowledge the monitoring channel before disconnection.

Step 2 — Document Existing Gap Voltage: Before removing the old probe, record the existing gap voltage reading from the proximitor output. This baseline confirms the original installation gap and provides a reference for the replacement setup.

Step 3 — Remove and Inspect: Disconnect the extension cable from the probe connector. Inspect the connector pins, cable jacket, and probe tip for damage. If the extension cable shows any sign of damage, replace it simultaneously — a new probe connected to a degraded cable will not restore system integrity.

Step 4 — Install Replacement 330104-00-17-10-11-05: Thread the new probe into the probe holder to the correct gap distance per the OEM specification (typically 1.0–1.5mm for 8mm probes on steel targets). Use a non-metallic gap-setting tool to avoid disturbing the target surface.

Step 5 — Set and Verify Gap Voltage: Reconnect the extension cable and proximitor. Measure the DC gap voltage at the proximitor output. Adjust probe position until the gap voltage falls within the specified linear range (typically -10 VDC ±0.5 VDC for standard 3300 XL configurations). Lock the probe in position and apply thread-locking compound per OEM guidance.

Step 6 — Functional Test and Restore: Confirm the vibration channel is reading a stable, noise-free signal at the monitoring system. Clear any maintenance bypasses, restore alarms, and update the maintenance record with the replacement date, new probe serial number, and final gap voltage.

Spare Parts Support FAQ

Q1: Is the 330104-00-17-10-11-05 compatible with both 3300 XL and 3500 Series Bently Nevada systems?
The 330104-00-17-10-11-05 is a 3300 XL series probe. Compatibility with 3500 Series monitor cards depends on the specific card type and its configured input sensitivity. Always verify the probe sensitivity specification (mV/mil or mV/µm) against the monitor card datasheet before installation. KNMKS can provide technical documentation to support compatibility verification on request.

Q2: How should this probe be stored as a long-term inventory spare?
Store the probe in its original packaging or an anti-static, moisture-resistant bag in a temperature-controlled environment (10°C–35°C, <70% RH). Avoid storing near strong magnetic fields or sources of mechanical vibration. Inspect connector pins and cable jacket annually. KNMKS recommends rotating long-term spares into service within 3 years of purchase to maintain optimal performance.

Q3: What testing is performed before shipment?
Each 330104-00-17-10-11-05 unit supplied by KNMKS undergoes pre-shipment inspection covering physical integrity, connector pin condition, cable continuity, and where applicable, functional output verification. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and verified performance failures under normal operating conditions.

Q4: Can KNMKS support long-term or blanket purchase agreements for this part?
Yes. KNMKS supports long-term supply agreements for critical spare parts including the 330104-00-17-10-11-05. Blanket orders, scheduled releases, and consignment stock arrangements are available for facilities with defined annual maintenance budgets or multi-site procurement programmes. Contact our sales team to discuss volume pricing and supply continuity terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-17-10-11-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-17-10-11-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
