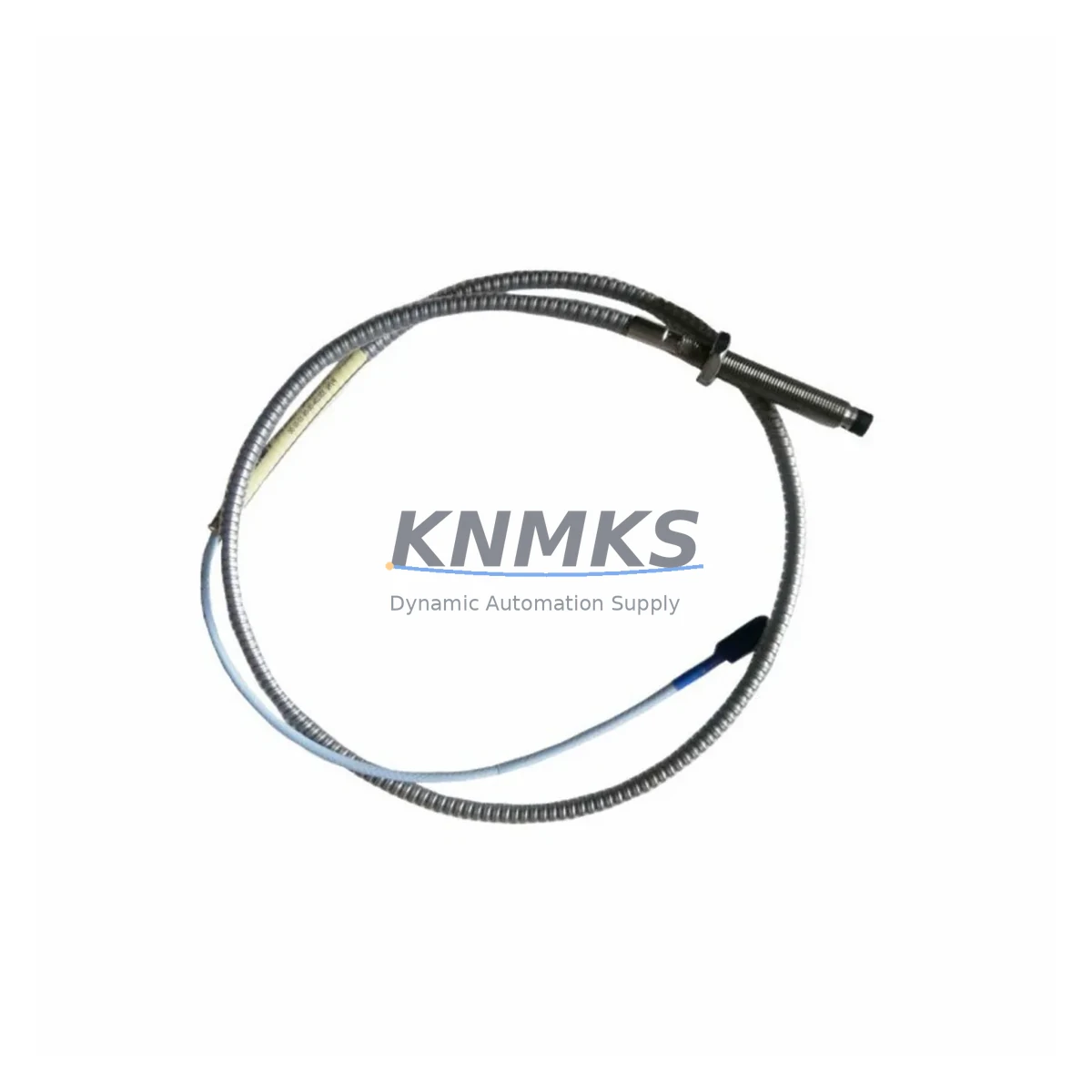

Bently Nevada 330104-00-16-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-00-16-05-02-00 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

The Bently Nevada 330104-00-16-05-02-00 is an 8 mm eddy-current proximity probe engineered for the 3300 XL Proximity Transducer System. Designed to deliver continuous, fail-safe vibration and radial position measurement on rotating machinery, this probe is a cornerstone component in safety-critical control loops across petrochemical, power generation, mining, and continuous manufacturing facilities. Its robust construction and precision signal output make it the preferred choice for maintenance engineers who cannot afford unplanned downtime or measurement drift in high-stakes environments.

In modern industrial control cabinets, signal integrity and measurement continuity are non-negotiable. The 330104-00-16-05-02-00 operates within the proven 3300 XL architecture, delivering a stable, low-noise DC voltage output that interfaces directly with Bently Nevada 3300 XL Proximitor® Sensors and compatible vibration monitors. This tight system integration eliminates signal chain ambiguity, reduces the risk of false trips, and ensures that safety interlock logic receives accurate, real-time shaft position data at all times.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe tip but depends on a complete, well-matched signal chain throughout the control cabinet. The 330104-00-16-05-02-00 proximity probe is designed to work in concert with the Bently Nevada 330130-045-00-00 extension cable, which maintains signal integrity over long field runs between the probe and the Proximitor sensor. In high-EMI environments — common in heavy motor drive rooms, arc furnace bays, and variable-frequency drive (VFD) enclosures — the shielded coaxial construction of both the probe cable and the extension cable is essential to prevent signal drift and spurious trip events.

Within the vibration monitoring rack, the Bently Nevada 3300/16-02-01-01-00-00 Proximitor® Sensor conditions the raw probe signal into a calibrated output suitable for the 3500 Series Machinery Protection System monitors. These monitors provide the relay outputs that feed safety PLCs and emergency shutdown (ESD) systems. In facilities running Triconex or Rockwell GuardLogix safety controllers, the 3500 system relay contacts integrate directly into the safety interlock loop, ensuring that a bearing failure or rotor rub triggers an orderly, fail-safe machine trip before catastrophic damage occurs.

Power supply stability is equally critical. Fluctuations or micro-interruptions in the –24 VDC supply rail — typically sourced from a Bently Nevada 3500/15 Power Supply or an equivalent DIN-rail SMPS unit — can cause the Proximitor sensor to output erroneous gap voltages, leading to nuisance trips or, worse, missed alarms. Pairing the power supply with a surge protection device on the DC bus and maintaining proper cabinet grounding practices eliminates this risk. For cabinets in coastal, humid, or chemically aggressive atmospheres, conformal-coated PCB assemblies and IP54-rated enclosure accessories further extend the service life of the entire monitoring chain.

Where shaft position monitoring must be complemented by process variable feedback, integrating the vibration data with a Bently Nevada 3500/42M Position Monitor or a compatible 4–20 mA transmitter allows the DCS or SCADA layer to correlate mechanical condition with process upsets in real time — a capability increasingly mandated in ISO 13373 and API 670 compliant installations.

Critical Industrial Safety Applications

Petrochemical & Refinery: Centrifugal compressors, reactor charge pumps, and boiler feed pumps in continuous process units operate around the clock. A single undetected bearing failure can trigger a process upset, fire, or toxic release. The 330104-00-16-05-02-00 provides the real-time radial vibration data that allows the safety system to initiate a controlled shutdown before a seal failure or rotor contact occurs, protecting both personnel and high-value rotating assets.

Power Generation: Steam turbines and gas turbines in baseload and peaking power plants rely on proximity probe arrays to monitor shaft eccentricity, differential expansion, and thrust position. The 3300 XL probe’s wide operating temperature range and resistance to steam condensate make it suitable for both the hot end and cold end of the turbine train, where measurement reliability directly affects grid stability.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, high vibration, and frequent electrical transients from large motor starters. The robust mechanical construction and EMI-shielded cable of the 330104-00-16-05-02-00 maintain measurement accuracy even when installed adjacent to high-power drive panels, reducing the risk of false trips that would halt ore processing and incur significant production losses.

Water & Wastewater Treatment: High-service pumps and blower trains in water treatment facilities must run continuously to maintain public health infrastructure. Proximity probe monitoring enables predictive maintenance scheduling, allowing bearing replacements to be planned during low-demand periods rather than responding to emergency failures that could compromise water supply.

Metallurgy & Steel: Rolling mill drives, continuous casters, and converter fans in steel plants face extreme thermal cycling, heavy vibration, and aggressive chemical atmospheres. The 330104-00-16-05-02-00’s rated operating temperature and sealed construction ensure consistent performance in these demanding conditions, supporting the uninterrupted production schedules that modern steel operations demand.

Port & Marine: Shipboard propulsion systems, cargo pump turbines, and port crane drives require vibration monitoring solutions that tolerate salt spray, humidity, and the mechanical shock loads inherent in marine operations. The 3300 XL probe system’s proven reliability in offshore and marine-classified installations makes it a trusted choice for vessel operators and port facility engineers alike.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-00-16-05-02-00?
All units are covered by a support terms confirmed by quotation from the shipment date. The support terms covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation upon request, ensuring your maintenance records remain complete for audit and insurance purposes.

Q2: What pre-shipment testing is performed before dispatch?
Every 330104-00-16-05-02-00 unit undergoes full functional verification prior to shipment, including signal linearity checks across the specified gap range, cable continuity and insulation resistance testing, and connector integrity inspection. Test records are available upon request and can be included with the shipment documentation for traceability.

Q3: Is this probe compatible with existing 3300 XL Proximitor sensors and 3500 Series monitors?
Yes. The 330104-00-16-05-02-00 is a direct-fit replacement within the Bently Nevada 3300 XL Proximity Transducer System. It is fully compatible with 3300 XL Proximitor sensors, standard 3300 XL extension cables, and the 3500 Series Machinery Protection System monitors. No recalibration of the monitor is required when replacing a like-for-like probe in the same installation.

Q4: Can long-term supply be arranged for ongoing maintenance programs?
Yes. We maintain standing inventory of the 330104-00-16-05-02-00 and can support scheduled maintenance programs, annual spare parts contracts, and emergency replacement orders. For facilities managing large fleets of rotating machinery, we recommend establishing a minimum stock level agreement to eliminate lead-time risk during critical outage windows. Contact our sales team to discuss volume pricing and supply commitment arrangements.
