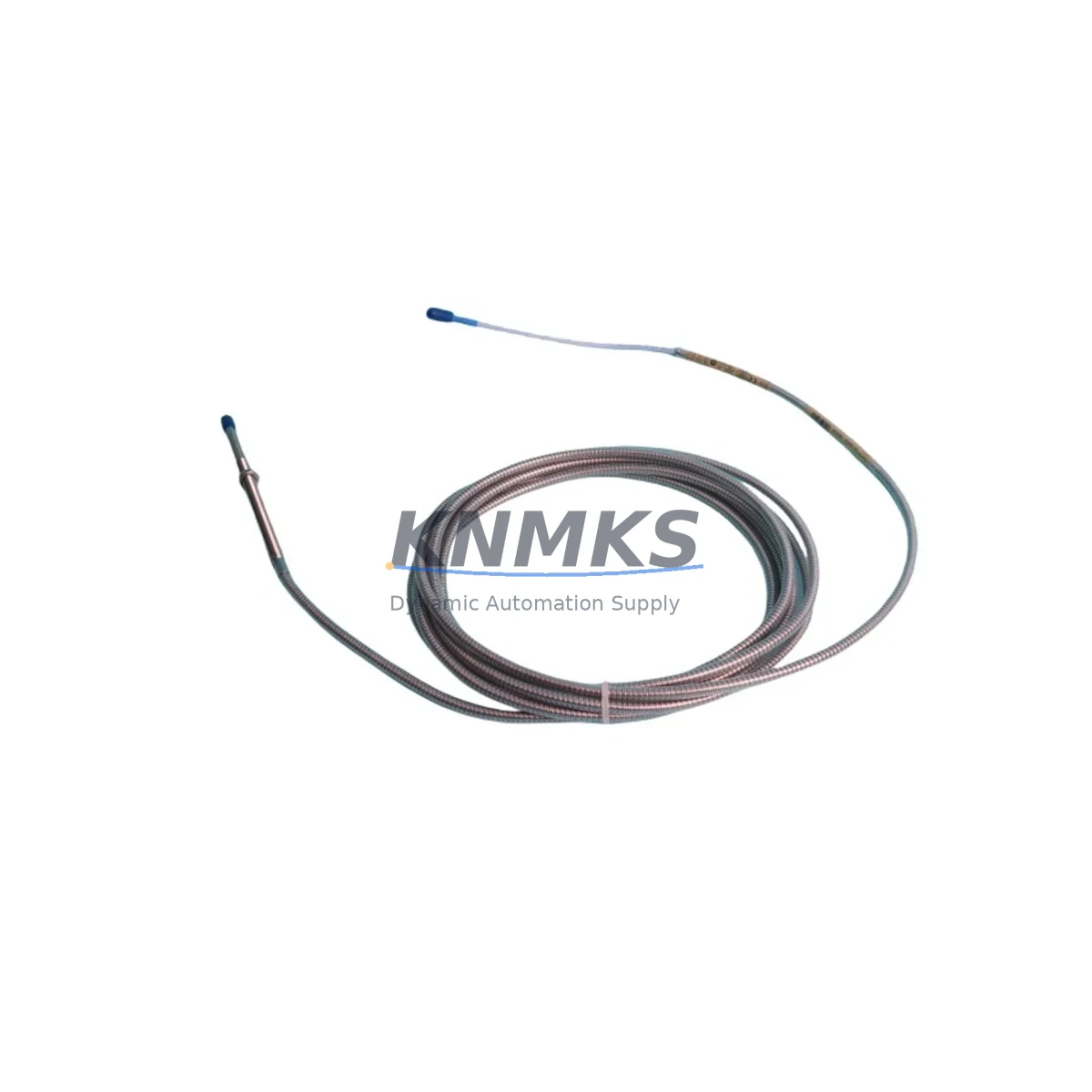

Bently Nevada 330104-00-16-05-01-CN Migration-Ready Proximity Transducer

Overview

Bently Nevada 330104-00-16-05-01-CN Migration-Ready Proximity Transducer: Legacy System Retrofit and Compatible Upgrade

The Bently Nevada 330104-00-16-05-01-CN is an 8mm eddy-current proximity transducer engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 XL monitoring systems approach end-of-support milestones, plant engineers and reliability teams face increasing pressure to source verified replacement components that maintain signal integrity, dimensional compatibility, and system certification without triggering full platform overhauls. The 330104-00-16-05-01-CN addresses this challenge directly: it is a migration-ready, drop-in replacement for existing 3300 XL transducer installations, validated against original Bently Nevada performance specifications and suitable for critical machinery protection applications in energy, petrochemical, and heavy manufacturing environments.

When planning a transducer replacement within an active 3300 XL monitoring loop, engineers must confirm several parameters before committing to a swap. Cable length and extension cable compatibility are primary concerns — the 330104-00-16-05-01-CN is designed to work with standard Bently Nevada 330130 series extension cables, preserving the calibrated gap voltage and sensitivity curve (7.87 V/mm nominal) without requiring recalibration of the connected monitor card. The probe tip diameter and thread specification must match the existing mounting boss in the bearing housing; the 8mm format of this SKU is dimensionally identical to the original factory-installed unit, eliminating the need for housing modification or adapter sleeves.

Power supply compatibility is another critical checkpoint. The 3300 XL monitor cards — including the 3300/16 and 3300/20 series — supply a regulated −24 VDC bias voltage to the transducer loop. Verify that the field junction box wiring and terminal block assignments have not been modified from the original installation drawing. Any deviation in loop resistance or cable shielding continuity will affect the gap voltage reading and may trigger false alerts on the connected 3300 XL monitor. During replacement, it is advisable to document the existing gap voltage (typically −10.0 to −11.0 VDC at nominal air gap) before removing the old probe, then verify the same reading after installing the 330104-00-16-05-01-CN to confirm correct seating and calibration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL transducer retrofit extends beyond the probe itself. In most legacy installations, the 330104-00-16-05-01-CN operates as part of a complete proximity system that includes the probe, a 330130 series extension cable, and a Bently Nevada 3300 XL proximitor/driver module mounted in the field junction box or control cabinet. Before scheduling the replacement outage, inspect the proximitor module for signs of moisture ingress, terminal corrosion, or output drift — a degraded proximitor will produce erratic gap voltage even with a new probe installed. If the proximitor is original to the installation and has accumulated more than 10 years of service, consider replacing it concurrently with the 330104-00-16-05-01-CN to eliminate a second unplanned outage.

Within the control cabinet, the 3300 XL monitor cards interface with the plant DCS or safety system via hardwired 4–20 mA outputs or relay contacts. If the site is also upgrading from a legacy DCS to a modern distributed I/O platform, coordinate the transducer replacement with the I/O module changeover to avoid signal mapping conflicts. Plants running Bently Nevada System 1 condition monitoring software should verify that the transducer channel configuration — including engineering unit scaling, full-scale range, and alert/danger setpoints — is backed up before any hardware change. The 3300/20 monitor card stores these parameters in non-volatile memory, but a configuration export to System 1 provides an additional recovery point.

For installations where the control cabinet also houses a Bently Nevada 3500 series rack alongside legacy 3300 XL hardware, the 330104-00-16-05-01-CN remains compatible with the 3300 XL signal chain and does not require adaptation to the 3500 series I/O modules. However, if the long-term migration plan includes transitioning to the 3500 platform, document the existing transducer mounting geometry and cable routing now to simplify the future upgrade. Signal isolators installed between the proximitor output and the DCS analog input card should also be inspected — degraded isolation barriers can introduce ground loops that mask genuine vibration events or generate nuisance trips during the commissioning phase after replacement.

HMI screens tied to the vibration monitoring loop should be reviewed before and after the replacement. Confirm that the gap voltage trend display, vibration amplitude bar graph, and alarm annunciation panels reflect the correct engineering units and that no channel offset has been introduced by the new probe installation. If the site uses a Bently Nevada TDXnet or System 1 Evolution historian, verify that the data acquisition channel resumes logging within the expected scan interval after the replacement is complete.

Downtime Control During System Migration

Minimizing production downtime during a proximity transducer replacement requires a structured pre-outage preparation protocol. Begin by assembling all replacement components — the 330104-00-16-05-01-CN probe, a spare 330130 extension cable if the existing cable shows wear, and a calibrated gap-setting tool — before the maintenance window opens. Pre-verify the new probe’s output voltage on a bench test fixture using a −24 VDC supply and a reference target at the nominal air gap distance. This confirms the unit is functional before it enters the machine, eliminating the risk of discovering a defective component after the equipment is already offline.

During the outage, follow a defined sequence: isolate the monitor channel (place the 3300 XL monitor card in bypass or inhibit mode to suppress spurious alarms), remove the old probe, install the 330104-00-16-05-01-CN to the specified torque, reconnect the extension cable, and restore the monitor channel. Measure the gap voltage immediately after restoration and compare it to the pre-outage baseline. If the reading is within ±0.5 VDC of the original value, the installation is correct and the machine can be returned to service. If the reading deviates significantly, re-check the air gap, cable connections, and proximitor output before releasing the equipment.

Preserving the original control program logic is straightforward for this replacement because the 330104-00-16-05-01-CN is a passive analog device — it does not require firmware updates, address configuration, or software re-commissioning. The PLC or DCS program that processes the monitor card’s 4–20 mA output remains unchanged. This characteristic makes the 330104-00-16-05-01-CN particularly valuable in facilities where program change management procedures are time-consuming, as the replacement can be completed and documented as a like-for-like hardware swap without triggering a formal software modification workflow.

Retrofit Support FAQ

Q1: Is the 330104-00-16-05-01-CN a direct replacement for the standard 330104-00-16-05-01 without the CN suffix?
The CN suffix designates a variant produced for the Chinese market and compliant with relevant regional certification requirements. Electrically and mechanically, the unit is equivalent to the standard 330104-00-16-05-01 and is compatible with the same 3300 XL monitor cards, extension cables, and proximitor modules. Confirm with your site’s compliance team whether the CN certification marking satisfies local regulatory requirements before installation in a safety-instrumented system.

Q2: What pre-shipment testing is performed on the 330104-00-16-05-01-CN?
Each unit undergoes a functional output test at nominal bias voltage and air gap before shipment. The gap voltage, sensitivity linearity, and cable connector integrity are verified against Bently Nevada performance specifications. A test report is available upon request. The support terms confirmed by quotation cover manufacturing defects identified during installation or normal service within the confirmed support period.

Q3: Can the existing 330130 extension cable be reused with the new probe?
In most cases, yes — provided the cable insulation is intact, the connector pins show no corrosion or deformation, and the cable length matches the original calibrated system. Reusing a damaged or mismatched extension cable will affect the gap voltage calibration and may void the support terms on the new probe. If the cable condition is uncertain, replace it concurrently with the 330104-00-16-05-01-CN.

Q4: What is the typical lead time and stock availability?
The 330104-00-16-05-01-CN is maintained in inventory to support urgent replacement and planned maintenance schedules. Standard orders ship within 3–5 business days. For critical plant shutdowns or emergency replacements, contact the sales team directly to confirm same-day or next-day dispatch availability. Bulk orders for spare parts programs and long-term supply agreements are supported.
