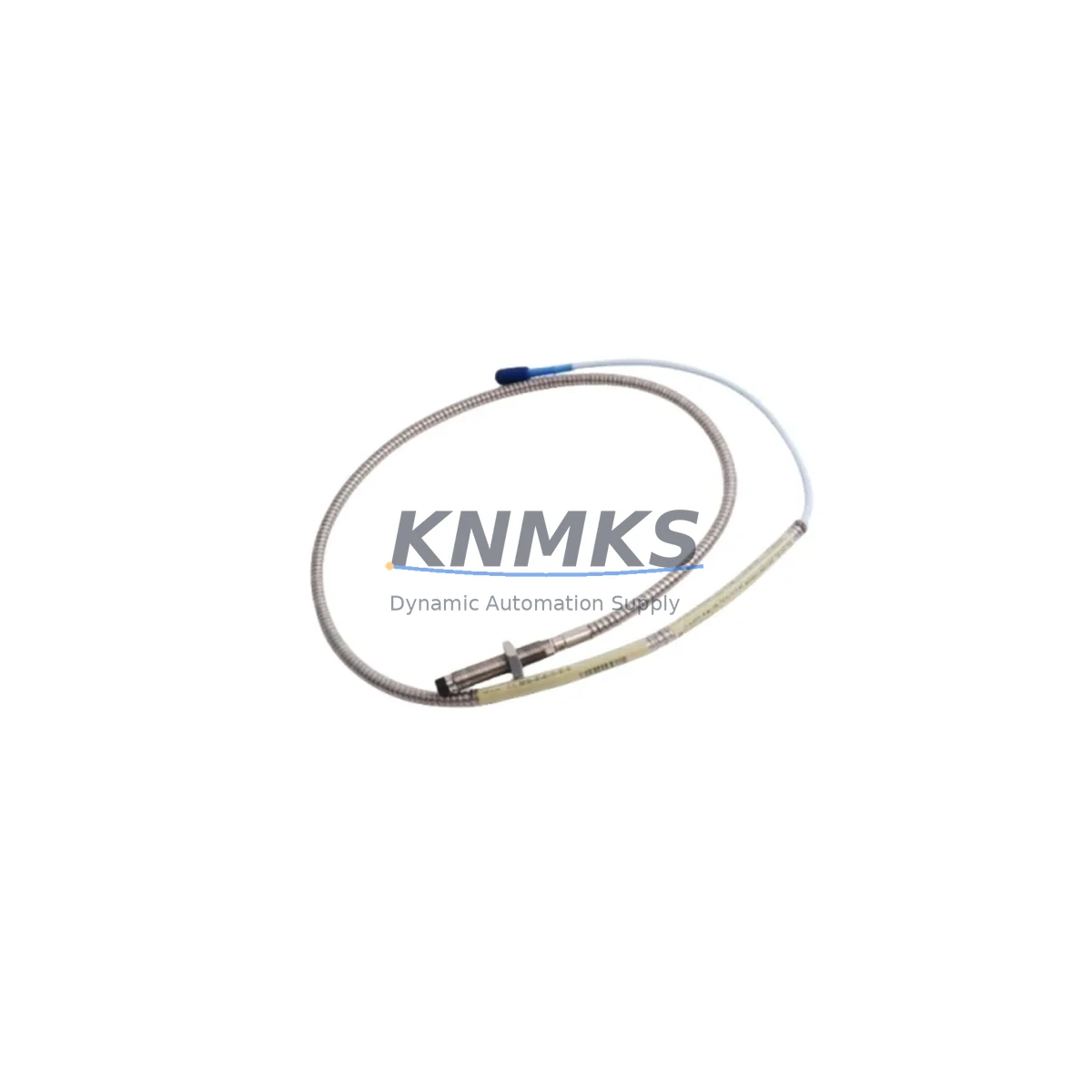

Bently Nevada 330104-00-14-10-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-00-14-10-02-CN Fail-Safe Proximity Probe: Fault Protection for Critical Industrial Reliability

The Bently Nevada 330104-00-14-10-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this probe delivers stable, drift-free output signals even under conditions of high electromagnetic interference, mechanical vibration, elevated temperature, and moisture ingress — conditions that routinely compromise lesser sensing technologies.

In safety-critical applications where an undetected shaft displacement or bearing fault can escalate into catastrophic equipment failure, the 330104-00-14-10-02-CN provides the measurement integrity that plant engineers and reliability teams depend on. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring consistent performance across extended service intervals without signal degradation. The probe is fully compatible with the Bently Nevada 3300 XL Extension Cable and the 3300 XL 8mm Proximitor Sensor, forming a complete, calibrated measurement chain that maintains system accuracy from the probe tip to the monitoring rack.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe but depends on the integrity of the entire signal chain and the control cabinet environment. The 330104-00-14-10-02-CN is typically deployed alongside the Bently Nevada 3300 XL Proximitor Sensor (330180-X1-CN), which conditions the raw probe signal into a calibrated DC voltage suitable for direct input to the Bently Nevada 3500/42M Proximitor Monitor — a rack-mounted module that provides alarm, danger, and relay output functions for automated machinery shutdown.

Within the control cabinet, power supply stability is critical. Voltage fluctuations and transient surges on the 24 VDC instrument bus can introduce signal offsets that mimic real shaft displacement events, triggering nuisance trips or — more dangerously — masking genuine fault conditions. Pairing the monitoring system with a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply with integrated SFB (Selective Fuse Breaking) technology ensures that the Proximitor Sensor receives clean, regulated power even during upstream grid disturbances. For surge protection at the cabinet entry point, a Phoenix Contact TRABTECH surge protection device on the signal and power lines prevents transient energy from reaching sensitive measurement electronics.

In high-EMI environments — common in motor control centers, variable frequency drive (VFD) cabinets, and arc furnace facilities — the shielded coaxial construction of the 330104-00-14-10-02-CN and its matched extension cable provides inherent noise rejection. However, proper grounding of the cable shield at a single point, combined with physical separation from high-voltage power conductors, remains essential. Where cabinet thermal management is a concern, integrating a Rittal TopTherm cabinet cooling unit maintains internal temperatures within the operating envelope of all installed instrumentation, preventing thermal drift in the Proximitor Sensor output that could compromise measurement accuracy.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-14-10-02-CN is deployed across a broad spectrum of safety-critical and continuous-process industries where unplanned rotating machinery downtime carries severe operational, financial, and safety consequences.

Petrochemical and Refining: In compressor trains and centrifugal pump systems at refineries and gas processing plants, this probe monitors radial shaft vibration and axial position on critical rotating equipment. Early detection of bearing wear, rotor imbalance, or misalignment allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures that can result in process upsets, hydrocarbon releases, or fire hazards.

Power Generation: Steam turbine and gas turbine generators in thermal and combined-cycle power plants rely on API 670-compliant proximity probe systems for continuous shaft monitoring. The 330104-00-14-10-02-CN, integrated into a 3500 Series protection rack, provides the real-time vibration data that turbine control systems use to initiate controlled shutdowns before mechanical damage propagates to catastrophic levels.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust ingress, and thermal cycling. The robust construction and wide operating temperature range of the 330104-00-14-10-02-CN make it well-suited for these harsh conditions, providing reliable shaft monitoring that protects high-value, long-lead-time rotating assets.

Water and Wastewater Treatment: High-speed centrifugal blowers and vertical turbine pumps in water treatment facilities benefit from continuous vibration monitoring to detect impeller wear and bearing degradation before they result in service interruptions that affect public water supply reliability.

Metallurgy and Steel Production: Rolling mill drives, continuous casting equipment, and large induction furnace cooling pumps operate in environments with intense electromagnetic fields and mechanical shock. The eddy-current technology of the 330104-00-14-10-02-CN is immune to the optical interference that would affect laser-based sensors, making it the preferred choice for position and vibration measurement in these environments.

Port and Marine Applications: Crane hoist drives, ship propulsion shaft monitoring, and offshore platform compressors represent applications where equipment reliability directly affects operational safety and schedule. The 330104-00-14-10-02-CN’s proven performance in high-vibration, salt-air environments supports long-term reliable operation in these demanding installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-00-14-10-02-CN?
All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional performance. Each probe undergoes pre-shipment functional testing to verify scale factor, linearity, and connector integrity before dispatch, ensuring that the unit you receive is ready for immediate installation.

Q2: How is compatibility with existing 3300 XL system components verified?
The 330104-00-14-10-02-CN is a standard 3300 XL Series 8mm probe and is fully interchangeable with other probes of the same series designation. It is designed to operate with the 3300 XL Proximitor Sensor and standard 3300 XL extension cables. For installations requiring verification against a specific Proximitor model or cable length, our technical team can confirm compatibility based on your system configuration prior to order.

Q3: Is long-term spare parts availability assured for safety-critical installations?
We maintain dedicated stock of the 330104-00-14-10-02-CN and related 3300 XL Series components to support planned maintenance programs, emergency replacements, and multi-year spare parts agreements. For facilities with API 670 machinery protection requirements, we recommend establishing a minimum on-site spare inventory and can assist with spare parts program planning to minimize exposure to lead-time risk on critical rotating machinery.

Q4: What pre-shipment testing is performed, and how does this support field safety?
Each unit is functionally tested prior to shipment to confirm that the probe meets Bently Nevada 3300 XL Series performance specifications, including output sensitivity, gap voltage linearity, and cable continuity. This testing eliminates the risk of installing a non-conforming probe in a safety-critical monitoring loop, where a latent defect could result in a missed alarm condition or a spurious trip that disrupts continuous production.
