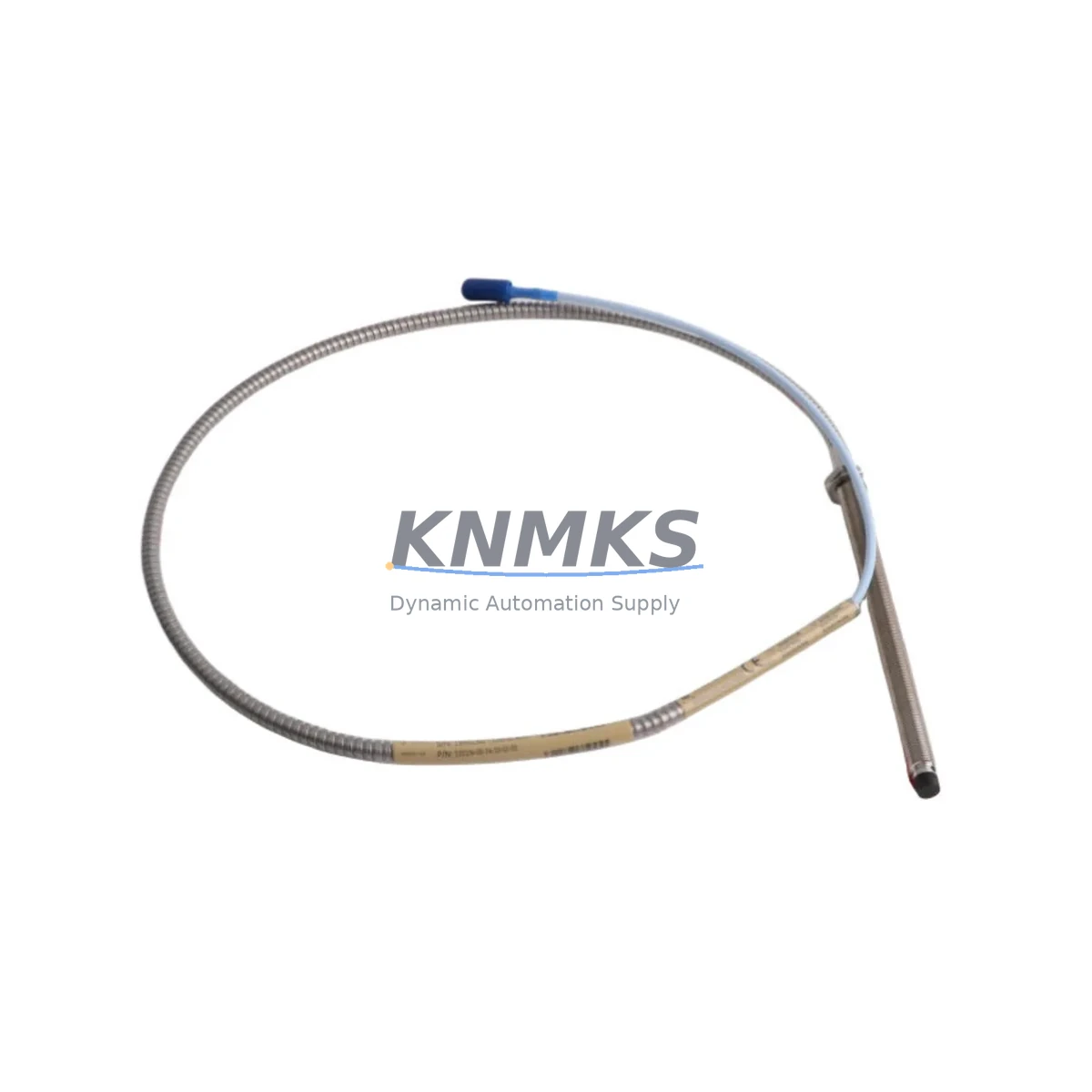

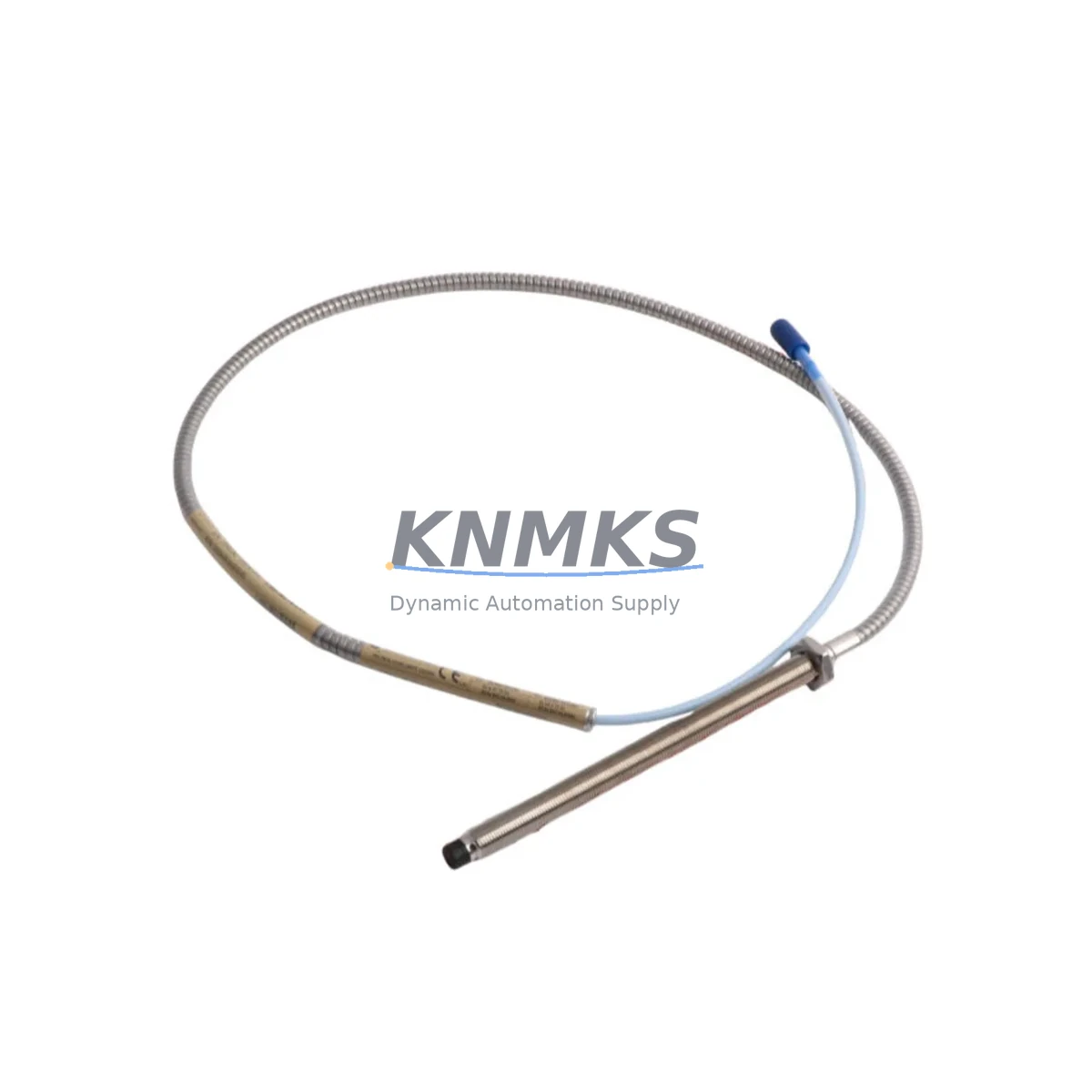

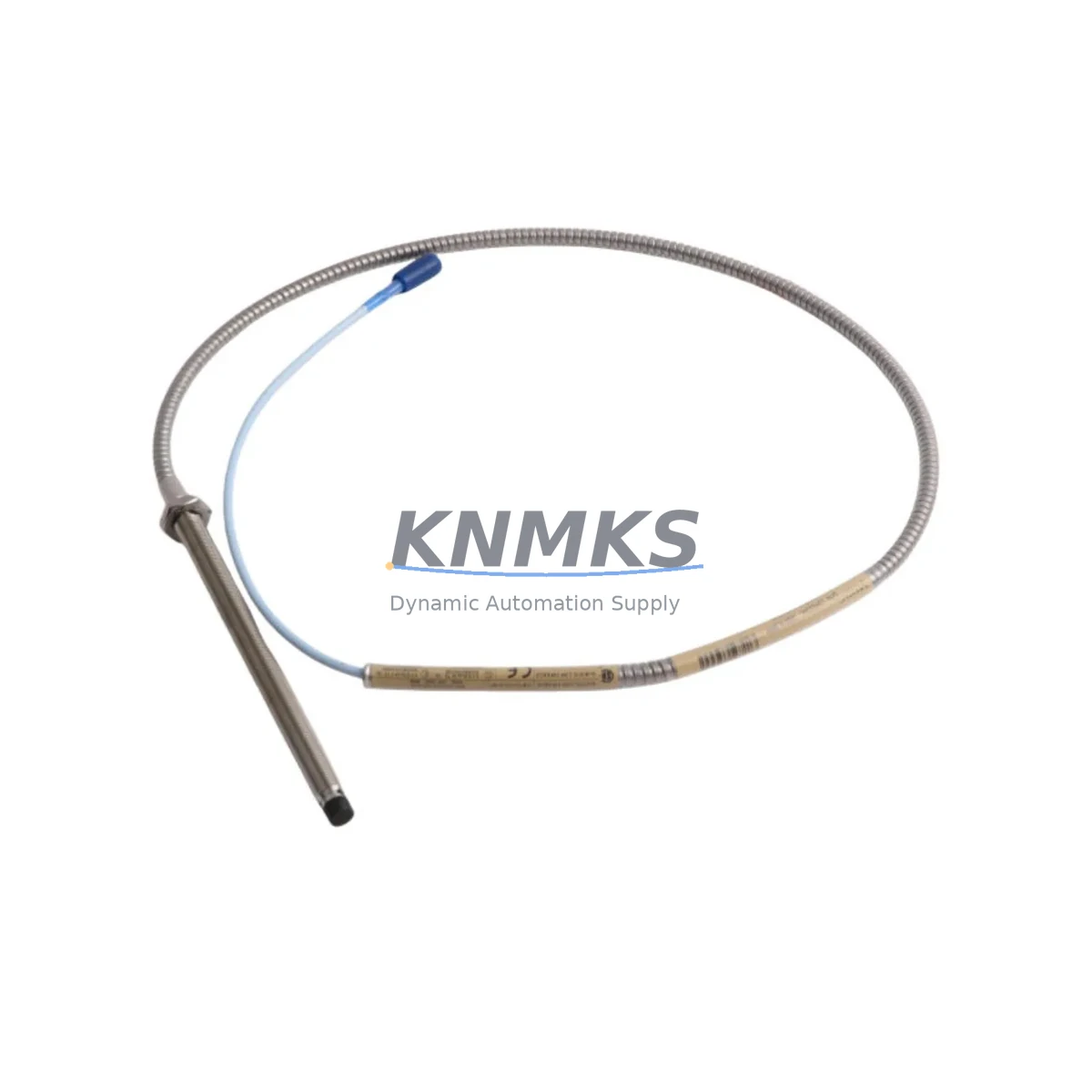

Bently Nevada 330104-00-14-10-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-00-14-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330104-00-14-10-02-05 is a 3300 XL Series eddy-current proximity probe engineered for direct replacement of discontinued or end-of-life vibration monitoring components in legacy rotating machinery protection systems. With a 14 mm tip diameter, 1000 mm cable length, and standard 5 mm/V sensitivity, this probe integrates seamlessly into existing 3300 XL monitor racks without requiring signal recalibration or rewiring of the junction box terminal strip. For plants operating aging turbine protection panels, compressor monitoring cabinets, or pump train surveillance systems, the 330104-00-14-10-02-05 provides a validated drop-in upgrade path that preserves original Keyphasor® reference signals and gap voltage settings established during initial commissioning.

When migrating from earlier 3300 Series probes or third-party eddy-current sensors, engineers must verify the existing proximitor extension cable — typically the 330130 or 330180 series — remains within the qualified cable length budget for the new probe. The 3300 XL Proximitor® Sensor (such as the 330180-51-05) must be confirmed compatible with the probe tip diameter and target material before installation. Gap voltage should be re-verified at the proximitor output terminal using a calibrated digital multimeter, targeting the –10.0 VDC nominal gap for steel targets, before the monitor channel is returned to service. If the existing 3500/42M Proximitor Monitor or 3500/40M Proximitor Monitor is configured for a different probe series, the configuration software must be used to update the probe type selection prior to live operation.

For control cabinets undergoing broader modernization — such as migration from a 3300 rack to a 3500 Series machinery protection system — the 330104-00-14-10-02-05 remains forward-compatible with 3500 Series Proximitor Sensors, reducing the probe replacement scope during platform upgrades. In these projects, the 3500/22M Transient Data Interface and 3500/32 4-Channel Relay Module are commonly installed alongside new probes to restore full transient capture and relay output functionality. Wiring from the field junction box to the new rack must be verified for shield continuity and ground isolation to prevent common-mode noise from corrupting the radial vibration signal.

Plants managing long-term spare parts programs for rotating equipment should note that the 330104-00-14-10-02-05 carries a support terms confirmed by quotation from date of shipment and is available from verified inventory. Procurement teams replacing obsolete probe assemblies across multiple machine trains can consolidate orders to reduce per-unit lead time and simplify incoming inspection. Each unit is function-tested prior to shipment to confirm gap voltage linearity and cable continuity, minimizing the risk of infant failure during scheduled outage installation windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-00-14-10-02-05 into an operating machinery protection system begins with a thorough audit of the existing probe holder, extension cable, and proximitor model. In most 3300 XL installations, the 330130-080-01-00 extension cable connects the probe to the proximitor mounted in the control cabinet, and this cable must be inspected for jacket integrity and connector pin condition before reuse. If the proximitor is a legacy 3300 XL Proximitor Sensor nearing end of service life, a parallel replacement with a 330180-51-05 Proximitor Sensor is recommended to avoid a second outage within the confirmed support period.

For machine trains where the 3500/42M Proximitor Monitor is already installed, the probe can be connected directly to the existing field wiring without changes to the monitor rack configuration, provided the probe series selection in the System 1 configuration database matches the 330104 probe family. In turbine applications where a Keyphasor® probe — such as the 330104-00-05-10-02-05 — is installed on the same shaft, the gap voltage of both probes should be verified simultaneously to confirm consistent reference signal quality across the monitoring loop.

Control cabinet upgrades that include installation of a 3500/20 Rack Interface Module or a 3500/05 Rack Power Supply alongside the new probe should be sequenced to minimize the number of monitor channels taken offline simultaneously. Where I/O expansion is required to add new measurement points during the retrofit, the 3500/42M four-channel monitor provides the most efficient path for adding radial vibration channels without expanding the rack footprint. Signal isolators may be required at the junction box if the cable run exceeds 30 meters or passes through areas with high electromagnetic interference from variable frequency drives or large motor starters.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity probe replacement requires pre-staging all replacement components — probe, extension cable, and proximitor if applicable — and completing a bench verification of gap voltage and cable continuity before the machine is taken offline. The 330104-00-14-10-02-05 should be pre-gapped to the nominal –10.0 VDC setpoint using a gap setting fixture before installation in the probe holder, reducing the time the machine shaft is exposed during the outage window.

Original program logic in the 3500 Series monitor — including alarm setpoints, danger thresholds, time delays, and relay assignments — should be exported from the System 1 configuration software and archived before any rack modifications begin. This ensures that if a configuration error occurs during the retrofit, the original protection parameters can be restored without relying on paper records. HMI display pages referencing the affected measurement points should be reviewed to confirm that tag names and engineering unit scaling remain consistent after the probe replacement, preventing false alarm conditions during the post-maintenance functional test.

After installation, a full functional test sequence — including gap voltage verification, vibration signal check using a calibrated shaker or shaft rotation, and relay output confirmation — should be completed before the machine is returned to automatic protection. Commissioning records should document the as-found and as-left gap voltage, cable resistance, and monitor channel configuration to support future maintenance planning and support requests. All replaced components should be tagged with the removal date and machine identification for traceability during the support terms confirmed by quotation period.

Retrofit Support FAQ

Q: Is the 330104-00-14-10-02-05 a direct replacement for earlier 3300 Series proximity probes?
A: Yes, for most 3300 XL installations. Verify the probe tip diameter (14 mm), cable length (1000 mm), and proximitor model compatibility before installation. If the existing proximitor is a non-XL 3300 Series unit, a proximitor upgrade may be required to maintain calibration accuracy.

Q: What commissioning steps are required after installing this probe?
A: Re-gap the probe to the nominal –10.0 VDC setpoint at the proximitor output terminal, verify cable continuity and shield isolation, confirm the monitor channel configuration matches the 330104 probe series, and complete a full functional test including alarm and relay verification before returning the machine to service.

Q: Can this probe be used with a 3500 Series machinery protection system?
A: Yes. The 330104-00-14-10-02-05 is compatible with 3500 Series Proximitor Sensors and 3500/42M Proximitor Monitors. Update the System 1 configuration database to reflect the probe series if migrating from a different probe family.

Q: What does the support terms confirmed by quotation cover, and how is inventory availability confirmed?
A: The support terms confirmed by quotation cover manufacturing defects and is valid from the date of shipment. Each unit is function-tested prior to dispatch. Current inventory availability is confirmed at time of order; contact admin@knmks.com or +86 18359268345 for lead time and quantity confirmation before placing bulk orders.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-14-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-14-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
