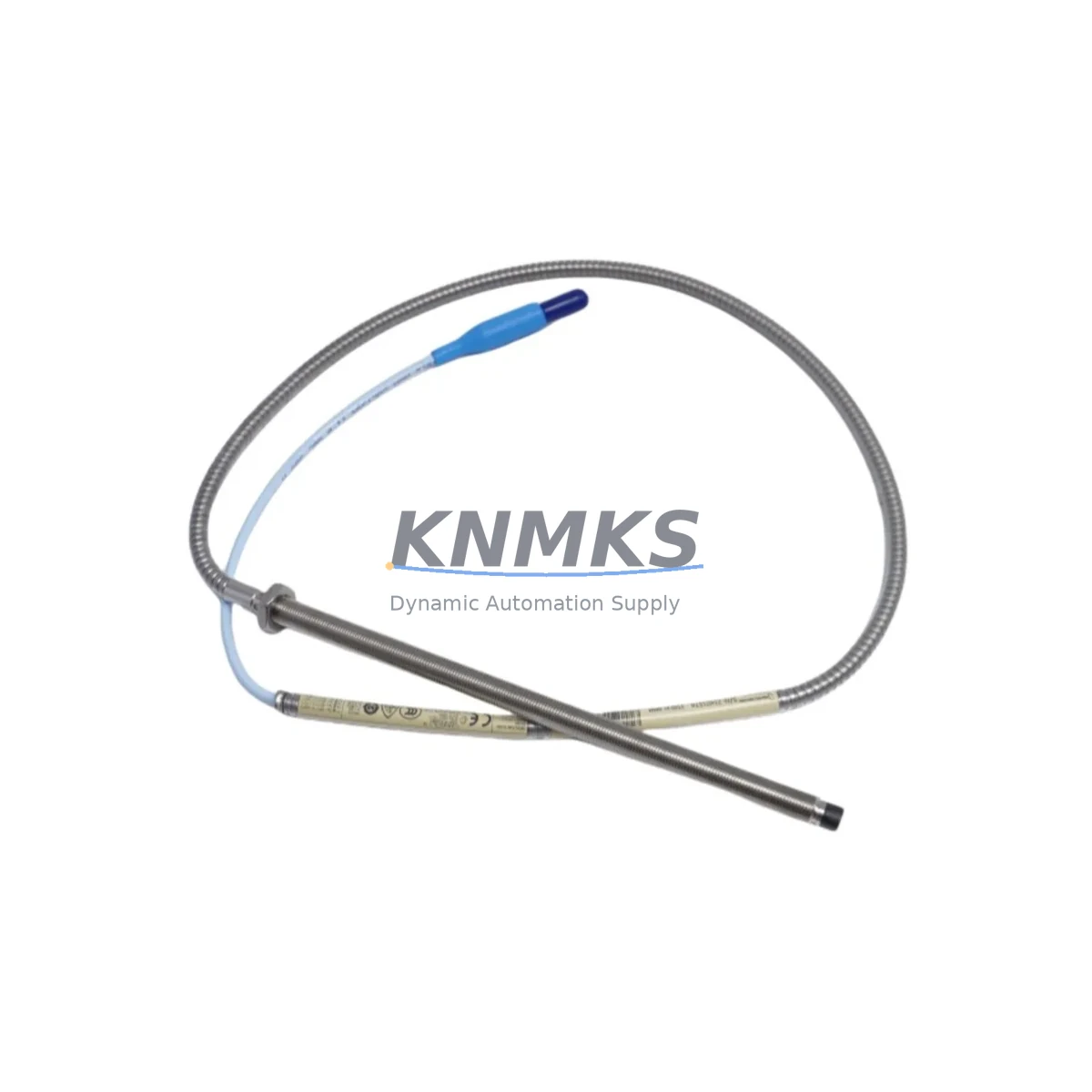

Bently Nevada 330104-00-13-10-02-CN Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-00-13-10-02-CN Migration-Ready Proximity Probe: Legacy System Retrofit and Control Upgrade

The Bently Nevada 330104-00-13-10-02-CN is an 8mm eddy-current proximity probe engineered for direct drop-in replacement within the Bently Nevada 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life, maintenance engineers and reliability teams face increasing pressure to source verified spare parts that preserve existing wiring, signal conditioning, and rack architecture without triggering a full system overhaul. The 330104-00-13-10-02-CN addresses this challenge by maintaining full electrical and mechanical compatibility with the 3300 XL monitor chassis, allowing facilities to extend operational life while planning a phased migration to current-generation platforms.

This probe is rated for a nominal gap range of 0.25 mm to 2.25 mm and operates with the standard Bently Nevada 3300 XL driver/extension cable system. The 5-metre integral cable with CN (Chinese) connector termination is factory-tested to confirm signal linearity, sensitivity, and insulation resistance before shipment. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and signal performance, supported by pre-shipment functional verification against OEM specifications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe within an operating rotating machinery protection system requires careful coordination across multiple subsystems. Before removing the existing probe, engineers should document the current gap voltage reading at the 3300 XL monitor — typically displayed on the front panel or via the System 1 condition monitoring software — to establish a baseline for post-installation verification. The 330104-00-13-10-02-CN installs directly into the existing probe boss without thread modification, but the integral cable routing path should be inspected to confirm there is no chafing risk against rotating components or sharp cabinet edges.

The probe pairs with a 330130-series extension cable to reach the 330180-series driver module mounted in the 3300 XL rack. When planning the retrofit, verify that the combined probe-plus-extension cable length does not exceed the 9-metre system limit specified for the 3300 XL driver, as exceeding this limit degrades sensitivity linearity and can trigger false alarm conditions on the vibration monitor. If the existing extension cable shows insulation degradation or connector corrosion — common in high-humidity or high-temperature machine rooms — replacing it alongside the probe eliminates a latent failure point and avoids a second planned outage.

Within the 3300 XL rack, the monitor card (such as the 3300/16 dual-channel vibration monitor) receives the probe signal and compares it against configured alert and danger setpoints. After probe replacement, the gap voltage should be re-zeroed at the monitor to account for any minor mechanical tolerance difference between the old and new probe. If the facility uses a Bently Nevada 3500 rack as part of a parallel upgrade path, note that the 3500/42M position monitor accepts the same 8mm probe family, allowing a phased migration where the probe hardware is standardised before the monitor rack is upgraded.

For facilities also upgrading their HMI layer, the System 1 Evolution software communicates with both 3300 XL and 3500 racks over Ethernet, meaning the probe replacement does not require any HMI screen reconfiguration provided the channel tag names and engineering unit scaling remain unchanged. Signal isolators installed between the driver output and the DCS analogue input card should be verified for input voltage range compatibility, as some older isolator models clip the –24 VDC bias signal if not configured for the full Bently Nevada output swing. Programming cables used for monitor configuration (such as the RS-232 to RJ-45 adapter for 3300 XL monitors) should be retained on-site throughout the retrofit to allow rapid setpoint adjustment if alarm thresholds need fine-tuning after the new probe is installed.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement begins with pre-staging all replacement components — probe, extension cable, and any connector adapters — before the maintenance window opens. The 330104-00-13-10-02-CN is shipped fully tested and ready for installation, eliminating the need for bench calibration on-site. The physical swap typically takes 15 to 30 minutes per probe position, but the critical path is the post-installation gap setting and signal verification, which requires the shaft to be stationary and the monitor to be in bypass mode to prevent spurious shutdowns during the adjustment procedure.

To protect the original program logic in the associated safety or control system, the 3300 XL monitor should be placed in bypass before the probe is disconnected. This prevents the monitor from issuing a danger output to the turbine or compressor control system during the open-circuit condition that exists while the probe is removed. Once the new probe is installed and the gap is set to the target voltage (typically –10 VDC ± 0.5 VDC for a standard radial vibration application), the bypass can be released and the monitor returned to normal protection mode. The entire procedure can be completed within a single shift when components are pre-staged and the maintenance team is familiar with the 3300 XL bypass and reset sequence, keeping field control continuity intact and reducing retrofit risk to the minimum achievable level.

Retrofit Support FAQ

Q1: Is the 330104-00-13-10-02-CN a direct replacement for my existing 3300 XL 8mm probe without any monitor recalibration?
Yes. The 330104-00-13-10-02-CN maintains the same 7.87 V/mm sensitivity and –24 VDC bias as the original 3300 XL 8mm probe family. After installation and gap setting, the monitor does not require sensitivity recalibration. Only the gap voltage zero reference needs to be confirmed at the monitor front panel or via System 1 software.

Q2: What wiring and connector checks should I perform before installation?
Confirm that the field-side connector matches the CN termination on the 330104-00-13-10-02-CN integral cable. Inspect the extension cable connector pins for corrosion or bent contacts. Verify the total probe-plus-extension cable length is within the 9-metre system limit for the 330180-series driver. If the existing extension cable is degraded, replace it at the same time to avoid a second outage.

Q3: Has this unit been tested before shipment, and what does the support terms confirmed by quotation cover?
Yes. Every 330104-00-13-10-02-CN unit undergoes pre-shipment functional testing covering sensitivity linearity, insulation resistance, and connector integrity. The support terms confirmed by quotation cover manufacturing defects and signal performance deviations from OEM specifications. Support requests are supported by our technical team with replacement dispatch from in-stock inventory to minimise your system downtime.

Q4: Can this probe be used in a phased migration from a 3300 XL rack to a 3500 rack?
Yes. The 330104-00-13-10-02-CN is compatible with both the 3300 XL and 3500 monitor families that accept standard 8mm eddy-current probes. This allows you to standardise probe hardware across both rack generations during a phased migration, reducing spare-part complexity and ensuring consistent gap-setting procedures across the transition period.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-13-10-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-13-10-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
