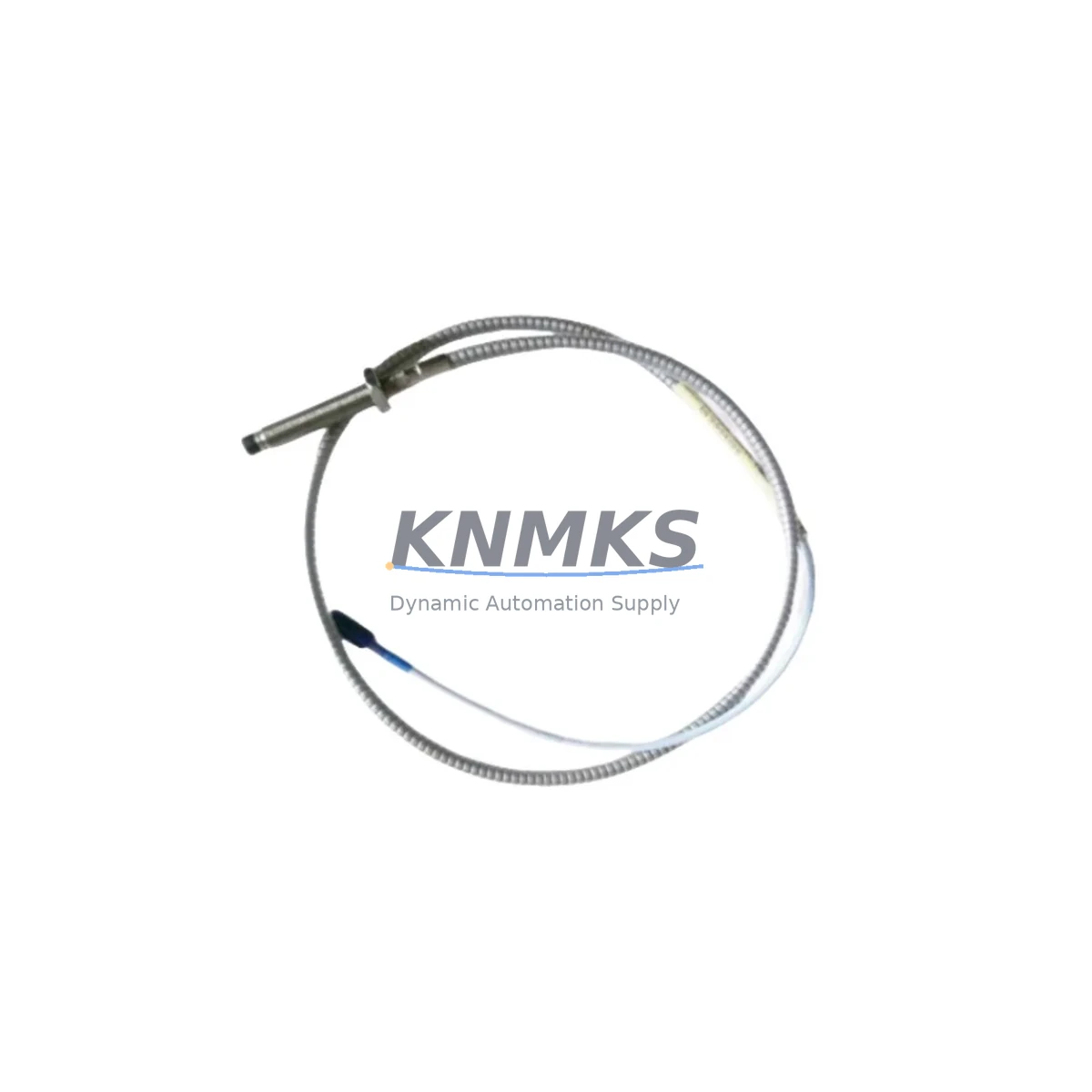

Bently Nevada 330104-00-13-10-01-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-00-13-10-01-CN Fail-Safe Proximity Probe: Fault-Protected Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330104-00-13-10-01-CN is an 8mm eddy-current proximity probe engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series, this probe delivers the measurement precision and signal integrity required for critical machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large rotating equipment in petrochemical, power generation, mining, and metallurgical facilities.

In continuous production environments where unplanned downtime carries severe operational and safety consequences, the 330104-00-13-10-01-CN provides the measurement stability that control engineers depend on. Its eddy-current sensing principle operates without physical contact, eliminating mechanical wear and ensuring consistent output even under high-speed shaft rotation, heavy radial loads, and thermally stressed conditions. The probe is rated for operation across a wide temperature range and maintains calibrated linearity in the presence of oil mist, process vapors, and moderate particulate contamination — conditions routinely encountered in refinery control rooms and compressor train enclosures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330104-00-13-10-01-CN does not operate in isolation — its reliability is inseparable from the integrity of the surrounding measurement chain and control cabinet architecture. In a properly configured 3300 XL system, the probe pairs with the Bently Nevada 330130 extension cable to bridge the distance between the probe tip and the driver module, maintaining signal fidelity across runs of up to 9 meters without impedance mismatch. The Bently Nevada 330180 proximitor driver conditions the raw probe signal into a calibrated voltage output, providing the –24 VDC supply and converting gap distance to a linear DC voltage that the monitor card can interpret for alarm and trip logic.

Within the control cabinet, the Bently Nevada 3500/42M Proximitor/Seismic Monitor processes the conditioned signal and executes the protective relay logic. In high-electromagnetic-interference environments — such as variable-frequency drive (VFD) cabinets, large motor control centers, or arc furnace control rooms — proper grounding of the probe shield at a single point is critical to prevent ground loops that introduce signal noise and false alarms. Supplementing the measurement system with a Bently Nevada 3500/15 Power Supply module ensures that voltage fluctuations on the plant bus do not propagate into the monitor rack, protecting the integrity of the trip setpoints.

For installations in hazardous-area classified zones (Zone 1 / Division 1), the measurement loop must incorporate a Bently Nevada 3300 XL Zener barrier or galvanic isolator between the field probe and the safe-area driver, limiting fault energy to intrinsically safe levels. In dusty or high-humidity enclosures, pairing the probe installation with a sealed junction box and appropriate cable gland selection prevents moisture ingress that can shift the probe’s gap calibration over time. Periodic verification using a Bently Nevada 330185 calibration standard (or equivalent target material disk) confirms that the probe-driver-cable system remains within the manufacturer’s linearity specification — a critical step in any planned maintenance interval or post-repair validation.

Critical Industrial Safety Applications

In petrochemical and refinery facilities, the 330104-00-13-10-01-CN is deployed on centrifugal compressor trains and process gas turbines where API 670 machinery protection is mandatory. Radial vibration and shaft position data from this probe feed directly into the safety instrumented system (SIS), triggering automatic shutdown before bearing damage or seal failure can escalate to a process safety event. The non-contact measurement principle ensures that the probe itself introduces no friction or heat into the monitored shaft system — a requirement in hydrogen and light hydrocarbon service where ignition risk must be minimized.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — this probe monitors shaft eccentricity and differential expansion on steam turbines operating at 3000 or 3600 RPM. Signal dropout or calibration drift in this application can mask developing rotor instability, making the probe’s fail-safe signal loss detection (via the 3300 XL monitor) a critical layer of protection. The probe’s wide operating temperature range accommodates the thermal gradients present near turbine bearing pedestals.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives subject proximity probes to severe vibration, shock loading, and abrasive dust. The 330104-00-13-10-01-CN’s robust stainless-steel housing and shielded cable construction provide the mechanical and electrical resilience needed to maintain continuous monitoring through these conditions. In metallurgical and steel plant environments, the probe operates reliably near induction furnaces and rolling mill drives where electromagnetic interference levels are among the highest encountered in industrial practice.

Water treatment and municipal utility operators rely on this probe for pump and blower protection in facilities where staffing levels make continuous manual monitoring impractical. Automated vibration-based shutdown prevents catastrophic pump failures that would interrupt water supply or wastewater treatment compliance. In port and marine applications, the probe monitors propulsion system auxiliaries and cargo handling equipment in salt-air environments, where its corrosion-resistant construction and sealed cable termination maintain measurement integrity over extended service intervals.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 330104-00-13-10-01-CN?
This unit carries a support terms confirmed by quotation from the date of shipment. Every probe undergoes pre-shipment functional testing and gap-linearity verification against a calibrated target. Test records are retained and available upon request. Support terms coverage addresses manufacturing defects and out-of-specification performance under normal operating conditions.

Q2: How is the probe tested before shipment, and what documentation is provided?
Each 330104-00-13-10-01-CN is bench-tested for coil continuity, insulation resistance, and output linearity across the specified gap range prior to packaging. A quality inspection record accompanies the shipment. For critical applications requiring full traceability, calibration certificates and lot documentation can be provided upon request at the time of order.

Q3: Is this probe compatible with existing 3300 XL extension cables and drivers already installed in the field?
Yes. The 330104-00-13-10-01-CN is a direct replacement for the standard Bently Nevada 3300 XL 8mm probe family. It is electrically and mechanically compatible with 330130-series extension cables and 330180-series proximitor drivers without requiring recalibration of the driver or monitor, provided the existing cable length and target material remain unchanged. Always verify the total system scale factor after any probe replacement as a best practice.

Q4: Can long-term supply agreements be arranged for this part number?
Yes. For facilities requiring guaranteed spare parts availability over 12–36 month horizons — common in petrochemical turnaround planning and power plant outage scheduling — blanket order and consignment stock arrangements are available. Contact our team to discuss volume commitments, lead time guarantees, and multi-site supply agreements tailored to your maintenance planning cycle.
