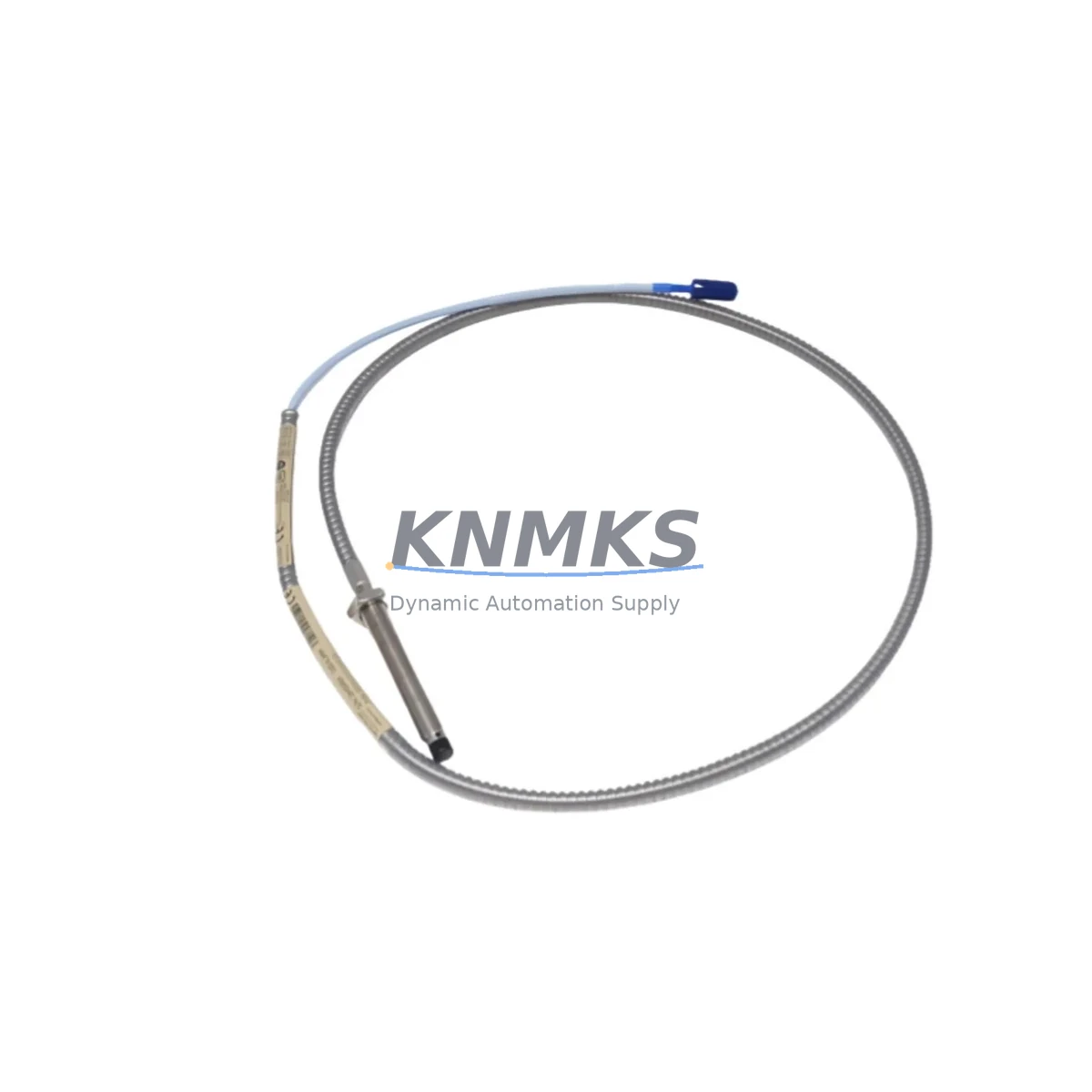

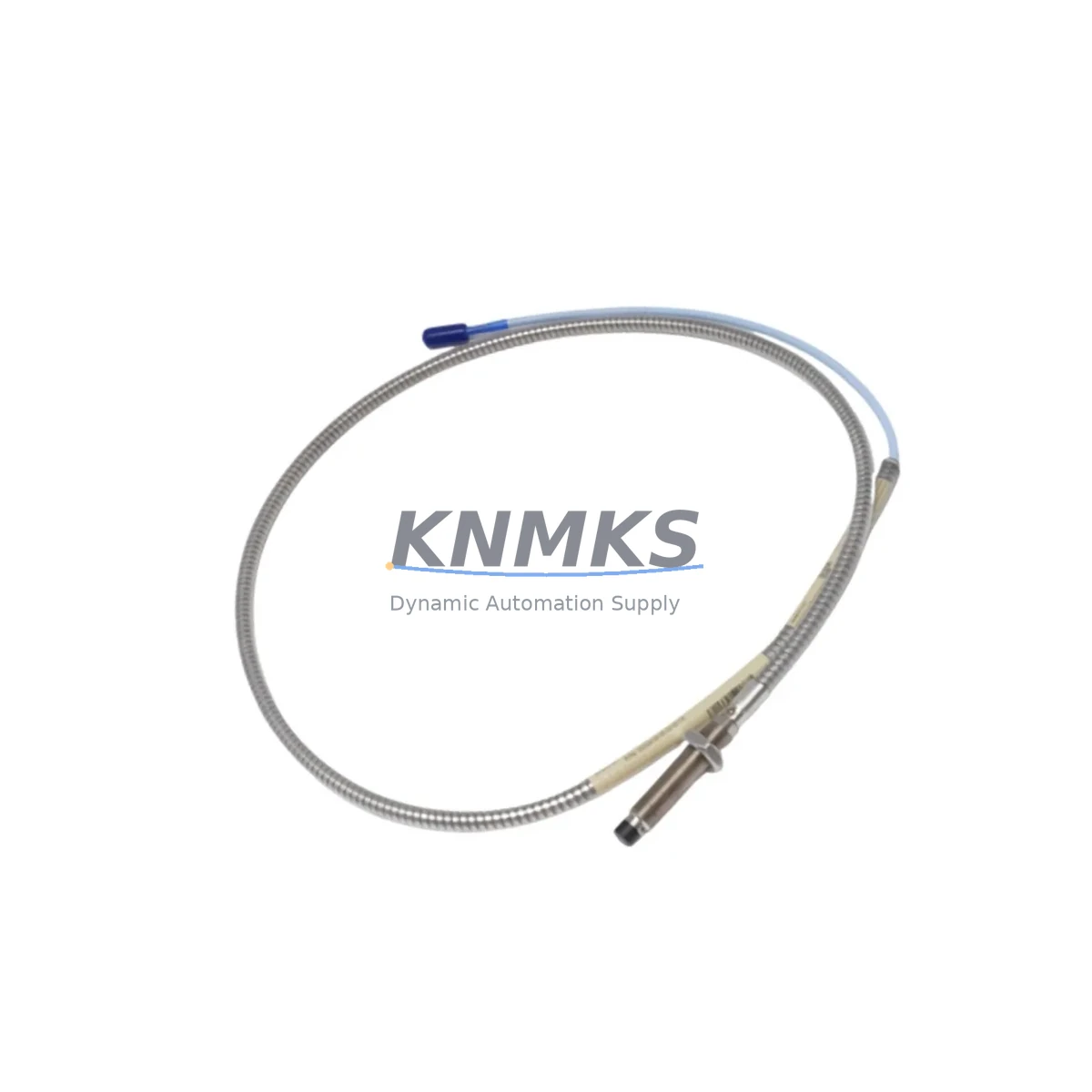

Bently Nevada 330104-00-12-10-01-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-00-12-10-01-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330104-00-12-10-01-00 is an 8mm eddy-current proximity probe engineered for direct drop-in replacement and migration-ready deployment within legacy Bently Nevada 3300 XL vibration monitoring systems. As rotating machinery protection platforms age and OEM support windows close, plant engineers and reliability teams face increasing pressure to source verified replacement components that maintain signal integrity, dimensional compatibility, and system certification without triggering full-platform overhauls. The 330104-00-12-10-01-00 addresses this challenge directly — offering a validated retrofit path that preserves existing wiring infrastructure, retains calibrated gap voltage references, and eliminates the need for re-engineering the proximity probe driver circuit.

When planning a replacement for a discontinued or end-of-life proximity probe in a 3300 XL monitoring loop, the first verification step is confirming that the replacement probe’s sensitivity coefficient (typically 200 mV/mil or 7.87 V/mm) matches the calibration constant stored in the paired Bently Nevada 3300 XL 8mm Extension Cable and the corresponding Proximitor® sensor — commonly the 3300 XL 8mm Proximitor® Sensor (part series 330180). Mismatched sensitivity between probe and Proximitor® will introduce a systematic offset into the vibration amplitude reading, which can mask real machinery faults or generate nuisance trips. The 330104-00-12-10-01-00 is factory-calibrated to the standard 3300 XL 8mm system sensitivity, ensuring direct interchangeability without recalibration of the monitoring rack.

Terminal wiring compatibility is a critical checkpoint during any proximity probe swap. The 330104-00-12-10-01-00 uses the standard coaxial connector interface compatible with Bently Nevada armored extension cables. Before disconnecting the existing probe, technicians should document the installed gap voltage (typically –10 VDC ± 1 VDC at the nominal air gap) using the Proximitor® sensor’s output test point. After installing the replacement probe and re-establishing the air gap to the shaft, the gap voltage must be re-verified and logged. If the monitoring system feeds into a Bently Nevada 3500 Series rack — a common upgrade scenario where a 3300 XL field probe is retained while the rack is modernized — the 330104-00-12-10-01-00 remains fully compatible with 3500/40M and 3500/42M monitor cards, provided the extension cable system is unchanged.

For facilities managing a broader control system migration — such as transitioning from a legacy DCS or safety system to a modern platform — the proximity probe field wiring is often the most stable element of the upgrade. The 330104-00-12-10-01-00 can be retained in service while upstream components, including the 3500 Series rack, junction boxes, and SCADA interface modules, are replaced in phases. This phased approach minimizes total downtime and allows the plant to maintain continuous vibration monitoring throughout the migration window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit within a legacy automation environment requires coordinated planning across multiple system layers. The 330104-00-12-10-01-00 is typically one component within a broader vibration monitoring loop that includes the Bently Nevada 3300 XL 8mm Extension Cable (330130 series), the Proximitor® sensor, the monitor rack I/O card, and the DCS or safety system analog input channel. When replacing only the probe, the extension cable condition must be assessed — a degraded cable shield or damaged connector can introduce noise that mimics real vibration signals, leading to false alarms or missed fault detection.

In control cabinet upgrade projects where the 3300 XL rack is being replaced with a 3500 Series rack, the field probe and extension cable assembly can often be retained without modification. The 3500/40M Proximitor® I/O Module accepts the same field wiring as the legacy 3300 XL system, reducing rewiring labor and the risk of wiring errors during cutover. If the project also involves replacing the plant’s HMI — for example, migrating from a legacy Wonderware or iFIX SCADA screen to a modern platform — the vibration trend data from the 3500 rack can be re-mapped to the new historian tags without requiring changes to the field probe wiring.

For I/O expansion projects where additional measurement points are being added to an existing 3500 rack, the 330104-00-12-10-01-00 can be used to populate new probe locations while maintaining a consistent spare parts inventory across the facility. Standardizing on a single probe model across multiple machine trains simplifies technician training, reduces the number of SKUs held in the maintenance storeroom, and ensures that gap voltage calibration procedures are uniform across all measurement points. Signal isolators — such as DIN-rail-mounted galvanic isolators — may be required when the proximity probe output is shared between the Bently Nevada rack and a separate DCS analog input card to prevent ground loop interference.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or broader vibration monitoring system migration requires a structured pre-outage preparation process. Before the maintenance window opens, technicians should retrieve and archive the current vibration baseline data — including 1X and 2X amplitude trends, gap voltage readings, and alarm setpoints — from the existing monitoring system. This baseline serves as the acceptance criterion for the replacement probe: after installation, the new probe’s gap voltage and vibration amplitude readings should fall within the historical operating band before the machine is returned to service.

Program logic protection is relevant when the proximity probe feeds a safety instrumented system (SIS) or a machine protection relay. In these configurations, the SIS input card should be bypassed or placed in maintenance mode before the probe is disconnected to prevent a spurious trip. The bypass status should be formally documented and time-limited in accordance with the facility’s management of change (MOC) procedure. Once the replacement probe is installed and gap voltage is verified, the bypass can be removed and the SIS input confirmed as active before the machine is restarted.

For multi-machine outage windows where several proximity probes are being replaced simultaneously, pre-staging replacement probes with pre-measured and documented gap settings — using a calibration fixture or reference target — can reduce per-machine installation time significantly. Shipping lead time risk is mitigated by maintaining a buffer stock of the 330104-00-12-10-01-00 in the plant storeroom, supported by the support terms confirmed by quotation coverage that protects against early-life failures without requiring immediate reorder.

Retrofit Support FAQ

Q: Is the 330104-00-12-10-01-00 a direct replacement for other 8mm Bently Nevada proximity probes?
A: Yes. The 330104-00-12-10-01-00 is dimensionally and electrically compatible with other 8mm probes in the Bently Nevada 3300 XL system family. Verify that the replacement probe’s sensitivity (200 mV/mil) matches the Proximitor® sensor’s configured sensitivity before returning the machine to service. No recalibration of the Proximitor® is required if the sensitivity coefficients match.

Q: What commissioning steps are required after installing the replacement probe?
A: After mechanical installation, set the air gap to the manufacturer’s recommended value for the target material and measure the Proximitor® output voltage. The gap voltage should fall within –10 VDC ± 1 VDC. Perform a cable continuity check on the extension cable, confirm that the monitor rack is receiving a valid signal, and compare the initial vibration reading against the archived baseline. Document all readings in the maintenance record before closing the work order.

Q: Can this probe be used with a Bently Nevada 3500 Series rack during a phased upgrade?
A: Yes. The 330104-00-12-10-01-00 is compatible with 3500/40M and 3500/42M monitor cards when used with the standard 3300 XL 8mm extension cable and Proximitor® sensor. This compatibility supports phased migration strategies where the field probe assembly is retained while the monitoring rack is upgraded, reducing the scope and cost of the rack replacement project.

Q: What does the support terms confirmed by quotation cover, and what is the typical lead time?
A: The support terms confirmed by quotation cover manufacturing defects and verified signal performance failures under normal operating conditions. Units are pre-tested prior to shipment to confirm electrical continuity, insulation resistance, and sensitivity within specification. Stock availability is maintained to support urgent replacement requirements. Contact admin@knmks.com or +86 18359268345 for current lead time and inventory status.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-12-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-12-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
