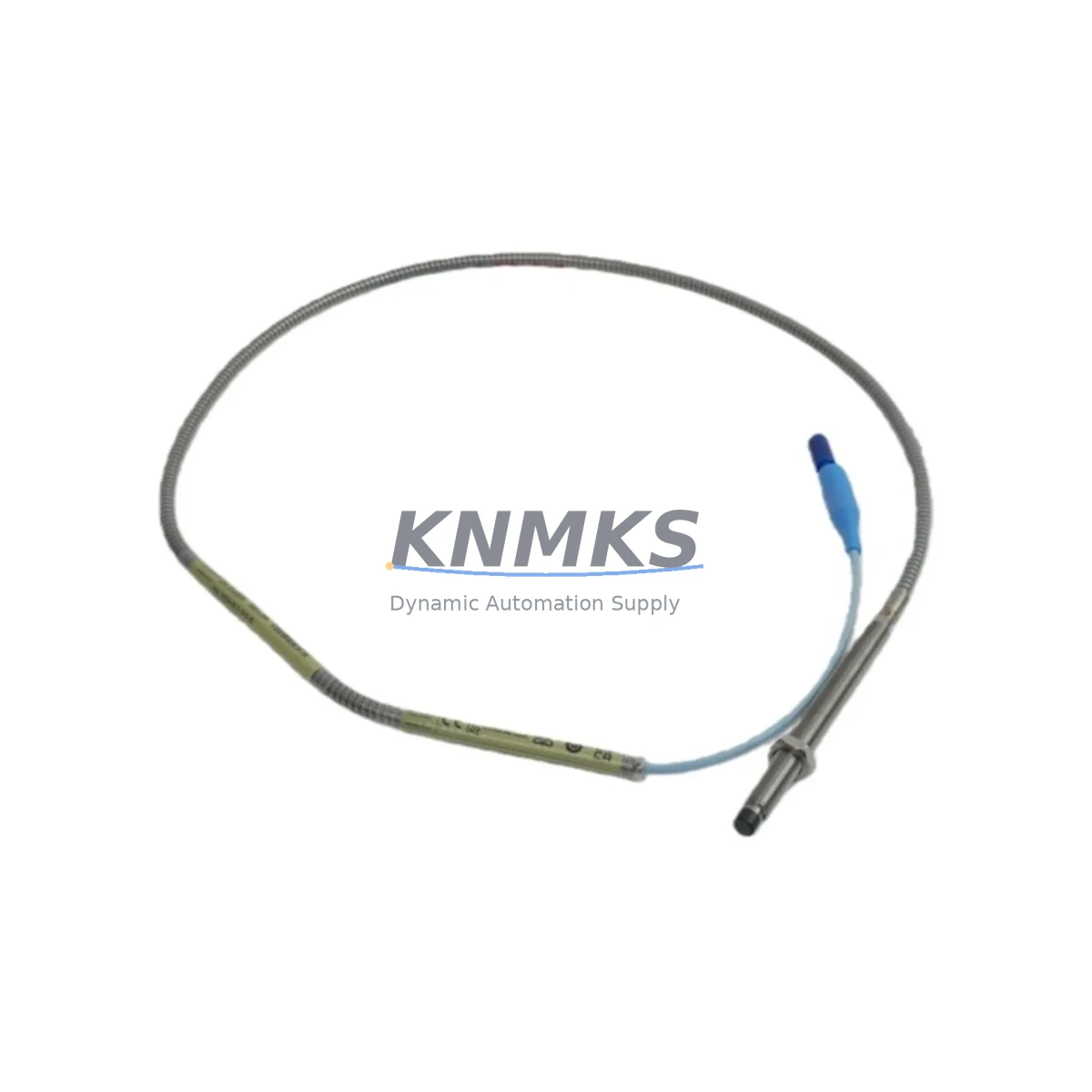

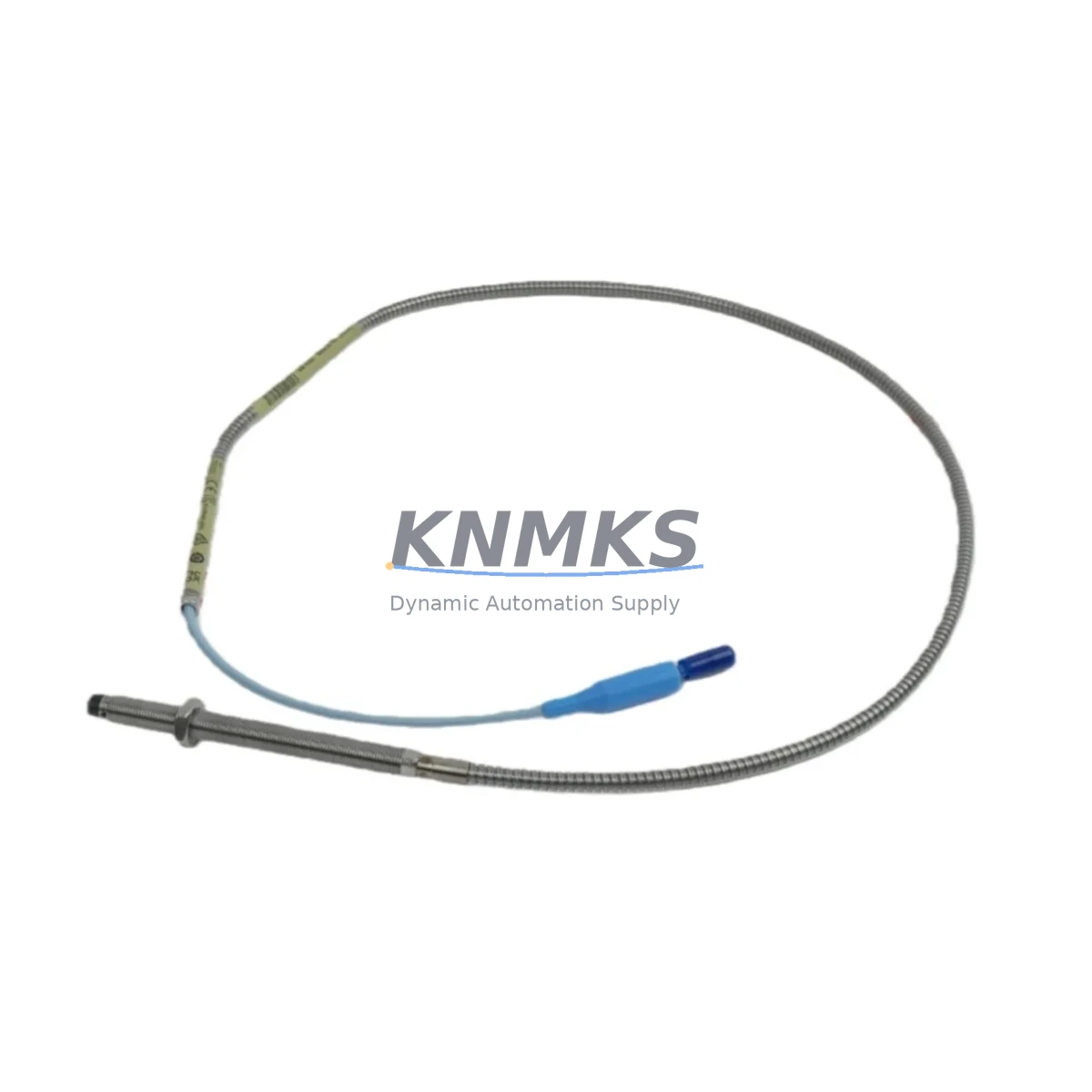

Bently Nevada 330104-00-11-10-01-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-00-11-10-01-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330104-00-11-10-01-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s tightly integrated measurement chain, this probe delivers uninterrupted signal integrity across rotating machinery, high-vibration structures, and safety-critical control loops where measurement failure is not an option.

In continuous production facilities — including petrochemical plants, power generation stations, steel mills, and offshore platforms — shaft vibration monitoring is a first-line defense against catastrophic mechanical failure. The 330104-00-11-10-01-05 is purpose-built to maintain stable gap voltage output under conditions of high electromagnetic interference, shaft runout, thermal cycling, and mechanical shock. Its non-contact sensing principle eliminates wear-related drift, ensuring that vibration amplitude and DC gap signals remain accurate over extended service intervals without recalibration.

When deployed alongside the Bently Nevada 3300 XL Extension Cable and a matched 3300 XL Proximitor Sensor (such as the 330180 series), the complete measurement chain maintains system sensitivity within ±1% across the full operating temperature range. This level of precision is essential for machinery protection systems that must discriminate between normal process vibration and early-stage bearing or seal degradation. Integration with Bently Nevada 3500 Series Rack monitoring systems allows the probe output to feed directly into safety-rated trip logic, enabling automated shutdown before damage propagates.

In control cabinet environments subject to high-density wiring, variable-frequency drive harmonics, and ground loop interference, the 330104-00-11-10-01-05 maintains signal fidelity through its shielded coaxial cable construction and robust connector sealing. When paired with Bently Nevada 330130 series armored extension cables, the system resists cable-induced signal degradation even in cable trays shared with high-voltage power conductors. For installations in classified hazardous areas, the probe’s intrinsically safe ratings support deployment in Zone 1 and Zone 2 environments without additional barriers when used within the approved system configuration.

Replacement and spare parts management for rotating machinery protection is a critical operational discipline. Stocking the 330104-00-11-10-01-05 as a certified spare — alongside compatible Bently Nevada 330105 series probes for alternative gap ranges — ensures that maintenance teams can execute planned replacements during scheduled outages rather than sourcing parts under emergency conditions. Each unit shipped by KNMKS undergoes pre-shipment functional verification, including tip impedance check, cable continuity, and connector integrity inspection, backed by a support terms confirmed by quotation from date of shipment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture extends well beyond the probe tip. In a typical turbomachinery or compressor train control cabinet, the 330104-00-11-10-01-05 feeds its analog output into a Bently Nevada 3500/42M Proximitor I/O Module, which conditions the signal and applies configurable alert and danger setpoints. Upstream power quality is maintained by a dedicated 24 VDC redundant power supply module — such as those from the Phoenix Contact QUINT series — ensuring that transient voltage sags or utility interruptions do not corrupt the measurement chain or trigger spurious trips.

For installations where multiple probes monitor a single shaft (X-Y radial vibration plus axial position), cable routing discipline is critical. Using Bently Nevada 330130 armored extension cables with individual drain wires terminated at a single-point ground prevents ground loops that can introduce low-frequency noise indistinguishable from real shaft motion. In high-EMI environments — such as those adjacent to large motor drives or arc furnace transformers — additional shielding via metallic cable conduit or EMC cable glands at cabinet entry points further suppresses interference.

Cabinet thermal management directly affects probe system longevity. Proximitor sensors mounted inside enclosures subject to solar loading or poor ventilation can experience accelerated component aging. Pairing the measurement system with cabinet-mounted thermostat-controlled fan units or heat exchangers maintains internal temperatures within the Proximitor’s rated operating range, preserving calibration stability and extending mean time between failures across the entire vibration monitoring loop.

Critical Industrial Safety Applications

The 330104-00-11-10-01-05 is deployed across a broad spectrum of safety-critical industrial applications. In petrochemical and refinery environments, it monitors centrifugal compressor and pump shaft vibration as part of emergency shutdown (ESD) interlock systems, providing the real-time data that safety instrumented systems (SIS) require to execute safe-state transitions before seal failure or bearing collapse. In power generation — including gas turbine, steam turbine, and hydro applications — the probe’s high-temperature tolerance and stable sensitivity make it the standard choice for shaft eccentricity and differential expansion monitoring on critical rotating assets.

In mining and mineral processing, where crusher drives, ball mills, and conveyor head pulleys operate under heavy cyclic loads and high dust concentrations, the probe’s sealed construction and non-contact measurement principle provide reliable vibration data without the contamination sensitivity of contact-type sensors. Water and wastewater treatment facilities rely on the 3300 XL system for pump and blower shaft monitoring in corrosive, high-humidity environments where sensor longevity is a persistent maintenance challenge. In metallurgical and port handling applications — including rolling mill drives and ship-loader slewing mechanisms — the probe’s wide linear range accommodates the larger shaft diameters and higher runout values typical of heavy industrial machinery.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 330104-00-11-10-01-05?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Support terms coverage includes defects in materials and workmanship under normal operating conditions consistent with Bently Nevada’s published installation and application guidelines.

Q2: What pre-shipment testing is performed on each unit?
Each 330104-00-11-10-01-05 undergoes a multi-point inspection prior to dispatch: probe tip impedance measurement, full cable continuity verification, and physical inspection of the connector body and sealing surfaces. Units that do not meet specification are quarantined and not shipped.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series racks?
Yes. The 330104-00-11-10-01-05 is designed as a direct system component of the Bently Nevada 3300 XL measurement chain. It is fully compatible with 3300 XL Proximitor Sensors and integrates with 3500 Series monitoring racks without modification to existing wiring or configuration, provided the extension cable length is within the system’s qualified range.

Q4: Can KNMKS support long-term supply commitments for maintenance and spare parts programs?
Yes. KNMKS maintains stock of the 330104-00-11-10-01-05 and related 3300 XL series components to support planned maintenance schedules, annual turnaround outages, and emergency replacement requirements. Long-term supply agreements with defined lead times are available for facilities with recurring demand. Contact our technical sales team to discuss stocking arrangements aligned with your maintenance planning cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-11-10-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-11-10-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
